| برند محصول | HighPoint Technologies, Inc. |
|---|---|

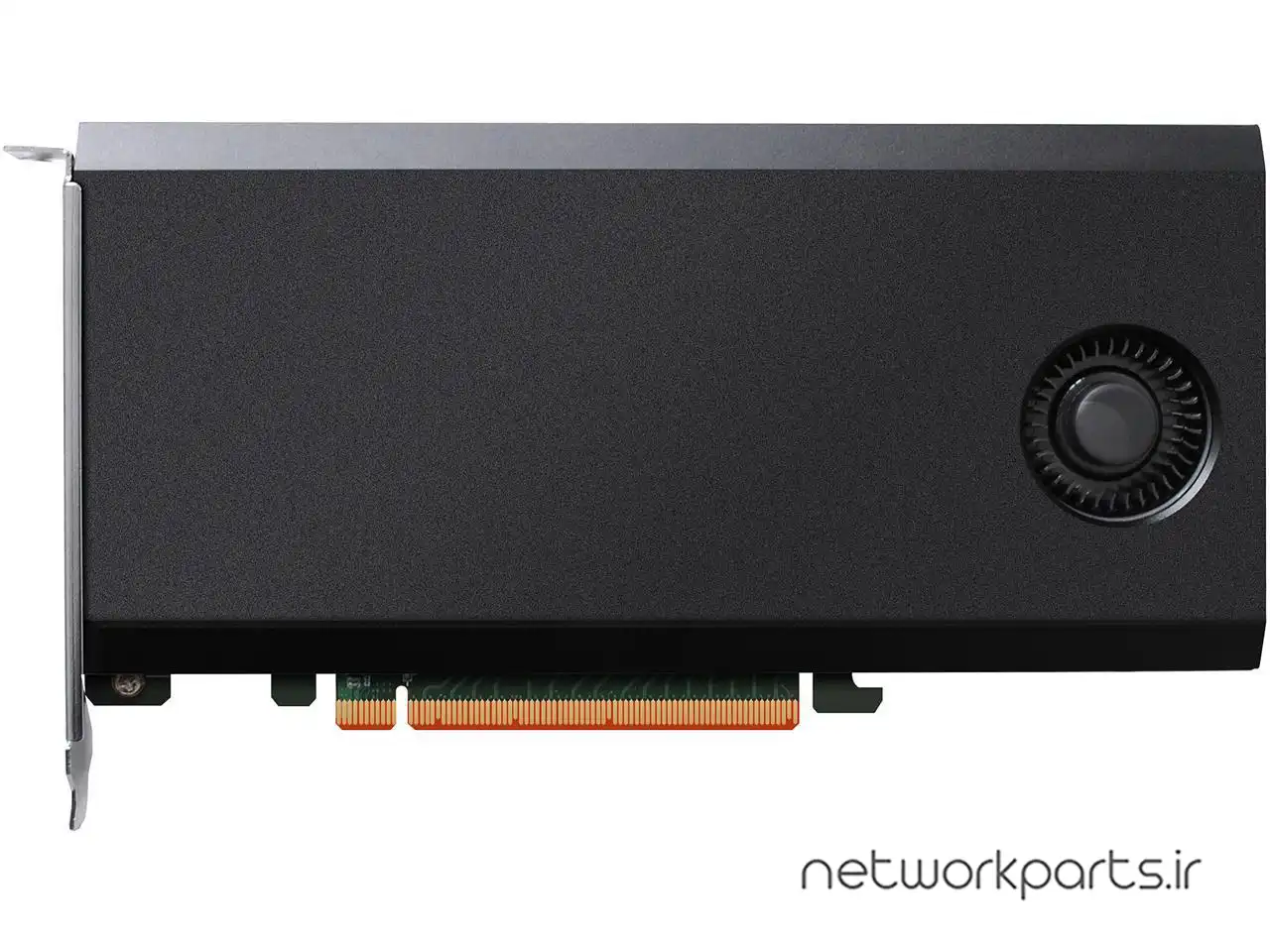

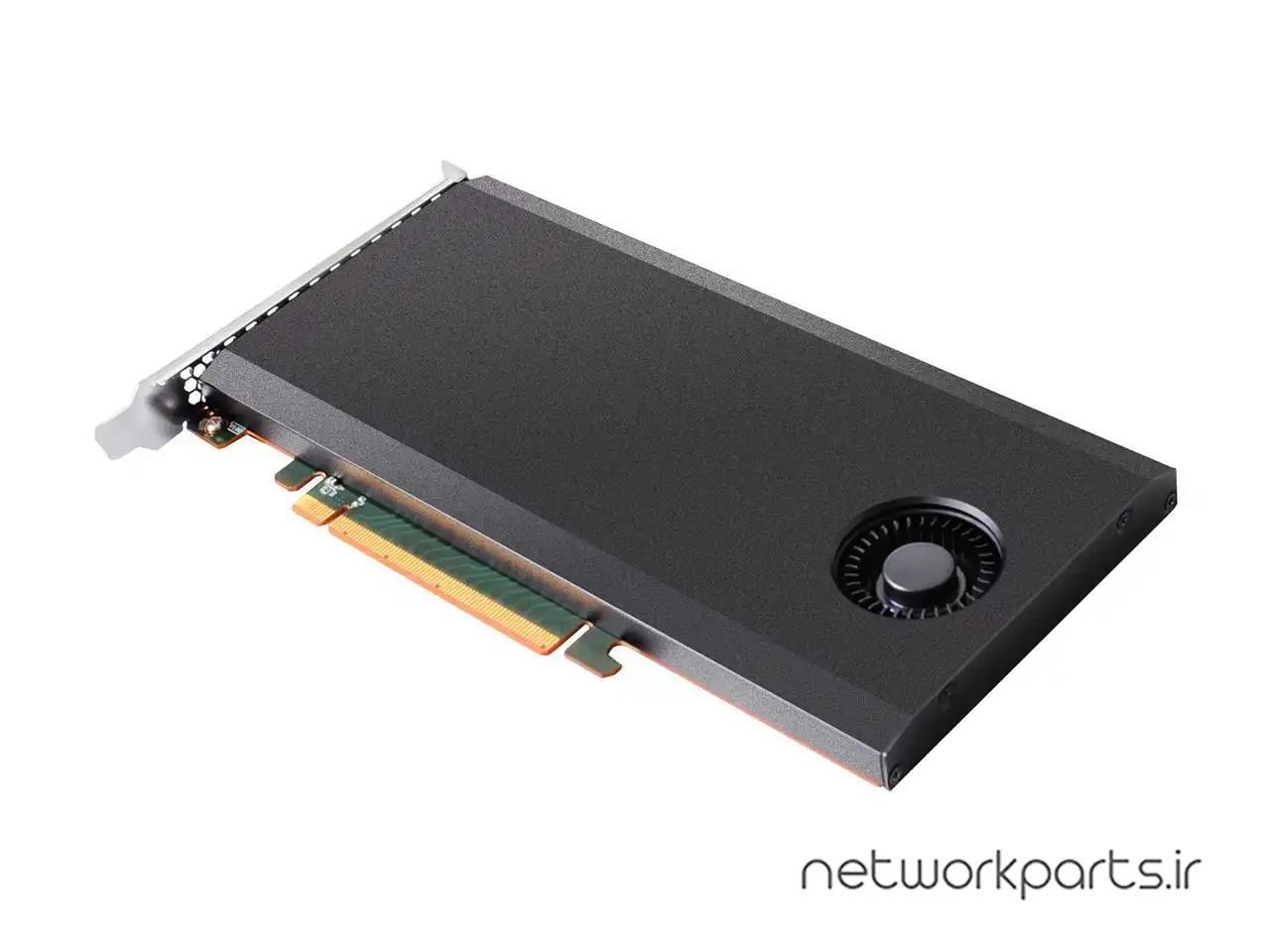

| مدل محصول | SSD7103 |
| نوع | M.2 |
| نوع رابط | PCI Express 3.0 x16 |
| نرخ انتقال | 8GT per lane / 8 Gbps per lane |
| سیستم عامل پشتیبانی شده | Microsoft Hyper-V & Xen Server, Windows 10, Windows Server 2016 or later |
| ویژگی ها | Alarm Buzzer, API package, Auto resume incomplete rebuilding after reboot, Automatic and configurable RAID Rebuilding Priority, Bus Interface: PCI-Express 3.0 x16, CLI (Command Line Interface- scriptable configuration tool), Compliance Certification: CE, FCC, RoHS, REACH, WEEE, Comprehensive NVMe Boot Support for Linux & Windows, Cooling: Aluminum casing with single 50x 50 mm cooling fan, Cost effective NVMe Storage Upgrade for Intel platforms, Data Transfer Rate: 8GT per lane / 8 Gbps per lane, Dedicated PCIe 3.0 x16 bus bandwidth, Dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD, Feature Specifications:, Form Factor: Full Height (2242/2260/2280/22110), Management Suites: Browser-Based management tool, Microsoft Hyper-V & Xen Server, MTBF (Mean Time Before Failure): 920,585 Hours, Number of Channel / Port: 4x M.2 NVMe port (Dedicated PCIe 3.0 x4 per port), Number of device: 4x M.2 NVMe SSD, NVMe Configuration:, NVMe RAID Management :, NVMe SMART status, Operating Environment:, Operating Voltage: PCI-e: 12V, 3.3V, Power: Typical: 8W, RAID 0, 1, 1/0, RAID Support: Legacy / RAID 0 / RAID 1 / RAID 1/0, Single-RAID or Multi-RAID Arrays per Controller, SMTP Email Alert Notification, Storage Health Inspector, Storage Mode - NVMe: UEFI Bootable & Data RAID, Storage Temp: -20 degree C ~ +80 degree C, TRIM RAID Support: UEFI Bootable & Data RAID, Up to 4 off-the-shelf M.2 MLC, TLC & QLC NVMe SSD's, Work Temp: +5 degree C ~ + 55 degree C |
| ابعاد | 0.85"x8.39"x5.00" |

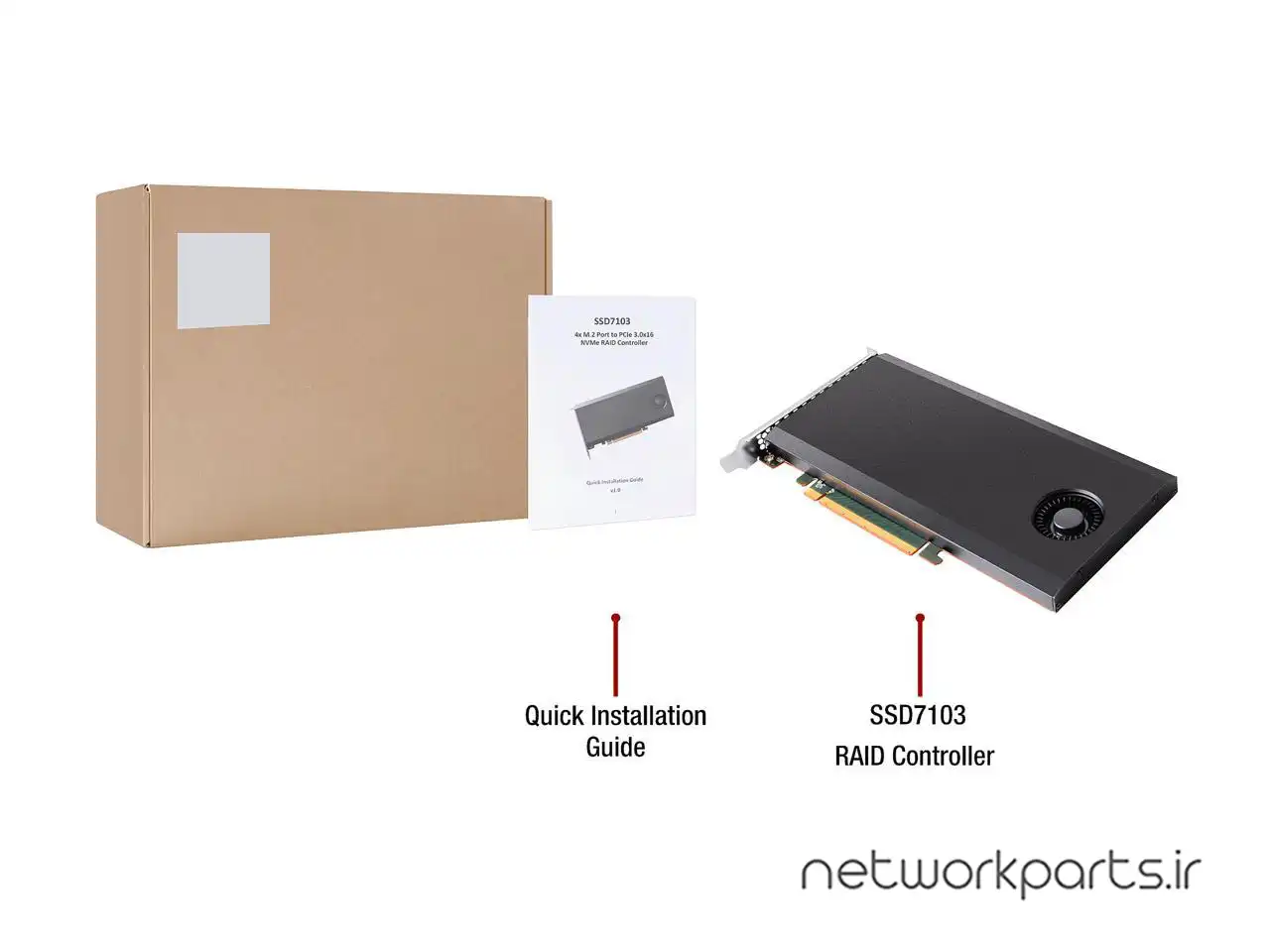

| محتویات بسته بندی | 1x Quick Installation Guide, 1x SSD7103 RAID Controller |
