برند محصول | Sapphire Tech |
---|
سری محصول | PULSE |
---|
مدل محصول | 11306-05-20G |
---|
فرم فاکتور (قالب) | ATX |
---|
نوع رابط | pci express 4.0 |
---|
تولید کننده چیپ ست | AMD |
---|
سری پردازنده گرافیکی | AMD Radeon RX 6000 Series |
---|
GPU | Radeon RX 6700 XT |
---|
معماری | RDNA 2 |
---|
فرکانس Boost | 2615 MHz |
---|
فرکانس Game | 2433 MHz |
---|
پردازنده های Stream | 2560 Stream Processors |
---|
اندازه حافظه | 12gb |
---|
درگاه اتصال حافظه | 192-bit |
---|
نوع حافظه | gddr6 |
---|
سرعت موثر Clock حافظه | 16 Gbps |
---|
Directx | directx 12 ultimate |
---|
حداکثر وضوح تصویر | 7680 x 4320 |
---|
پشتیبانی از چند نمایشگر | 4 |
---|

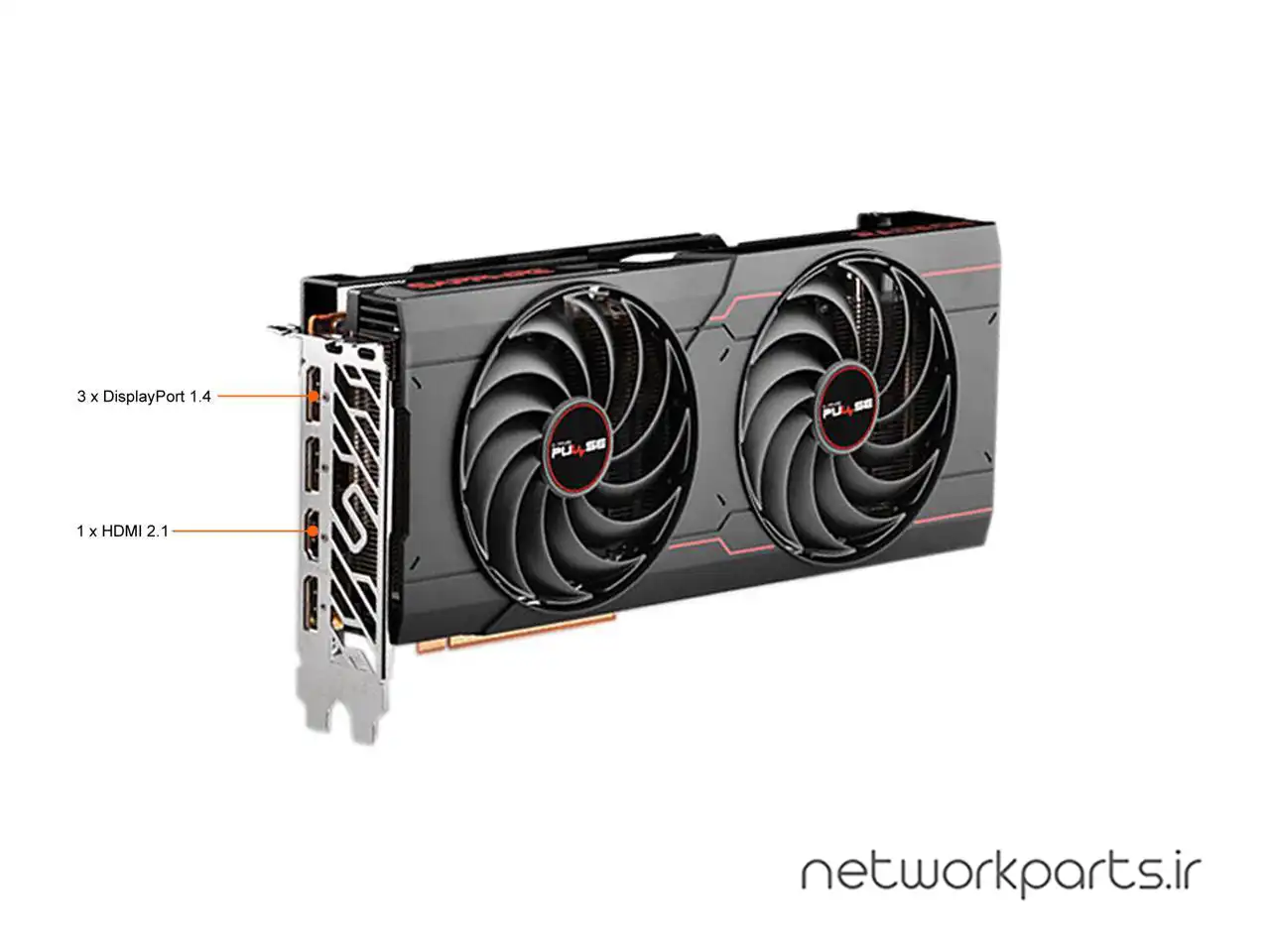

HDMI | 1 x hdmi 2.1 |
---|
پورت نمایشگر | 3 x DisplayPort 1.4 |
---|
امکان واقعیت مجازی | بلی |
---|
سیستم مورد نیاز | Minimum 8GB of system memory. Recommended 16GB., PCI Express based PC is required with one X16 lane graphics slot available on the motherboard., 1 x 8-pin + 1 x 6-pin Power Connector., Minimum 650 Watt Power Supply. |
---|
ولتاژ پیشنهاد شده منبع تغذیه | 650W |
---|
اتصالات منبع تغذیه | 1 x 6-Pin + 1 x 8-Pin |
---|
توان حرارتی (TDP) | 230W |
---|
خنک کننده | دو فن |
---|
سیستم عامل پشتیبانی شده | * Does not support all features including but not limited to Hardware Raytracing., Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit operating system required |
---|
ویژگی ها | 7nm GPU, AMD Features:, AMD FidelityFX, AMD FreeSync Technology, AMD RDNA 2 Gaming Architecture, DirectX 12 Ultimate, DisplayPort 1.4 with DSC, Dual-X Cooling Technology, Fuse Protection, Game Driver Optimizations, Hardware Raytracing, HDMI 2.1 VRR, Infinity Cache, Integrated Cooling Module, Intelligent Fan Control, Metal Backplate, PCI Express 4.0 Support, Precision Fan Control, Premium Digital Power Design, Radeon Anti-Lag, Radeon Image Sharpening, Radeon Software, Radeon VR Ready Premium, Sapphire Features:, Smart Access Memory, TriXX Boost, TriXX Supported, Two-Ball Bearing Fans, Video Streaming up to 8K |
---|
حداکثر طول GPU | 260 mm |
---|
ابعاد کارت (طول x ارتفاع) | 10.24" x 4.72" |
---|
عرض اسلات | 2.2 |
---|
