ASRock Rack

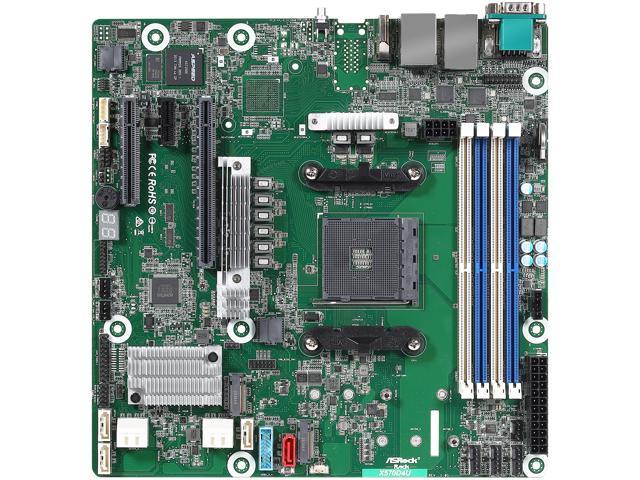

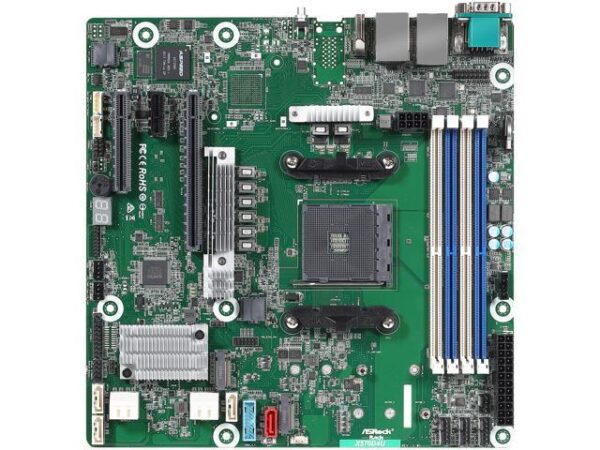

X570D4U
MicroATX
Supports:, AMD Ryzen 5000 and 3000 Series Desktop Processors, AMD Ryzen 5000, 4000 and 3000 G-Series Desktop Processors with Radeon Graphics, AMD Ryzen PRO 5000, 4000 and 3000 Series Desktop Processors
PGA1331
AMD X570
4 x 288-pin
DDR4 3200
بلی
*Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics, SLOT6: Latch PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to PCIe4.0 x8 when SLOT4 is occupied
*Disabled when using 2nd Gen AMD Ryzen Processors with Radeon Graphics, SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU]
*Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics, SLOT5: PCIe 4.0 x1*
12 x SATA 6.0Gb/s
0/1/10
*Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics, 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU], 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570]
4 SATA via optional M2-HD M.2 device, 8 SATA 7-pin connectors, including 1 support SATA DOM, X570 (12 SATA 6Gb/s, support RAID 0/1/10):
Aspeed AST2500
1 x HDMI + 1 x VGA
Intel I210
10/100/1000Mbps
10Gbps
2 x RJ45
2 x USB 3.1
1
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus, BMC_SMB Header: 1, Buzzer: 1, Clear CMOS: 1 (contact pads), Fan Header: 3 (6-pin), 3 (4-pin), Front Lan LED Connector: 1 for LAN3/LAN4, Front Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED, IPMB Header: 1, PMBus CONN: 1, Power Connector: 1 ATX main power (24-pin), 1 ATX 12V (8-pin), Speaker Header: 1, TPM Header: 1 (17-pin, LPC)*, 1 (13-pin, SPI), TR1 Header: 1, VGA Header: 1

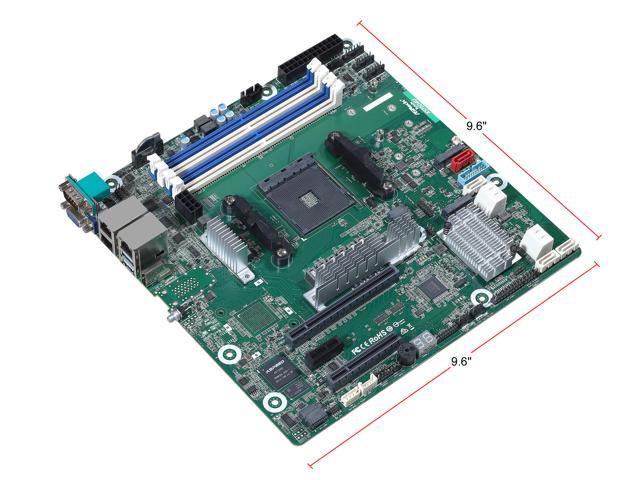

9.6" x 9.6"
