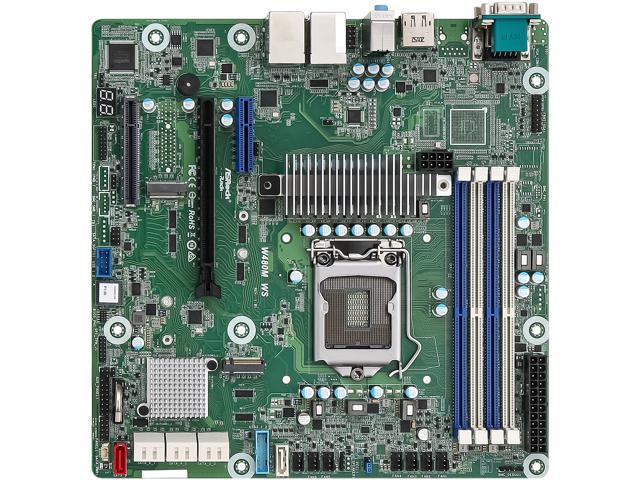

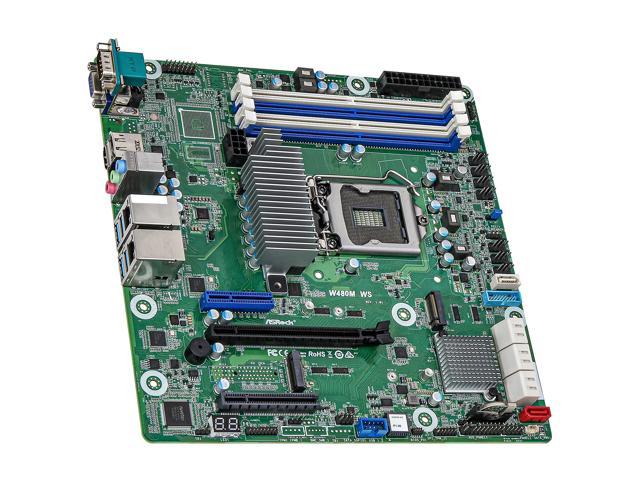

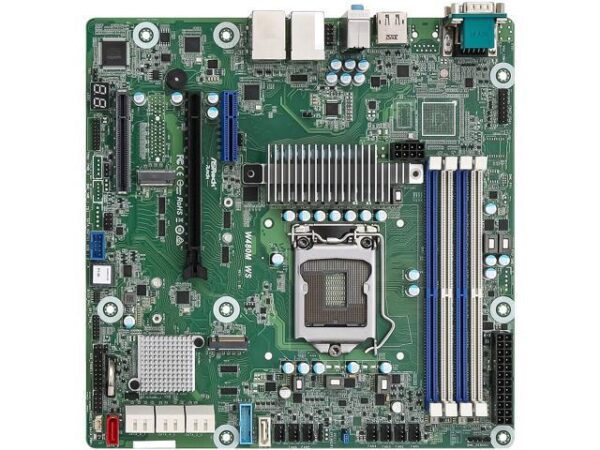

ASRock Rack
W480M-WS
MicroATX
Intel Xeon W-1200, 10th Gen Intel Core Processors
LGA1200
Intel W480
4 x 288-pin
2 کانال
*2933 MHz supported by Intel Xeon W-1290/W-1270 series processors, and 10th Gen Intel Core i9/i7 processors, DDR4 2933*/2666/2400
SLOT6: PCI Express 3.0 x16 (auto switch to x8 when SLOT4 is populated)
SLOT4: PCI Express 3.0 x8
SLOT7: PCI Express 3.0 x4
8 x SATA 6.0Gb/s
0/1/5/10
2 M-key (PCIe3.0 x4); supports 2280/2242 form factor
1 x HDMI,1 x VGA, 1 x DisplayPort
Realtek ALC892
3 Ports
Intel I210
10/100/1000Mbps
2 x RJ45
2 x USB 3.2 Gen 1 Type-A
2 x USB 3.2 Gen 2 Type-A
1
*support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support., Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus, Buzzer: 1, Clear CMOS: 1 (contact pads), Fan Header: 7 (4-pin), ME/SPS Recovery: 1, Power Connector: 24-pin (ATX), 8-pin (12V), 4pin (12V), SATA DOM: 1, SGPIO Header: 1, Speaker Header: 1, System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED, Thermal Sensor Header: 1, TPM Header: 1 (17-pin, LPC)*, 1 (13-pin, SPI), USB 2.0 Header: 1 ( supports 2 USB2.0 ports), USB 3.2 (Gen1) Header: 1 (supports 2 USB3.2 Gen1 ports), VGA Header: 1
9.6" x 9.6"
