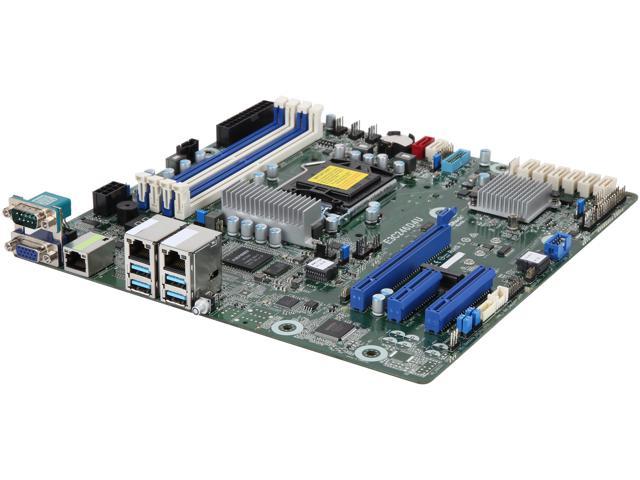

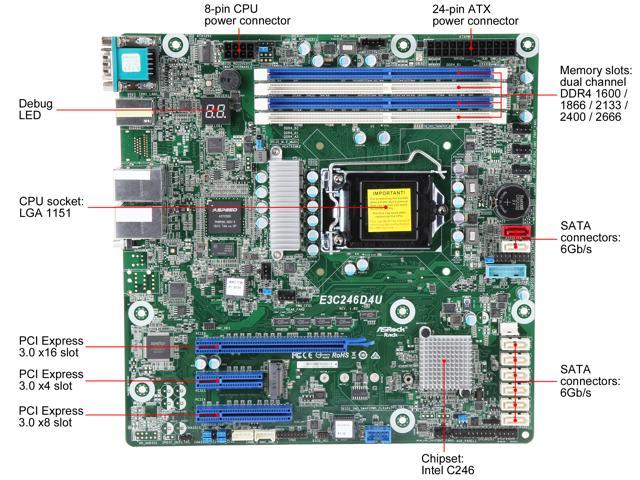

ASRock Rack
E3C246D4U
MicroATX
Supports Intel Xeon E-2100 / E-2200 Series Processors
LGA1151
Intel C246
4 x 288-pin
2 کانال
ECC UDIMM: 1600 / 1866 / 2133 / 2400 / 2666 MHz, Non-ECC UDIMM: 1600 / 1866 / 2133 / 2400 / 2666 MHz
Support up to 128GB DDR4 ECC / non-ECC UDIMM
Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied
Slot 4: Gen3 x8 link
Slot 5: Gen3 x4 link
8 x SATA3 6Gb/s (SATA0-7, SATA0 supports SATA DOM, and is shared with M.2 (PCIE3.0 (x4) ) / SATA3)
Aspeed AST2500
1 x D-Sub
Intel I210
2 x RJ45 GLAN by Intel i210+Intel i219
10/100/1000Mbps
1 x RJ45 Dedicated IPMI LAN port, 2 x RJ45 Gigabit Ethernet LAN ports, LAN Ports with LED (ACT / LINK LED and SPEED LED)
2 (Gen2) x USB 3.1, 2 (Gen1) x USB 3.1
ATX Power: 1x (24-pin) + 1x (8-pin), Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus, BMC_SMB Header: 1, Buzzer: 1, Clear CMOS: 1 (short pin), Fan Header: 6(1CPU/3Front/2Rear), Front Panel: 1 (RST, PWRBTN, HDDLED, PWRLED, IPMB Header: 1, M.2: 1 (2230/2242/2260/2280, Supports PCIE3.0(X4)/SATA3), ME/SPS Recovery: 1, NMI Header: 1, PSU SMB Header: 1, SATA DOM: 1 (shared with M.2), SGPIO Header: 2, Speaker Header: 1(4pin), TPM Header: 1, TR1 Header: 1, USB 2.0 Header: 1 (support 2 USB2.0), USB 3.2 (Gen1) Header: 1 (supports 2 USB3.2 Gen1 ports)
9.6" x 9.6"
