| برند محصول | Planet |
|---|
| سری محصول | Industrial |
|---|

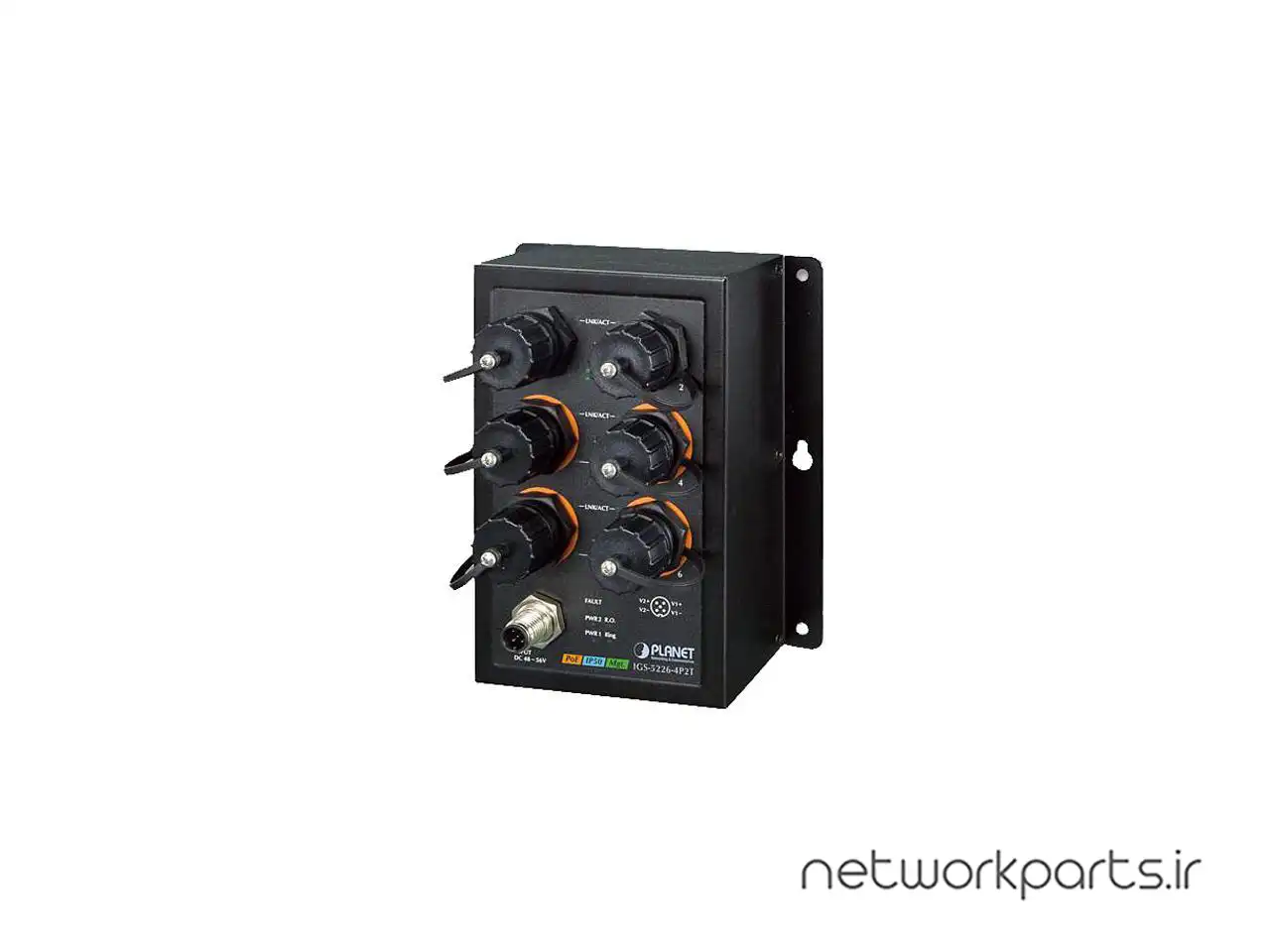

| مدل محصول | IGS-5226-4P2T |
|---|
| فرمت | DIN Rail, Wall |
|---|
| نوع مدیریت شبکه | Managed |
|---|
| متد سوییچ | Store and Forward |
|---|
| پورت اصلی | 6 |
|---|
| پورت های اصلی | 6x RJ45 |
|---|
| سرعت پورت اصلی | 10/100/1000Mbps |
|---|
| پورت Mirroring | Many to 1 |
|---|
| پروتکل ها | IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1s Multiple Spanning Trees, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IPv4 software static routing, IPv6 software static routing, Routing Protocols:, Spanning Tree Protocol: |
|---|
| لایه | 3 |
|---|
| PoE | IEEE 802.3af Standard: Per port 48V – 51V DC (depending on the power supply), max. 15.4 watts, IEEE 802.3at Standard: Per port 51V – 56V DC (depending on the power supply), max. 36 watts, PD at 15.4 watts: 4 units, PD at 30.8 watts: 4 units, PD at 7 watts: 4 units, PoE Ability:, PoE Power Budget: 144 watts (depending on power input), PoE Power Output, PoE Power Supply Type: End-span, PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE, Power Pin Assignment: 1/2 (+), 3/6 (-) |
|---|
| QoS | 8-level priority for switching:, 802.1p priority, 802.1Q VLAN tag, DSCP / ToS field in IP packet, Port number, Traffic classification based, strict priority and WRR |
|---|
| SNMP | بلی |
|---|
| LACP | بلی |
|---|
| پشتیبانی از VLan | 802.1Q tagged based VLAN, MAC-based VLAN, MVR (Multicast VLAN registration), Private VLAN Edge (PVE), Protocol-based VLAN, Q-in-Q tunneling, Up to 255 VLAN groups, out of 4095 VLAN IDs, Voice VLAN |
|---|
| حافظه Buffer | 4MB |
|---|
| Jumbo frame | 9 KB |
|---|
| جدول MAC آدرس | 8K |
|---|
| دکمه | Reset |
|---|
| LED | 10/100/1000T RJ45 Interfaces (Port 1 to Port 48):, LNK/ACT (Green), PoE-in-Use (Orange), PWR1 (Green), PWR2 (Green), Fault (Red), Ring (Green), R.O. (Green), System: |
|---|
| توان | Dual 48 – 56V DC (>53V DC for PoE+ output recommended), Max. 165.3 watts / 563.67 BTU |
|---|
| دما | Operating: -40 – 75 C, Storage: -40 – 80 C |
|---|
| رطوبت | 5% – 95%, Non-condensing |
|---|
| استانداردها | FRC 3810 MLD v2, IEEE 802.1AB LLDP, IEEE 802.1D Spanning Tree (STP), IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging, IEEE 802.1s Multiple Spanning Tree (MSTP), IEEE 802.1w Rapid Spanning Tree (RSTP), IEEE 802.1x Port Authentication Network Control, IEEE 802.3 10BASE-T, IEEE 802.3ab Gigabit 1000T, IEEE 802.3ad port trunk with LACP, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3az EEE (Energy Efficient Ethernet), IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), RFC 1112 IGMP v1, RFC 2068 HTTP, RFC 2236 IGMP v2, RFC 2710 MLD v1, RFC 3376 IGMP v3, RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 793 TFTP |
|---|
| ویژگی ها | 6-port 10/100/1000BASE-T dustproof RJ45 copper with 4-port IEEE 802.3at/af Power over Ethernet Injector function, Active-active redundant power failure protection, Auto detects powered device (PD), Backup of catastrophic power failure on one supply, Circuit protection prevents power interference between ports, Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE, Fault tolerance and resilience, Hardware Conformance:, High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth, IEEE 1588 and Synchronous Ethernet network timing (Port 1 – 12), IGMP snooping port filtering, IP50-rated metal case, Layer 2 Features:, Layer 3 IP Routing Features:, Loop protection to avoid broadcast loops, MLD snooping port filtering, Multicast:, MVR (Multicast VLAN Registration), PD alive check, PD classification detection, PD scheduled power recycling, Per PoE port power limitation, Per port PoE function enable/disable, Physical Port:, PoE management, PoE port power feeding priority, PoE schedule, Port mirroring monitors the incoming or outgoing traffic on a particular port, Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex), Provides port mirror (many-to-1), Querier mode support, Remote power feeding up to 100 meters, Storm control support, Supports 6000V DC Ethernet ESD protection, Supports E.R.P.S. (Ethernet Ring Protection Switching), Supports IGMP snooping v1, v2 and v3, Supports Link Aggregation, Supports maximum 32 static routes and route summarization, Supports MLD snooping v1 and v2, Supports PoE power up to 36 watts for each PoE port, Supports Spanning Tree Protocol, Supports VLAN, Total PoE power budget control, Up to 4 ports of IEEE 802.3af/802.3at devices powered |
|---|
| امنیت | Access Control List, Authentication:, Built-in RADIUS client to co-operate with RADIUS server, DHCP Snooping to filter distrusted DHCP messages, Dynamic ARP Inspection, IEEE 802.1x authentication with guest VLAN, IEEE 802.1x port-based/MAC-based network access authentication, IP address access management to prevent unauthorized intrude, IP Source Guard prevents IP spoofing attacks, IP-based Access Control List (ACL), MAC-based Access Control *, RADIUS / TACACS+ users access authentication, Source MAC/IP address binding |
|---|
| ابعاد | 6.30" x 5.20" x 2.95" |
|---|
| وزن | 1.79 پوند |
|---|
