| برند محصول | Netis Systems |
|---|---|
| مدل محصول | ST3224 |
| فرمت | Desktop |
| نوع مدیریت شبکه | Web Managed |
| متد سوییچ | Store and Forward |
| پورت اصلی | 24 |
| پورت های اصلی | 1x RS232 Console port, 24x 10/100Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| سرعت پورت اصلی | 10/100Mbps |
| پورت Mirroring | بلی |
| QoS | 802.1p Priority Based QoS, 802.1p Priority Queues: 4 Queues, IP DSCP Priority Based QoS, Switch Port Based QoS, WRR/ Strict Mode supported |
| پشتیبانی از VLan | Standard: 802.1Q, Static VLAN Groups: 4K |
| جدول MAC آدرس | 4K |
| LED | PWR, 1-24 10/100M, 1-24 LNK/ACT |
| توان | 100-240 V AC/50-60Hz |
| دما | Operating temperature: 0 degree to 50 degree C (32 degree to 122 degree F), Storage temperature: -25 °C to 70 °C |
| رطوبت | Operating Humidity: 90% maximum relative humidity, non-condensing, Storage Humidity: 5%~90% non-condensing |
| استانداردها | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3z Gigabit SX/LX, IEEE 802.3ab Gigabit 1000Base-T, IEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3x Flow Control and Back Pressure, IEEE 802.3ad Por |
| ویژگی ها | 24 10/100Mbps RJ45 ports, 48 Gbps switching fabric capacity, Plug and play, Auto-Negotiation, Auto MDI/MDIX detection, Quick and easy setup with Web-based management page, Steel desktop design, with internal power supply, Supports 4K MAC address table, Supports 802.1q VLAN, Supports Broadcast Storm Control, Supports IGMP snooping v1, v2 and v3, Supports port configuration, including speed, duplex and flow control, Supports Port Mirroring, Flow mirroring, Supports QoS, Port Bandwidth Control |
| امنیت | Broadcast Storm Control, MAC Binding |

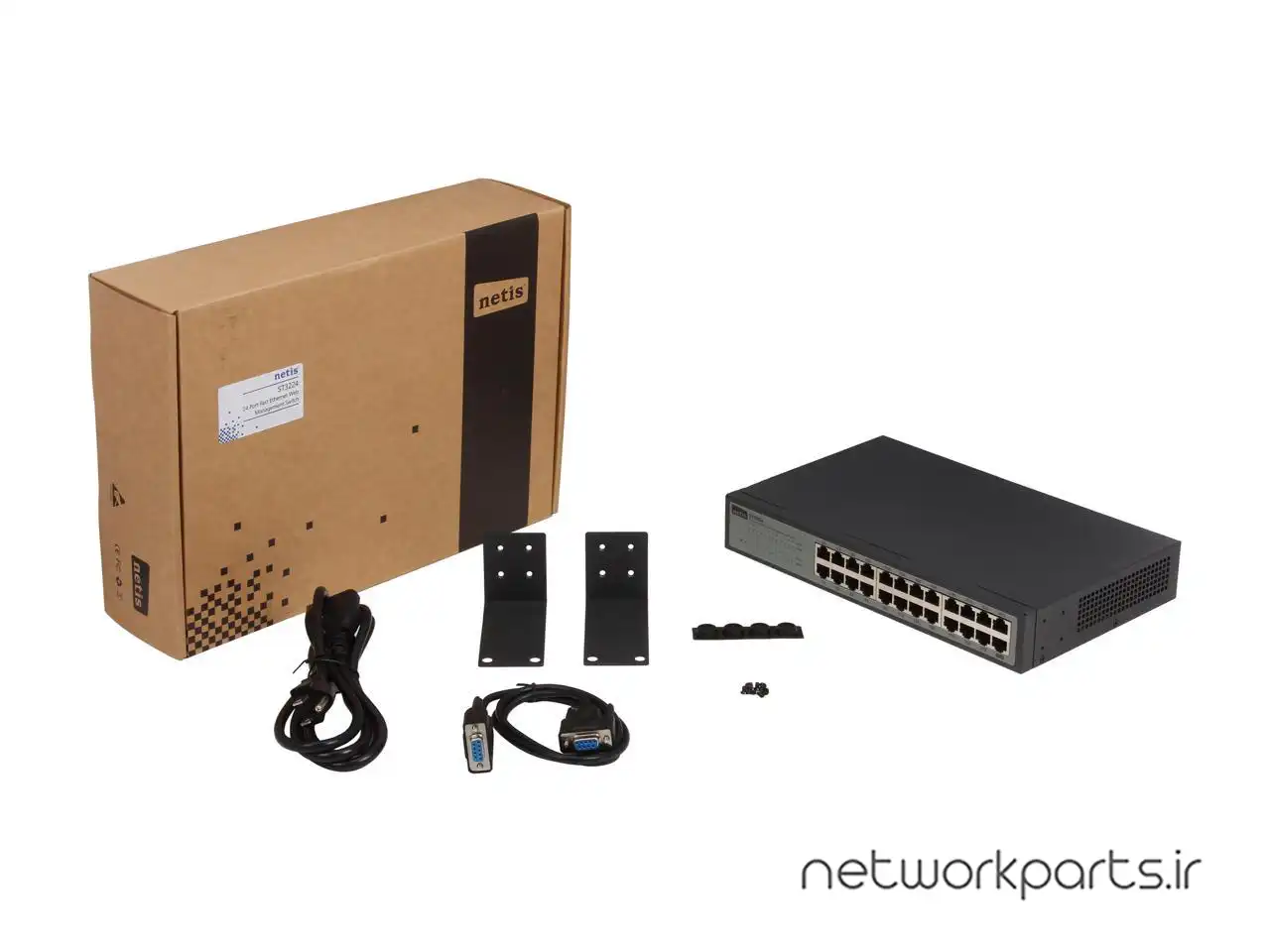

| محتویات بسته بندی | 1 x Power Cord, 1 x RS232 Cord, 1 x ST3224, 2 x Brackets |
| ابعاد | 11.02" x 6.81" x 1.73" |
