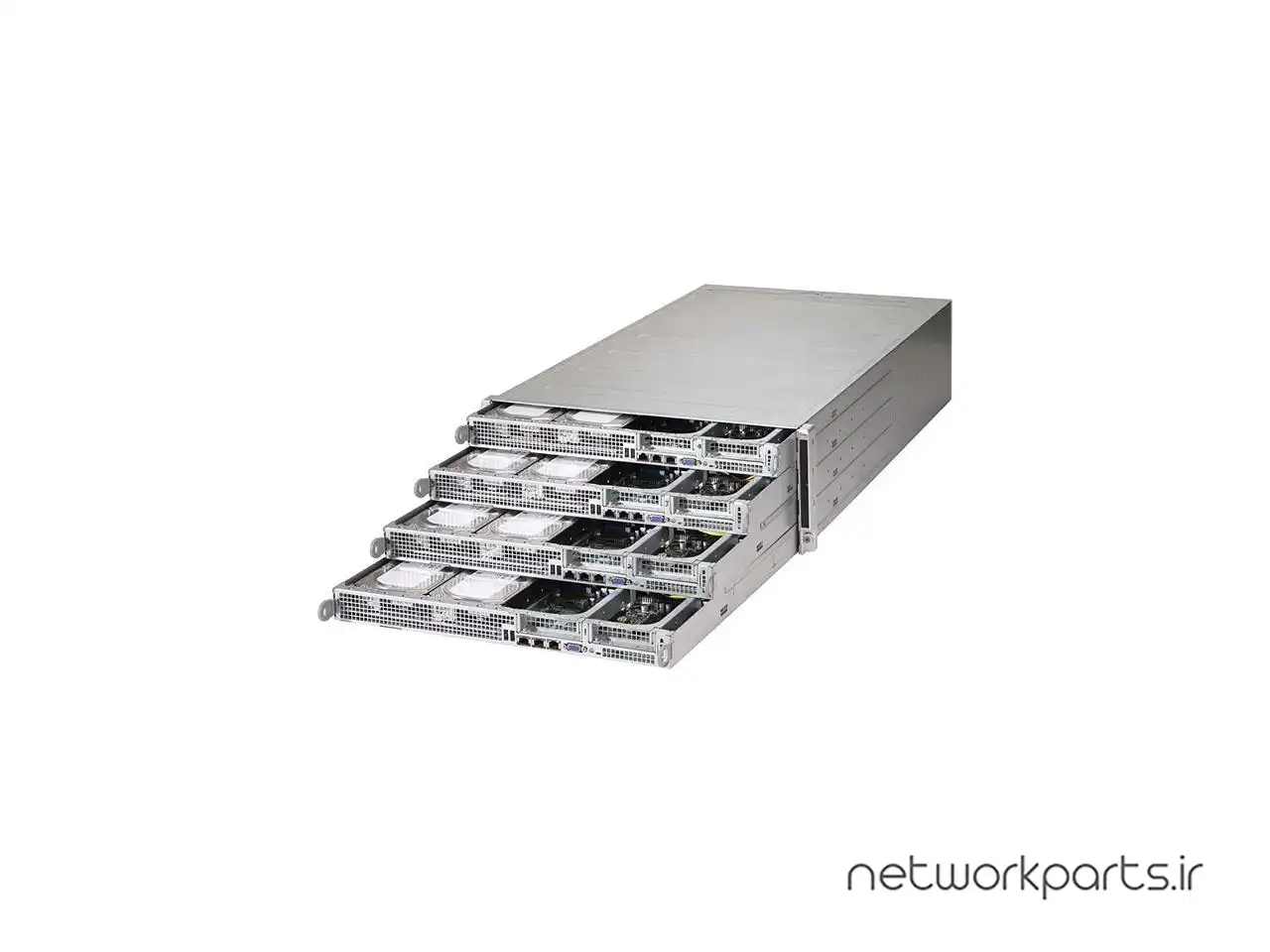

برند محصول | Supermicro |
---|
مدل محصول | SYS-F617H6-FTPT+ |
---|
نوع | Rackmount |
---|
فرم فاکتور (قالب) | 4U |
---|
نوع پردازنده | E5-2600 v2, Intel Xeon E5-2600 |
---|
سوکت پردازنده | LGA2011 |
---|
بیشترین تعداد پردازنده | 2 |
---|
at_installed-cpu | بدون پردازنده |
---|
چیپ ست North Bridge | Intel C602 |
---|
at_memory-type-supported | DDR3 1866/1600/1333/1066/800 |
---|
اسلات های حافظه | 16x 240Pin |
---|
میزان حافظه نصب شده | بدون حافظه رم |
---|
at_max-memory-supported | 128GB DDR3 (UDIMM), 1TB DDR3 LRDIMM, 512GB DDR3 (RDIMM) |
---|
at_installed-hdd | بدون حافظه ذخیره سازی |
---|
SAS | 8x SAS2 ports (6Gbps), HW RAID 0, 1, 5, 6, 10, 50 support, SAS2 (6Gbps) via LSI 2208 |
---|
SATA RAID | SATA 2.0 3Gbps with RAID 0/1/5/10, SATA 3.0 6Gbps with RAID 0/1 |
---|
at_serial-ata | 2x SATA 300 + 2x SATA 600 |
---|
3.5 اینچ Bays | 4x Fixed 3.5" SATA HDD trays, 8x Fixed 3.5" SAS/SATA HDD trays |
---|
at_gpu-vpu | Matrox G200eW |
---|
at_vga | 1 |
---|
LAN اول | Intel X540 |
---|
حداکثر سرعت LAN | 2x 10 Gigabit |
---|
پورت RJ45 | 1x RJ45 Dedicated IPMI LAN port, 2x RJ45 10GBase-T ports |
---|
at_pci-express | 1x PCI-E 3.0 (x16) Low-profile, 1x PCI-E 3.0 (x8) Low-profile via riser card |
---|
at_rear-usb | 2 |
---|
پورت COM | 1x Fast UART 16550 port |
---|
پشتیبانی ECC | بلی |
---|
رجیستر شده | بلی |
---|
ویژگی ها | 2x Network activity LEDs, 8x 8cm heavy duty fans with air shroud and PWM fan speed control, Buttons, Front Panel, IPMI, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, LEDs:, Nuvoton WPCM450 BMC, Power fail LED, Power On/Off button, Power status LED, Support for Intelligent Platform Management Interface v.2.0, System Overheat LED, System Reset button |
---|
at_max-power | 1620W high-efficiency redundant power supply w/ PMBus, 80PLUS Platinum |
---|
ابعاد | 6.96" x 17.63" x 35" (H x W x D) |
---|
