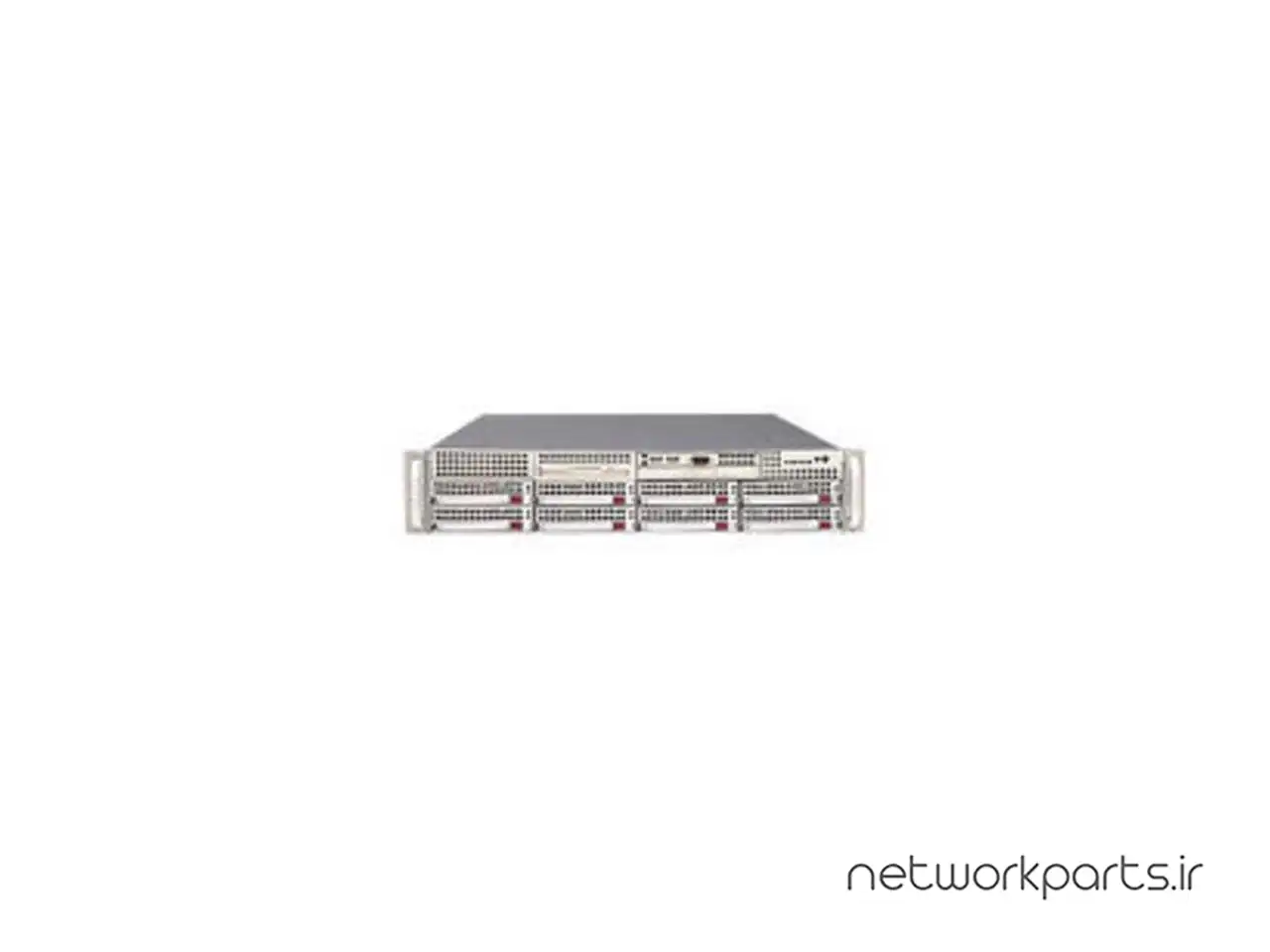

برند محصول | Supermicro |
---|
مدل محصول | SYS-6025B-8R+B |
---|
نوع | Rackmount |
---|
فرم فاکتور (قالب) | 2U |
---|
نوع پردازنده | Intel Xeon 5200/5100/5000 Series, Intel Xeon 5400/5300 Series |
---|
سوکت پردازنده | LGA771 |
---|
بیشترین تعداد پردازنده | 2 |
---|
at_installed-cpu | بدون پردازنده |
---|
چیپ ست North Bridge | Intel 5000P |
---|
at_memory-type-supported | DDRII 667/533 |
---|
اسلات های حافظه | 16x 240Pin |
---|
میزان حافظه نصب شده | بدون حافظه رم |
---|
at_max-memory-supported | 64GB |
---|
at_installed-hdd | بدون حافظه ذخیره سازی |
---|
SATA RAID | RAID 0/1/5/10 |
---|
at_serial-ata | 6x SATA 300 |
---|
ATA | 1x EIDE channel, 2x UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card, Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
---|
SCSI | Adaptec AIC-7902 Controller, Dual-Channel Ultra320 SCSI (Host RAID supports up to 4 drives), Host RAID 0, 1, & 10 support |
---|
at_hot-swap-bays | 8x 3.5" SCA Hot-swap drive trays |
---|
at_gpu-vpu | ATI ES1000 controller with 16 MB of video memory |
---|
at_vga | 1 |
---|
LAN اول | Intel 82563EB |
---|
حداکثر سرعت LAN | 2x 10/100/1000Mbps |
---|
پورت RJ45 | 2x RJ45 LAN port |
---|
at_pci-x | 1x 64-bit 100MHz PCI-X (3.3V) slot, 2x 64-bit 133MHz PCI-X (3.3V) slots |
---|
at_pci-express | 1x (x4) PCI-e (using x8) slot, 2x (x8) PCI-e slots |
---|
at_rear-usb | 2 |
---|
پورت COM | 1x Fast UART 16550 serial port |
---|
پورت LPT | 1x ECP / EEP parallel port |
---|
پورت PS2 | PS/2 keyboard and mouse ports |
---|
پشتیبانی ECC | بلی |
---|
ویژگی ها | 1x 2U Dual-Channel U320 SCSI backplane, 200-pin IPMI slot (SIMLP), 2x Network activity LEDs, Buttons, Fans: 3x 80mm 6300 RPM fans, Front Panel, Hard drive activity LED, IPMI, LEDs:, Power fail LED, Power LED, Power On/Off button, Shroud: 1x Air Shroud, Slim 8x DVD, 24x CD, DVD-ROM Drive, Support for Intelligent Platform Management Interface v.2.0, System Overheat / Fan Fail LED, System Reset button |
---|
at_max-power | 700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC |
---|
ابعاد | 3.5" x 17.2" x 25.5" (H x W x D) |
---|
