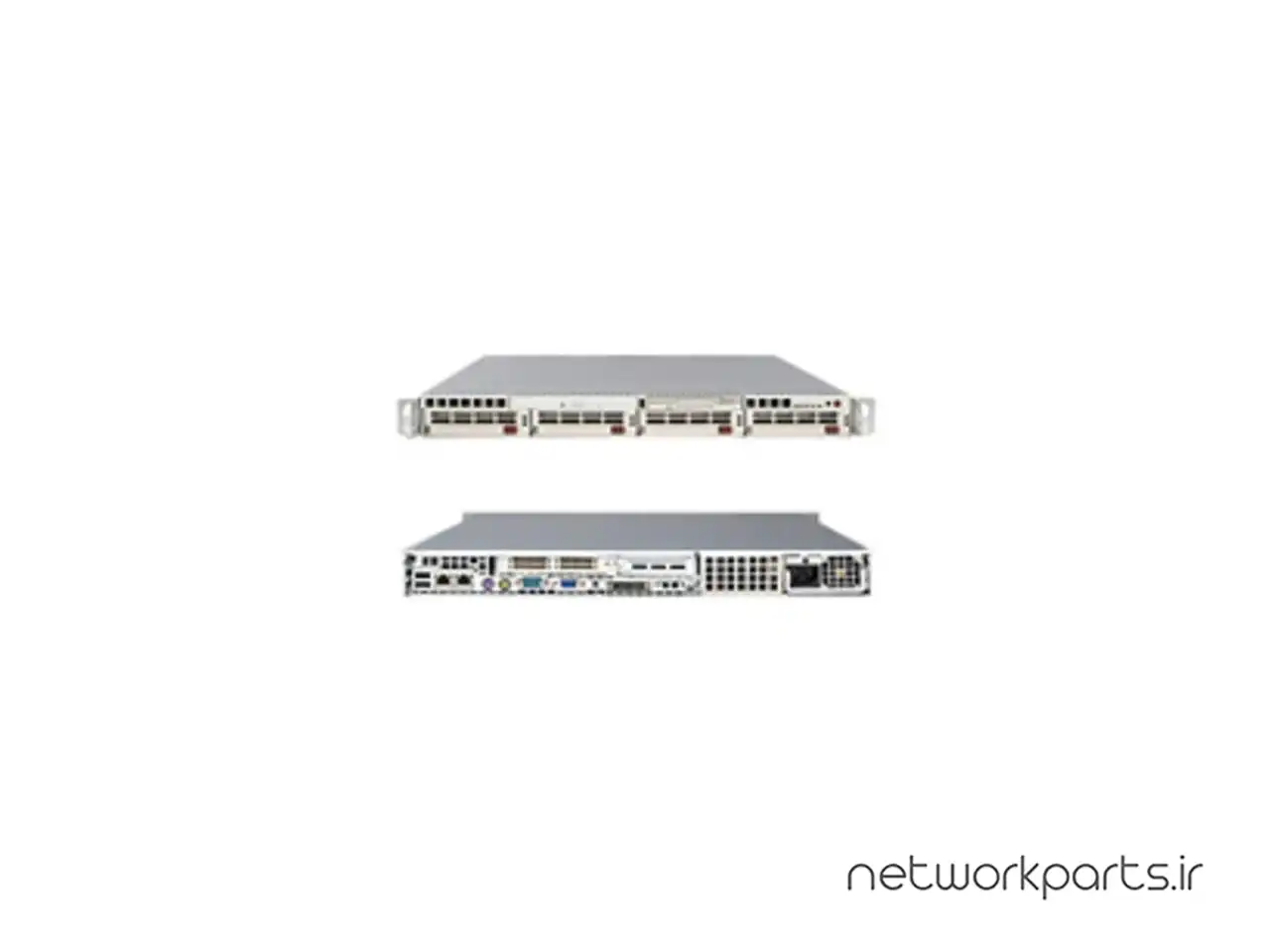

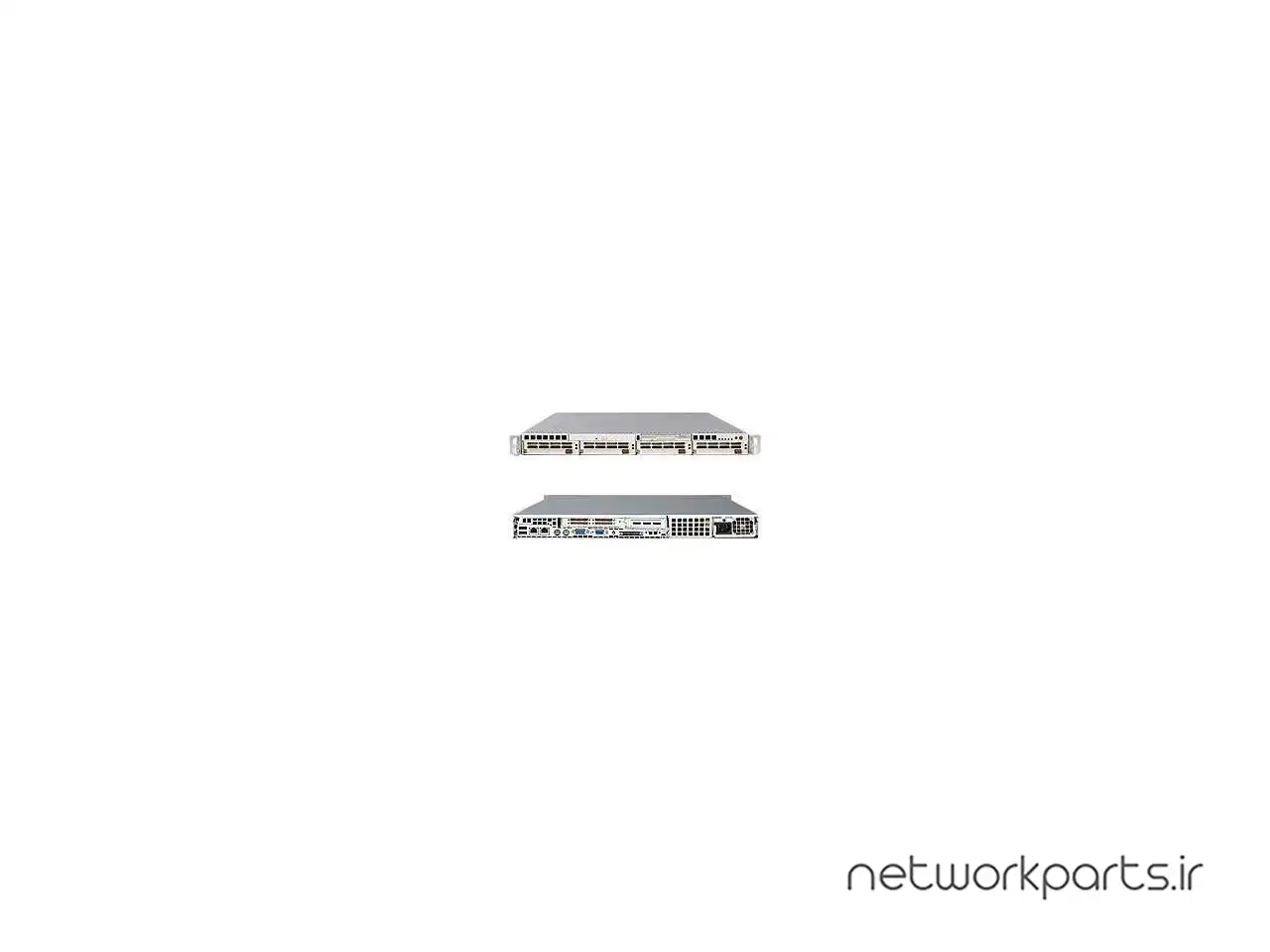

برند محصول | Supermicro |
---|
مدل محصول | SYS-6015P-TB |
---|
نوع | Rackmount |
---|
فرم فاکتور (قالب) | 1U |
---|
نوع پردازنده | Intel Xeon 5200/5100/5000 Series, Intel Xeon 5400/5300 Series |
---|
سوکت پردازنده | LGA771 |
---|
بیشترین تعداد پردازنده | 2 |
---|
at_installed-cpu | بدون پردازنده |
---|
چیپ ست North Bridge | Intel 5000P |
---|
at_memory-type-supported | DDRII 667/533 |
---|
اسلات های حافظه | 8x 240Pin |
---|
میزان حافظه نصب شده | بدون حافظه رم |
---|
at_max-memory-supported | 32GB |
---|
کانال های پشتبانی شده | 2 کانال |
---|
at_installed-hdd | بدون حافظه ذخیره سازی |
---|
SATA RAID | RAID 0, 1, 10 support (Linux), RAID 0/1/5/10 support (Windows) |
---|
at_serial-ata | 4x SATA hard drives supported, 6x Serial ATA ports |
---|
ATA | 1x EIDE channel, 2x UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card, Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
---|
at_hot-swap-bays | 4x 3.5" Hot-swap Ultra320 SCSI drive bays |
---|
at_gpu-vpu | ATI ES1000 controller |
---|
at_vga | 1 |
---|
حافظه گرافیکی | 16MB |
---|
LAN اول | Intel (ESB2/Gilgal) 82563EB |
---|
حداکثر سرعت LAN | 10/100/1000Mbps |
---|
پورت RJ45 | 2x RJ45 LAN port |
---|
at_rear-usb | 2x USB internal headers (3 ports), 2x USB rear ports, USB 2.0 Compliant / 1.1 Compliant |
---|
پورت COM | 2 Fast UART 16550 serial ports |
---|
پورت PS2 | PS/2 keyboard and mouse ports |
---|
پشتیبانی ECC | بلی |
---|
ویژگی ها | 1x Floppy controller; 1.44 MB, 1x SCA814S 1U SCSI Backplane w/ SAF-TE, 200-pin IPMI slot (SIM1U), 2x Network activity LEDs, 4x 6-pin Counter-rotating Cooling Fans, Buttons, CK410B chip, DVD-ROM: Slim 8x DVD-ROM drive, Front Panel, Hard drive activity LED, IPMI, LEDs:, Power LED, Power On/Off button, Support for Intelligent Platform Management Interface v.2.0, System Overheat / Fan Fail LED, UID button, UID LED, Winbond 83627HF chip |
---|
at_max-power | 700W AC-DC power supply and power distributor w/ PFC |
---|
ابعاد | 27" x 17.2" x 1.7" (D x W x H) |
---|
