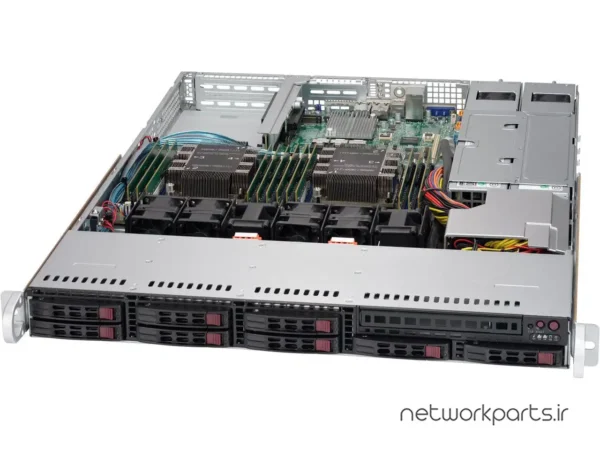

Supermicro
SYS-1029P-WTR
Rackmount
1U
2nd Gen Intel Xeon (Cascade Lake/Skylake), CPU TDP 70-165W, Dual Socket P (LGA 3647), Dual UPI up to 10.4GT/s
LGA3647
2
Intel C621
2933 / 2666 / 2400 / 2133 MHz ECC DDR4 RDIMM / LRDIMM
3TB 3DS ECC DDR4-2933 MHz RDIMM / LRDIMM
RAID 0/1/5/10
8x SATA 600

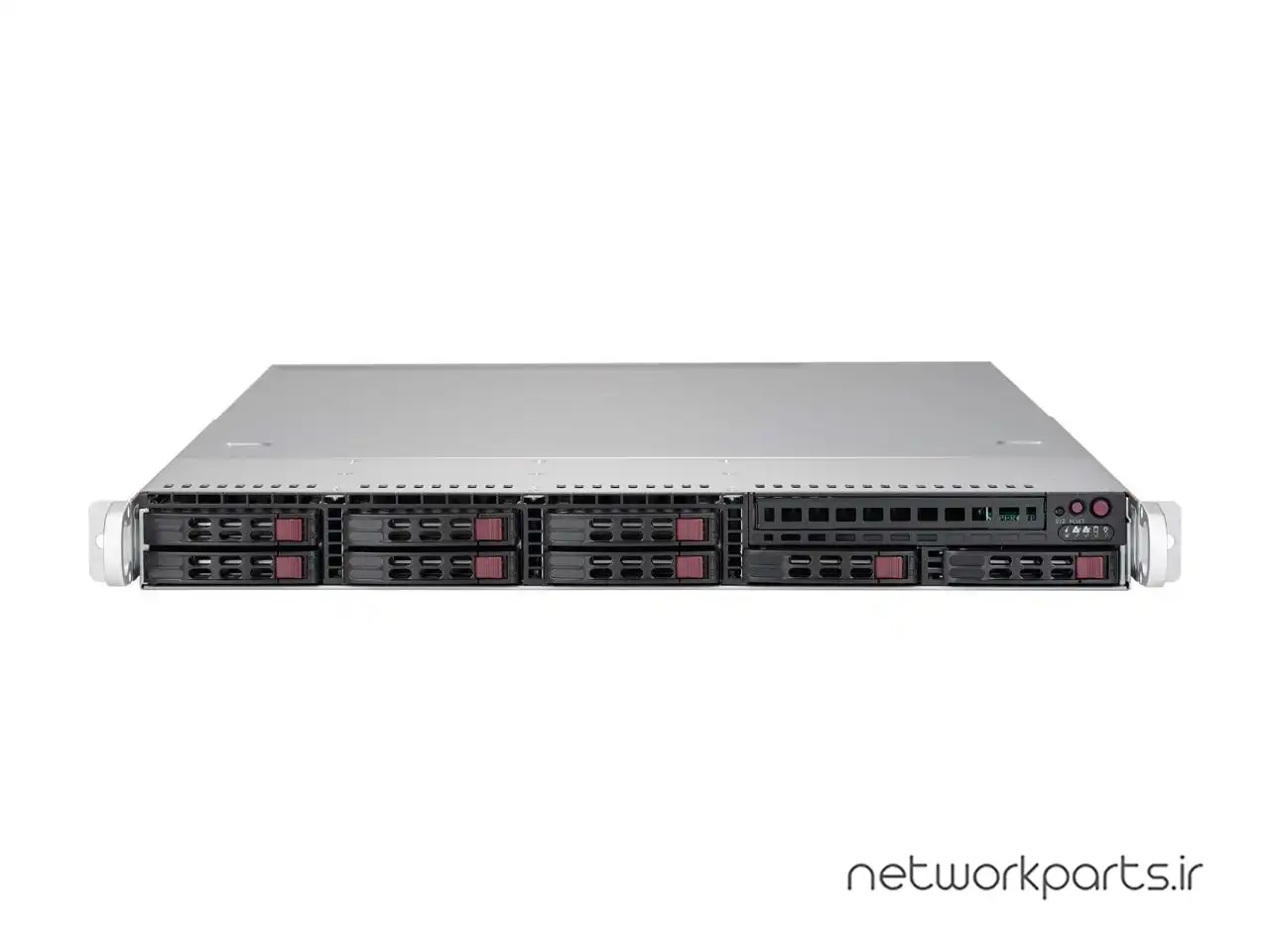

8x Hot-swap 2.5" SAS / SATA drive bays
Aspeed AST2500 BMC
2x LAN with Gigabit Ethernet from C621
10/100/1000Mbps
2x 10/100/1000Mbps

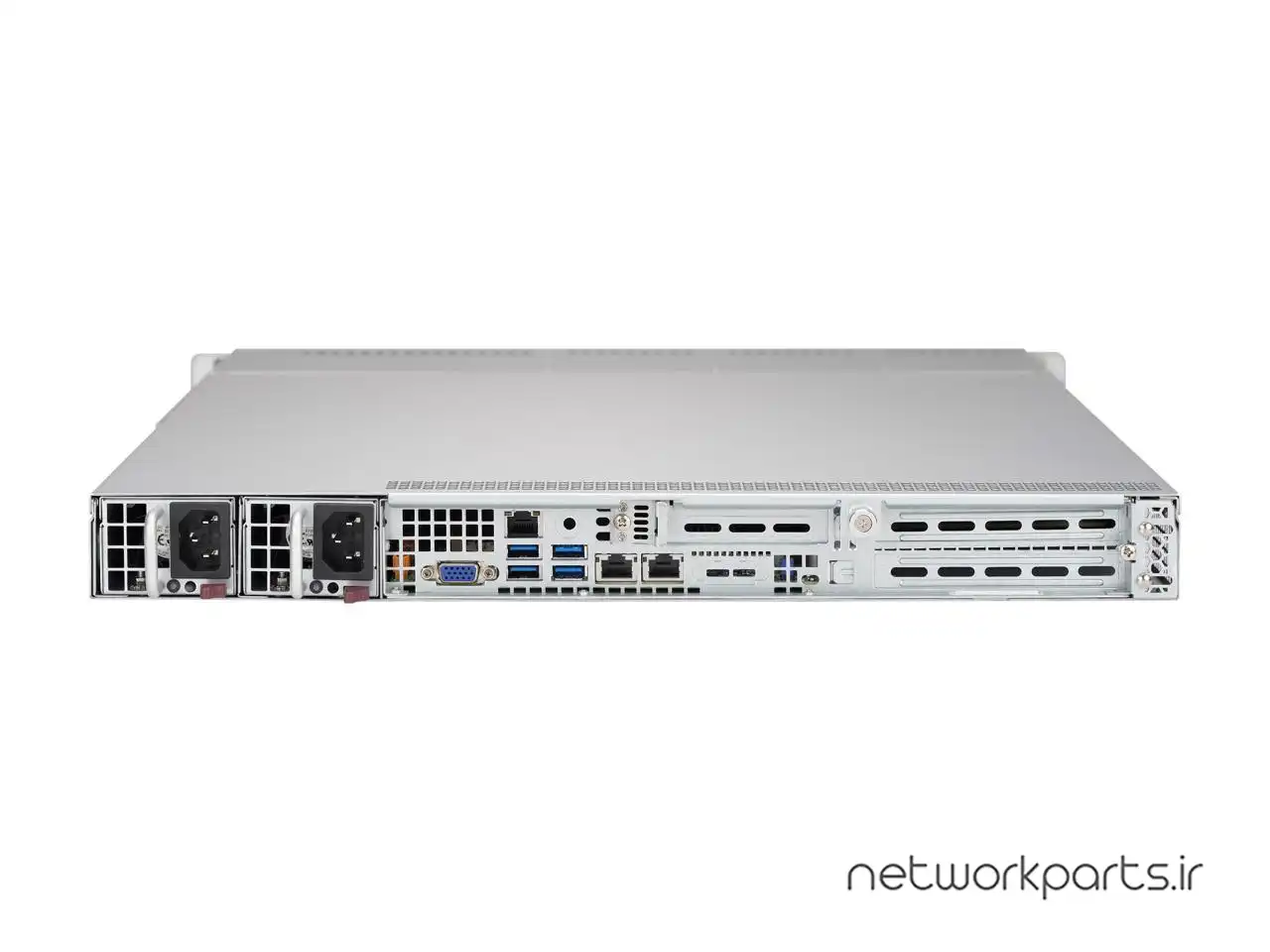

1x RJ45 Dedicated IPMI LAN port, 2x RJ45 Gigabit Ethernet LAN ports
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.), 1x PCI-E 3.0 (x16) for Add-on-Module (AOM), 1x PCI-E 3.0 (x8) (LP) slot, 1x PCI-E 3.0 x4 NVMe M.2 slot, 2x PCI-E 3.0 (x16) (FHHL) slots
4x USB 3.0 ports
بلی
12x DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM / LRDIMM, Supports Intel Optane DCPMM, 1x VGA, 4x USB 3.0 (rear), 2x 1 GbE LAN ports via Intel X722, 2x PCI-E 3.0 x16 (FHHL) slots, 1x PCI-E 3.0 x8 (LP) slot, 1x PCI-E 3.0 x16 for Add-on-Module, (Support SAS3 Storage controller), 1x PCI-E 3.0 x4 NVMe M.2 slot, 2x SuperDOM (Disk on Module) ports, 750W Redundant Power Supplies Platinum Level High-efficiency, 8x Hot-swap 2.5" drive bays, 1x slim DVD-ROM drive bay (optional), Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake / Skylake)
700W / 750W Redundant Power Supplies with PMBus
1.70" x 17.20" x 23.50"
