| برند محصول | Supermicro |
|---|---|

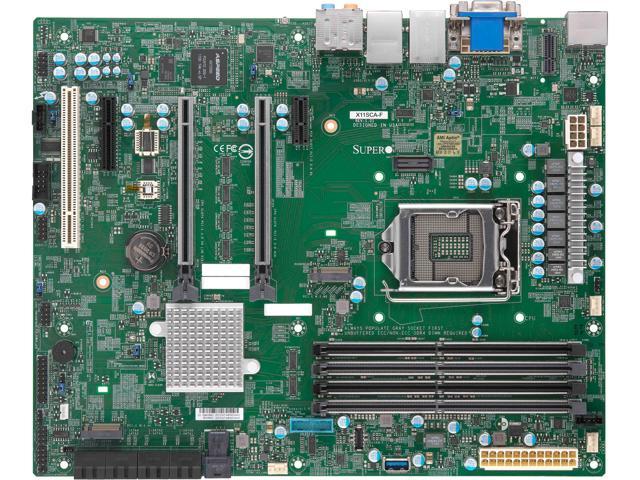

| مدل محصول | MBD-X11SCA-F-O |
| فرم فاکتور (قالب) | ATX |
| نوع پردازنده | 8th/9th Generation Intel Core i3 / Pentium / Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor, Supports: |
| نوع سوکت پردازنده | LGA1151 |
| چیپ ست North Bridge | Intel C246 |
| استاندارد DDR4 | 2666 / 2400 / 2133 / 1866 / 1600 MHz ECC / Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM |
| بیشترین حافظه قابل پشتیبانی | Up to 128GB Unbuffered ECC UDIMM, in 4 x DIMM slots |
| PCI Express x16 | 2 x PCI-E x16 slots are running at NA/16, or 8/8 |
| PCI Express x4 | 1 x PCI-E 3.0 x4 |
| PCI Express x1 | 1 x PCI-E 3.0 x1 |
| SATA | 8 x SATA 6.0Gb/s |
| SATA RAID | 0/1/5/10 |
| چیپ ست گرافیکی Onboard | Aspeed AST2500 BMC, Intel UHD P630 graphic(For CPU Xeon E-21XXG series only) |
| چیپ ست LAN | Intel I210-AT |
| حداکثر سرعت LAN | Dual 10/100/1000Mbps |
| چیپ ست LAN دوم | Intel I219-LM |
| پورت RJ45 | 2 x 1 GbE LAN ports |
| USB نسخه 3.1 | 2 x USB 3.1 Gen1 ports (2 Rears Type A), 2 x USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C) |
| ویژگی ها | 1 - 5V PCI 32bit, 1 x HDMI port, 1 x DVI - D port, 1 x DP (DisplayPort) port, 1 x VGA port, Intel UHD P630 graphic (For CPU Xeon E-21XXG series only), 1 x PCI-E 3.0 x1, 1 x PCI-E 3.0 x4, 2 x PCI-Ex16 slots are running at NA / 16, or 8 / 8, 8th-generation-inte, Intel C246, Intel C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10, M.2 Form Factor: 2242, 2260, 2280, 22110, M.2 Interface: 2 x PCI-E 3.0 x4, RAID 0 & 1, M.2 Key: M-Key, M.2#1~2 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2, Single LAN with Intel Ethernet Controller I210-AT, Shared with IPMI, Single LAN with Intel PHY I219LM LAN controller, U.2 Interface: 1 x PCI-E 3.0 x4, Up to 64GB Unbuffered ECC / non-ECC, UDIMM DDR4 2133 MHz; 4 x DIMM slots |
| ابعاد (عرض*ارتفاع*طول) | 12.0" x 9.6" |
