| برند محصول | ASUS |
|---|---|

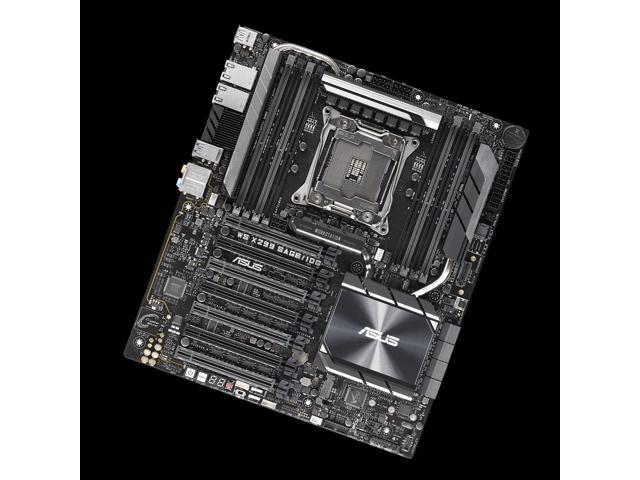

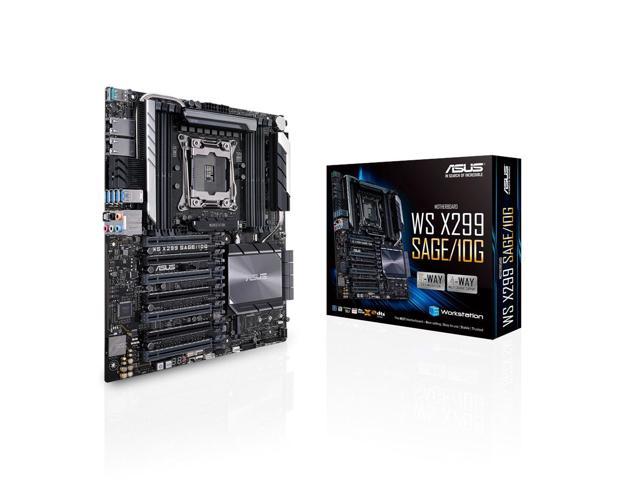

| مدل محصول | WS-X299Sage/10G |
| فرم فاکتور (قالب) | CEB |
| نوع پردازنده | * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types., Intel Socket 2066 Core X-Series Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost 2.0 Technology, Supports Intel Virtual RAID on CPU (VROC) |
| نوع سوکت پردازنده | 2066 |
| چیپ ست North Bridge | Intel X299 |
| تعداد اسلات های DDR4 | 8 x 288-pin |
| استاندارد DDR4 | * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU., * Hyper DIMM support is subject to the physical characteristics of individual CPUs., 4 x DIMM, Max. 64GB, DDR4 4200 (O.C.) / 4133 (O.C.) / 4000 (O.C.) / 3600 (O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory, 8 x DIMM, Max. 128GB, DDR4 4200 (O.C.) / 4133 (O.C.) / 4000 (O.C.) / 3600 (O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory, Intel Core X-series Processors(4-core), Intel Core X-series Processors(6-core above), Supports Intel Extreme Memory Profile(XMP) |
| بیشترین حافظه قابل پشتیبانی | 256GB |
| PCI Express 3.0 x16 | 7 x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) |
| SATA | 8 x SATA 6.0Gb/s |
| SATA RAID | 0/1/5/10 |
| M2 | 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x U.2 connector |
| چیپ ست LAN | Intel X550-AT2 |
| سرعت LAN | 10Gbps |
| چیپ ست LAN دوم | Intel X550-AT2 |
| سرعت LAN دوم | 10Gbps |
| پورت RJ45 | 2 x RJ45 |
| USB نسخه 3.1 | 1 x USB 3.1 Gen 2 (black) Type-C, 1 x USB 3.1 Gen 2 (teal blue)Type-A, 4 x USB 3.1 Gen 1 (blue) |
| ویژگی ها | 5-Way Optimization: One-click, system-wide tuning, delivers optimized overclocking and intelligent cooling for a diverse range of workloads., ASUS Control Center - A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses, Dual onboard Intel 10G LAN (X550-AT2) ports: Increased data throughput and improved efficiency, ideal for transferring uncompressed 4K video and backing up large files., Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI., Quad-GPU graphics power: Fits up to four dual-slot graphics cards and supports 4-way NVIDIA SLI or AMD CrossFireX GPU configurations., Ultra-efficient VRM heatsink - Metal fin array connected to large surface area via a heatpipe tames C422 thermals to enable unthrottled performance, Ultra-fast storage: Up to 32 Gbps dual M.2, U.2, plus up to 10 Gbps USB 3.1 Gen 2 with Type-A and Type-C ports onboard and a front-panel connector. |
| ابعاد (عرض*ارتفاع*طول) | 12.0" x 10.5" |
| محتویات بسته بندی | 1 x 3-Way SLI bridge(s), 1 x 4-Way SLI bridge(s), 1 x COM port cable(s), 1 x M.2 screws, 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan), 1 x Q-Connector, 1 x SLI HB BRIDGE (2-WAY-M), 1 x Supporting DVD, 1 x Vertical M.2 bracket set, 8 x SATA 6Gb/s cable(s), Accessories:, Addressable LED extension cable, I/O Shield, User's manual |
