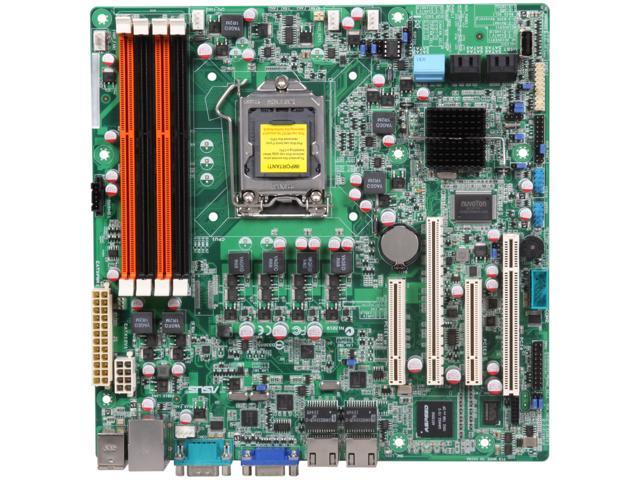

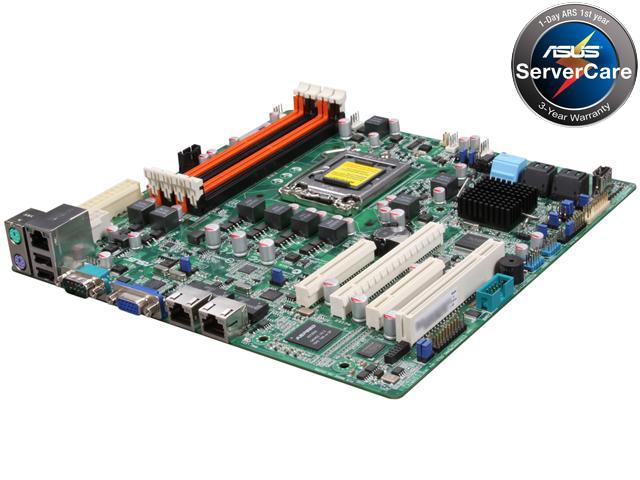

ASUS
P8B-M
MicroATX
Intel Xeon E3-1200 / Core i3-2100 / Core G8X0 / Core G6X0 Family Processor
LGA1155
Intel C204
4 x 240pin
2 کانال
DDR3 ECC UDIMM
32GB UDIMM
بلی
1 x PCI-E x16 (x16 link)
2 x PCI-E x8 (x4 link)
1 x PCI 32bit/33 MHz
4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
Intel Rapid Storage Technology(RST)(For Windows Only): Support Software RAID 0,1,5,10., LSI MegaRAID (For Linux/Windows): Support Software RAID 0,1,10.
Aspeed AST2050 with 16MB VRAM
D-Sub
2 x Intel 82574L + 1 x Mgmt LAN
10/100/1000Mbps
Dual 10/100/1000Mbps
2 x USB 2.0
2
1
1 x Chassis Intruder, 1 x PSU Power Connector, 24-pin ATX power connector + 8-pin ATX 12V power connector, 1 x Serial Port Header, 1 x SMBus, 1 x TPM header, 1 x USB connector, 2 x USB pin header, Up to 4 Devices, 5 x Fan Header, 4pin, CPU Temperature, FAN RPM, Monitoring:, Onboard I/O Connectors:, Operation temperature: 10°C ~ 35°C
9.6" x 9.6"
1 x I/O shield, 1 x Plate for LGA1155, 1 x Support CD, 1 x User Guide, 2 x SATA 6G cables + 4 x SATA 3G cables
