| برند محصول | ASRock Rack |
|---|---|
| مدل محصول | SPC621D8 |
| فرم فاکتور (قالب) | ATX |
| نوع پردازنده | Supports 3rd Gen Intel Xeon Scalable processors |
| نوع سوکت پردازنده | P |
| چیپ ست North Bridge | Intel C621A |
| تعداد اسلات های DDR4 | 8 x 288-pin |
| استاندارد DDR4 | DDR4 3200 |
| PCI Express 4.0 x16 | * SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied, SLOT1: PCIe4.0 x16, SLOT3: PCIe4.0 x16*, SLOT5: PCIe4.0 x16*, SLOT7: PCIe4.0 x16* |
| PCI Express x8 | SLOT2: PCIe4.0 x8, SLOT4: PCIe4.0 x8, SLOT6: PCIe4.0 x8 |
| SATA | 13 x SATA 6.0Gb/s |
| M2 | 1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor, 1 M-key (PCIe3.0 x4), supports 22110/2280/2242 form factor |
| چیپ ست گرافیکی Onboard | Aspeed AST2500 |
| چیپ ست LAN | Intel I210 |
| سرعت LAN | 10/100/1000Mbps |
| حداکثر سرعت LAN | 10/100/1000Mbps |
| پورت های پشتی I/O | 1 x D-Sub / 2 x LAN (RJ45) / 4 x USB 3.2 Gen 1 Type-A |
| اتصالات دیگر | Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus, BMC_SMB Header: 1, Buzzer: 1, Clear CMOS: 1 (contact pads), COM Header: 1, Fan Header: 5 (6-pin), IPMB Header: 1, ME/SPS Recovery: 1, NC-SI: 1, NMI Header: 1, PMBus CONN: 1, Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), SGPIO Header: 1, Speaker Header: 1, System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED, Thermal Sensor Header: 1, TPM Header: 17-pin (LPC) or 13-pin (SPI), Type A USB 3.2 (Gen1) Port: 1, USB 2.0 Header: 1, USB 3.2 (Gen1) Header: 1 ( support 2 USB 3.0), VGA Header: 1, VROC KEY: 1 |
| ویژگی ها | 1 M.2 (PCIe3.0 x4), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s), 13 SATA 6Gb/s (including 1 port from M.2), 2 RJ45 (1GbE) by Intel i210, 4 PCIe4.0 x16, 3 PCIe4.0 x8, 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel Optane Persistent Memory, ATX 12" x 9.6", Remote management (IPMI), Supports 3rd Gen Intel Xeon Scalable Processors |

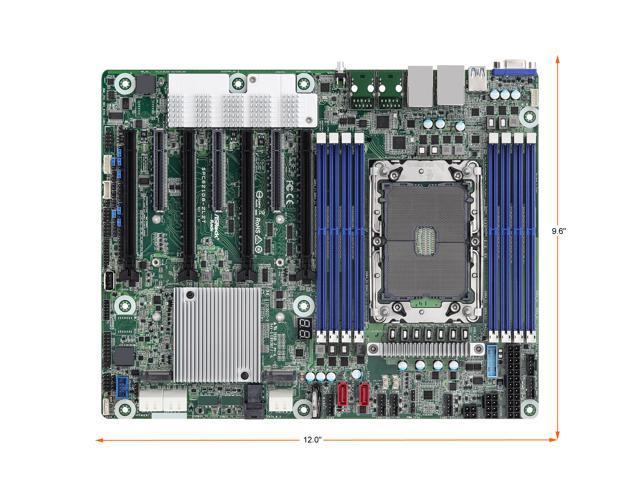

| ابعاد (عرض*ارتفاع*طول) | 12.0" x 9.6" |
