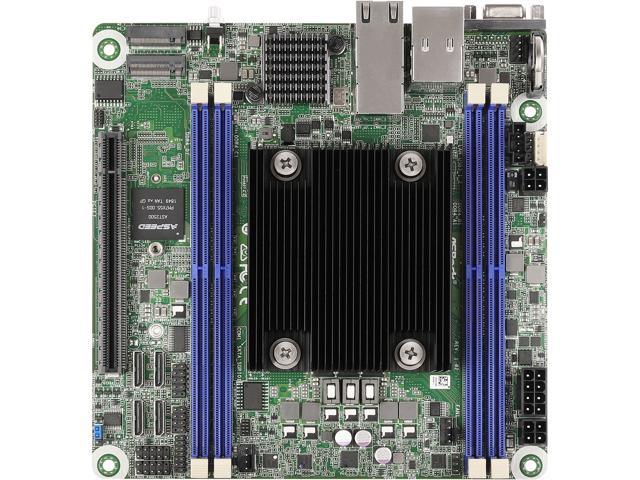

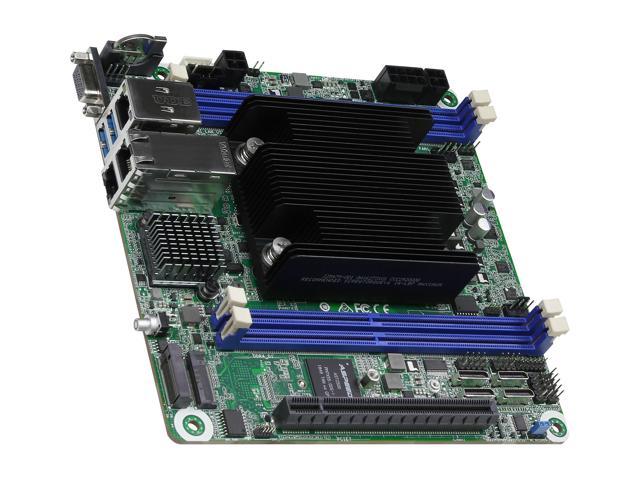

ASRock Rack
D2163D4I2-2T
MiniITX
Supports Intel Xeon D-2163 Processors
4 x 288-pin
4 کانال
DDR4 2666
256GB
بلی
SLOT7: PCIe3.0 x16
8 x SATAIII 6.0 Gb/s from 2 x OCulink, 2 x SATAIII 6.0 Gb/s from M.2 M-key
1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 22110/2280 form factor, 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 2242 form factor
Aspeed AST2500
Intel X557-AT2
10Gbps
– LAN Ports with LED (ACT/LINK LED and SPEED LED), 1 x RJ45 Dedicated IPMI LAN port, Lan Port: 2x 10GLAN RJ45(by Intel? X557-AT2 ), UID Button/UID LED: 1, USB 3.2 Gen1 Port: 2, VGA Port: D-sub x 1
*Caution: Misconnection may permanently damage the motherboard., ATX Power: 1x (4-pin) + 1x (8-pin) support 12V DC-IN (DC-IN mode power budget is up to 432W), Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus, COM Header: 1, Fan Header: 1x CPU Fan, 2x system Fan (1 front, 1 rear) (build in CPU active fansink), IPMB Header: 1, OCuLink: 4 x OCulinks support PCIe3.0 x4; 2 of OCulinks support 4 SATAIII 6Gb/s each, SATA Power Connector: 1 (for DC-IN mode), TPM Header: 1x (14pin)
6.7" x 6.7"
