انتخاب هوشمندانه سخت افزار و تجهیزات شبکه
| برند محصول | ASRock Rack |
|---|---|
| مدل محصول | B550D4U |
| فرم فاکتور (قالب) | MicroATX |
| نوع پردازنده | * Not compatible with AMD Ryzen PRO 3000 Series Desktop Processors with Radeon Graphics, AMD Ryzen 5000 and 3000 Series Desktop Processors, AMD Ryzen 5000 and 4000 G-Series Desktop Processors with Radeon Graphics, AMD Ryzen PRO 5000, 4000 and 3000 Series Desktop Processors, Supports: |
| نوع سوکت پردازنده | PGA1331 |
| چیپ ست North Bridge | AMD B550 |
| تعداد اسلات های DDR4 | 4 x 288-pin |
| استاندارد DDR4 | * AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics support up to 2666 MHz, Up to 3200 MHz* |
| PCI Express 4.0 x16 | *Supports PCIe3.0 when using AMD Ryzen 5000, 4000 G-Series Desktop Processors with Radeon Graphics, SLOT6: Latch PCIe4.0* x16 [CPU] |
| PCI Express x4 | *Supports PCIe3.0 when using AMD Ryzen 5000, 4000 G-Series Desktop Processors with Radeon Graphics, SLOT4: PCIe4.0* x4 [CPU] |
| SATA | 4 x SATA 6.0Gb/s |
| SATA RAID | 0/1/10 |
| M2 | 1 M-key (PCIe3.0 x2), supports 22110/2280/2260/2242 form factor [FCH], 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242 form factor [FCH] |
| چیپ ست گرافیکی Onboard | Aspeed AST2500 |
| چیپ ست LAN | Intel I210 |
| سرعت LAN | 10/100/1000Mbps |
| پورت های پشتی I/O | HDMI: 1, RJ45: 2 RJ45 (1GbE), 1 dedicated IPMI, Serial Port: 1 DB9, UID Button/LED: 1 UID button w/ LED, USB 3.2 Gen2 Port: 2 Type-A (USB3.2 Gen2), VGA Port: 1 DB15 |
| اتصالات دیگر | Auxiliary Panel Header: 1 (19-pin): chassis intrusion, system fault LED, LAN activity LED, Buzzer: 1, Clear CMOS: 1 (contact pads), Fan Header: 4 (6-pin), 2 (4-pin), IPMB Header: 1, PMB header: 1, Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), SMBus header: 1, Speaker Header: 1 (4-pin), System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED, Thermal Sensor Header: 1, TPM Header: 1 (17-pin, LPC)*, 1 (13-pin, SPI), USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1), Video output: 1 |

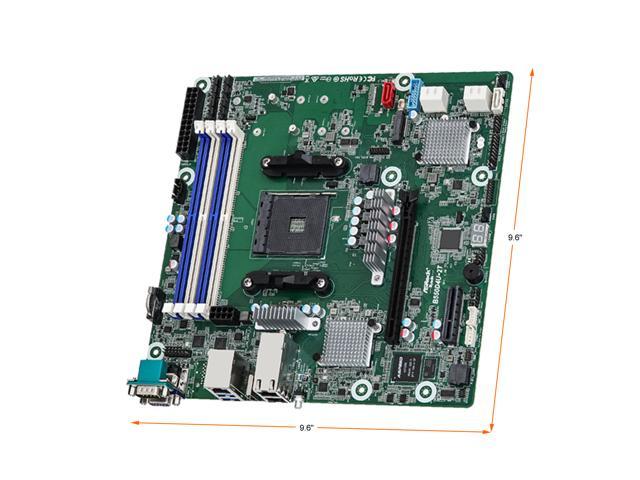

| ابعاد (عرض*ارتفاع*طول) | 9.6" x 9.6" |
