| برند محصول | Planet |
|---|---|

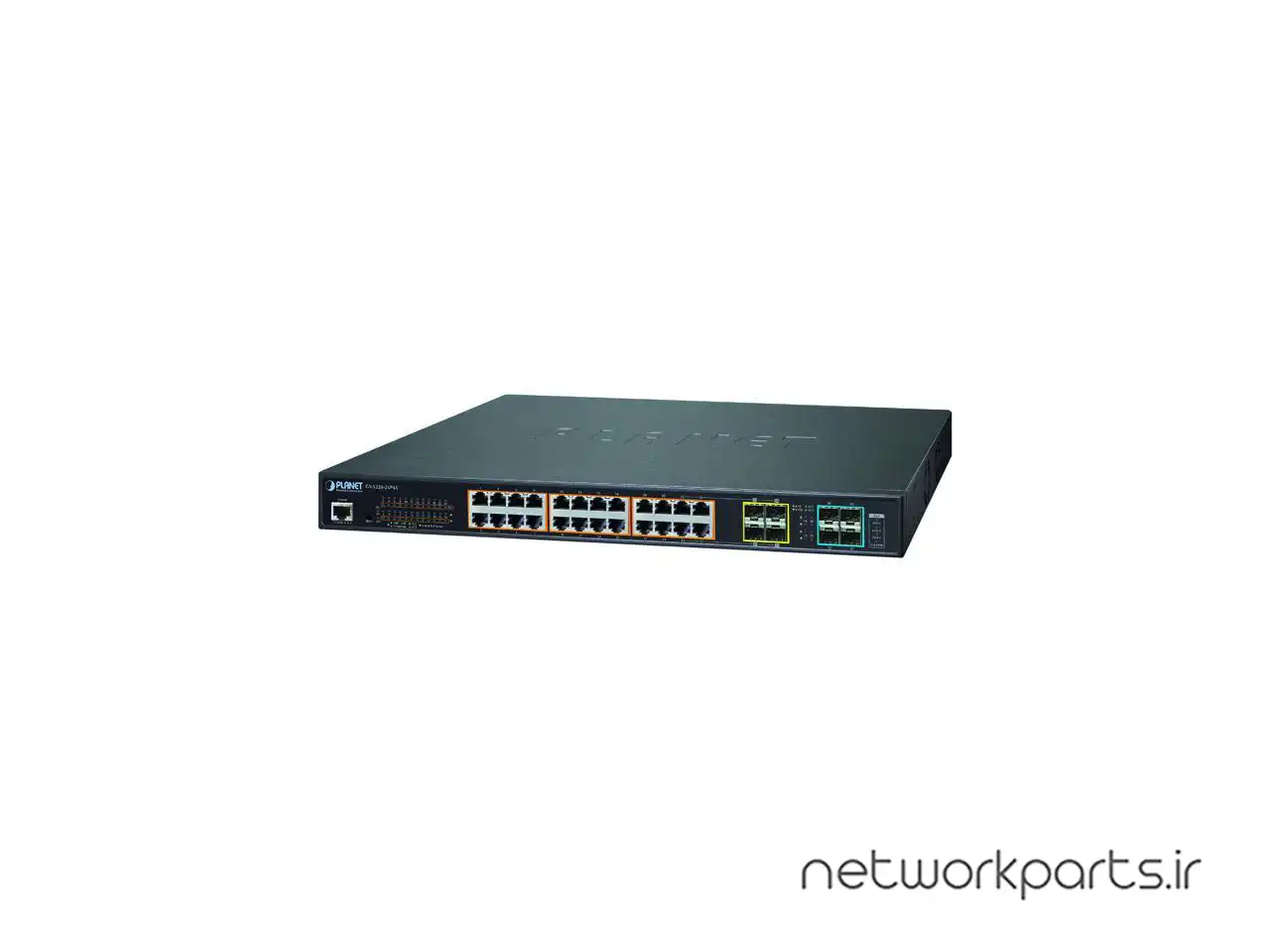

| مدل محصول | GS-5220-24P4X |
| نوع مدیریت شبکه | Managed |
| متد سوییچ | Store and Forward |
| پورت اصلی | 24 |
| پورت های اصلی | 1x RJ45 console interface for basic management and setup, 24x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ injector, 4x 100/1000BASE-X mini-GBIC / SFP slots, 4x 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP |
| پورت Mirroring | بلی |
| PoE | بلی (PoE+) |
| QoS | بلی |
| SNMP | بلی |
| LACP | بلی |
| پشتیبانی از VLan | بلی |
| حافظه Buffer | 4MB |
| Jumbo frame | 10KB |
| جدول MAC آدرس | 16K |
| توان | AC 110V:, AC 220V:, Max. 26.7 watts / 91.6 BTU (Power on without any connection), Max. 27.7 watts / 95.03 BTU (Power on without any connection), Max. 447 watts / 1533.6 BTU (Full loading with PoE function), Max. 452 watts / 1550.8 BTU (Full loading with PoE function), Power Consumption (Full Loading), Power Requirements - DC: Range: 36 ~ 60V, Power Requirements: 100-240V AC, 50/60 Hz, 15A |
| دما | Operating temperature: 0 degree to 50 degree C (32 degree to 122 degree F), Storage temperature: -10 degree to 70 C (-14 degree to 158 degree Fahrenheit) |
| رطوبت | 5% - 95%, Non-condensing |
| استانداردها | FRC 3810 MLD v2, IEEE 802.1AB LLDP, IEEE 802.1D Spanning Tree (STP), IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging, IEEE 802.1s Multiple Spanning Tree (MSTP), IEEE 802.1w Rapid Spanning Tree (RSTP), IEEE 802.1x Port Authentication Network Control, IEEE 802.3 10BASE-T, IEEE 802.3ab Gigabit 1000T, IEEE 802.3ad port trunk with LACP, IEEE 802.3ae 10Gb/s Ethernet, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3z Gigabit SX/LX, RFC 1112 IGMP v1, RFC 2068 HTTP, RFC 2236 IGMP v2, RFC 2710 MLD v1, RFC 3376 IGMP v3, RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 793 TFTP |
| امنیت | Built-in RADIUS client to co-operate with RADIUS server, DHCP Snooping to filter distrusted DHCP messages, Dynamic ARP Inspection, IEEE 802.1X Port Based Network Access Control, IP address access management to prevent unauthorized intrude, IP Source Guard prevents IP spoofing attacks, IP-based Access Control List (ACL), MAC-based Access Control *, RADIUS / TACACS+ customers access authentication |
| ابعاد | 1.75" x 17.32" x 11.81" |
| وزن | 10.02 پوند |
