انتخاب هوشمندانه سخت افزار و تجهیزات شبکه

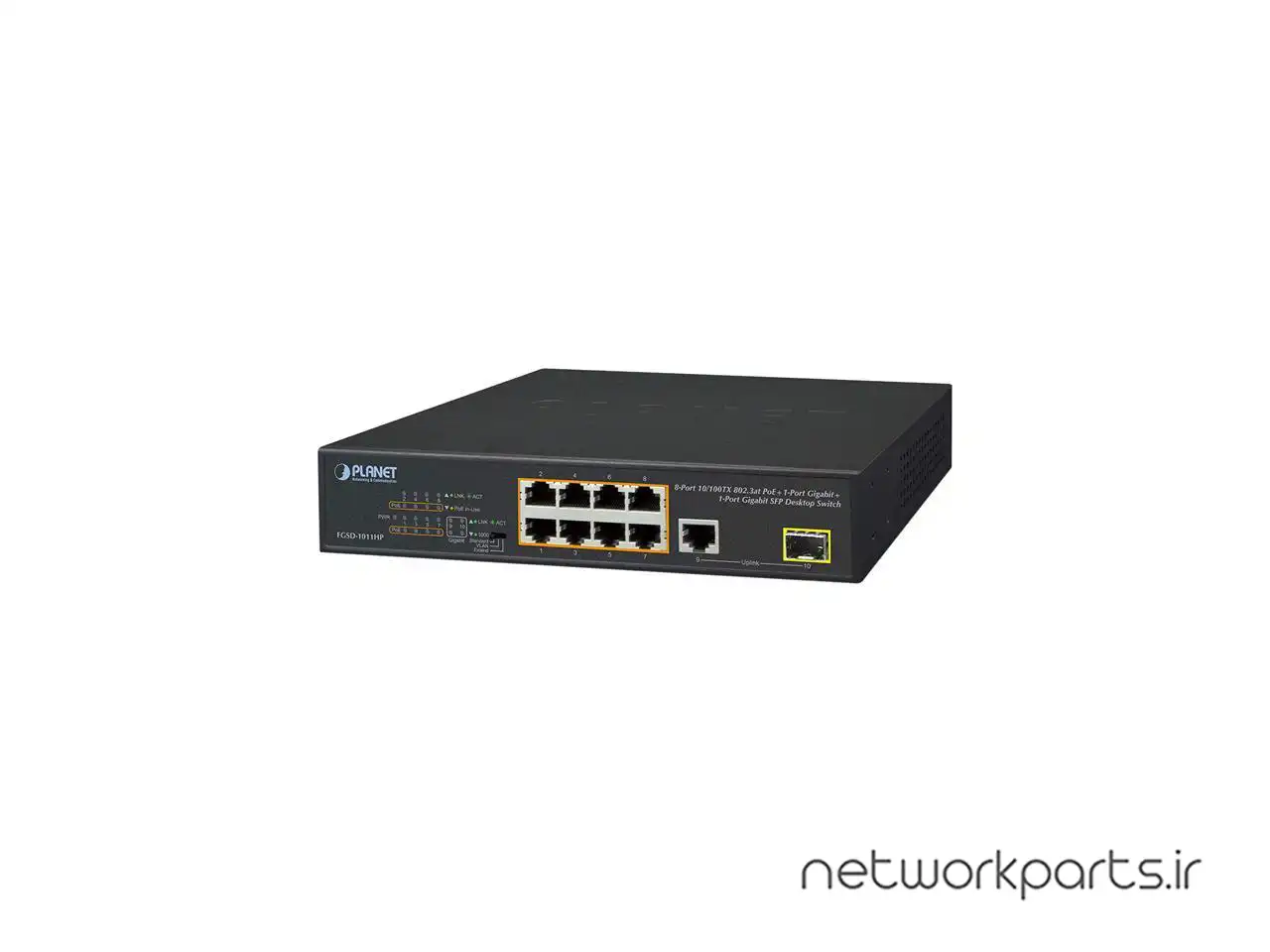

| برند محصول | Planet |
|---|---|
| مدل محصول | FGSD-1011HP |
| فرمت | Desktop |
| متد سوییچ | Store and Forward |
| پورت اصلی | 8 |
| پورت های اصلی | 1x 10/100/1000BASE-T Gigabit Ethernet port, 1x 1000BASE-X mini-GBIC SFP interface, 8x 10/100 Mbps Fast Ethernet ports |
| PoE | بلی |
| جدول MAC آدرس | 4K |
| LED | 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Orange), 1000Mbps LNK/ACT (Green), 10/100BASE-TX RJ45 Interfaces (Port1 to Port8):, 100/1000BASE-X SFP Interface: 1000 Mbps LNK / ACT (Green, Port 10), LNK / ACT (Green, Ports 1 to 8), PoE (Orange, Ports 1 to 8), System: Power (Green) |
| توان | Power Consumption: 135 watts, 463.2 BTU, Power Requirements: 100-240V AC, 50/60 Hz, 15A |
| دما | Operating temperature: 0 degree to 50 degree C (32 degree to 122 degree F), Storage temperature: -10 degree to 70 C (-14 degree to 158 degree Fahrenheit) |
| رطوبت | 5% - 95%, Non-condensing |
| استانداردها | IEEE 802.3 Ethernet, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3u: Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3z Gigabit SX/LX |
| ویژگی ها | 1 x 10/100/1000BASE-T Gigabit Ethernet port, 1 x 1000BASE-X mini-GBIC SFP interface, 120-watt PoE budget, 8 ports supporting 52V DC power to PoE powered device (Ports 1 to 8), 8 x 10/100 Mbps Fast Ethernet ports, 9-inch desktop size, 1U height, mountable, Auto detects powered device (PD), Automatic address learning and address aging, Circuit protection prevents power interference between ports, Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE, Fanless design, Flow control for full duplex operation and back pressure for half duplex operation, Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation, Hardware:, Integrates address look-up engine, supporting 4K absolute MAC addresses, Internal AC power supply, LED indicators for PoE ready / activity and LINK / ACT, Physical Port:, Power over Ethernet:, Remote power feeding up to 100 meters, Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing, Support Energy-Efficient Ethernet (EEE) function (IEEE 802.3az), Supports PoE power up to 36 watts for each PoE port, Switching:, Up to 8 IEEE 802.3af/2 IEEE 802.3at devices powered |
| ابعاد | 1.71" x 8.66" x 5.91" |
| وزن | 2.69 پوند |
