انتخاب هوشمندانه سخت افزار و تجهیزات شبکه
| برند محصول | Planet |
|---|---|
| سری محصول | Industrial |

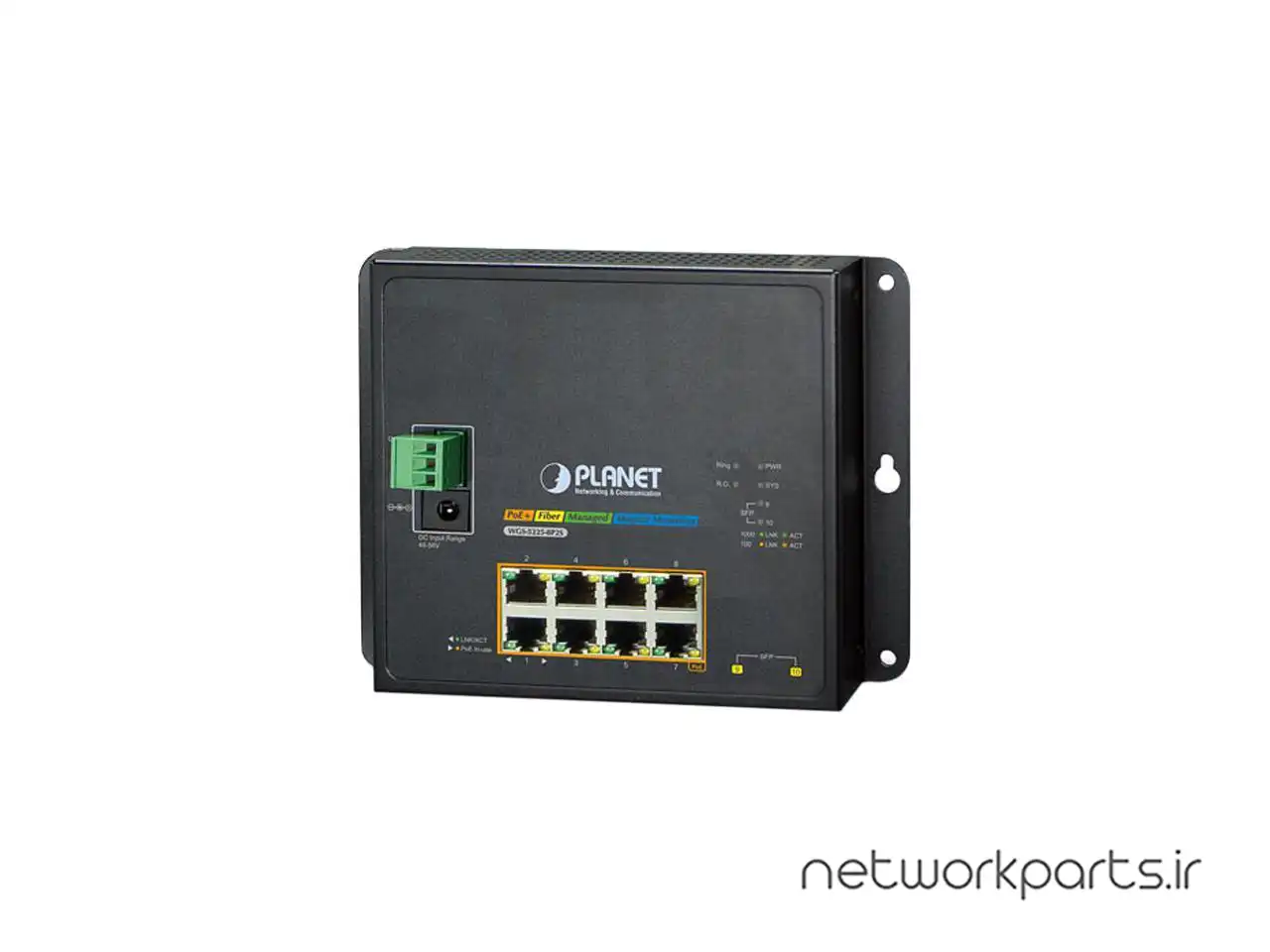

| مدل محصول | WGS-5225-8P2S |
| فرمت | Wall |
| نوع مدیریت شبکه | Managed |
| متد سوییچ | Store and Forward |
| پورت اصلی | 8 |
| پورت های اصلی | 2x 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection, 8x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector |
| پورت Mirroring | بلی |
| PoE | بلی |
| QoS | بلی |
| SNMP | بلی |
| LACP | بلی |
| پشتیبانی از VLan | بلی |
| حافظه Buffer | 4MB |
| Jumbo frame | 9 KB |
| جدول MAC آدرس | 8K |
| LED | 100 LNK/ACT (Orange), 1000 LNK/ACT (Green), LNK/ACT (Green), Per 10/100/1000T RJ45 PoE+ Ports:, Per SFP Interface:, PoE-in-Use (Orange), PWR(Green), Ring (Green), Ring Owner (Green), System: |
| توان | Max. 251 watts / 861.2 BTU (Full loading with PoE function), Max. 7.2 watts / 24.7 BTU (Power on without any connection), Power consumption: 405.4 W, Power Requirements: 100-240V AC, 50/60 Hz, 15A |
| دما | Operating temperature: 0 degree to 50 degree C (32 degree to 122 degree F), Storage Temperature: -40 ~ 158 degree Fahrenheit |
| رطوبت | 5% - 95%, Non-condensing |
| استانداردها | IEEE 802.1AB LLDP, IEEE 802.1D Spanning Tree (STP), IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging, IEEE 802.1s Multiple Spanning Tree (MSTP), IEEE 802.1w Rapid Spanning Tree (RSTP), IEEE 802.1x Port Authentication Network Control, IEEE 802.3 10BASE-T, IEEE 802.3ab Gigabit 1000T, IEEE 802.3ad port trunk with LACP, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3z Gigabit SX/LX, ITU-T G.8032 Ethernet Ring Protection Switching, RFC 1112 IGMP v1, RFC 2068 HTTP, RFC 2236 IGMP v2, RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 793 TFTP |
| ویژگی ها | - 48V~56V DC wide power input with polarity reverse protect function, - BPDU Guard, - Broadcast / Multicast / Unicast, - IEEE 802.1D Spanning Tree Protocol (STP), - IEEE 802.1Q tagged VLAN, - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN, - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), - MAC-based VLAN, - PoE admin-mode control, - PoE usage threshold control, - Private VLAN Edge (PVE), - Protocol-based VLAN, - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad), - Temperature threshold control, - Up to 255 VLANs groups, out of 4094 VLAN IDs, - Voice VLAN, '- 3-pin terminal block or DC jack connector, 2 x 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection, 8 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector, Auto detects powered device (PD), Circuit protection prevents power interference between ports, Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design, Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE, Dual power input design, High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth, Industrial Case and Installation:, Intelligent PoE features, IP30 metal case, Layer 2 Features:, PD alive check, PD classification detection, Per PoE port power limitation, Per port PoE function enable/disable, Physical Port:, PoE management features, PoE port power feeding priority, PoE schedule, Power over Ethernet:, Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex), Remote power feeding up to 100 meters, Storm control support, Supports -40 to 75 degrees C operating temperature, Supports ESD 6KV DC Ethernet protection, Supports PoE power up to 36 watts for each PoE port, Supports Spanning Tree Protocol, Supports VLAN, Total PoE power budget control, Up to 8 IEEE 802.3af / 802.3at devices powered |
| ابعاد | 5.51" x 7.09" x 0.96" |
| وزن | 1.51 پوند |
