انتخاب هوشمندانه سخت افزار و تجهیزات شبکه
| برند محصول | Planet |
|---|---|
| سری محصول | Industrial |

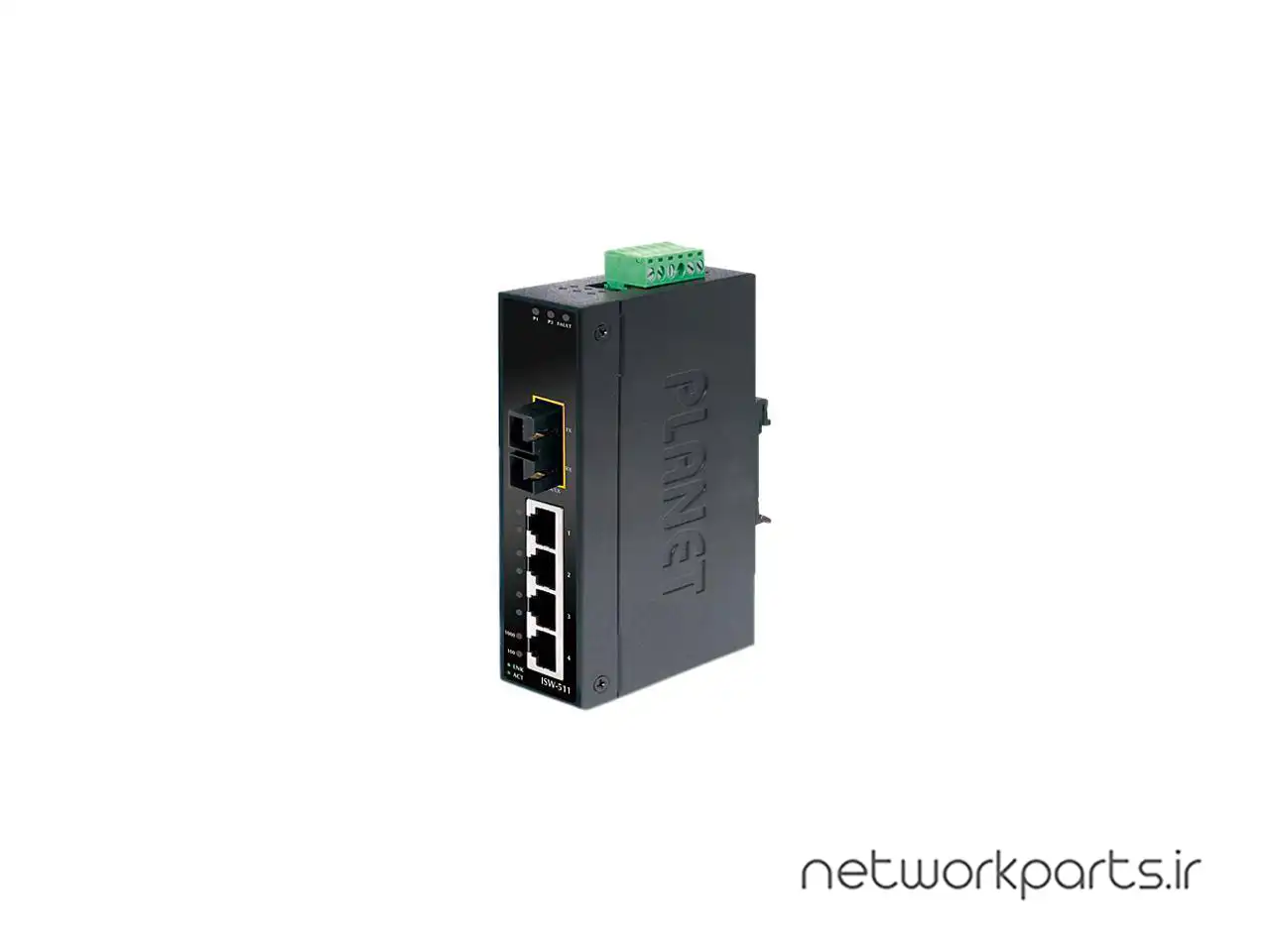

| مدل محصول | ISW-511S15 |
| فرمت | DIN Rail, Wall |
| نوع مدیریت شبکه | Unmanaged |
| پورت اصلی | 5 |
| پورت های اصلی | 5x RJ45 |
| سرعت پورت اصلی | 10/100Mbps |
| حافظه Buffer | 1MB |
| جدول MAC آدرس | 2K |
| توان | 12 - 48 VDC,, 9.1 watts / 31 BTU, Redundant power with polarity reverses protection function |
| دما | Operating: -10 - 60 C, Storage: -40 - 85 C |
| رطوبت | Operating: 5 - 90%, Storage: 5 - 90% (non-condensing) |
| استانداردها | IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet/100BASE-TX, IEEE 802.3x Full-Duplex Flow Control |
| ویژگی ها | 1 Mbit on-chip frame buffer, 1-port 100Base-FX interface for up to 2km (Multi-mode fiber 50µm/125µm) on ISW-511, 10 to 60 degrees C operating temperature, 12 to 48V DC, redundant power with polarity reverse protect function, 4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function, Automatic address learning and address aging, Backplane (Switching Fabric): 12Gbps, Cable: 9/125µm fiber, Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE, CSMA/CD Protocol, DIN rail and wall-mount design, Distance: 15km, Frequency: 1310nm, High performance Store and Forward architecture, broadcast storm control, runt / CRC filtering that eliminates erroneous packets to optimize the network bandwidth, Industrial Case / Installation:, Integrated address look-up engine, support 1K absolute MAC addresses, IP-30 metal case / protection, Launch Power: Max. -7dBm, Min. -20dBm, Layer 2 Features:, Max. Input Power: -8dBm, Mode: Single-mode, Physical Port:, Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex), Receive Sensitivity: -28dBm, Supports 6000 VDC Ethernet ESD protection, Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode, Supports EFT protection of 6KV DC for power line |
| ابعاد | 1.26" x 5.31" x 3.82" |
| وزن | 0.96 پوند |
