برند محصول | Planet |
---|
سری محصول | Industrial |
---|

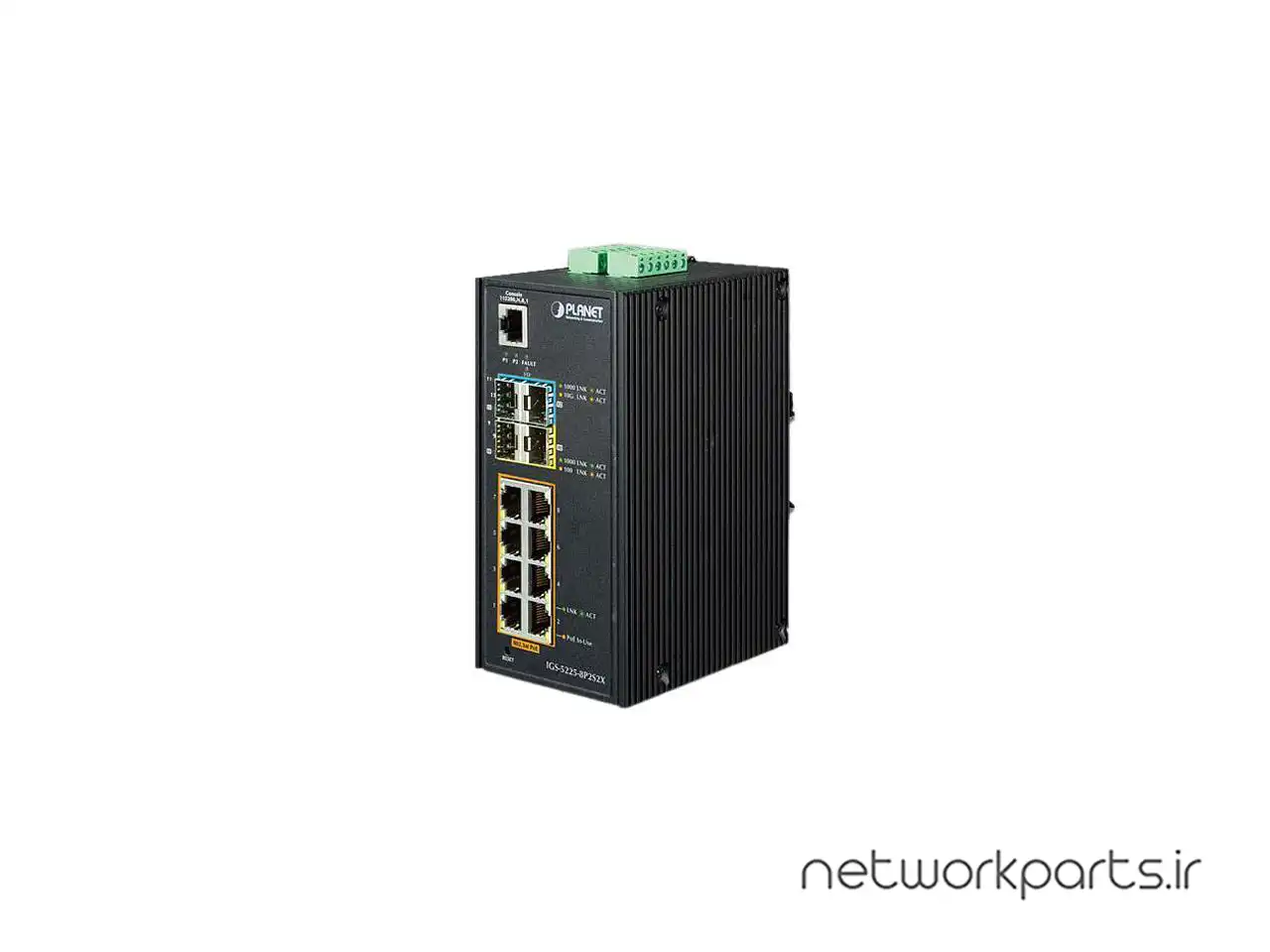

مدل محصول | IGS-5225-8P2S2X |
---|
فرمت | DIN Rail, Wall |
---|
نوع مدیریت شبکه | Managed |
---|
متد سوییچ | Store and Forward |
---|
پورت اصلی | 8 |
---|
پورت های اصلی | 8x RJ45 + 2x SFP + 2x SFP+ |
---|
سرعت پورت اصلی | 10/100/1000Mbps |
---|
پورت Mirroring | 1 to 1 |
---|
پروتکل ها | IPv4 software static routing, IPv6 software static routing, Routing Protocols: |
---|
لایه | 3 |
---|
PoE | IEEE 802.3af Standard: Per port 48V – 51V DC (depending on the power supply), max. 15.4 watts, IEEE 802.3at Standard: Per port 51V – 56V DC (depending on the power supply), max. 36 watts, Max. number of Class 2 PDs: 8, Max. number of Class 3 PDs: 8, Max. number of Class 4 PDs: 8, PoE Power Budget: Dual power input: 240W maximum (depending on power input), PoE Power Output, PoE Power Supply Type: End-span, PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE, Power Pin Assignment: 1/2 (+), 3/6 (-) |
---|
QoS | 8-level priority for switching:, 802.1p priority, 802.1Q VLAN tag, DSCP / ToS field in IP packet, Port number, Traffic classification based, strict priority and WRR |
---|
SNMP | بلی |
---|
LACP | بلی |
---|
پشتیبانی از VLan | 802.1Q tagged based VLAN, MAC-based VLAN, MVR (Multicast VLAN registration), Private VLAN Edge (PVE), Protocol-based VLAN, Q-in-Q tunneling, Up to 255 VLAN groups, out of 4095 VLAN IDs, Voice VLAN |
---|
حافظه Buffer | 32MB |
---|
Jumbo frame | 10KB |
---|
جدول MAC آدرس | 16K |
---|
دکمه | Reset |
---|
LED | 100 LNK/ACT (Orange), 1000 LNK/ACT (Green), 10G LNK/ACT (Orange), DIDO (Red), Fault Alarm (Red), LNK/ACT (Green), Per 10/100/1000T RJ45 PoE+ Ports:, Per SFP Interface:, PoE-in-Use (Orange), Power 1 (Green), Power 2 (Green), System: |
---|
توان | Dual 48 – 56V DC (>53V DC for PoE+ output recommended), Max. 11.1 watts / 37.87BTU (Power on without any connection), Max. 306 watts / 1043.46BTU (Full loading with PoE function) |
---|
دما | Operating: -40 – 75 C, Storage: -40 – 85 C |
---|
رطوبت | 5% – 95%, Non-condensing |
---|
استانداردها | IEEE 802.1AB LLDP, IEEE 802.1D Spanning Tree (STP), IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging, IEEE 802.1s Multiple Spanning Tree (MSTP), IEEE 802.1w Rapid Spanning Tree (RSTP), IEEE 802.1x Port Authentication Network Control, IEEE 802.3 10BASE-T, IEEE 802.3ab Gigabit 1000T, IEEE 802.3ad port trunk with LACP, IEEE 802.3ae 10Gb/s Ethernet, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3x Flow Control, IEEE 802.3z Gigabit SX/LX, RFC 1112 IGMP v1, RFC 2068 HTTP, RFC 2236 IGMP v2, RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 793 TFTP |
---|
ویژگی ها | 1 RJ45 console interface for basic management and setup, 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection, 2 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP, 2 Digital Input (DI), 2 Digital Output (DO), 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector, BOOTP and DHCP for IP address assignment, Built-in Trivial File Transfer Protocol (TFTP) client, DHCP Option 82, DHCP Relay, Digital Input & Digital Output:, Firmware upload/download via HTTP/TFTP, Four RMON groups (history, statistics, alarms, and events), High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth, IGMP snooping port filtering, Industrial Case / Installation:, Integrate sensors into auto alarm system, IP30 aluminum case, IPv6 IP address/NTP/DNS management, Layer 2 Features:, Layer 3 IP Routing Features:, Link Layer Discovery Protocol (LLDP), Loop protection to avoid broadcast loops, Management:, MLD snooping port filtering, Multicast:, MVR (Multicast VLAN Registration), Network Time Protocol (NTP), Physical Port:, Port mirroring to monitor the incoming or outgoing traffic on a particular port, Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex), Provides port mirror (1-to-1), Querier mode support, Storm control support, Supports 6000V DC Ethernet ESD protection, Supports IGMP snooping v1, v2 and v3, Supports Link Aggregation, Supports maximum 32 static routes and route summarization, Supports MLD snooping v1 and v2, Supports Spanning Tree Protocol, Supports VLAN, Switch Management Interfaces, Transfer alarm to IP network via email and SNMP trap, User privilege levels control |
---|
امنیت | Built-in RADIUS client to co-operate with RADIUS server, DHCP Snooping to filter distrusted DHCP messages, Dynamic ARP Inspection, IEEE 802.1X Port Based Network Access Control, IP address access management to prevent unauthorized intrude, IP Source Guard prevents IP spoofing attacks, IP-based Access Control List (ACL), MAC-based Access Control *, RADIUS / TACACS+ users access authentication, Source MAC/IP address binding, TACACS+ login users access authentication |
---|
ابعاد | 5.98" x 2.83" x 4.21" |
---|
وزن | 3.72 پوند |
---|
