برند محصول |
Planet
|
سری محصول |
Industrial
|
مدل محصول |

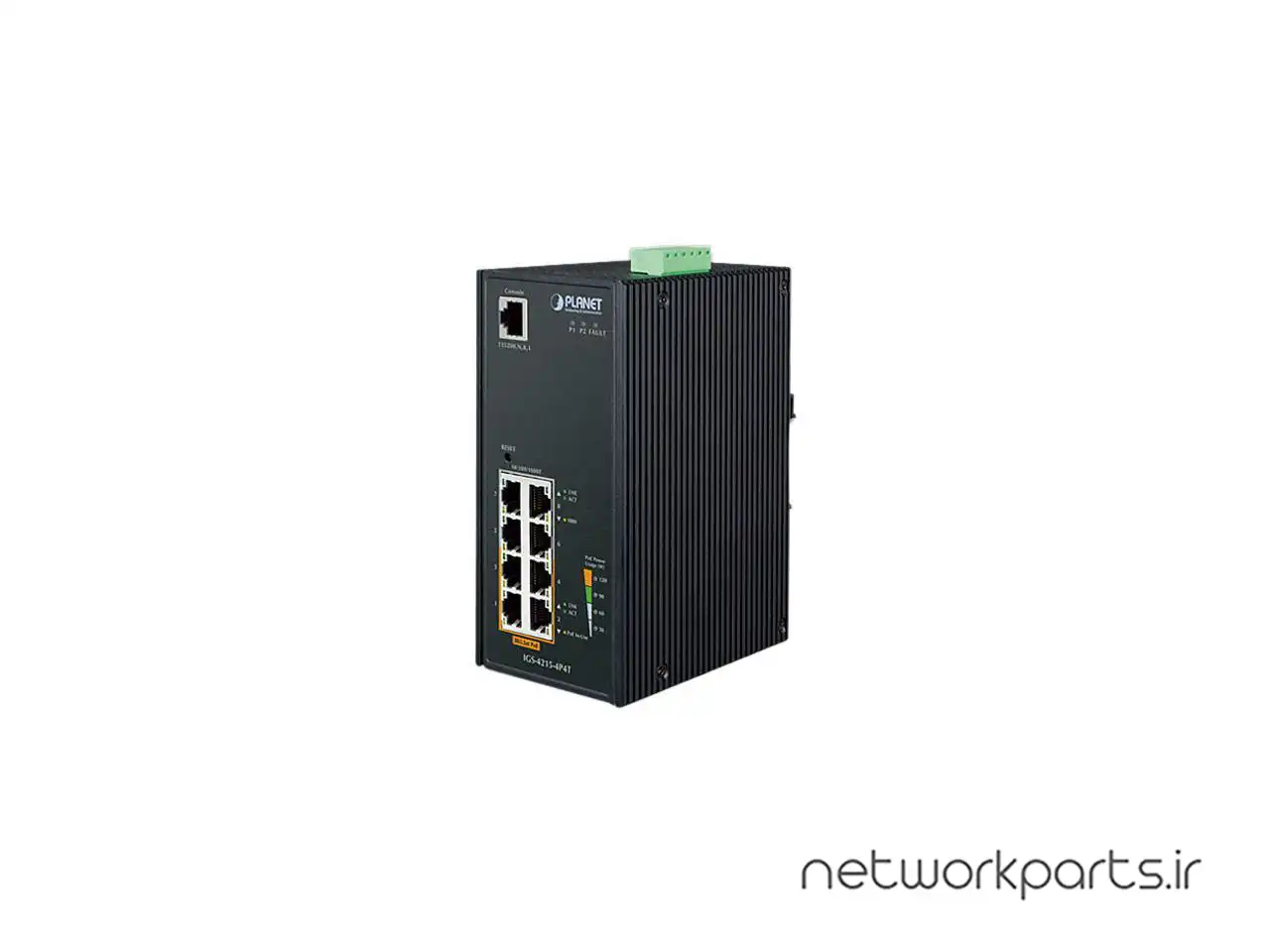

IGS-4215-4P4T
|
فرمت |
DIN Rail, Wall
|
نوع مدیریت شبکه |
Managed
|
متد سوییچ |
Store and Forward
|
پورت اصلی |
8
|
پورت های اصلی |
8x RJ45
|
سرعت پورت اصلی |
10/100/1000Mbps
|
پورت Mirroring |
Many to 1
|
پروتکل ها |
IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1s Multiple Spanning Trees, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), Spanning Tree Protocol:, STP BPDU Guard, BPDU Filtering and BPDU Forwardin
|
لایه |
2
|
PoE |
IEEE 802.3af Standard, IEEE 802.3at Standard, Max. number of Class 2 PDs: 8, Max. number of Class 3 PDs: 8, Max. number of Class 4 PDs: 8, Per port 48V – 56V DC (depending on the power supply), max. 15.4 watts, Per port 50V – 56V DC (depending on the power supply), max. 36 watts, PoE Power Budget: 144 watts (depending on power input), PoE Power Output, PoE Power Supply Type: End-span, PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE, Power Pin Assignment: 1/2 (+), 3/6 (-)
|
QoS |
8 mapping IDs to 8 level priority queues, 802.1p priority, DSCP/IP precedence of IPv4/IPv6 packets, Ingress/Egress Rate Limit per port bandwidth control, Port number, Traffic classification based on IEEE 802.1p CoS, IP Precedence, DSCP,
|
SNMP |
بلی
|
LACP |
بلی
|
پشتیبانی از VLan |
802.1ad Q-in-Q tunneling (VLAN stacking), 802.1Q tagged based VLAN, GVRP, Management VLAN, Private VLAN (Protected Ports), Protocol VLAN, Up to 256 VLAN groups, ID Range 1-4094, Voice VLAN
|
حافظه Buffer |
4.1MB
|
Jumbo frame |
10KB
|
جدول MAC آدرس |
8K
|
دکمه |
Reset
|
LED |
2x LED for 10/100/1000T Copper Port (Port-5~Port-8):, 2x LED for PoE Copper Port (Port-1~Port-4):, 3x LED for System and Power:, 4x LED for PoE Power Usage (W):, Green: DC Power 1, Green: DC Power 2, Green: LNK/ACT, Green: Power Fault, Orange: 1000Mbps, Orange: 30, 60, 90 and 120W, Orange: PoE-in-use
|
توان |
151.28 watts, 516.1 BTU (Full loading with PoE function), 48 – 56V DC, 3.5A (max.), 5.04 watts, 17.1BTU (Standby without PoE function), 7.28 watts, 23 BTU (Full loading without PoE function)
|
دما |
-40 – 75 C (Operating), -40 – 85 C (Storage)
|
رطوبت |
5% – 95%, Non-condensing
|
استانداردها |
IEEE 802.1AB LLDP, IEEE 802.1D Spanning Tree (STP), IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging, IEEE 802.1s Multiple Spanning Tree (MSTP), IEEE 802.1w Rapid Spanning Tree (RSTP), IEEE 802.1x Port Authentication Network Control, IEEE 802.3 10BASE-T, IEEE 802.3ab Gigabit 1000T, IEEE 802.3ad port trunk with LACP, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, RFC 1112 IGMP v1, RFC 2068 HTTP, RFC 2236 IGMP v2, RFC 2710 MLD v1, RFC 3376 IGMP v3, RFC 3810 MLD v2, RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 793 TFTP
|
ویژگی ها |
10K jumbo frame, 8-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4), 8K MAC address table size, Automatic address learning and address aging, Built-in Trivial File Transfer Protocol (TFTP) client, Cable diagnostics, DIN rail and wall-mount design, Event message logging to remote syslog server, Features Store-and-Forward mode with wire-speed filtering and forwarding rates, Four RMON groups (history, statistics, alarms, and events), Hardware based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X, IEEE 802.3x Flow Control, IGMP querier mode support, IGMP snooping port filtering, Industrial Case / Installation:, IP30 aluminum case, IPv4 and IPv6 dual stack management, Layer 2 Features:, Link Layer Discovery Protocol (LLDP), Loop protection to avoid broadcast loops, Management:, MLD snooping port filtering, Multicast:, Physical Port:, PLANET Smart Discovery Utility, Provides port mirror (many-to-1), Redundant power design: 48V – 56V DC wide power input, RJ45 console interface for switch basic management and setup, SNMP trap for interface Link Up and Link Down notification, SNTP Network Time Protocol, Static and DHCP for IP address assignment, Supports -40 to 75 degrees C operating temperature, Supports CSMA/CD protocol, Supports ESD 6KV DC Ethernet protection, Supports IPv4 IGMP snooping v2, v3, Supports IPv6 MLD snooping v1, v2, Supports Link Aggregation, Supports Spanning Tree Protocol, Supports VLAN, Switch Management Interfaces, Switching:, System Maintenance, User privilege levels control
|
امنیت |
Access Control List, Authentication:, Broadcast/unknown unicast/unknown multicast, Built-in RADIUS client to co-operate with RADIUS server, DHCP Option 82, DHCP Snooping to filter distrusted DHCP messages, DoS Attack Prevention, Dynamic ARP Inspection, IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2138 RADIUS Authentication; Secure Sockets Layer (SSL); SSHv1/SSHv2 Secure Shell; RFC 2866 RADIUS Accounting, IP Source Guard prevents IP spoofing attacks, IPv4/IPv6 IP-based ACE, IPv4/IPv6 IP-based ACL, MAC filtering, MAC Security:, MAC-based ACE, MAC-based ACL, Port security for source MAC address entries filtering, RADIUS/TACACS+ authentication, Static MAC, Storm control support
|
ابعاد |
2.83" x 6.34" x 4.21"
|
وزن |
2.21 پوند
|
