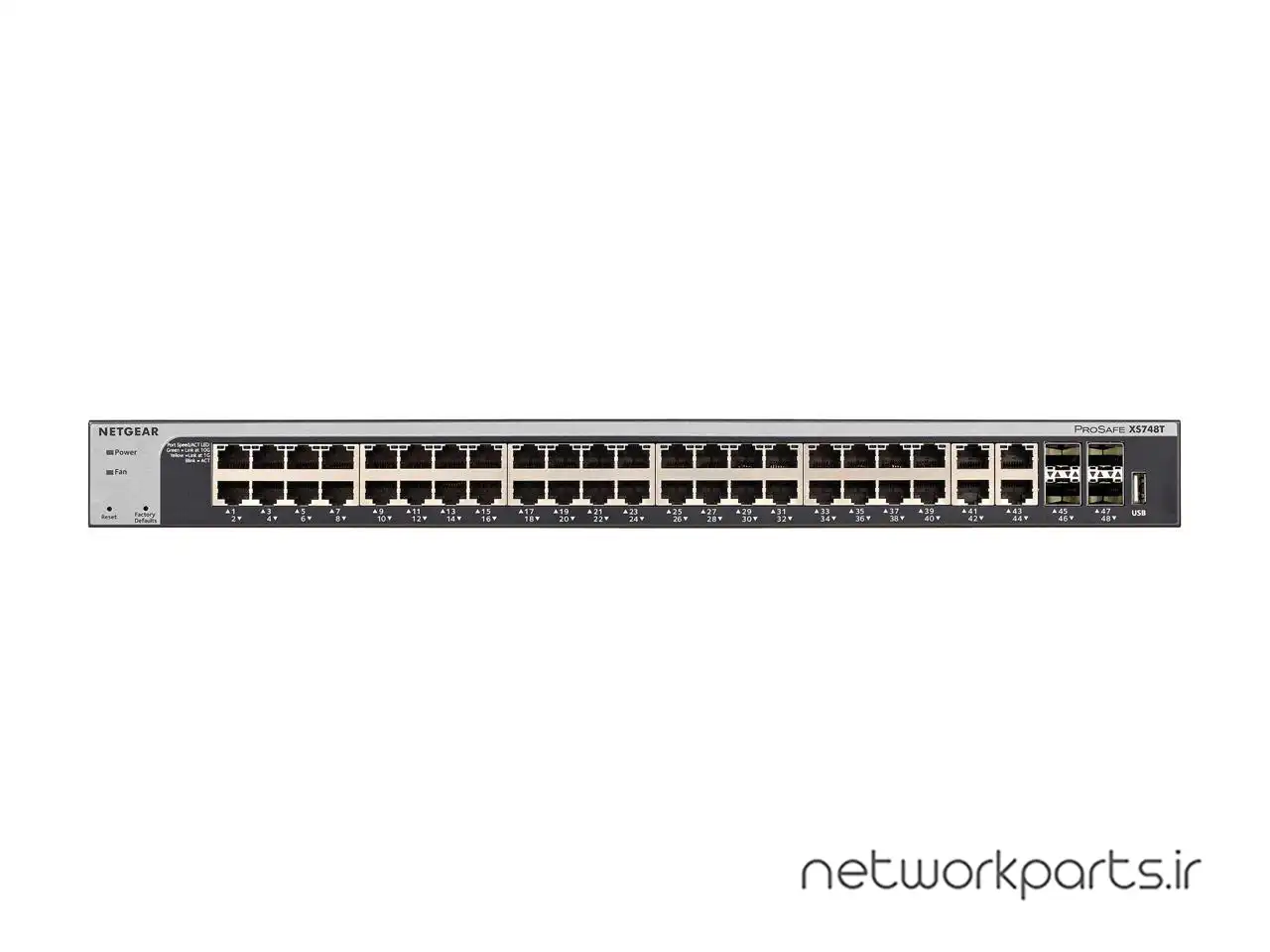

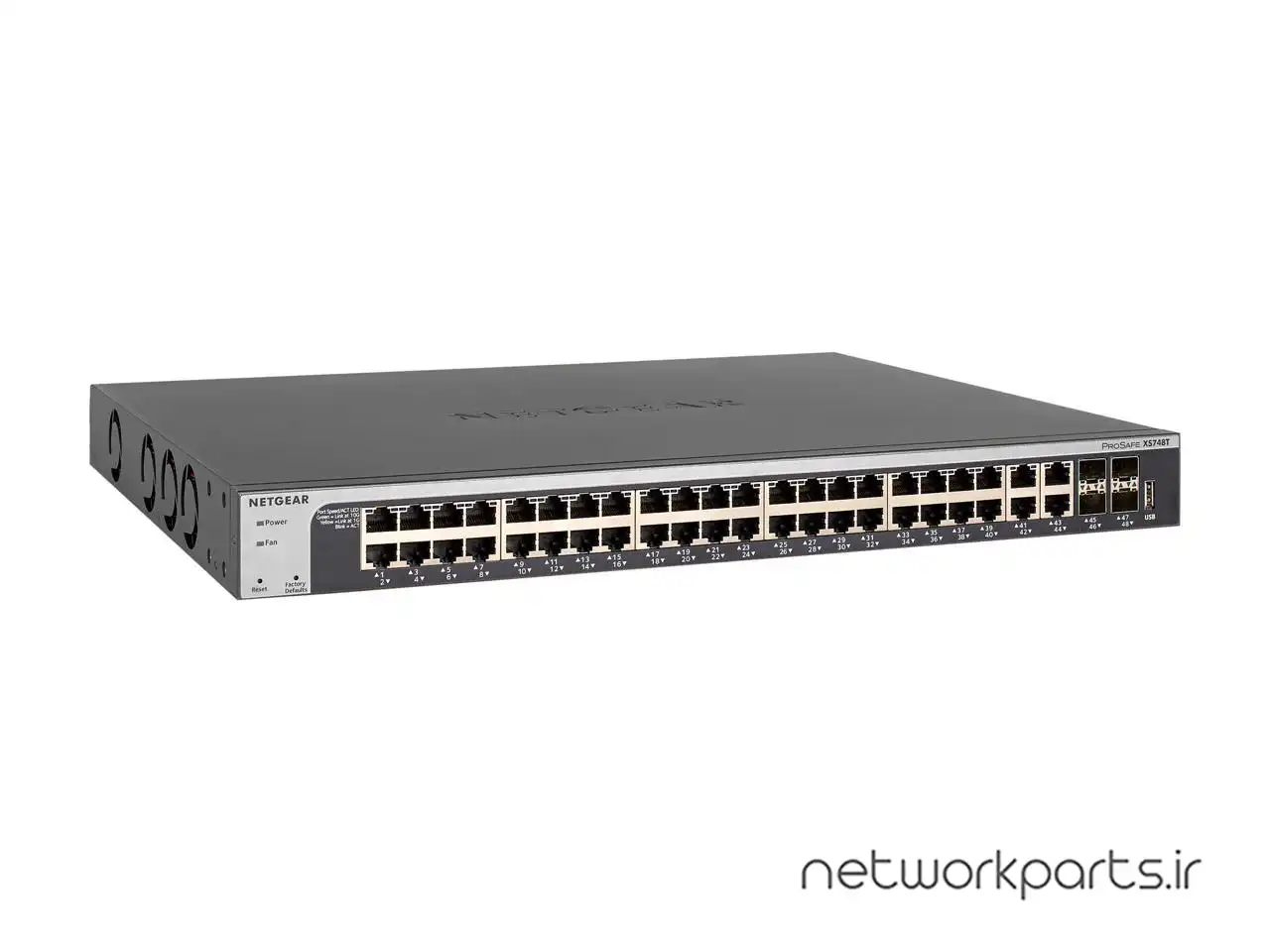

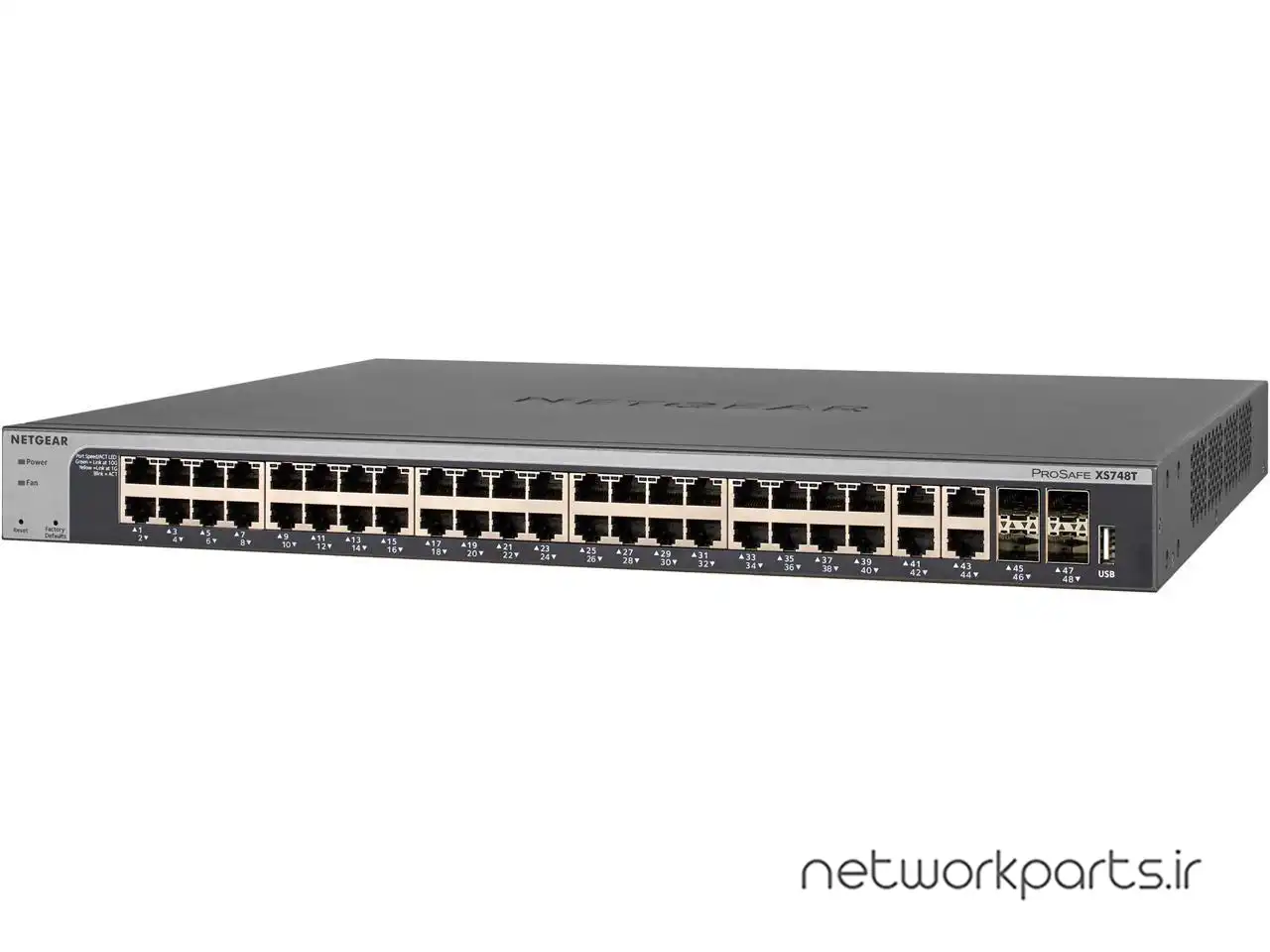

انتخاب هوشمندانه سخت افزار و تجهیزات شبکه
| برند محصول | Netgear |
|---|---|
| سری محصول | ProSafe |
| مدل محصول | XS748T-100NES |
| فرمت | Desktop, Rack |
| نوع مدیریت شبکه | Smart |
| متد سوییچ | Store and Forward |
| پورت اصلی | 48 |
| پورت های اصلی | 44x 1G/10G copper ports + 4 (dedicated) 1G/10G SFP+ (fiber) ports |
| سرعت پورت اصلی | 10 Gbps |
| پورت Mirroring | بلی |
| SNMP | بلی |
| پشتیبانی از VLan | بلی |
| حافظه Buffer | 3MB |
| Jumbo frame | 10KB |
| جدول MAC آدرس | 16K |
| توان | Heat Dissipation (max and min) (BTU / hr): Max: 897.17 BTU, Min: 333.14 BTU, Max power (worst case, all ports used, line-rate traffic) (Watts): 262.8W, Min power (link-down standby) (Watts): 97.6W |
| دما | Operating temperature: 0 degree to 50 degree C (32 degree to 122 degree F), Storage temperature: -10 degree to 70 C (-14 degree to 158 degree Fahrenheit) |
| رطوبت | Operating Humidity: 90% maximum relative humidity, non-condensing, Storage Humidity: 95% maximum relative humidity, non-condensing |
| استانداردها | IEEE 802.1AB LLDP with ANSI / TIA-1057 (LLDP-MED), IEEE 802.1D Spanning Tree (STP), IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging, IEEE 802.1s Multiple Spanning Tree (MSTP), IEEE 802.1w Rapid Spanning Tree (RSTP), IEEE 802.1x RADIUS Network Access Control, IEEE 802.3 Ethernet, IEEE 802.3ab 1000BASE-T, IEEE 802.3ad Trunking (LACP), IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4), IEEE 802.3an 10GBASE-T 10Gbps Ethernet Over Copper Twisted Pair Cable, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3z Gigabit Ethernet 1000BASE-SX / LX |
| ویژگی ها | Advanced QoS (Quality of Service) with L2 / L3 / L4 awareness and 8 priority queues, Advanced security, Advanced VLAN features such as protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN, Dynamic VLAN assignment, Easy-to-use Web browser-based management GUI, IGMP and MLD snooping, IPv6 for management, QoS and ACL, Private VLAN, Static Routing (IPv4 and IPv6) |
| محتویات بسته بندی | Power cord (s) (localized to country of sale), ProSAFE 48-port 10-Gigabit Ethernet Smart Managed Switch (XS748T), Quick Install Guide (QIG), Rack-mounting kit, Resource CD with Smart Control Center Utility (SCC) software, Quick Installation Guide (QIG), detailed Hardware Installation Guide (HIG), MIB files, and links to the support website where you can dow, Rubber footpads for tabletop installation |
| ابعاد | 1.69" x 17.32" x 12.20" |
| وزن | 13.78 پوند |
