انتخاب هوشمندانه سخت افزار و تجهیزات شبکه
| برند محصول | Netis Systems |
|---|---|
| مدل محصول | ST3324G |
| شماره قطعه | ST3305 |
| فرمت | Desktop |
| نوع مدیریت شبکه | Managed |
| متد سوییچ | Store and Forward |
| پورت اصلی | 24 |

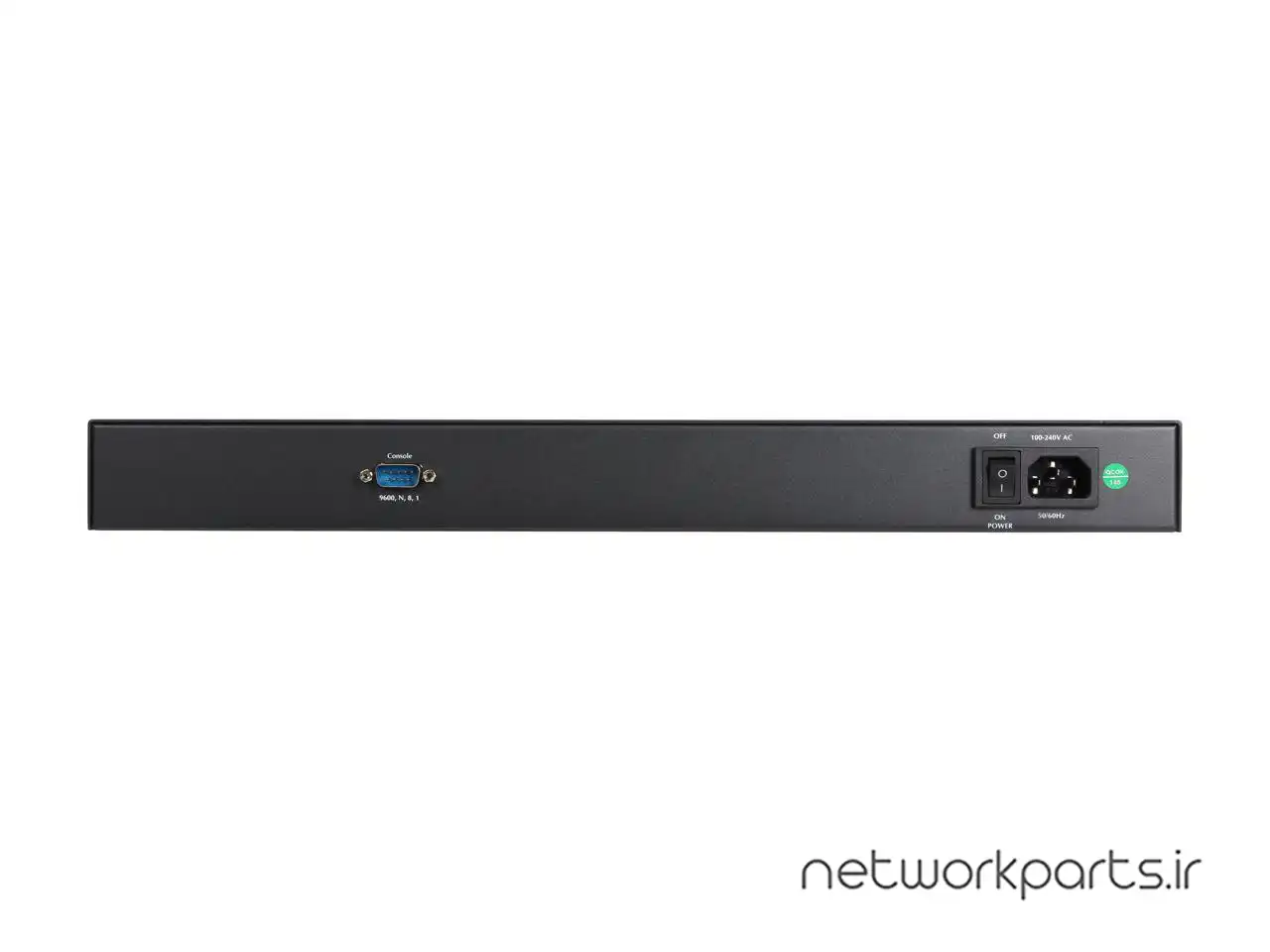

| پورت های اصلی | 1x RS232 Console port, 24x 10/100/1000Mbps half/full duplex ports |
| سرعت پورت اصلی | 10/100/1000Mbps |
| پورت Mirroring | بلی |
| قابلیت Stack نمودن | خیر |
| PoE | خیر |
| QoS | 8 priority queues, Strict priority(SP), Weighted Round Robin(WRR), SP+WRR CoS policies, Traffic-policing policies |
| SNMP | بلی |
| پشتیبانی از VLan | GVRP protocol for VLAN Management, IEEE 802.1Q Tag-based VLAN, Up to 4K VLANs groups, out of 4094 VLAN IDs |
| حافظه Buffer | 4MB |
| جدول MAC آدرس | 8K |
| کیس | فلزی |

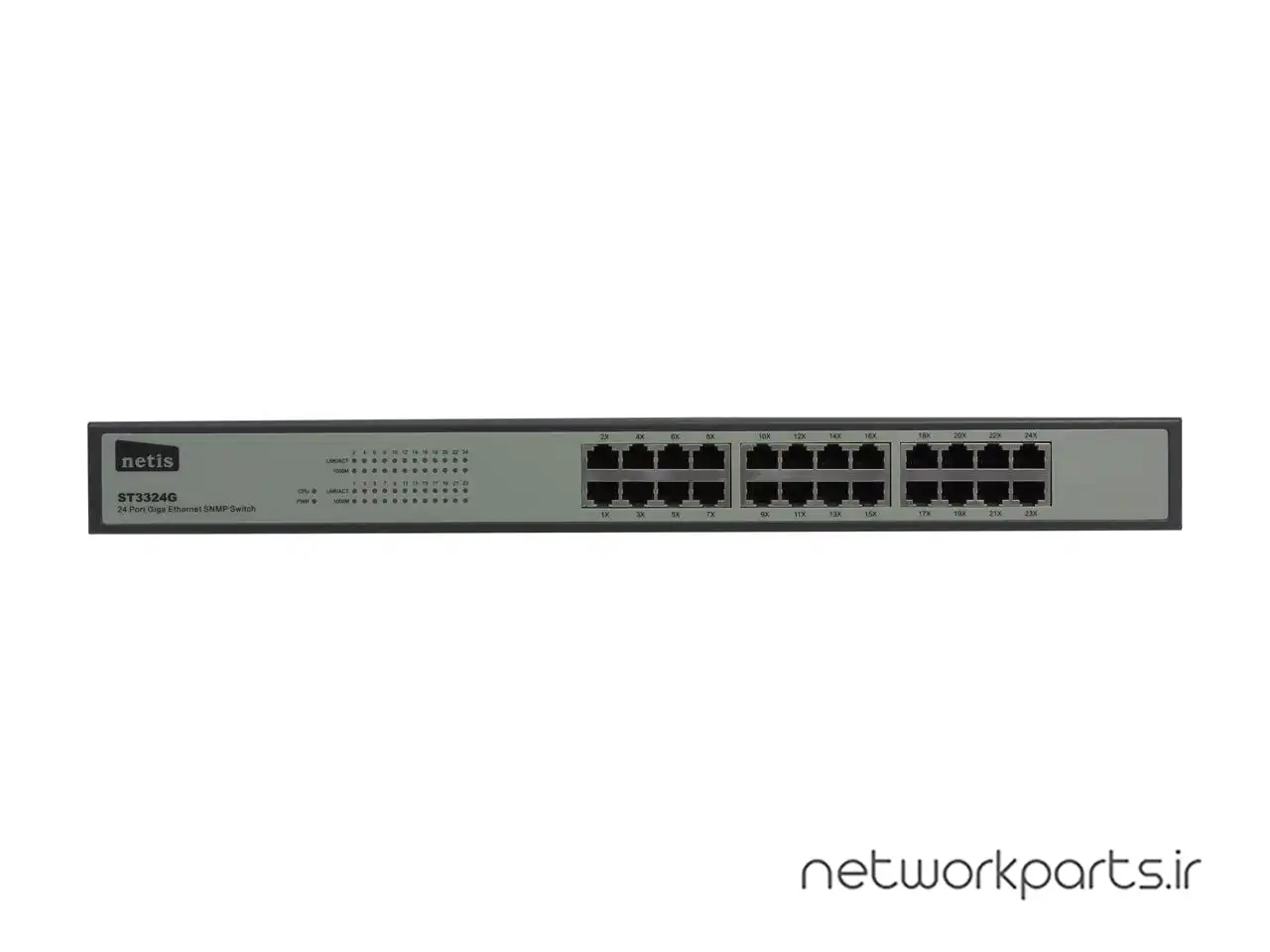

| LED | PWR, CPU, 1-24 1000M, 1-24 LNK/ACT |
| توان | 100-240 V AC/50-60Hz |
| دما | Operating temperature: 0 degree to 50 degree C (32 degree to 122 degree F), Storage Temperature: -40 ~ 158 degree Fahrenheit |
| رطوبت | Operating Humidity: 90% maximum relative humidity, non-condensing, Storage Humidity: 5%~90% non-condensing |
| استانداردها | IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.3 10BASE-T, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1q, IEEE 802.1d, |
| ویژگی ها | 24 10/100/1000Mbps Ethernet ports, 48 Gbps switching fabric capacity, Back Pressure Flow Control, Cisco ether-Channel (Static Trunk), Console/Telnet Command Line Interface, DHCP Option 82, DHCP Relay, DHCP Snooping, DLDP (Device Link Detection Protocol), Egress and Ingress Bandwidth Control, Flow Control, flow mirroring, IEEE 802.3ad LACP (Link Aggregation Control Protocol), IEEE 802.3x PAUSE frame Flow Control, Full-Duplex mode, IGMP Snooping v1/v2/v3, Link Aggregation, LLDP(Link Layer Discovery Protocol), Loopback Detection, Management:, MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN), Multicast VLAN Registration (MVR), Multicast:, Port mirroring, Provides high performance of Store-and-Forward architecture, broadcast storm control, Provides SSH encryptions, RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol), SNMP v1/v2c/v3, Spanning Tree Protocol instances: 254, SSH v1/v2, STP, IEEE 802.1D (Classic Spanning Tree Protocol), Supports DHCP Snooping, Relay and Option 82, Supports IEEE 802.1Q VLAN, Supports IGMP snooping v1, v2 and v3, Supports Link Aggregation, Supports LLDP, DLDP, Supports Port Mirroring, Flow mirroring, Supports powerful security functions like ACL, dynamic ARP inspection, IP-MAC-Port-VID Binding, Supports SNMP v1/v2c/v3 , SSH v1/v2 switch management, Supports Spanning Tree Protocol, Up to 8 ports per trunk group, Up to 8 Trunk groups, Web |
| امنیت | Access Control List(ACL), Broadcast Storm Control, Dynamic ARP Inspection, IEEE 802.1X Port Based Network Access Control, IP-MAC-Port-VID Binding, RADIUS / TACACS+ users access authentication, SSH encryptions |

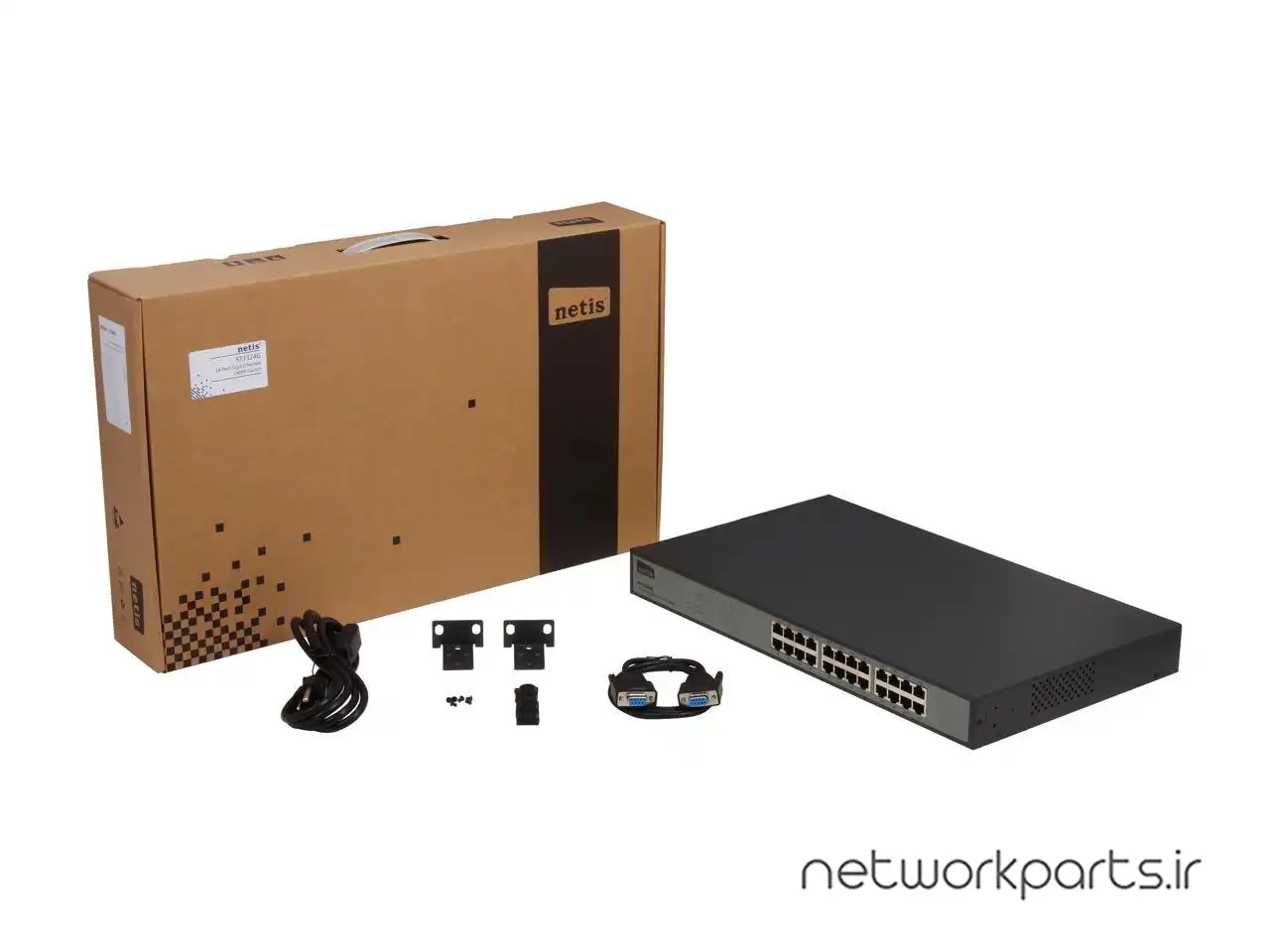

| محتویات بسته بندی | 1 x Power Cord, 1 x RS232 Cord, 1 x ST3324G, 2 x Brackets |
| ابعاد | 17.13" x 9.84" x 1.73" (L x W x H) |
