انتخاب هوشمندانه سخت افزار و تجهیزات شبکه
| برند محصول | TRENDnet |
|---|---|
| مدل محصول | TPE-224WS |
| فرمت | Desktop |
| نوع مدیریت شبکه | Web Managed |
| متد سوییچ | Store and Forward |
| پورت اصلی | 28 |
| پورت های اصلی | 26x RJ45 + 2x SFP |
| نوع پورت اصلی | 20x 10/100 Mbps PoE ports, 2x Gigabit ports, 2x Shared Gigabit ports (RJ-45 or SFP), 4x 10/100 Mbps PoE+ ports, |
| سرعت پورت اصلی | 10/100Mbps + 1000Mbps |
| PoE | 802.3af: Up to 15.4 W per port (ports 5-24), 802.3at: Up to 30 W per port (ports 1-4), Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-), Over current/short circuit protection, PD auto classification, PoE budget: 193 W |
| QoS | 802.1p Class of Service (CoS), Bandwidth Control per port, DSCP (Differentiated Services Code Point), Queue Scheduling: Strict Priority, Weighted Round Robin (WRR) |
| پشتیبانی از VLan | 802.1Q Tagged VLAN, Asymmetric VLAN, Dynamic GVRP, Multiple management VLAN assignment, Private VLAN (Protected Ports), Up to 256 VLAN groups, ID Range 1-4094, Voice VLAN (10 user defined OUIs) |
| حافظه Buffer | 512KB |
| جدول MAC آدرس | 8K |
| LED | Mode Button displays Link / Activity or PoE port status |
| توان | Consumption: 239.7 W (max.), Input: 100 - 240 V AC, 50/60 Hz, internal power supply |
| دما | Operating Temperature: 0 ~ 45 C (32 ~ 113 degree Fahrenheit) |
| رطوبت | Max. 90% non-condensing |
| استانداردها | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, |
| ویژگی ها | Easy configuration via Web browser, Extensive Diagnostic LED's on the Front Panel, Full Wire-Speed Non-Blocking Reception and Transmission, IEEE 802.3af Power over Ethernet (PoE) Standard Compliant, Port Setting Function, Users can set each Port's Availability, Speed, Duplex Mode, and Flow Control, Proprietary Windows Based Management/Monitoring Utility (similar to SNMP Trap), Standard 19" (1U) Rack-Mount size (kit included), Supports PoE Power maximum up to 170 watts for all PoE port, Supports PoE power up to 36 watts for each PoE port, Supports PoE Powered Device(PD) classification identify |
| محتویات بسته بندی | CD-ROM (Utility & User's Guide), Power cord (1.8 m/6 ft.), Quick Installation Guide (QIG), Rack Mount Kit, TPE-224WS |

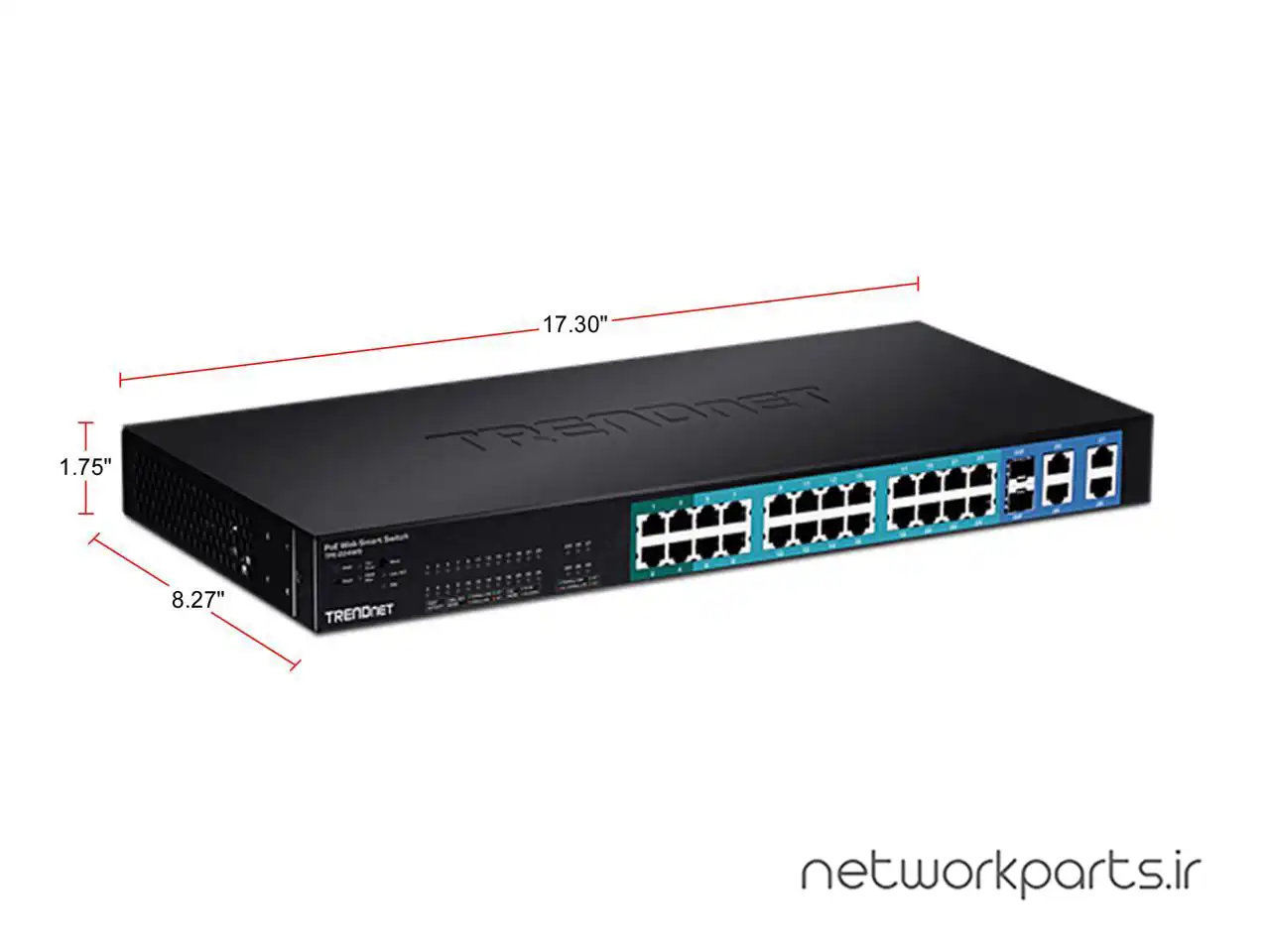

| ابعاد | 17.30" x 8.27" x 1.75" |
| وزن | 7.18 پوند |
