انتخاب هوشمندانه سخت افزار و تجهیزات شبکه
| برند محصول | TRENDnet |
|---|---|
| مدل محصول | TPE-1620WS |
| فرمت | Rack |
| نوع مدیریت شبکه | Web Managed |
| پورت اصلی | 16 |
| پورت های اصلی | 16x PoE+ RJ-45, 2x Shared SFP |
| سرعت پورت اصلی | 10/100/1000Mbps |
| پورت Mirroring | بلی |
| پروتکل ها | TCP/IP |
| PoE | PoE+ |
| QoS | بلی |
| SNMP | بلی |
| LACP | بلی |
| پشتیبانی از VLan | 802.1Q Tagged VLAN, Asymmetric VLAN, Dynamic GVRP, Multiple management VLAN assignment, Private VLAN (Protected Ports), Up to 256 VLAN groups, ID Range 1-4094, Voice VLAN (10 user defined OUIs) |
| حافظه Buffer | 8MB |
| Jumbo frame | 10KB |
| جدول MAC آدرس | 16K |
| توان | Consumption: 198 Watts (Max), Input: 100 - 240 V AC, 50/60 Hz, internal power supply, PoE budget: 185 Watts |
| دما | 0ºC to 45ºC (32ºF to 113ºF) |
| رطوبت | 90% Maximum, Non-condensing |
| استانداردها | IEEE 802.3/3u/3ab, IEEE 802.3af |
| ویژگی ها | 802.1p Class of Service (CoS), Bandwidth control per port, Compatibility: Optional Software Utility: Windows 8 (32/64-bit) 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows 2003/2008 Server (32/64-bit), DSCP (Differentiated Services Code Point), Enable/disable 802.3az Power Saving, Forwarding rates: 23.8 Mpps, HOL Blocking Prevention, HTTP/HTTPS (SSL v2/3 TLS) Web based GUI, IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration, Jumbo Frames: 10 Kbytes, LLDP, MAC Address Table: 16K entries, Management:, Performance, Quality of Service (QoS), Queue Scheduling: Strict Priority, Weighted Round Robin (WRR), Ram buffer: 8 Mbits, RMON v.1, SNMP v1/v2c/v3, Static Unicast MAC Address, Switch fabric: 32 Gbps, Up to 70% energy saving GREENnet technology., Virtual Cable Test |
| امنیت | 802.1X Port-Based Network Access Control , RADIUS, TACACS+, Denial of Service (DoS), DHCP Snooping (per VLAN), Duplicated Address Detection, Local Dial In User Authentication, Loopback detection |

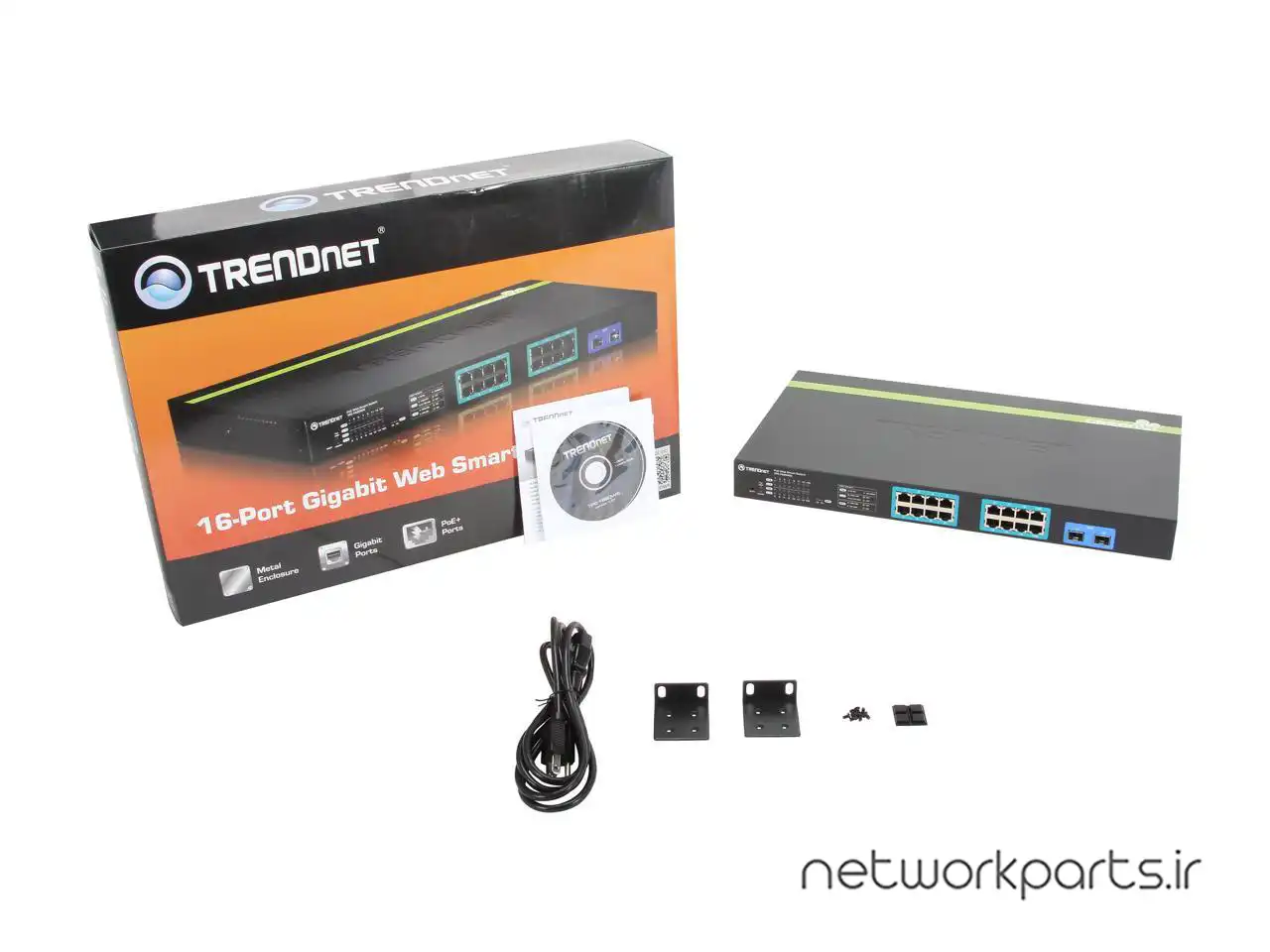

| محتویات بسته بندی | CD-ROM (Utility & User's Guide), Multi Language Quick Installation Guide, Power cord (1.8 m/6 ft.), Rack-Mount Hardware, TPE-1620WS |
| ابعاد | 440 x 251 x 44.45 mm (17.3 x 9.9 x 1.75 in.), Rack mountable 1U height |
| وزن | 7.9 پوند |
