انتخاب هوشمندانه سخت افزار و تجهیزات شبکه
| برند محصول | Brocade |
|---|---|

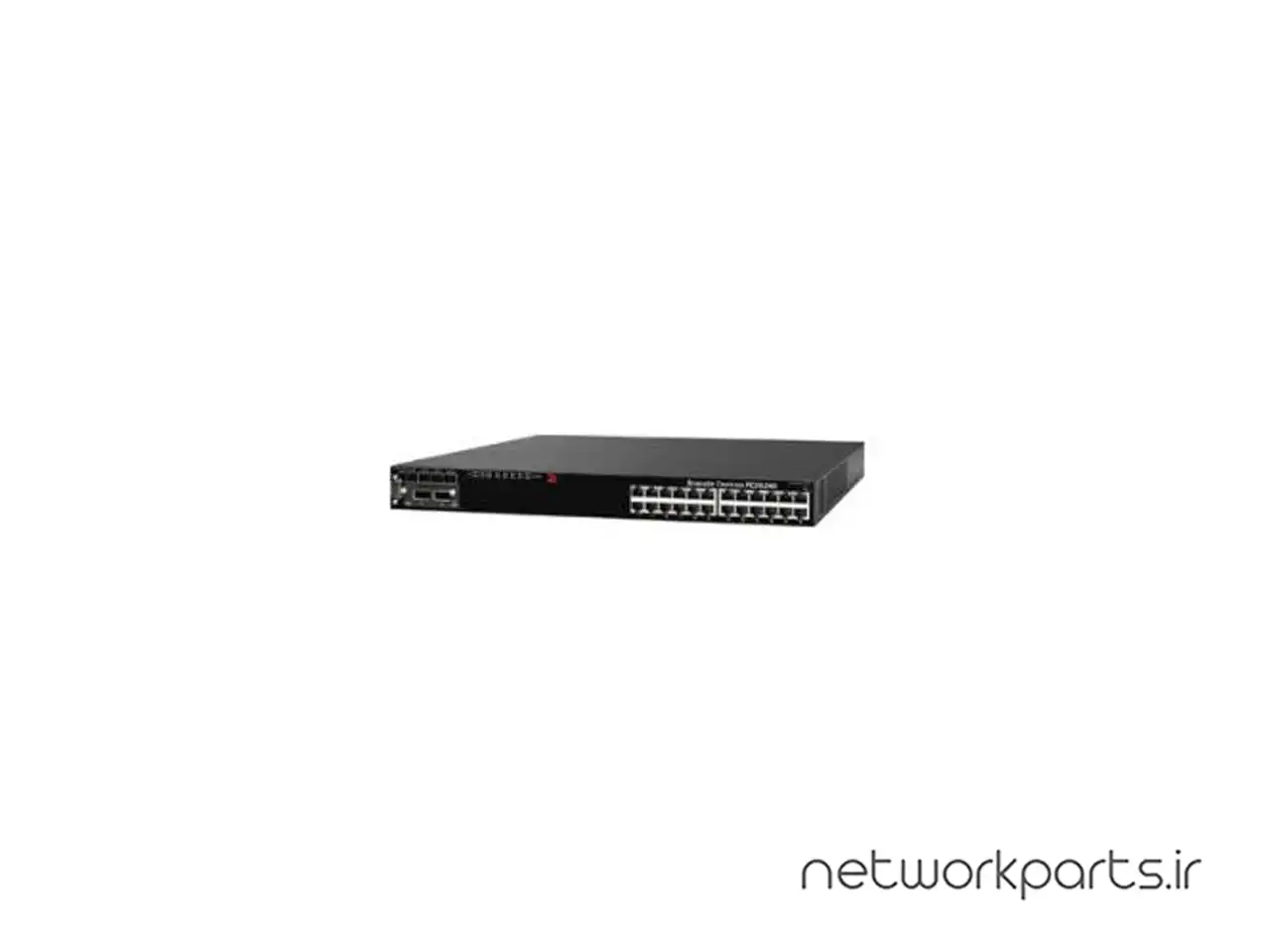

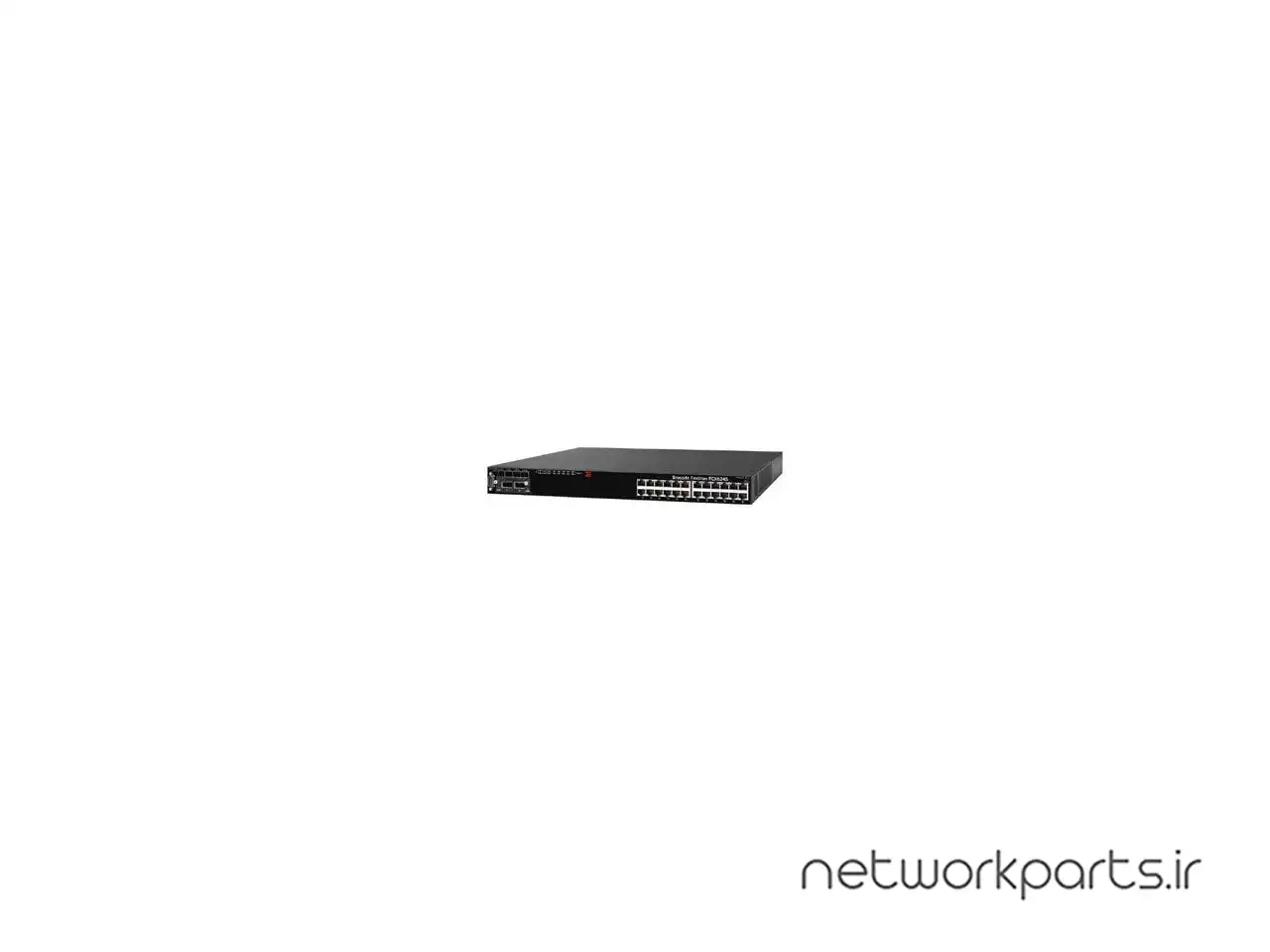

| مدل محصول | FCX624S-HPOE |
| فرمت | Rack |
| نوع مدیریت شبکه | Managed |
| پورت اصلی | 24 |
| پورت های اصلی | 24x RJ45 |
| سرعت پورت اصلی | 10/100/1000Mbps |
| لایه | 3 |
| PoE | بلی |
| QoS | بلی |
| SNMP | بلی |
| پشتیبانی از VLan | بلی |
| Jumbo frame | 9 KB |
| جدول MAC آدرس | 32K |
| توان | Input line frequency: 50-60 Hz, Input voltage: Typ. 100-240 V AC, Power inlet: C13, Power supplies: Up to two internal, redundant, field-replaceable, load-sharing AC power supplies |
| دما | Operating temperature: 0 degree to 50 degree C (32 degree to 122 degree F), Storage temperature: -25 °C to 70 °C |
| رطوبت | Relative humidity: 5% to 95%, non-condensing |
| استانداردها | 802.1AB LLDP/LLDP-MED, 802.1D-2004 MAC Bridging, 802.1p Mapping to Priority Queue, 802.1s Multiple Spanning Tree, 802.1w Rapid Spanning Tree, 802.1x Port-based Network Access Control, 802.3 10 Base-T, 802.3 MAU MIB (RFC 2239), 802.3ab 1000 Base-T, 802.3ad Link Aggregation (Dynamic and Static), 802.3ae 10 Gigabit Ethernet, 802.3u 100 Base-TX, 802.3x Flow Control, 802.3z 1000Base-SX/LX |
| ویژگی ها | Advanced Multicast Features, Comprehensive Enterprise-class Security, FCX Models with 4 optional 10GbE uplinks, Flexible Cooling Options, Full Layer 3 Capabilities, High Reliability In A Compact Form Factor, Increased Flexibility And Scalability, Metro Features Connecting Buildings and Campuses, Network Access Control (NAC), Network Resiliency Through Fault Detection, Optional 10 GbE Module, Out-of-Band Management: Console Port, Plug-and-Play Operations for Powered Devices, Simplified Deployment with Auto-Configuration, Simplified, High-Performance, High Availability Stacking, Simplified, Secure Management Based On Open Standards |
| امنیت | 802.1x accounting, Bi-level Access Mode (Standard and EXEC Level), EAP pass-through support, Embedded security:, IEEE 802.1X username export in sFlow, MAC Authentication, Protection against Denial of Service (DOS) attacks |
| ابعاد | 1.70" x 17.30" x 17.30" |
| وزن | 9.9 پوند |
