| برند محصول | HP |
|---|---|
| سری محصول | ProCurve |

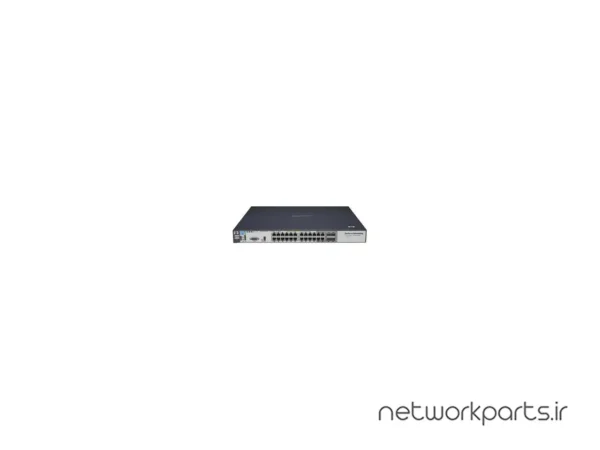

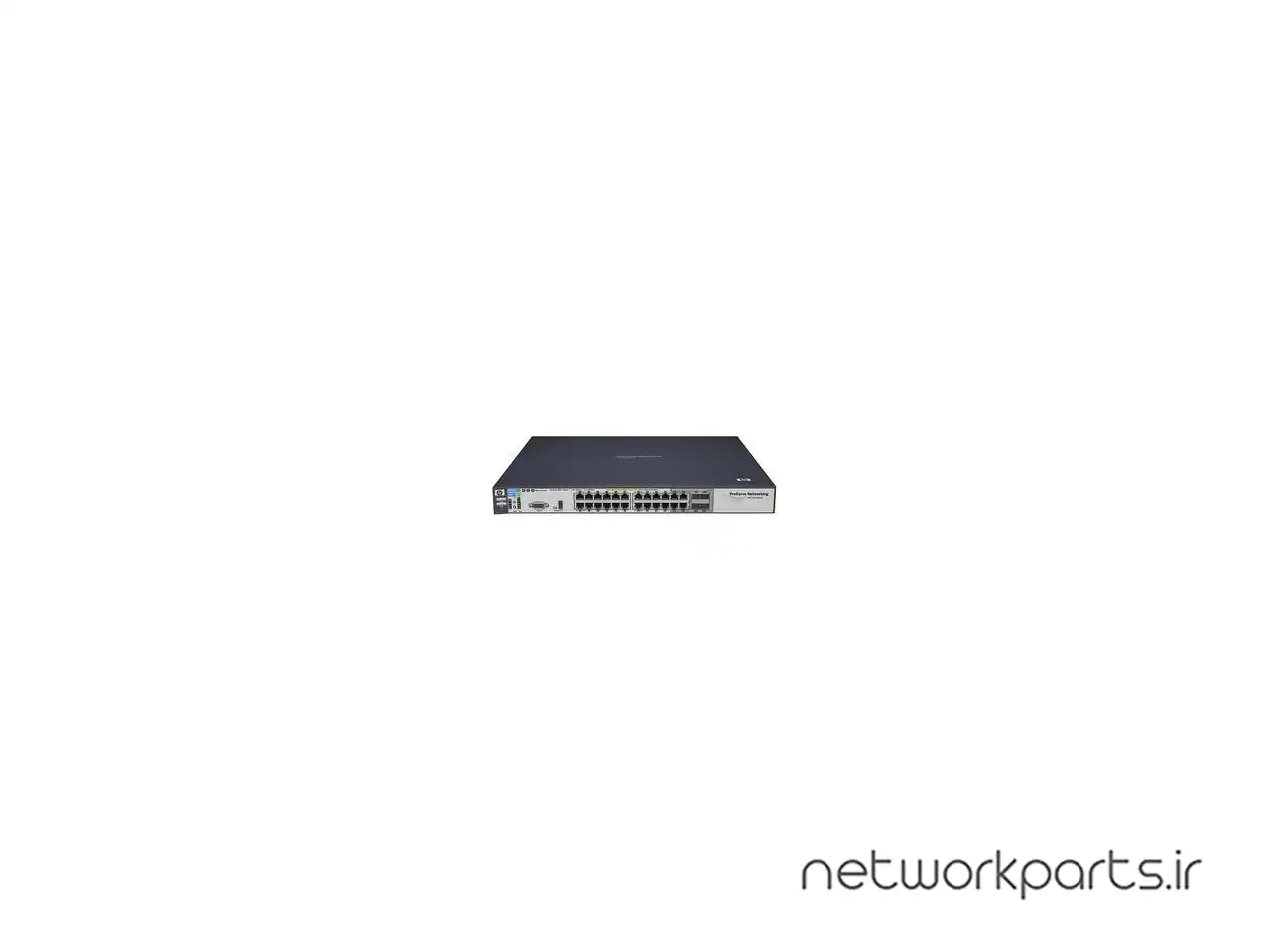

| مدل محصول | 3500YL-24G-PWR |
| شماره قطعه | J8692A |
| فرمت | Rack |
| نوع مدیریت شبکه | Managed |
| پورت اصلی | 24 |
| پورت های اصلی | 1 open module slots, 1 RS-232C DB-9 console port, 20 RJ-45 10/100/1000 ports, 4 Dual Personality Ports each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GB, Supports a maximum of 4 10-GbE ports |
| سرعت پورت اصلی | 10/100/1000Mbps |
| پورت Mirroring | بلی |
| پروتکل ها | ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED), DHCP Relay, HTML and telnet management, IGMPv3, PIM Dense Mode (Premium Edge License), PIM Sparse Mode (Premium Edge License), RFC 1058 RIP, RFC 1213 MIB II, RFC 1492 TACACS+, RFC 1493 Bridge MIB, RFC 1542 BootP, RFC 1724 RIPv2 MIB, RFC 1850 OSPF MIB, RFC 2021 RMON probe configuration (RMON v2), RFC 2030 Simple Network Time Protocol (SNTP) v4, RFC 2096 IP Forwarding Table MIB, RFC 2138 RADIUS, RFC 2328 OSPFv2 (Premium Edge License), RFC 2453 RIPv2, RFC 2474 DiffServ Precedence, RFC 2597 DiffServ Expedited Forwarding (EF), RFC 2598 DiffServ Assured Forwarding (AF), RFC 2613 SMON, RFC 2618 RADIUS Client MIB, RFC 2620 RADIUS Accounting MIB, RFC 2665 Ethernet MIB, RFC 2668 802.3 MAU MIB, RFC 2674 802.1p and IEEE 802.1Q Bridge MIB, RFC 2737 Entity MIB, RFC 2787 VRRP MIB, RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events), RFC 2863 Evolution of Interface, RFC 2866 RADIUS accounting, RFC 3046 DHCP Relay Agent Information Option, RFC 3176 sFlow, RFC 3376 IGMPv1/v2/v3, RFC 3768 VRRP (Premium Edge License), RFC 768 UDP, RFC 783 TFTP, RFC 792 ICMP, RFC 793 TCP, RFC 826 ARP, RFC 854 Telnet, RFC 951 BootP, Secure Sockets Layer (SSL), SNMPv1/v2c/v3, SSHv1/SSHv2 Secure Shell, XRMON |
| قابلیت Stack نمودن | بلی |
| لایه | 3.4 |
| PoE | بلی |
| QoS | بلی |
| SNMP | بلی |
| LACP | بلی |
| پشتیبانی از VLan | بلی |
| حافظه Buffer | 36MB QDR SDRAM Packet buffer size |
| Jumbo frame | بلی |
| پشتیبانی از ماژول | بلی |
| توان | Current: 10.0 A /5.0 A, Frequency: 50/60 Hz, Maximum power draw if not using any PoE power is 200W (1.8A @ 110V, 0.9A @ 220V), Power: 759 W, Voltage: 100-127 VAC/200-240 VAC |
| دما | 0° to 55° C (32° to 131° F) |
| رطوبت | 15 % to 95 % at 104 °F (40 °C), noncondensing |
| استانداردها | IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.1D Spanning Tree (STP), IEEE 802.1p Priority, IEEE 802.1Q GVRP, IEEE 802.1Q VLAN Tagging, IEEE 802.1s Multiple Spanning Tree (MSTP), IEEE 802.1w Rapid Convergence Spanning Tree, IEEE 802.1X Network Login, IEEE 802.3ad Link Aggregation Control Protocol (LACP), IEEE 802.3af Power over Ethernet, IEEE 802.3x Flow Control |
| ویژگی ها | Access control lists (ACLs), Identity-driven ACL, IP multicast routing (Premium Edge license), IP multicast snooping (data-driven IGMP), iSCSI support, Layer 2 switching:, Layer 3 routing:, Layer 3 services: UDP helper function, LLDP-MED (Media Endpoint Discovery), MAC address lockout, Management: RMON, XRMON and sFlow v5;Link Layer Discovery Protocol (802.1ab); Friendly port names; Dual flash images; Multiple configuration files; Port mirroring, Quality of Service (QoS), Resiliency and High Availability, Secure FTP, Secure management access, Secure Shell (SSHv2), Secure Sockets Layer (SSL), Security banner, Source-port filtering, Switch management logon security |
| امنیت | Access control lists (ACLs), Authentication flexibility, ICMP throttling, Identity-driven ACL, MAC address lockout, Multiple user authentication methods, Port security, Secure FTP, Secure management access, Secure Shell (SSHv2), Secure Sockets Layer (SSL), Security banner, Source-port filtering, Switch CPU protection, Switch management logon security, TACACS+, Virus throttling |
| ابعاد | 17.4" x 15.4" x 1.7" |
| وزن | 14.1 پوند |
