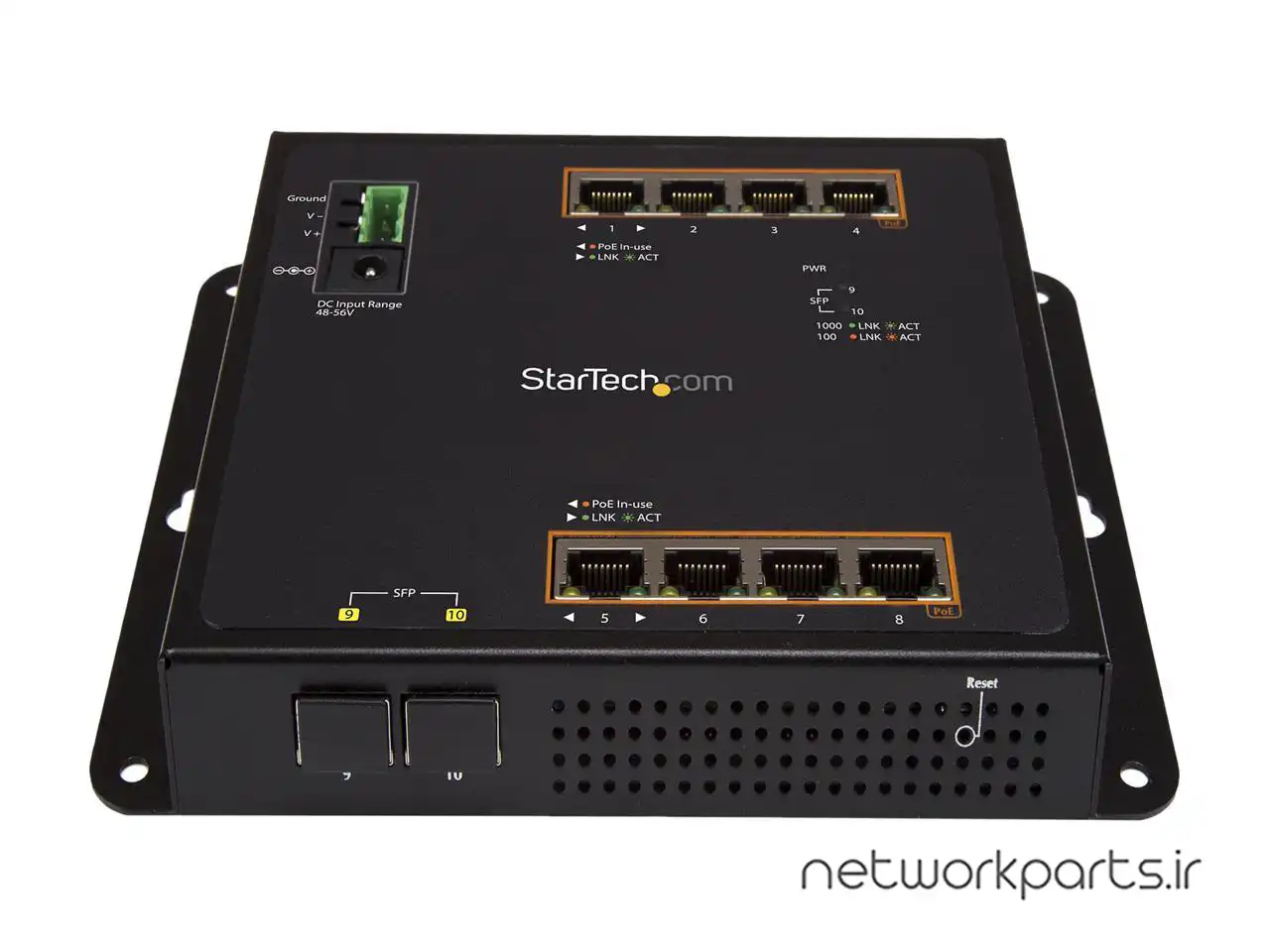

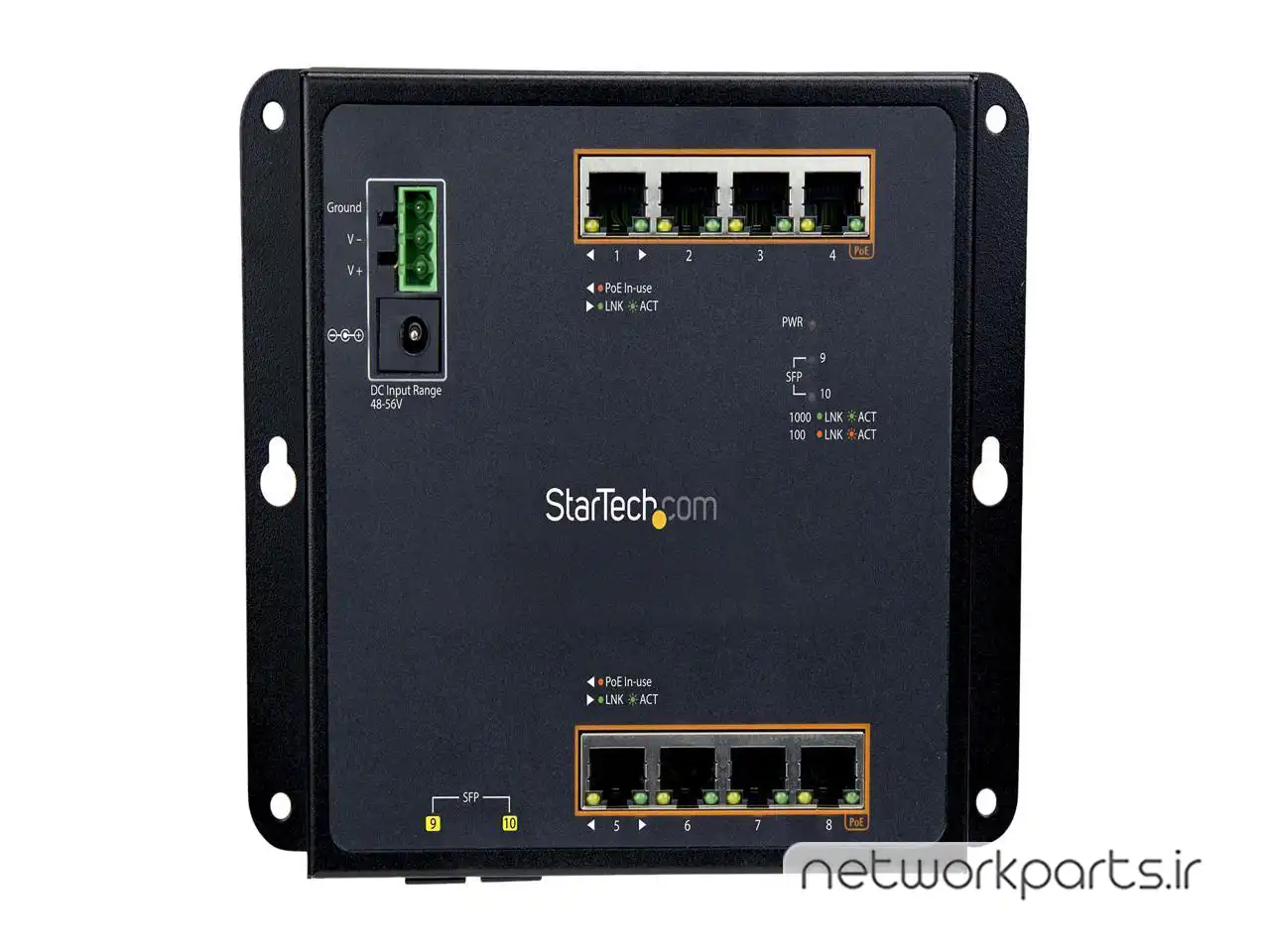

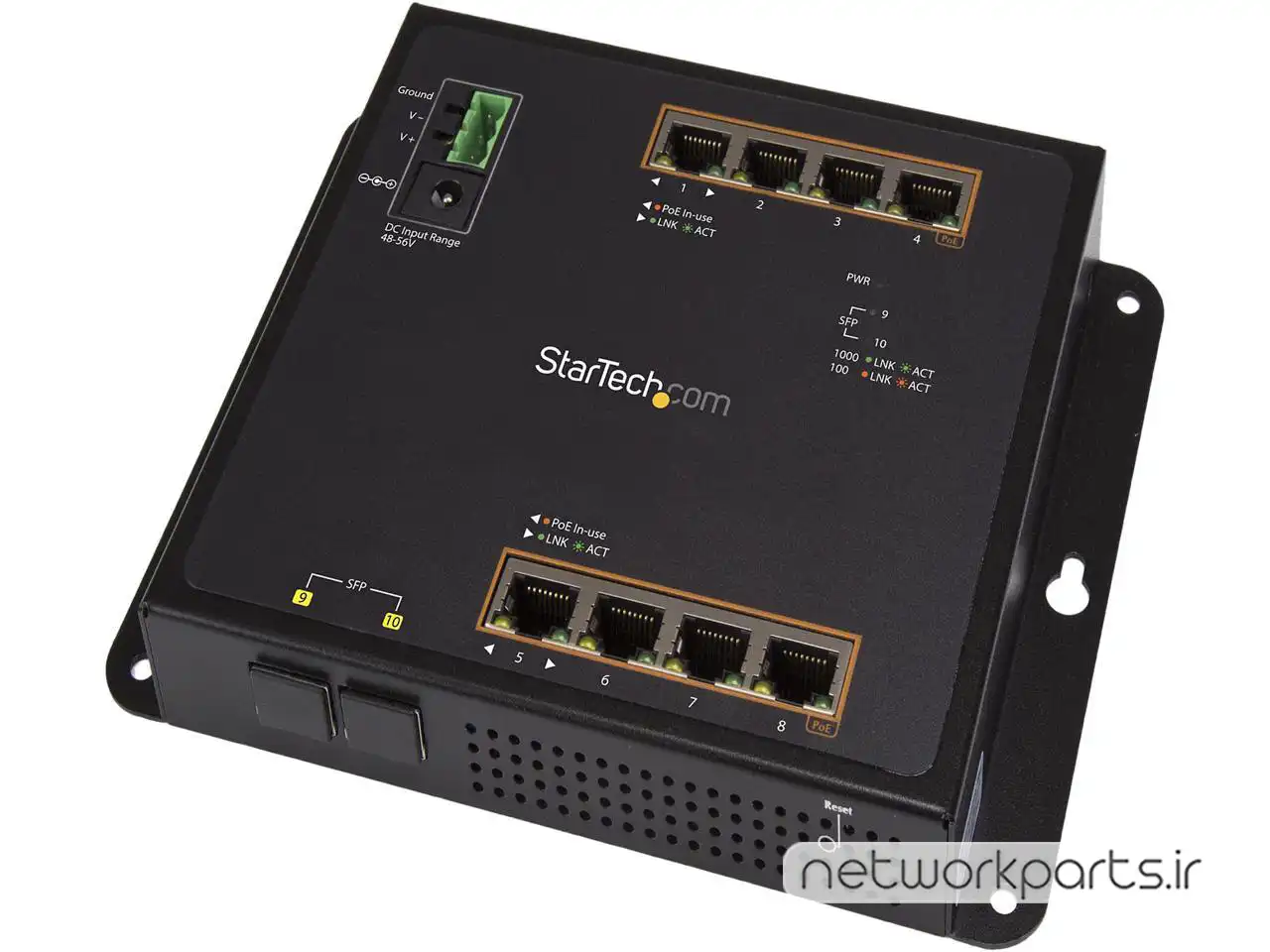

| برند محصول | STARTECH |
|---|---|
| سری محصول | Industrial |
| مدل محصول | IES101GP2SFW |
| فرمت | Wall |
| نوع مدیریت شبکه | Managed |
| متد سوییچ | Store and Forward |
| پورت اصلی | 8 |
| پورت های اصلی | 8x RJ45 + 2x SFP |
| سرعت پورت اصلی | 10/100/1000Mbps |
| پروتکل ها | TCP/IP |
| لایه | 2 |
| PoE | بلی (PoE+) |
| حافظه Buffer | 512KB |
| Jumbo frame | 9 KB |
| LED | 1-Power, 1000 Mbps Link / Activity (green), 2-100 Mbps Link / Activity (yellow), 8-PoE Active (yellow), Link / Activity (green) |
| توان | Input Current: 1A minimum, Input Voltage: 12~48 DC, Plug Type: M, Power Source: Terminal Block |
| دما | Operating temperature: 0 degree to 50 degree C (32 degree to 122 degree F), Storage Temperature: -40 ~ 158 degree Fahrenheit |
| رطوبت | 5~95% RH (Non-Condensing) |
| استانداردها | IEEE 802.3 10BASE-T, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3z 1000BASE-SX/LX |
| ویژگی ها | Compact wall-mount or DIN-rail mount design (with magnetic mounts), Compatible with 10/100/1000 Mbps networks, Dual power input (terminal block / DC plug), Expand your network with 8 x RJ45 (PoE+) ports + 2 x fiber SFP slots in one Gigabit network switch, Front access provides easy access to ports and indicators, IGMP and MLD support, IPv4 and IPv6 dual stack management, Layer 2 management for improved network control, efficiency, and stability, PoE power up to 30W per PoE port (200W budget), Rugged IP30 industrial design with metal housing and extended temperature range (-40 degree to +75 degree C), Support for link aggregation, VLAN tagging, spanning tree protocol, port-based network access control |
| محتویات بسته بندی | 1 x DIN rail, 1 x network switch, 1 x Quick start guide, 1 x terminal block connector, 2 x SFP dust caps, 3 x DINxrail screws, 4 x attaching pins, 4 x locking pins, 4 x magnets, 4 x screw anchors, 4 x screws, 4 x washers, 8 x RJ45 dust caps |
| ابعاد | 0.98" x 5.83" x 5.28" |
| وزن | 1.09 پوند |
