انتخاب هوشمندانه سخت افزار و تجهیزات شبکه
| برند محصول | IP-COM |
|---|---|

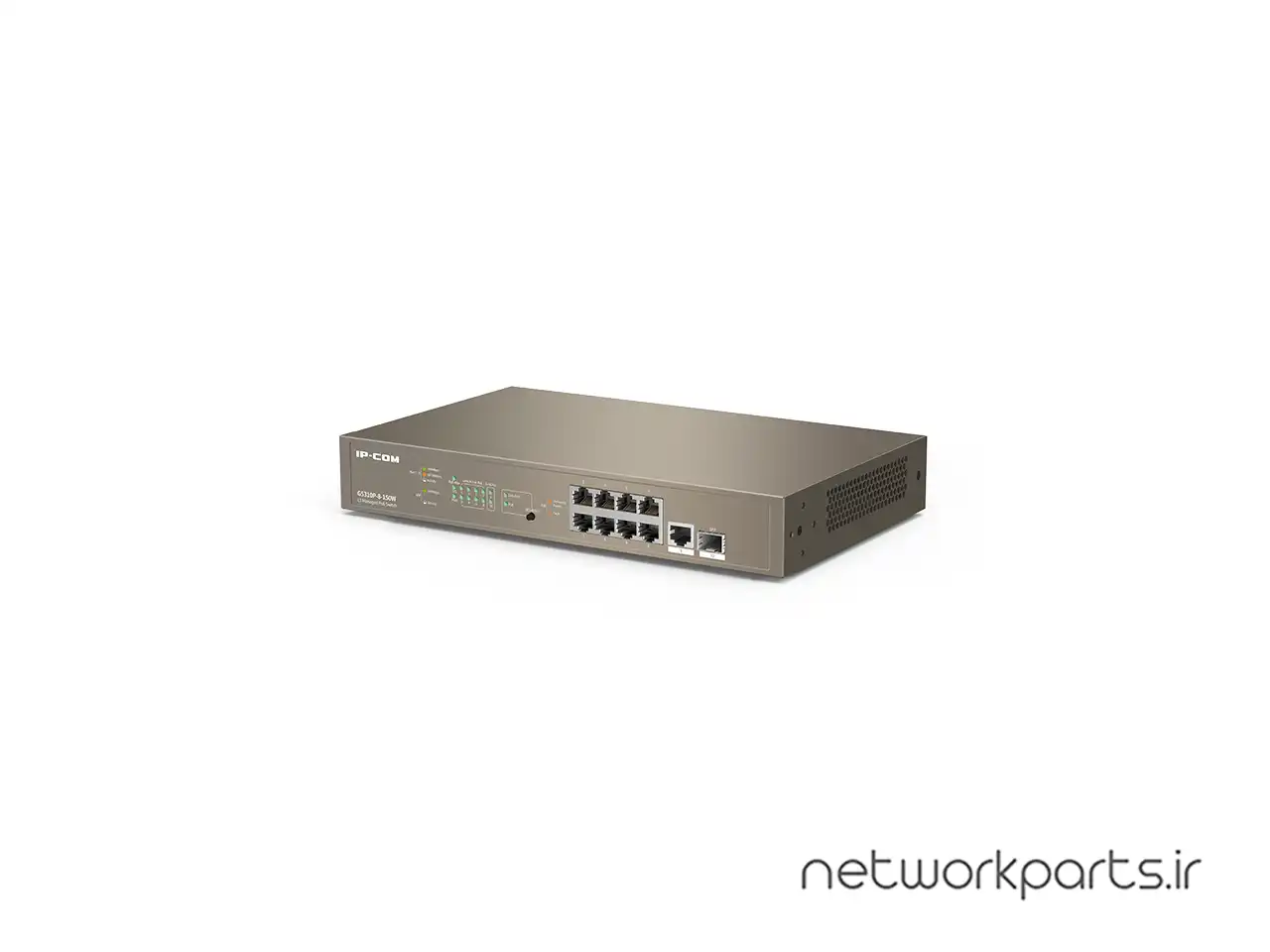

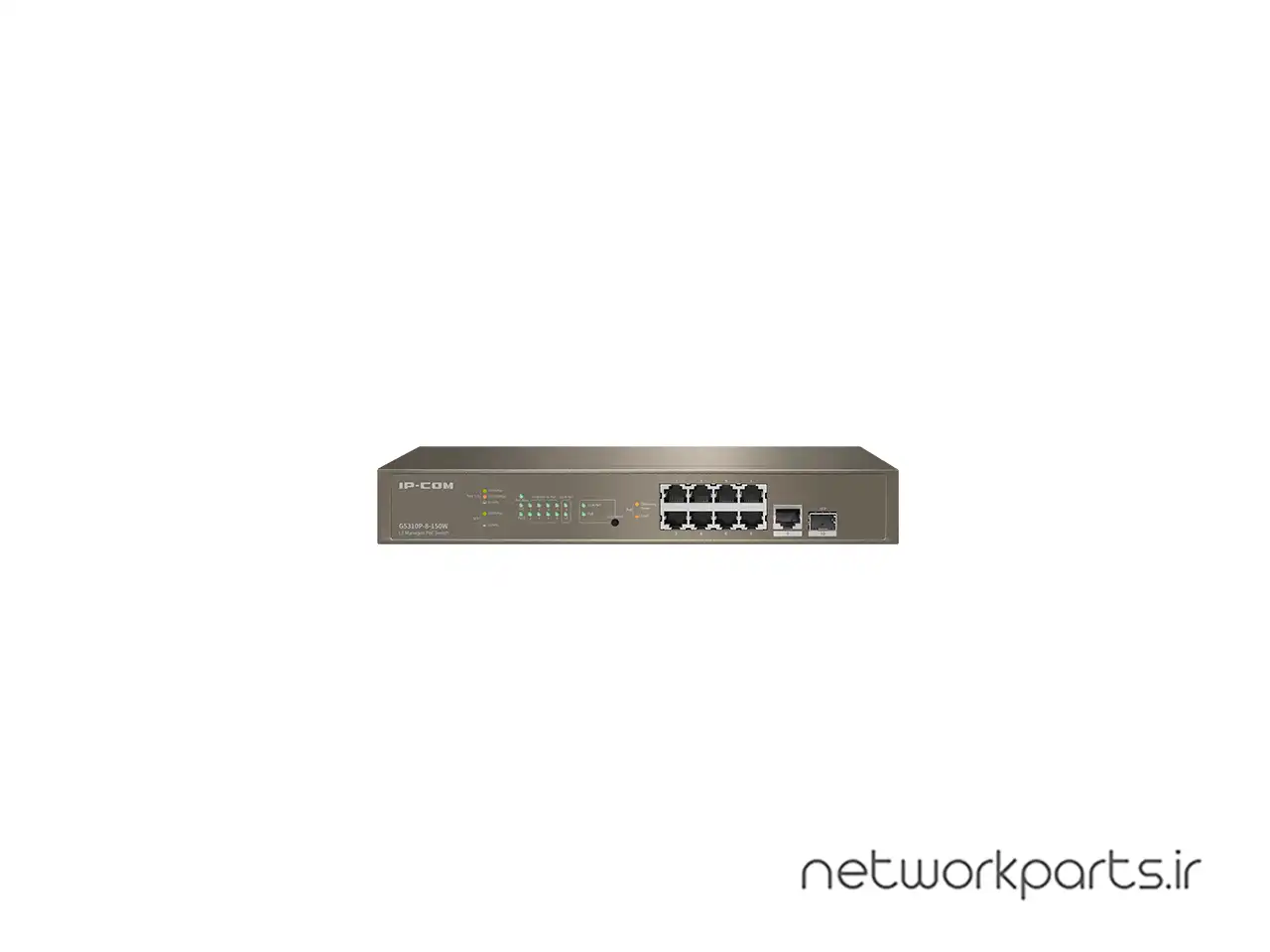

| مدل محصول | G5310P-8-150W |
| نوع مدیریت شبکه | Managed |
| متد سوییچ | Store and Forward |
| پورت اصلی | 8 |
| پورت های اصلی | 8x RJ45 + 1x SFP |
| نوع پورت اصلی | 1x 10/100/1000 Base-T Ethernet ports (Data), 1x 1000 Base-X SFP ports (Data), 8x 10/100/1000 Base-T Ethernet ports (Data/Power) |
| سرعت پورت اصلی | 10/100/1000Mbps |
| نرخ ارسال Packet | 14.9 Mpps |
| پورت Mirroring | Supports N: 1 port mirroring |
| لایه | 3 |
| PoE | 1 2 4 5 +, and 3 6 7 8 -, Ports 1 to 8 support IEEE 802.3af/at standard PoE power supply |
| QoS | Support WRR (Weighted Round Robin), Supports 802.1p port trust mode, Supports a maximum of 8 queue service quality mapping, Supports DSCP port trust mode, Supports SP (Strict Priority), Supports SWRR (Simple Weighted Round Robin) |
| LACP | Supports LACP dynamic aggregation, Supports static aggregation |
| پشتیبانی از VLan | Supports IEEE 802.1Q VLAN, Supports three port modes: Access, Trunk and Hybrid, Supports VLAN Layer-3 interfaces |
| حافظه Buffer | 12MBit |
| جدول MAC آدرس | 16K |
| LED | One Link/Act or PoE LED indicator for each port, One Link/One Link/Act mode converting LED indicator for each device, One PoE Max LED indicator for each device, One PoE mode converting LED indicator for each device, One Power LED indicator for each device, One SYS LED indicator for each device |
| توان | 100-240V~ 50/60Hz, Maximum PoE output power: 130W, Whole switch consumption: <150W |
| دما | Operating temperature: 0 degree to 50 degree C (32 degree to 122 degree F), Storage Temperature: -40 ~ 158 degree Fahrenheit |
| رطوبت | Operating Humidity: 90% maximum relative humidity, non-condensing, Storage Humidity: 5% ~ 95% non-condensing |
| استانداردها | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| امنیت | Supports 802.1x security authentication, Supports ARP receiving limit, Supports DoS attack defense, Supports RADIUS Authentication, Supports unknown MAC address discard |
| ابعاد | 11.57" x 7.07" x 1.73" |
