برند محصول |
Supermicro
|
مدل محصول |

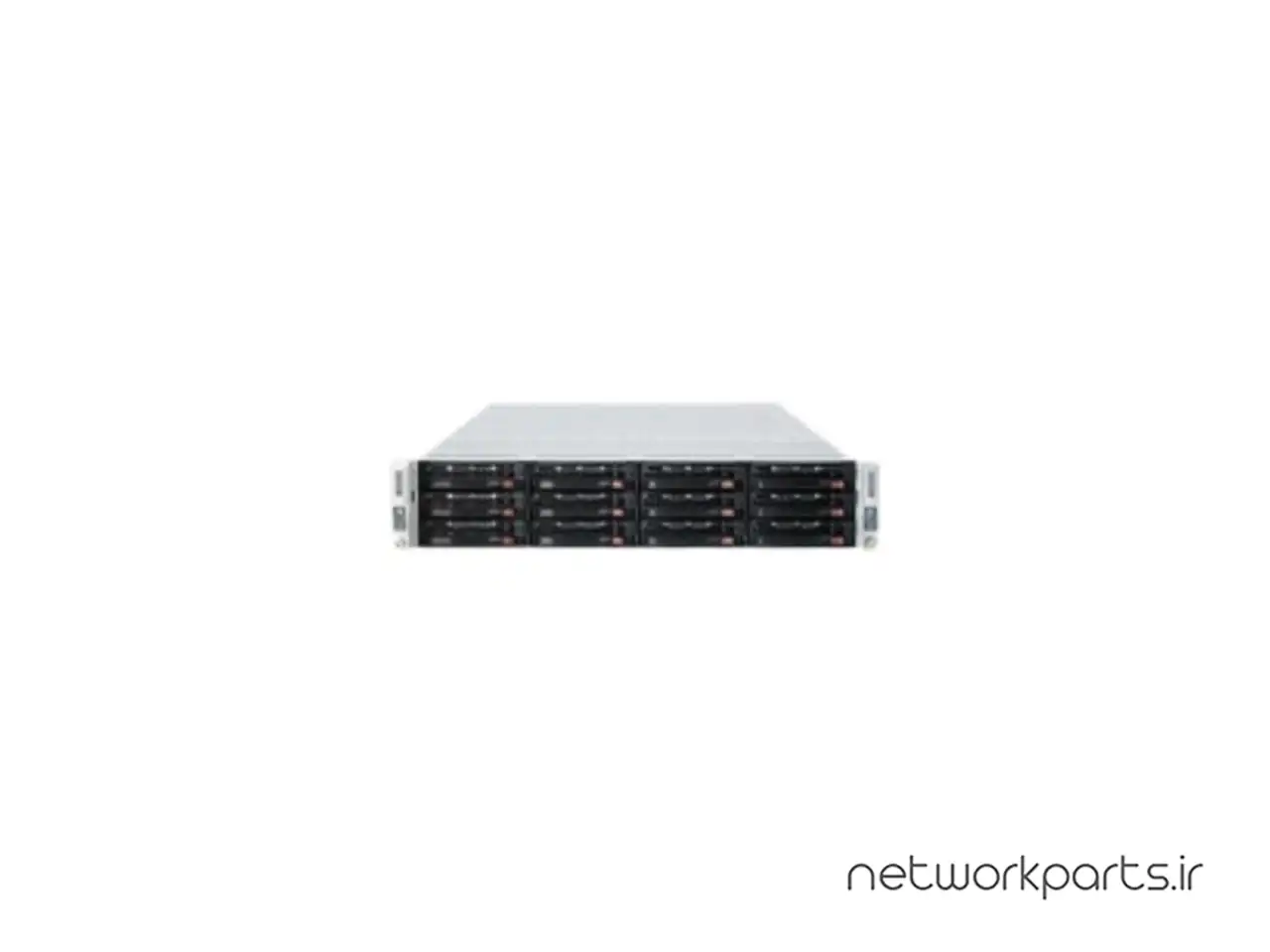

SYS-6027TR-H71RF
|
نوع |
Rackmount
|
فرم فاکتور (قالب) |
2U
|
نوع پردازنده |
E5-2600 v2, Intel Xeon E5-2600
|
سوکت پردازنده |
LGA2011
|
بیشترین تعداد پردازنده |
2
|
at_installed-cpu |
بدون پردازنده
|
چیپ ست North Bridge |
Intel C602
|
at_memory-type-supported |
DDR3 1866/1600/1333/1066/800
|
اسلات های حافظه |
8x 240Pin
|
میزان حافظه نصب شده |
بدون حافظه رم
|
at_max-memory-supported |
256GB DDR3 (RDIMM), 512GB DDR3 LRDIMM
|
at_installed-hdd |
بدون حافظه ذخیره سازی
|
SAS |
8x SAS2 ports (6Gbps), LSI 2108 SAS (6Gbps) w/ Hardware RAID support, RAID 0, 1, 5, 6, 10, 50 support
|
SATA RAID |
RAID 0/1/5/10
|
Serial ATA |
2x SATA 600 + 5x SATA 300
|
at_hot-swap-bays |
3x Hot-swap 3.5" SATA3/SAS2 HDD trays
|
at_gpu-vpu |
Matrox G200eW
|
VGA |
1
|
LAN اول |
Intel I350
|
حداکثر سرعت LAN |
2x 10/100/1000Mbps
|
پورت RJ45 |
1x RJ45 Dedicated IPMI LAN port, 2x RJ45 Gigabit Ethernet LAN ports
|
at_pci-express |
1x PCI-E 3.0 (x16) Low-profile slot
|
USB پشتی |
2
|
پورت COM |
1x Fast UART 16550 port
|
پشتیبانی ECC |
بلی
|
رجیستر شده |
بلی
|
ویژگی ها |
2x Network activity LEDs, 4x 8cm heavy duty PWM fans with optimal fan speed control, Buttons, Front Panel, HDD activity LED, IPMI, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, LEDs:, Nuvoton WPCM450 BMC, Power On/Off button, Power status LED, Support for Intelligent Platform Management Interface v.2.0, System Reset button, UID button, Universal Information (UID) LED
|
at_max-power |
1620W high-efficiency redundant power supply w/ PMBus, 80PLUS Platinum
|
ابعاد |
3.47" x 17.25" x 28.5" (H x W x D)
|
