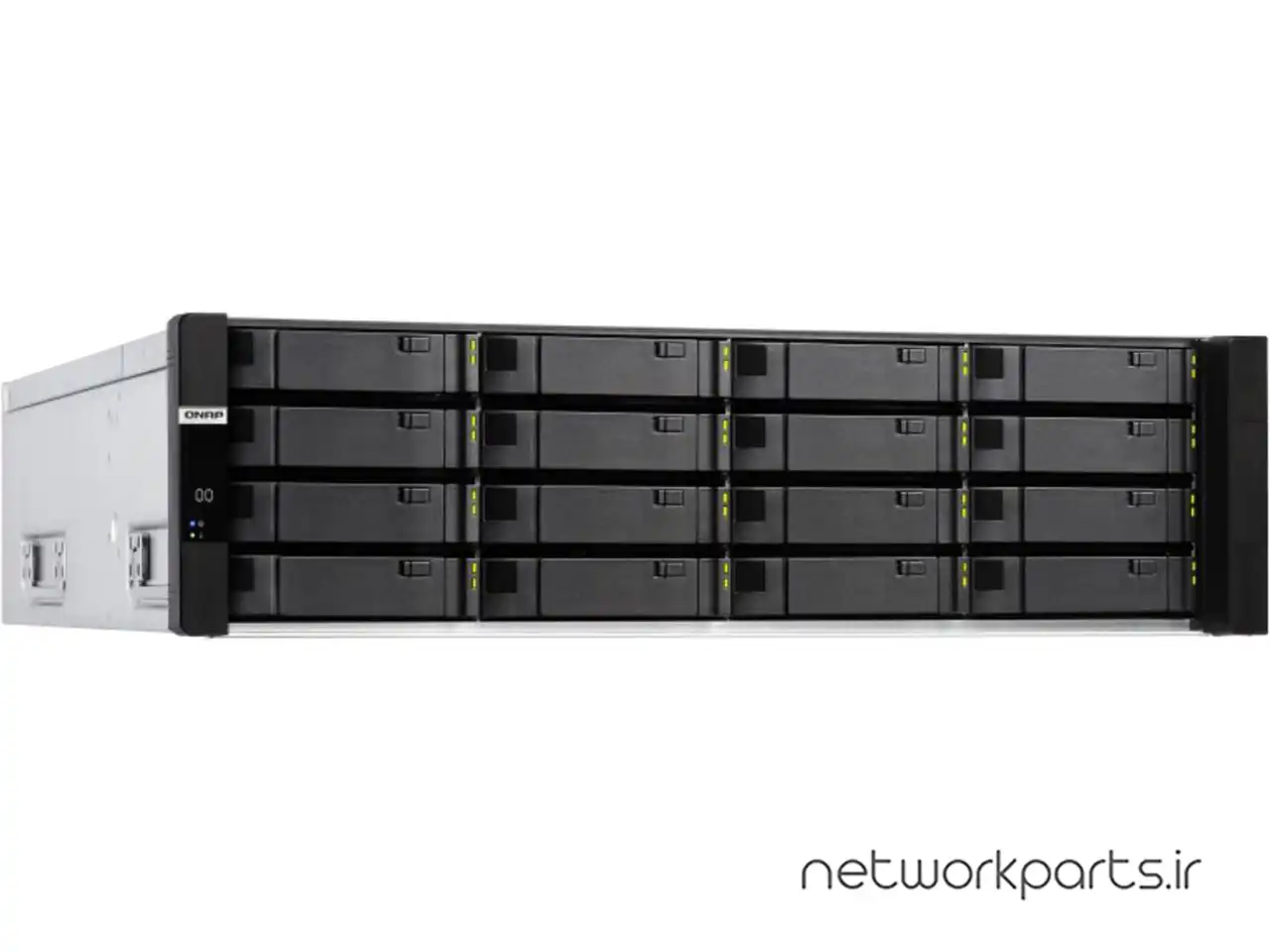

Qnap
ES1686DC-2142IT-128G
رک

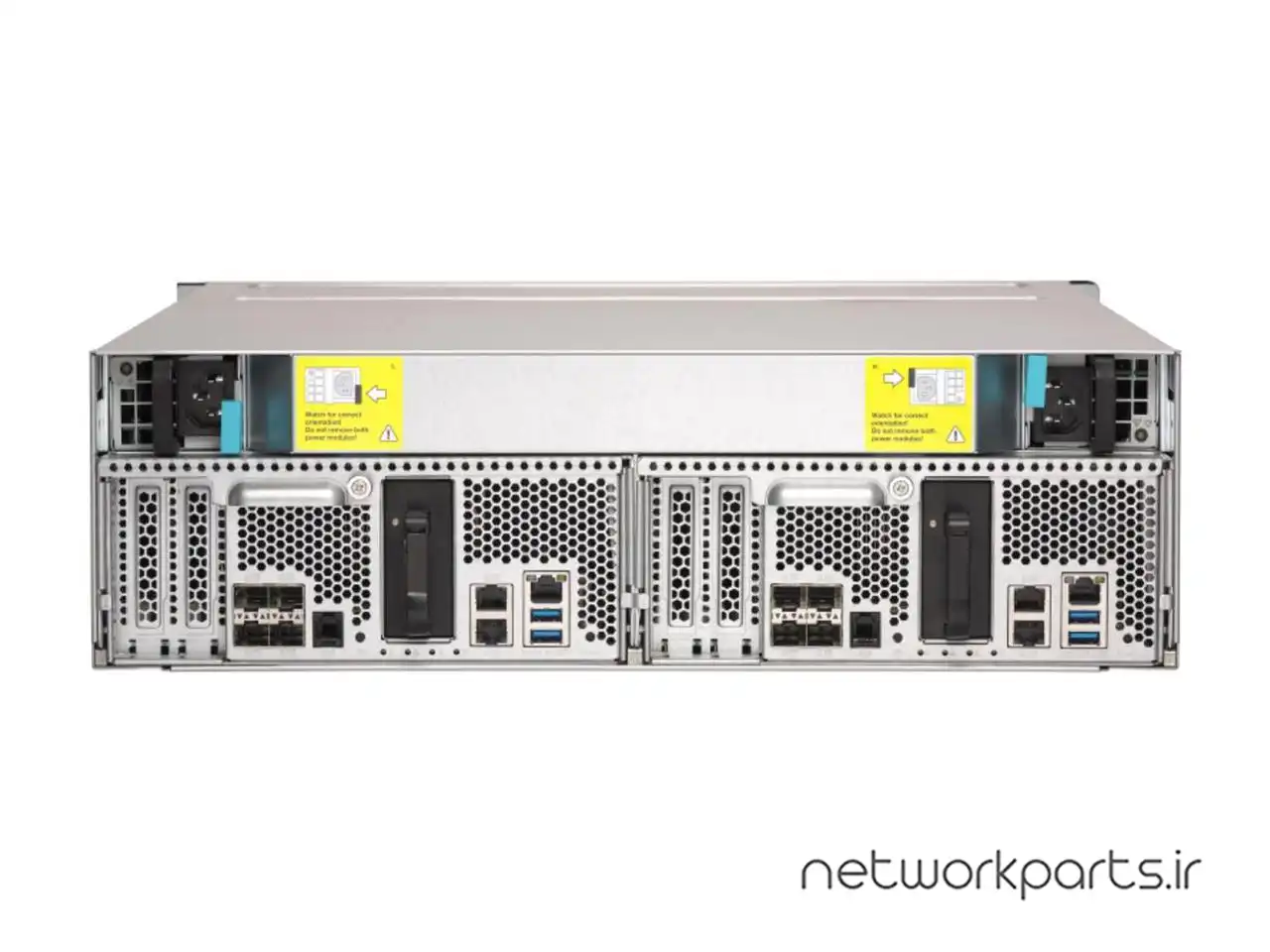

10 Gigabit Ethernet Port: 4x 10GbE SFP+ for each controller, Gigabit Ethernet Port (RJ45): 3 for each controller (one for remote management)
USB 3.0 port: 2 per each controller
16x 3.5-inch, SAS 12Gb/s, backward-compatible to SAS 6Gb/s
3U

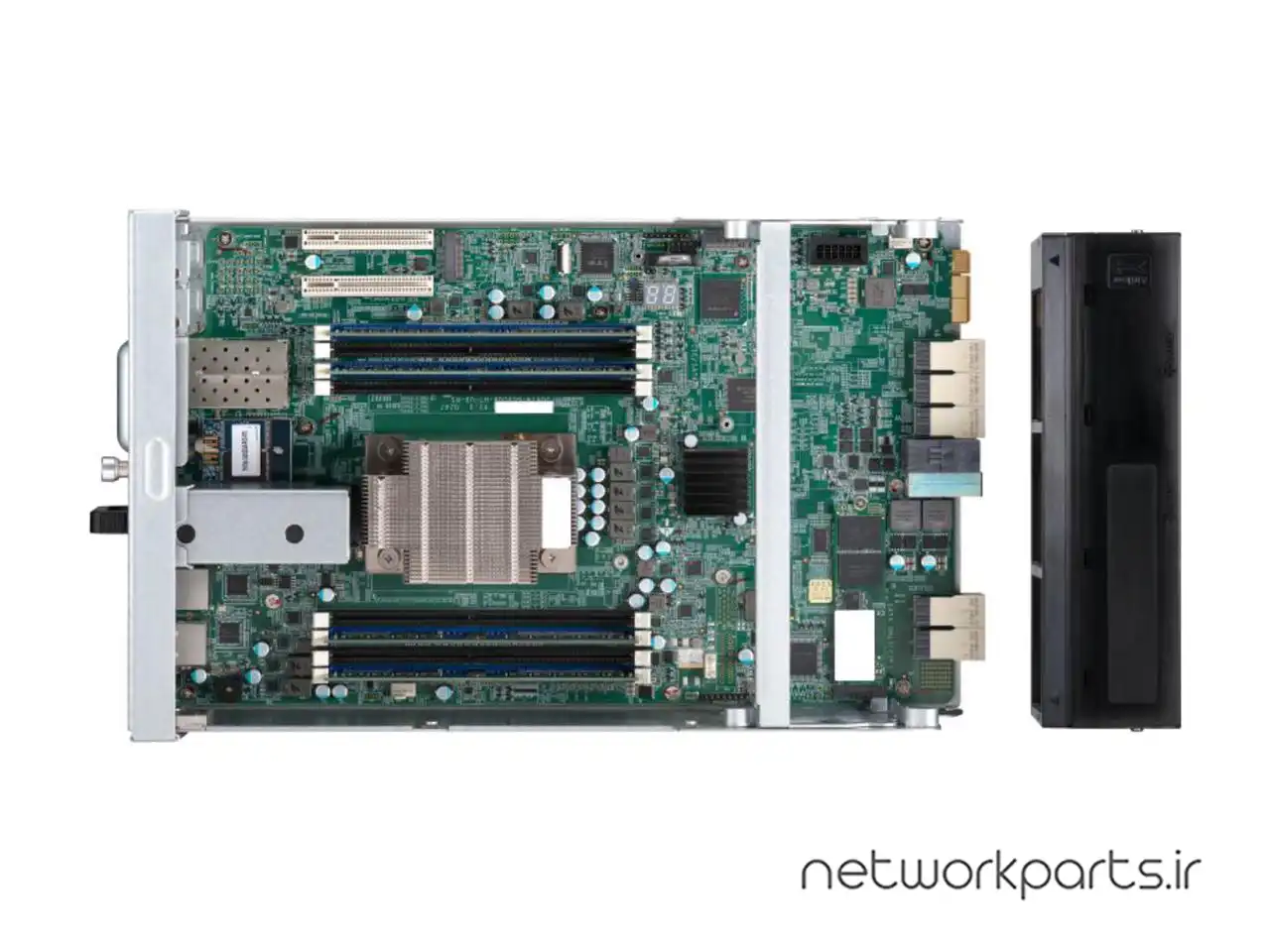

CPU Architecture: 64-bit x86, Intel Xeon D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
64GB RDIMM DDR4 (4x 16GB)
DDR4
QES
LCD Status Display (Two-digit number): Status of JBOD connection, System Power LED (Green): on/off, System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold
Power Consumption: Operating Mode, Typical 108.67 W, Power Supply Unit: 250W, 100-240V
0°C – 40 °C
5-95% R.H
5.20" x 19.02" x 24.83"
56.95 lbs.
1 x Console Cable (RJ11 to RS-232), 2 x Power Cord, 6 x Ethernet Cable (1GbE), 64 x Flat head screw (for 3.5" HDD), E02 series (Chassis) rail kit, max. load 57kg: RAIL-E02, ES1686dc, Quick Installation Guide
