Hanwha Techwin

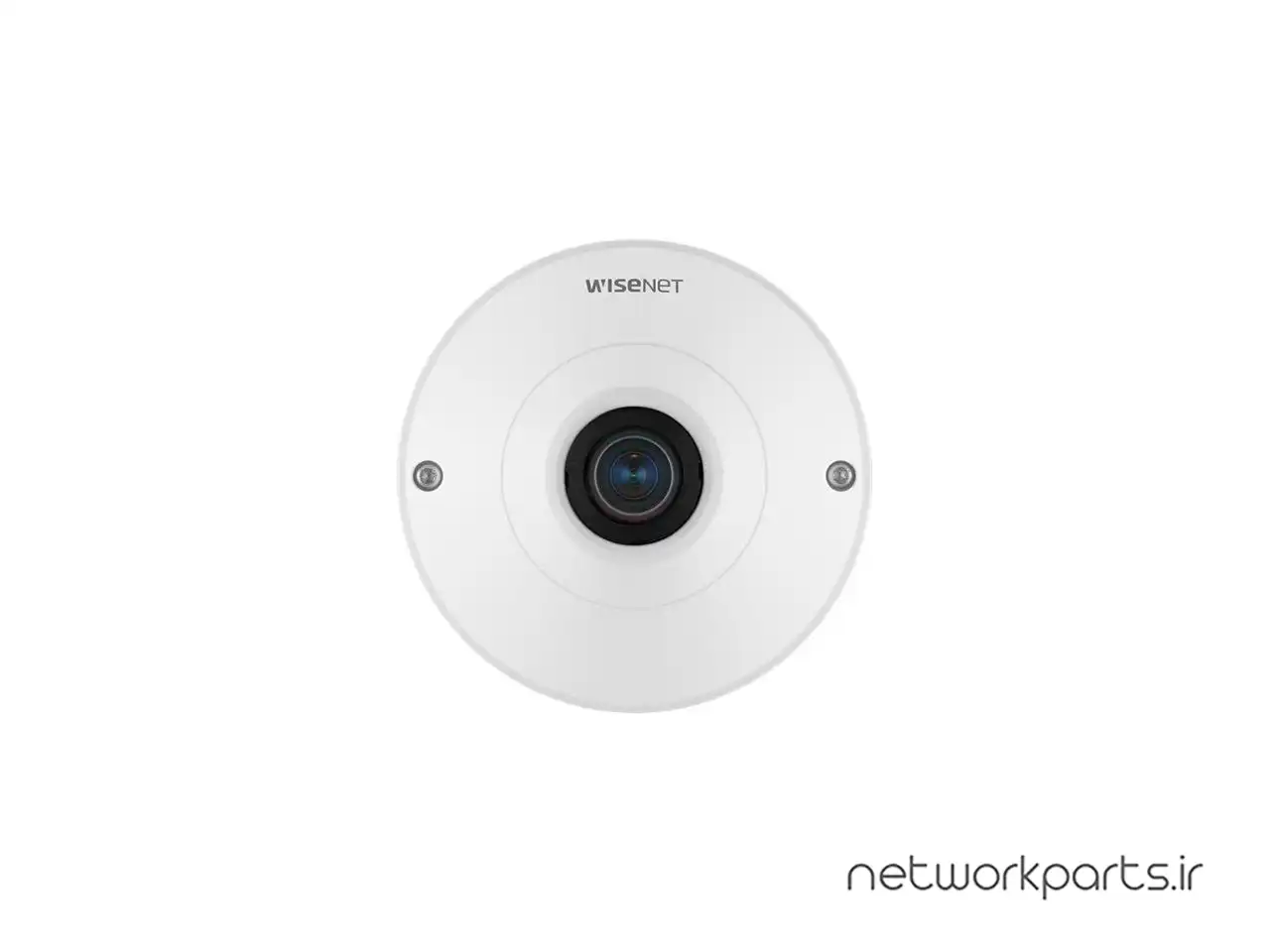

QNF-9010
Fisheye
Angular Field of View: H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele), Focal Length (Zoom Ratio): 4.5~10mm(2.2x) motorized varifocal, Max. Aperture Ratio: F2.2, Min. Object Distance: 0.5m(1.64ft)
1/2.3" 12M CMOS
12MP
3008×3008
Overview : 3008×3008, 640×640 Double panorama: 2560×1280, 1920×960, 1280×640, 1024×512, 640×320 Single panorama: 3200×800, 2560×640, 1920×480, 1280×320, 1024×256 Quad view: 2560×1920, 1920×1440, 1280
H.265/H.264: Overview-Max. 30fps/25fps@3008×3008(60Hz/50Hz), Double panorama-Max. 28fps/25fps@2560×1280(60Hz/50Hz) Single panorama-Max. 28fps/25fps@3200×800(60Hz/50Hz) MJPEG: Max. 5fps(60Hz/50Hz)
RJ45
بلی
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unica
Micro SD/SDHC/SDXC 1slot 256GB
سفید
HTTPS(SSL) Login Authentication
12 MP image sensor, 3008×3008 resolution output, 30fps, Defocus, Tampering, motion detection, Heatmap, people counting business intelligence, IP42 rated, PoE powered, Lens rotation & analog video output for easy installation and adjustment, Original fisheye view, onboard dewarding to Single panorama, Double panorama, Quad view, SD card slot, Triple Codec: H.265, H.264 and MJPEG multiple streaming, WDR 120dB, White camera body, WiseStream II compression technology
Input Voltage: PoE(IEEE802.3af), 12VDC, Power Consumption: PoE+: Max 20.00W, typical 16.00W 12VDC: Max 17.70W, typical 14.00W
Operating Temperature: 10°C to +30°C (50°F to +86°F), Storage Temperature: -50°C ~ +60°C(-58°F ~ +140°F)
Less than 90% RH
3.90"x1.93"
0.82 پوند
