| برند محصول | ACTi |
|---|---|

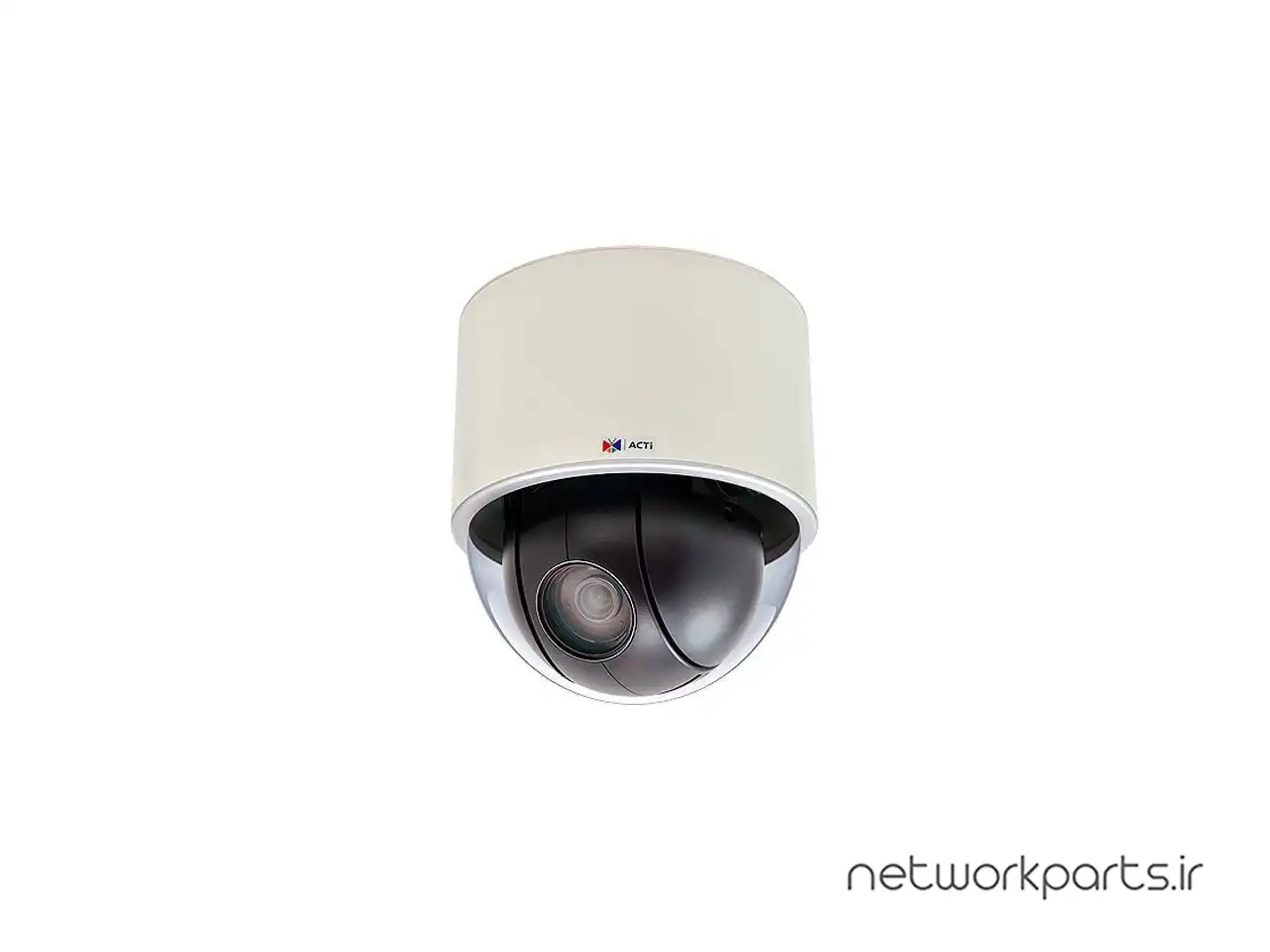

| مدل محصول | I92 |
| نوع | چرخشی و زوم (PTZ) |
| نوع لنز | Focal Length: Zoom, f4.5-148.5mm, Focus: Auto focus, Horizontal Viewing Angle 66.4° - 2.61°, Iris: DC iris, Zoom Ratio 30x optical, Zoom Speed: 2.87 sec (1x to 30x) |
| حسگر (سنسور) | 1/2.8" Progressive Scan CMOS |
| پیکسل | 2MP |
| Frame Rate | 30 fps at 1920x1080; 30 fps at 1280x720; 30 fps at 640x480; 15 fps at 320x240 |
| نوع ارتباط | RJ45 |
| پورت ها | 1, Ethernet (10/100Base-T), RJ-45 connector, Digital Input 2, Terminal block, Digital Output 2, Terminal block |
| پروتکل شبکه | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP,IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| گردش افقی و عمودی | Absolute Positon Yes, Control Remote manual control; 256 preset points; 10 preset tours; Auto scan, Manual Panning Speed 0.5° - 90°/s, Manual Tilting Speed 0.5° - 90°/s, Panning Range 0° - 360° (with Auto-flip), Preset Panning Accuracy 0.265°, Preset Panning Speed 0.5° - 450°/s, Preset Tilting Accuracy 0.265°, Preset Tilting Speed 0.5° - 450°/s, Protocol ACTi URL command, Sony VISCA, Pelco D, Pelco P, Tilting Range 0° - 180° |
| کنترل شاتر | 1/13 ~ 1/10,000 sec (50Hz); 1/15 ~ 1/10,000 sec (60Hz) (auto model), 1/13 ~ 1/2,000 sec (50Hz); 1/15 ~ 1/2,000 sec (60Hz) (manual mode);, Electronic Shutter |
| دید در شب | بلی |
| صدا | Audio-In 3.5mm phone jack, Audio-Out 3.5mm phone jack, Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711 |
| رنگ | سیاه / سفید |
| امنیت | IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control |
| ویژگی ها | 2 Megapixel with 1080p, 30 fps at 1920x1080, 30x Zoom Lens with f4.3-129mm / F1.6-5.0, DC Iris, Auto Focus, Bit Rate: 28 Kbps - 6 Mbps (per stream), Color to B/W switch: ISP based switch, configurable, Day & Night with Superior Low Light Sensitivity, Dimension: 6.4"x5.9" (HxDiameter), Extreme WDR (107 dB), H.264, MJPEG Compression, IR Sensitivity Range 700 -1100nm, Mechanical IR Cut Filter Yes, MicroSDHC/MicroSDXC memory card slot (card not included), Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K), Multi-Streaming Simultaneous dual streams based on two configurations, Pan & Tilt, Vandal Resistant (IK09), Weight: 3.41lbs |
| توان | DC 12V / 11.22 W, High PoE (IEEE802.3at) / 25.44 W (built-in heater and fan on) |
| برق بر روی کابل اترنت (PoE) | بلی |
