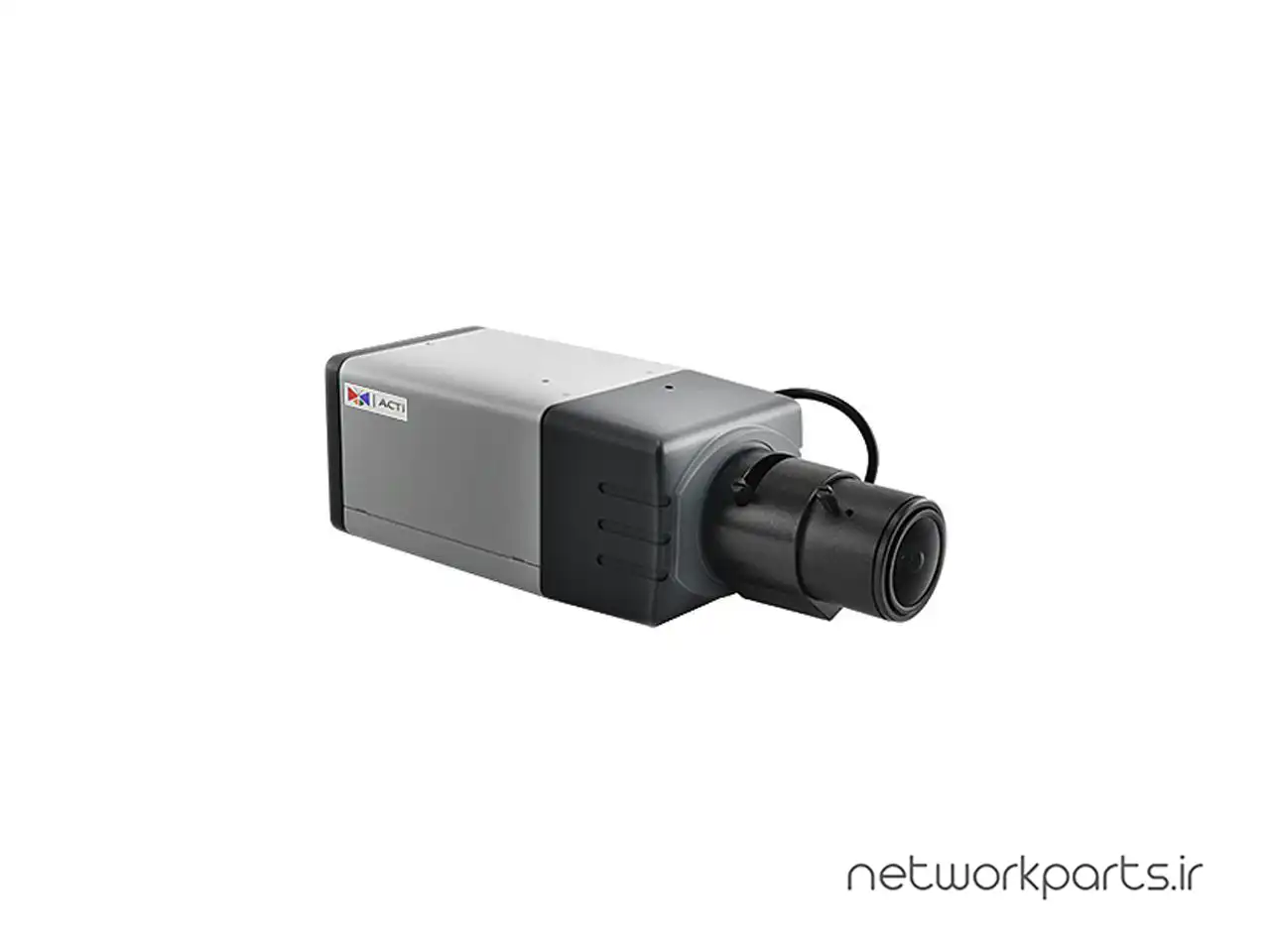

| برند محصول | ACTi |
|---|---|
| مدل محصول | E271 |
| نوع | جعبه ای |
| نوع لنز | Focal Length / Aperture: Fixed (Fisheye lens), f1.37 mm / F2.0, Focus: Manual focus, Horizontal Viewing Angle 66.4° - 2.61°, Iris: DC iris, Lens Mount: CS mount (interchangeable lens) |
| حسگر (سنسور) | 1/2.3" Progressive Scan CMOS |
| پیکسل | 10MP |
| Frame Rate | 30 fps at 1920x1080; 30 fps at 1280x720; 30 fps at 640x480; 15 fps at 320x240, 6 fps at 3648x2736; 6 fps at 3648x2160; 6 fps at 2592x1944; 6 fps at 2048x1536; |
| نوع ارتباط | RJ45 |
| پورت ها | 1, Ethernet (10/100 Base-T), RJ-45 connector, Digital Input 1, Terminal block, Digital Output 1, Terminal block, External connector for DC iris lens |
| پروتکل شبکه | DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, |
| کنترل شاتر | Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| دید در شب | بلی |
| صدا | Audio-In Terminal block, Audio-Out Terminal block, Compression 8kHz, Mono, PCM, 16 bit encoding, G.711 |
| امنیت | IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control |
| ویژگی ها | 0.1 lux at F1.4 (30 IRE, 2400 degree K); B/W: 0.05 lux at F1.4 (30 IRE, 2400 degree K), 10 Megapixel with 4K/1080p, 28 Kbps - 6 Mbps (per stream) Bit Rate, Color to B/W switch: ISP based switch, configurable, Compression H.264 HP, MJPEG, Dimension: 7.5"x2.6"x2.6" (WxHxD), IR Sensitivity Range: 700~1100nm, Mechanical IR Cut Filter Yes, MicroSDHC/MicroSDXC memory card slot (card not included), Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K), Simultaneous dual streams based on two configurations, Weight:1.071lbs |
| توان | PoE Class 2 (IEEE802.3af) / 5.28W (IR on) |
| برق بر روی کابل اترنت (PoE) | بلی |
