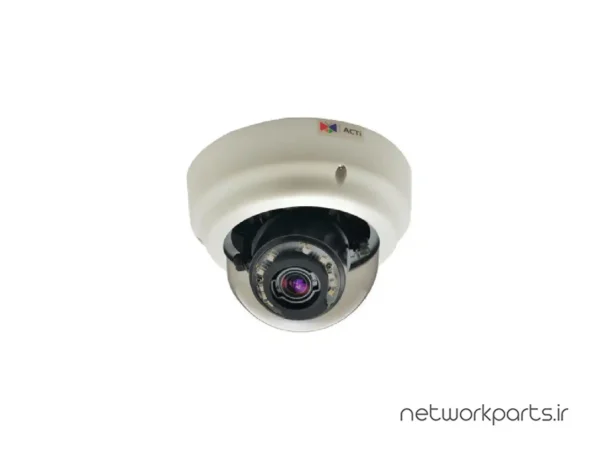

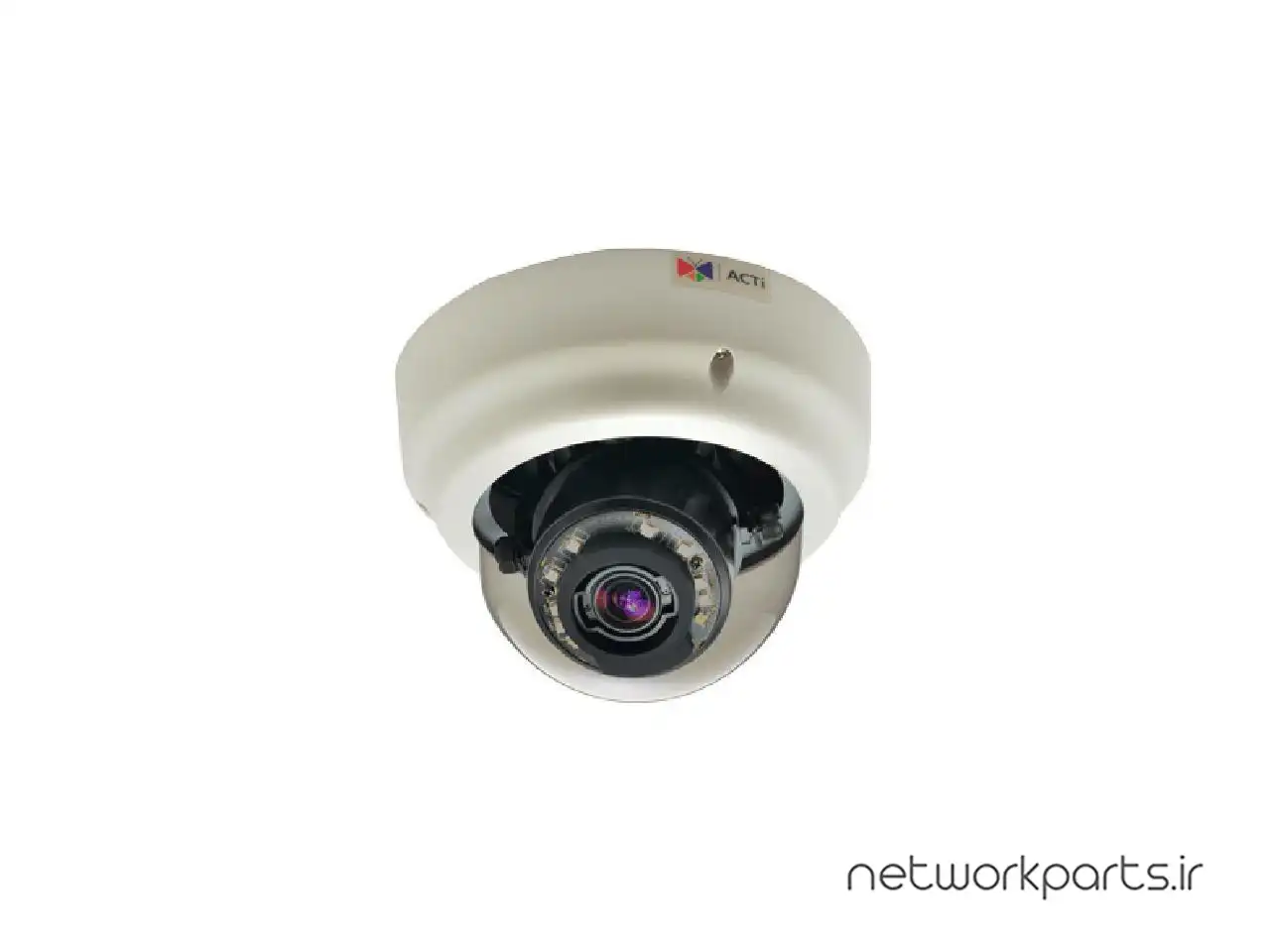

| برند محصول | ACTi |
|---|---|
| مدل محصول | B61 |
| نوع | دام (Dome) |
| نوع لنز | Focal Length / Aperture: Fixed (Fisheye lens), f1.37 mm / F2.0, Focus: Auto focus, Horizontal Viewing Angle 66.4° - 2.61°, Iris: DC iris, Lens Mount: Board mount, Viewing Angle Adjustment Pan: 0° ~ 350°; Tilt: 5° ~ 170° ; Rotate: 0 ~ 350°, Zoom Ratio 3x optical |
| حسگر (سنسور) | 1/3.2" Progressive Scan CMOS |
| پیکسل | 5MP |
| Frame Rate | 15 fps at 2592x1944, 30 fps at 1280x720; 30 fps at 640x480; 15 fps at 320x240 |
| نوع ارتباط | RJ45 |
| پورت ها | 1, Ethernet (10/100 Base-T), RJ-45 connector, Digital Input 2, Terminal block, Digital Output 2, Terminal block |
| پروتکل شبکه | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP,IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| کنترل شاتر | Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| صدا | Audio-In Terminal block, Audio-Out Terminal block, Compression 8kHz, Mono, PCM, 16 bit encoding, G.711 |
| رنگ | سیاه / سفید |
| امنیت | IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control |
| ویژگی ها | 30 fps at 1920x1080, 3x Zoom Lens with 3-9mm / F1.2-2.1, DC Iris, Auto Focus, 5 Megapixel with 1080p, Basic WDR (69 dB), Bit Rate: 28 Kbps - 6 Mbps (per stream), Color to B/W switch: ISP based switch, configurable, Day & Night with Adaptive IR LED, Dimension: 5.7"x4.2" (DiameterxH), H.264 HP, MJPEG Compression, IR LED: IR LEDx10 (850nm), IR Sensitivity Range: 700~1100nm, IR Working Distance: 20 m (0 lux, 30 IRE, Gain 255, Auto shutter mode), Mechanical IR Cut Filter Yes, MicroSDHC/MicroSDXC memory card slot (card not included), Minimum Illumination: Color: 0.1 lux at F1.2 (30 IRE, 2400°K); B/W: 0 lux (IR LED on), Multi-Streaming Simultaneous dual streams based on two configurations, Vandal Resistant (IK09), Weight: 1.58lbs |
| توان | PoE Class 3 (IEEE802.3af) and DC 12V / 12W (built-in heater and IR on) |
| برق بر روی کابل اترنت (PoE) | بلی |
