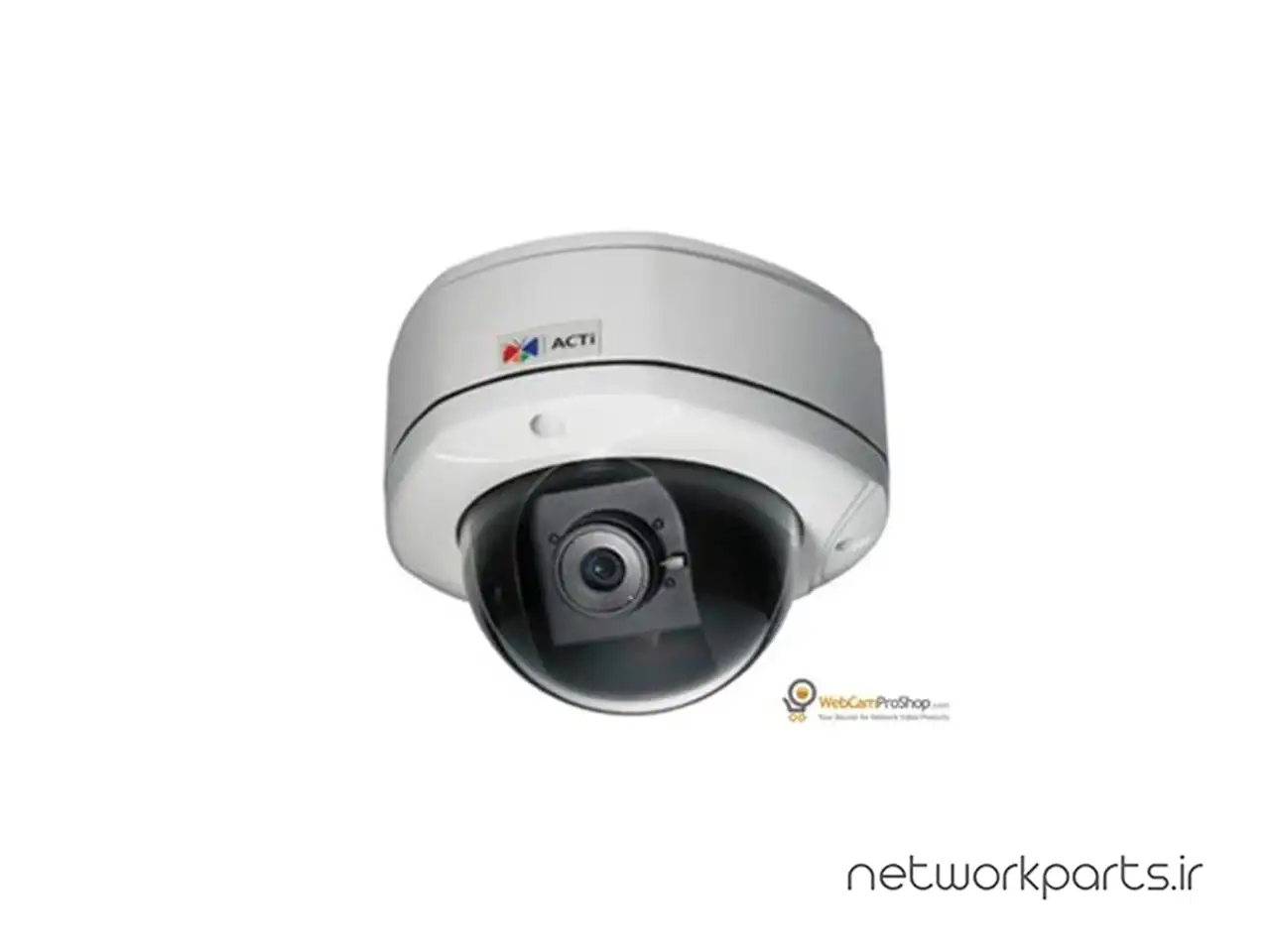

| برند محصول | ACTi |
|---|---|
| مدل محصول | KCM-7111 |
| نوع | دام (Dome) |
| نوع لنز | Focal Length / Aperture: Fixed (Fisheye lens), f1.37 mm / F2.0, Focus: Manual focus, Horizontal Viewing Angle 66.4° - 2.61°, Iris: Fixed iris, Mount Type CS mount, Viewing Angle Adjustment Pan: 0° ~ 350°; Tilt: 5° ~ 170° ; Rotate: 0 ~ 350° |
| حسگر (سنسور) | 1/3.2 “ (4.5x3.4mm) Progressive Scan CMOS |
| Frame Rate | 4 Cropped VGA Mode (All Compressions), Compressions) 15 fps at 640x480 (VGA, Maximum Frame Rate, vs. Resolution (H.264, MJPEG) 8 fps at 2032x1920; 15 fps at 1920x1080; 30 fps at 1280x720; 30 fps at 640x480, vs. Resolution (MPEG-4 SP) 11 fps at 1920x1080, 25 fps at 1280x720, 30 fps at 640x480 |
| نوع ارتباط | RJ45 |
| پورت ها | 1, Ethernet (10/100 Base-T), RJ-45 connector, Digital Input 2, Terminal block, Digital Output 2, Terminal block |
| پروتکل شبکه | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP,IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| کنترل شاتر | Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode) |
| دید در شب | بلی |
| صدا | Audio-In Terminal block, Audio-Out Terminal block, Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711 |
| رنگ | سفید |
| امنیت | IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control |
| ویژگی ها | Bit Rate Mode Constant, Variable, Bit Rate: 28 Kbps - 6 Mbps (per stream), Color to B/W switch: ISP based switch, configurable, Dimension: 4.5"x5.97" (HxDiameter), H.264, MPEG-4 SP, MJPEG, Horizontal Resolution: 1561 TVL, IR Sensitivity Range: 700~1100nm, Mechanical IR Cut Filter Yes, MicroSDHC memory card slot (card not included), Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0.05 lux at F1.6 (30 IRE, 2400°K), Multi-Streaming Simultaneous dual streams based on two configurations, Multiple streams based on single configuration in 4 cropped VGA mode, Weatherproof (IP66 rated); Transparent vandal proof dome cover, up to 659.23 kgF (1453.35 lbF), Weight:3.12lbs |
| توان | DC 12V / 8.28W (adapter not included), PoE Class 3 IEEE802.3af / 9.76 W (built-in heater and IR on) |
| برق بر روی کابل اترنت (PoE) | بلی |
