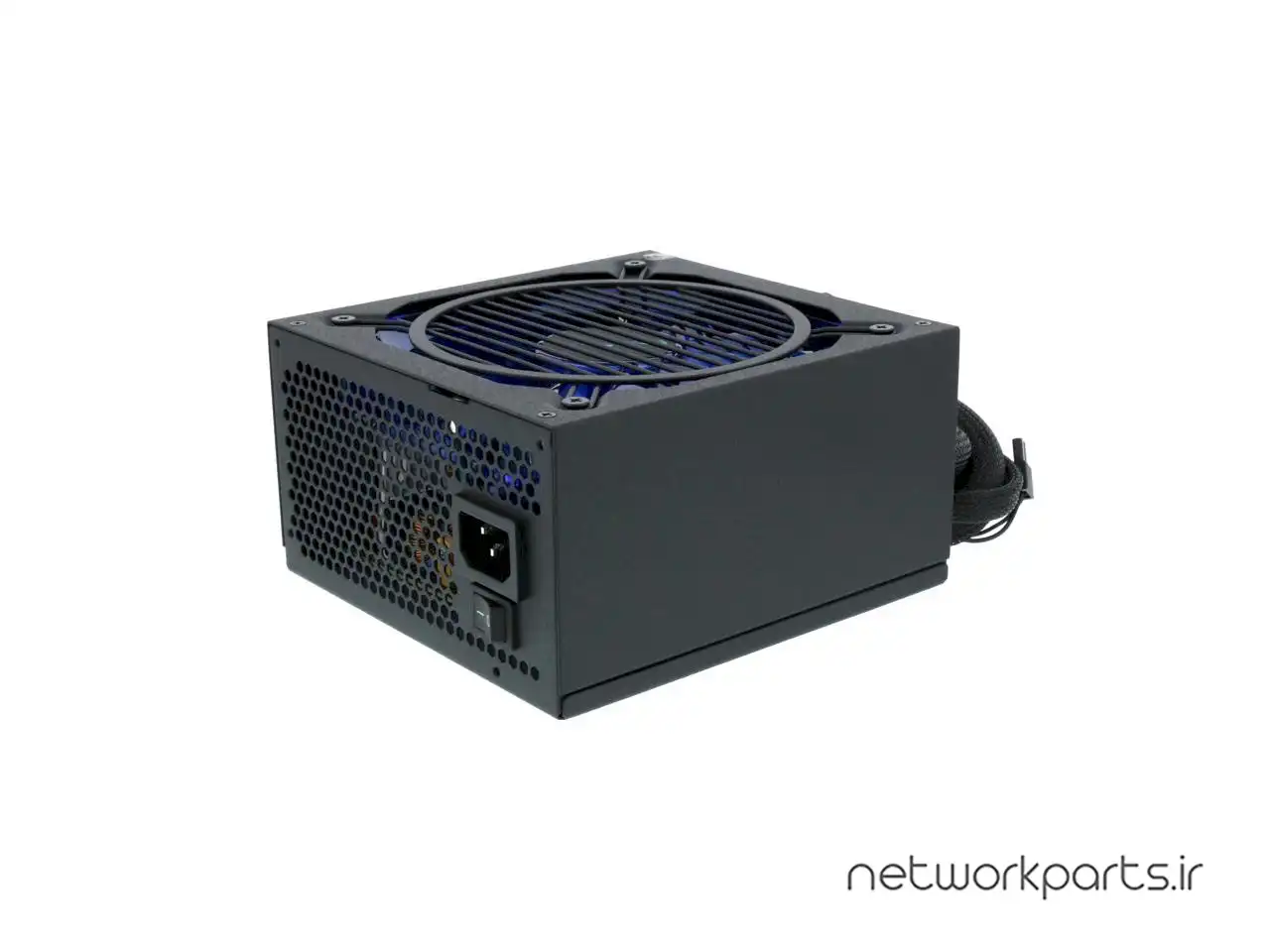

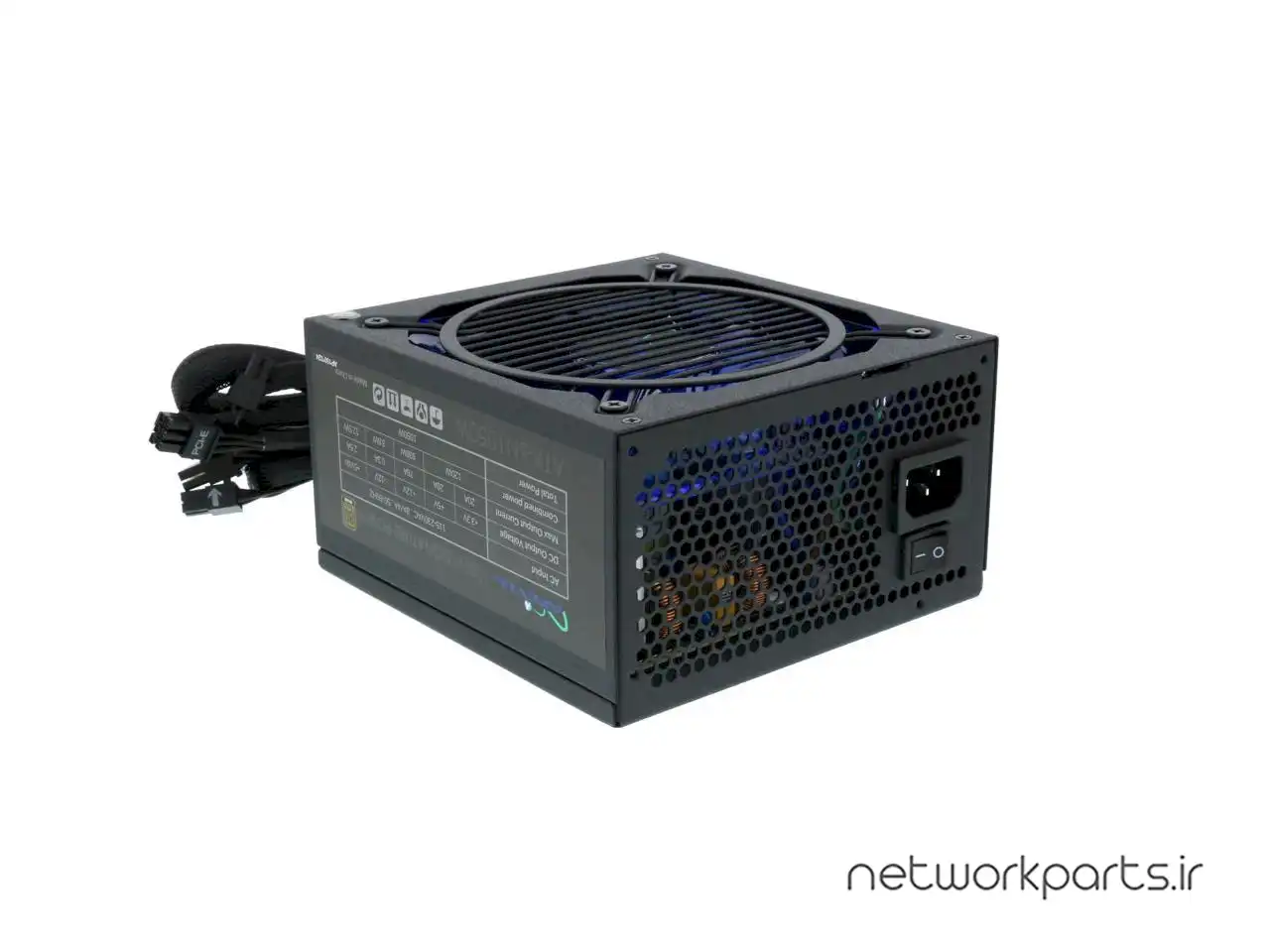

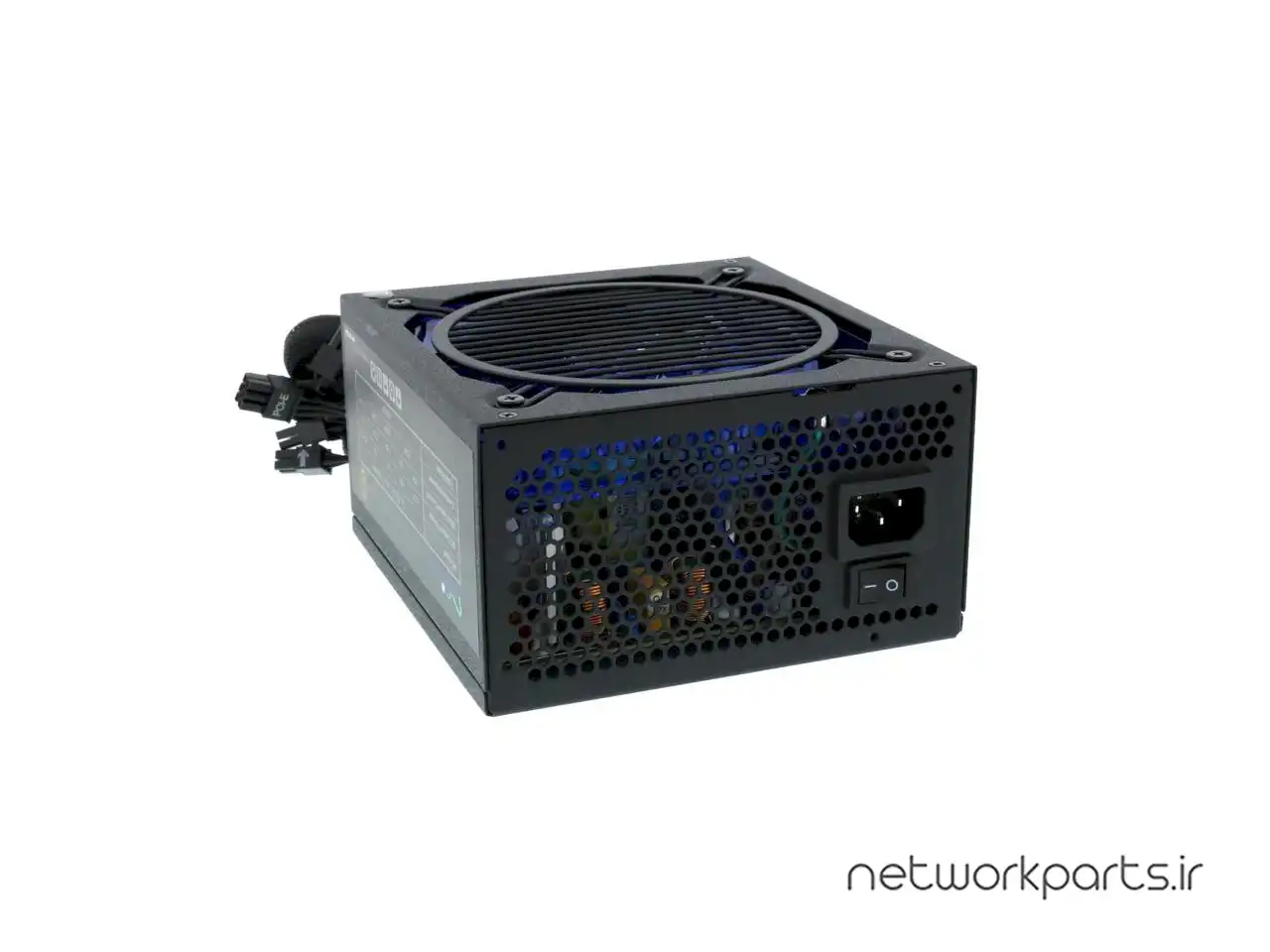

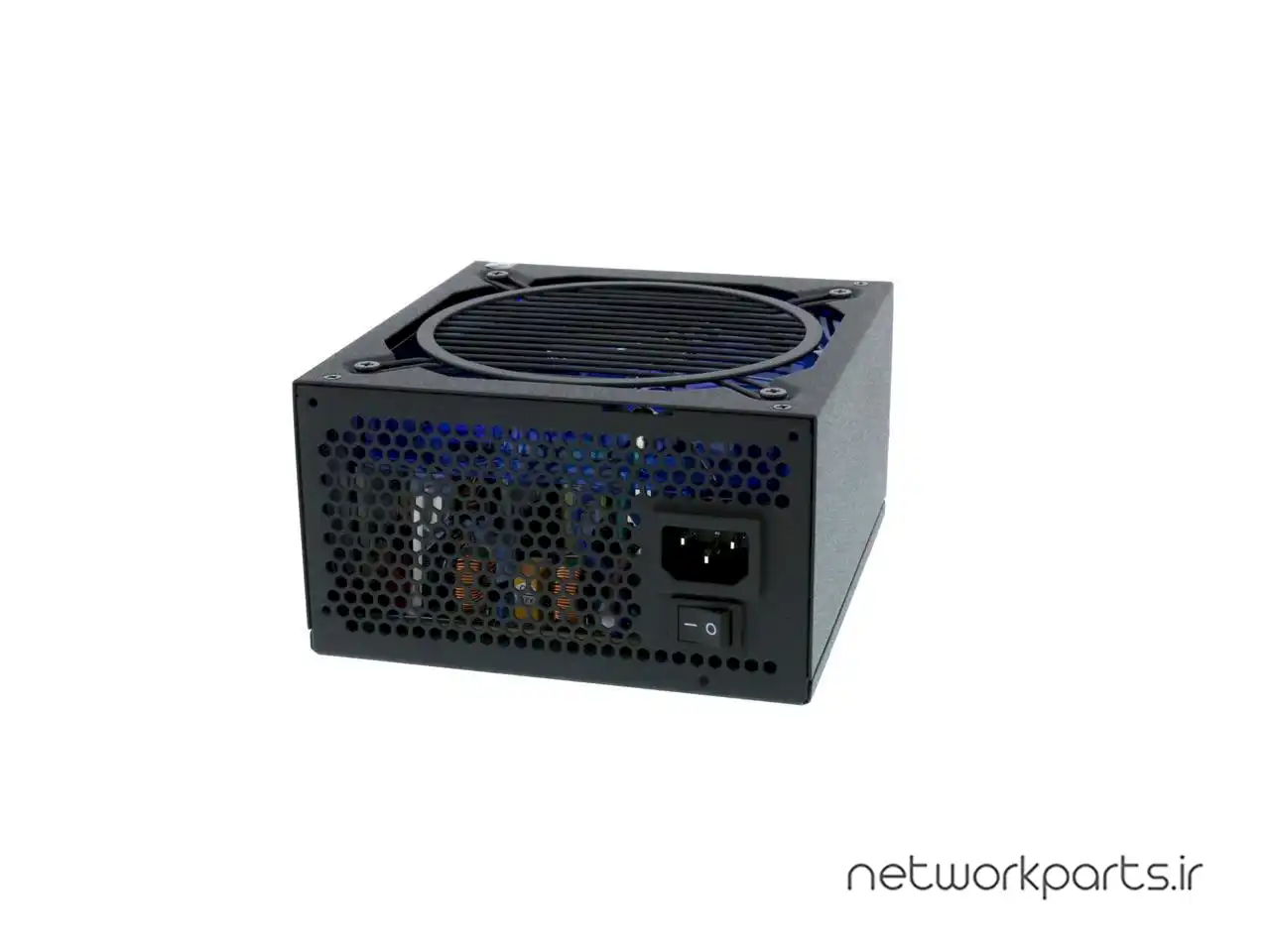

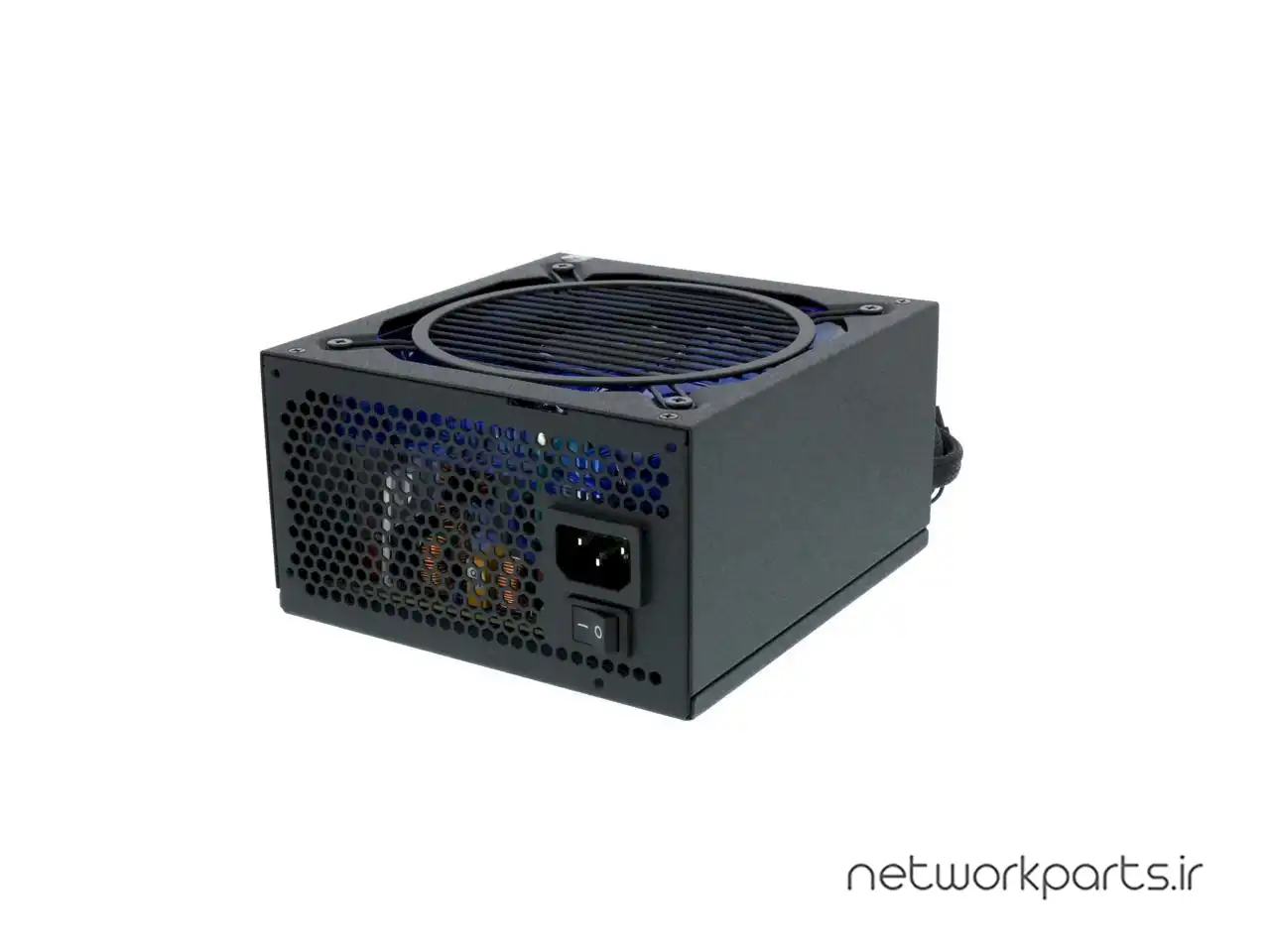

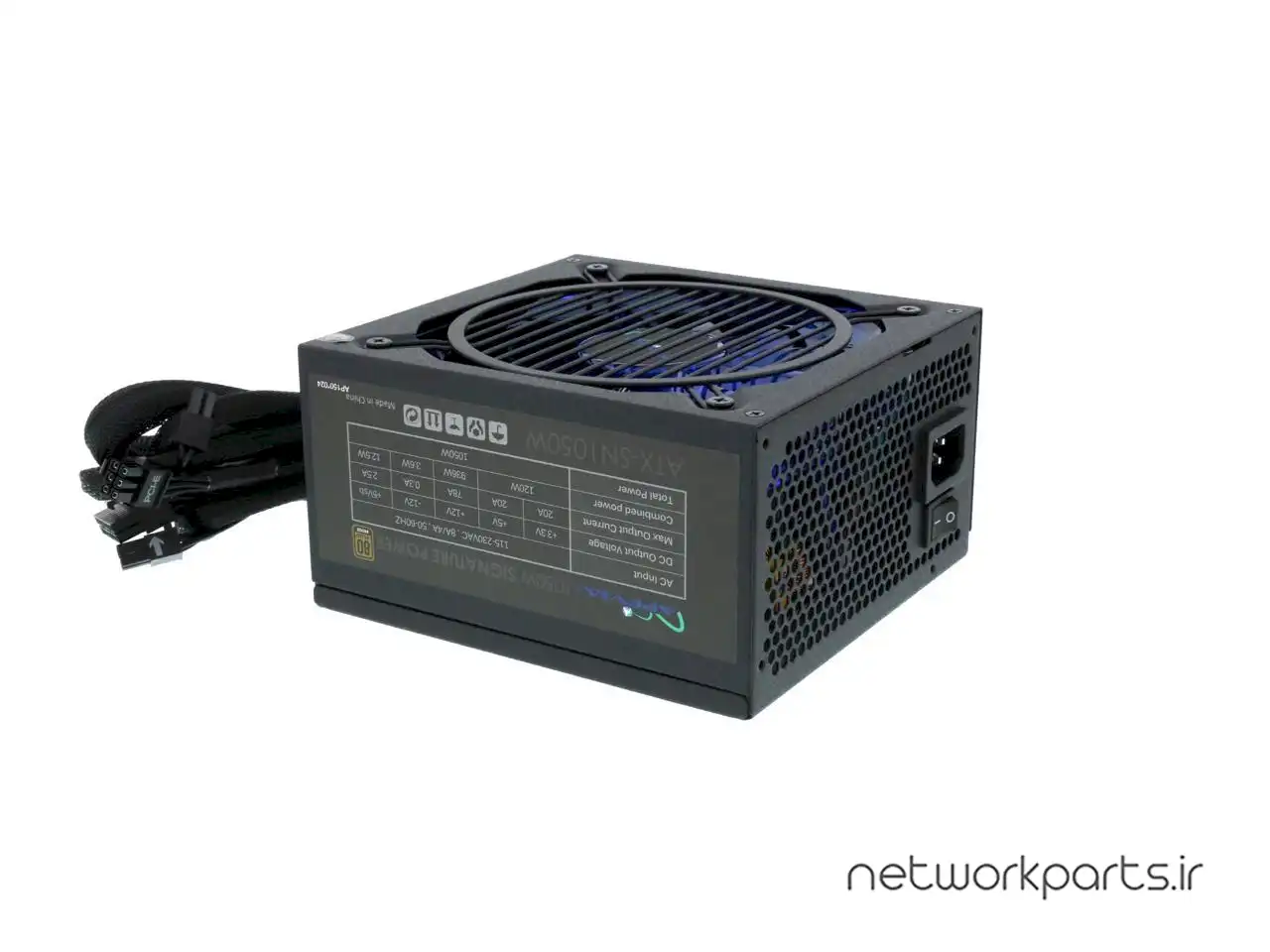

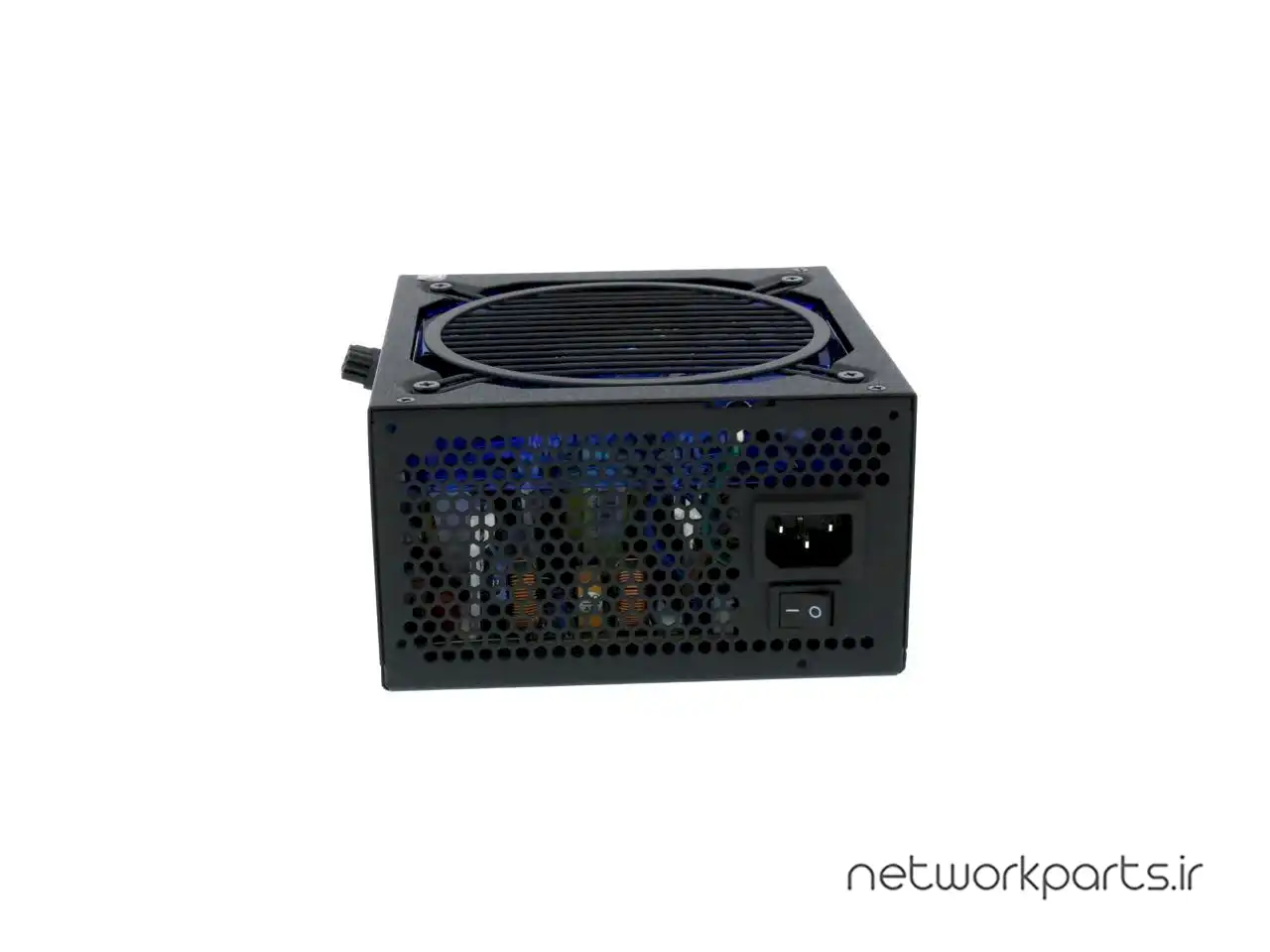

برند محصول | APEVIA |
---|---|
مدل محصول | ATX-SN1050W |
نوع | ATX 12V v2.3 |
بهره وری انرژی | 80 Plus Bronze |
بیشترین توان | 1050W |
خروجی | -12V@0.3A, +12V@78A, +3.3V@20A, +5V@20A, +5VSB@2.5A |
ولتاژ ورودی | 115 / 230V |
جریان ورودی | 10A-5A |
ریل 12V | 1 |
اتصالات | 1 x 20/24pin Main Power, 1 x Floppy, 1 x P8(4+4P) ESP 12V, 4 x 4Pin Peripheral, 4 x 8(6+2)Pin PCI Express, 4 x Serial ATA |
اتصال اصلی | 20+4Pin |
اتصال برق SATA | 4 |
اتصال PCI-Express | 4X 6+2-Pin |
CrossFire | بلی |
SLI | بلی |
اندازه فن | 135 میلیمتر |
محافظت در مقابل ولتاژ بیش از حد مجاز | بلی |
ویژگی ها | 80 PLUS BRONZE Certified, Automatic Thermally Controlled 135mm Blue LED Fan, Cosmic Black Casing, Double Forward Converter Design, Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual, Hybrid Modular Flat Cable Design, Low Noise, Supports ATX 12V 2.3 Version, Supports Dual/Quad Core CPUs, Supports Single 12V Output for Higher Power Usage, Supports SLI/Crossfire/Haswell, Top Quality Large Japanese Made Capacitor, Universal AC input by active PFC (99%PF Typical) |
ابعاد | 6.20" x 5.90" x 3.40" |
وزن | 4.50 پوند |
