برند محصول | کولر مستر (Cooler Master) |
---|---|
مدل محصول | V1000-PLATINUM |
شماره قطعه | MPZ-A001-AFBAPV-US |
نوع | ATX 12V |
ماژولار | ماژولار کامل |
بهره وری انرژی | 80 Plus Platinum |
بیشترین توان | 1000W |
خروجی | -12V@0.5A, +12V1@41.45A, +12V2@41.45A, +3.3V@25A, +5V@25A, +5VSB@3A |
ولتاژ ورودی | 100 - 240V |
جریان ورودی | 13 - 7A |
ریل 12V | Single / Multi-Rail Switch |

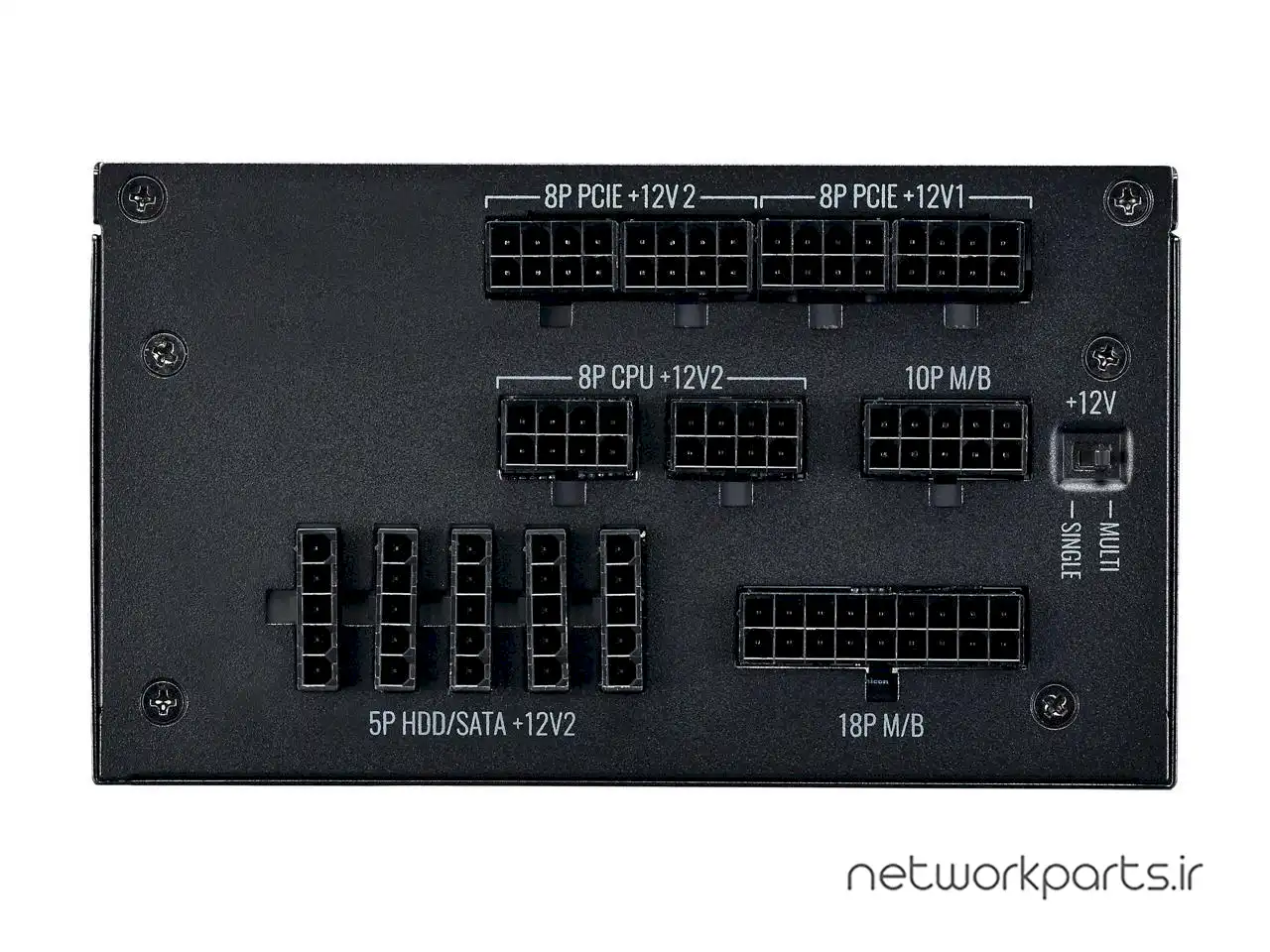

اتصالات | 1 x ATX (24 PIN), 1 x EPS 4+4 Pin, 1 x EPS 8 Pin, 1 x Floppy (4 Pin), 12 x SATA 15 pin, 8 x PCI-e 6+2 pin, 8 x Peripheral 4 pin |
اتصال اصلی | 24Pin |
اتصال برق SATA | 12 |
اتصال PCI-Express | 8X 6+2-Pin |

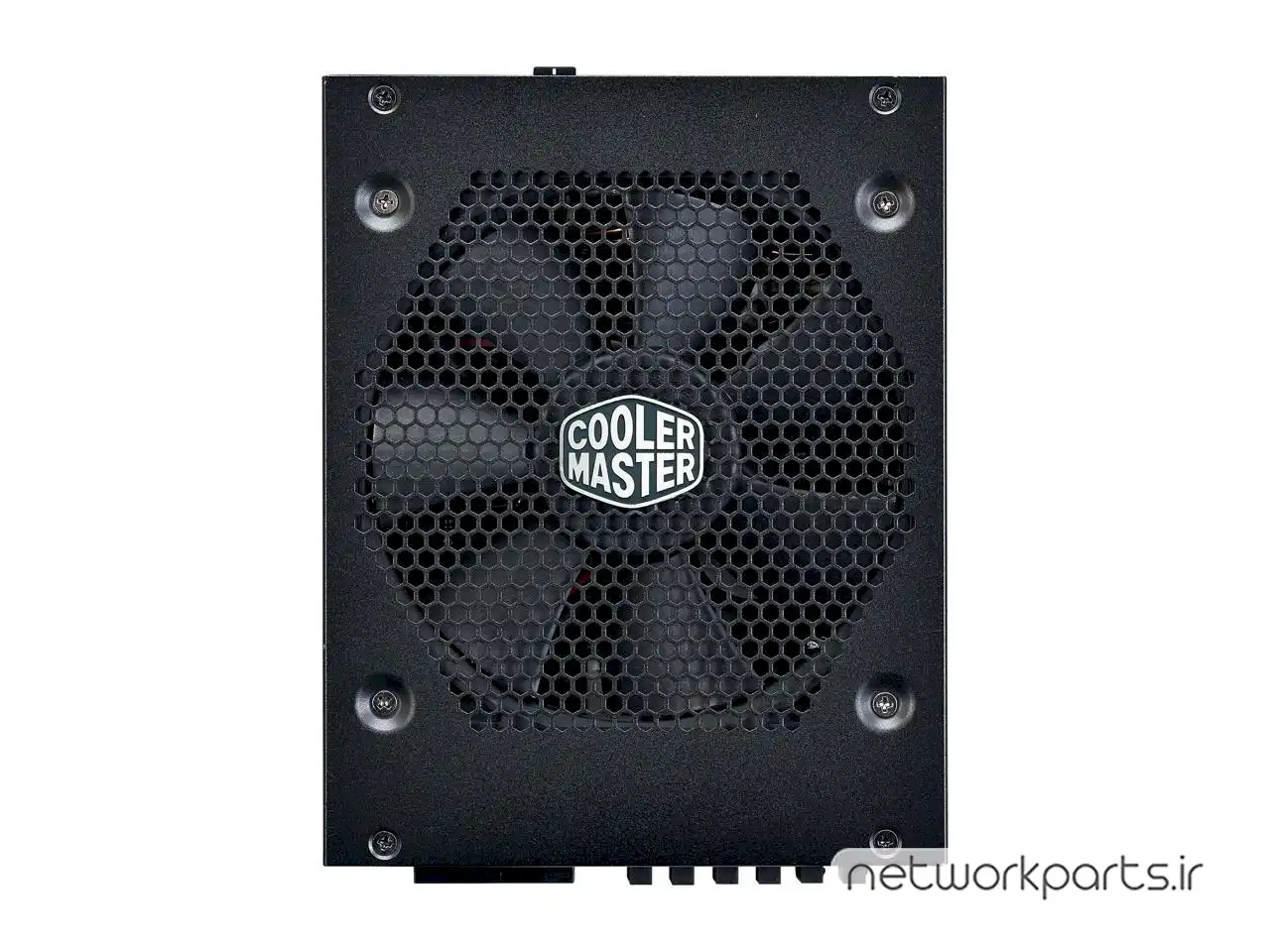

اندازه فن | 135 میلیمتر |
محافظت در مقابل ولتاژ بیش از حد مجاز | بلی |
بهره وری | 0.92 |
میانگین زمان بین خرابیها (MTBF) | 100000 ساعت |
ویژگی ها | 10 Year Warranty : Standard limited manufacturing warranty from the date of purchase., 16 AWG PCI-e Cables : Thicker 16 AWG PCI-e cables for higher currents, improving efficiency and safety., 80 PLUS Platinum certified, Performance Driven Topology: The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency., Single/Multi-Rail Switch : Built in rail switch allows users to change between multi and single rail power output settings., Thermal Regulation Mode (TRM) : Regulates temps, keeping a constant and quiet fan speed up to 60% of maximum load. |
تاییدیه ها | BSMI, CCC, CE, cTUVus, EAC, FCC, KC, RCM, TUV, UKCA |
ابعاد | 3.39" x 5.91" x 7.92" |
بیشرین طول منبع تغذیه | 200 mm |
وزن | 7.36 پوند |
