برند محصول | کولر مستر (Cooler Master) |
---|---|
سری محصول | MASTERWATT |
مدل محصول | MPX-7501-AMAAB-US |
نوع | ATX 12V V2.4 |
ماژولار | شبه ماژولار |
بهره وری انرژی | 80 Plus Bronze |
بیشترین توان | 750W |
خروجی | -12V@0.3A, +12@62.5A, +3.3V@22A, +5V@22A, +5VSB@3A |
ولتاژ ورودی | 100 - 240V |
جریان ورودی | 10 - 5A |
ریل 12V | 1 |
اتصالات | 1 x CPU 12V 4+4Pin, 1 x FDD Cable 4 Pin, 1 x MB 24 pin, 3 x Peripheral 4 Pin, 4 x PCI-e 6+2 Pin, 9 x SATA |
اتصال اصلی | 24Pin |
اتصال برق SATA | 9 |
اتصال PCI-Express | 4X 6+2-Pin |
CrossFire | خیر |
SLI | خیر |

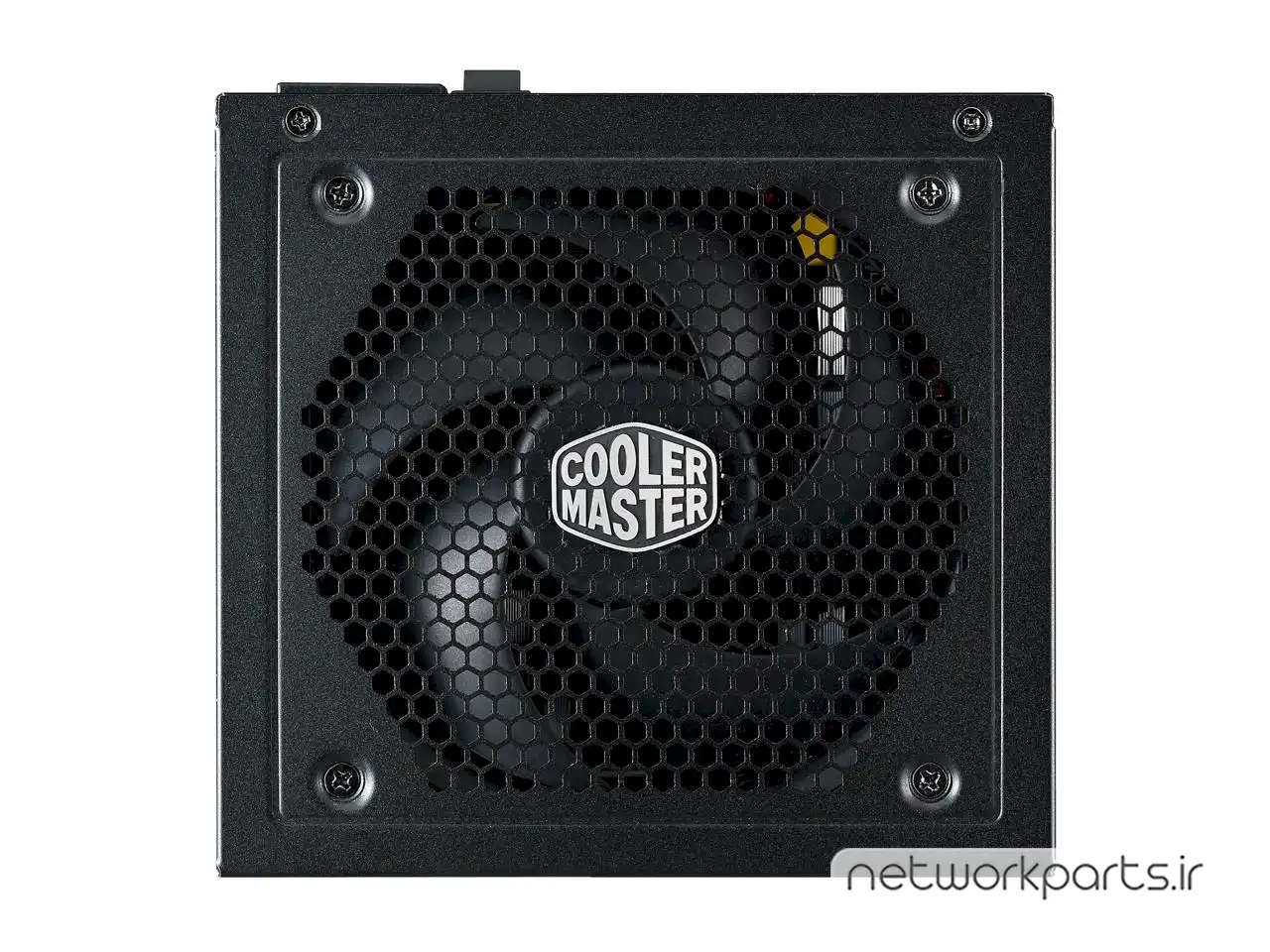

اندازه فن | 120 میلیمتر |
محافظت در مقابل ولتاژ بیش از حد مجاز | بلی |
بهره وری | 0.85 |
میانگین زمان بین خرابیها (MTBF) | 100000 ساعت |
ویژگی ها | 5 years warranty - The MasterWatt comes with a 5 year warranty., 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads, Dual Forward and DC-to-DC circuit design - The Dual Forward and DC-to-DC circuit design offers reliability and stability especially significant in +3.3V and +5V output., Durable LDB bearing - Silencio technology combines sealed LDB bearings with quiet fan blades delivering a long lifetime of quiet cooling., More Conductive PCI-e Cables - The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance means better efficiency., Semi-Fanless up till 15% load - Experience noise-free operation in normal PC loads under 15% output. |
تاییدیه ها | BSMI, CB, CCC, CE, cTUVus, EAC, FCC, KC, RCM, TUV-RH |

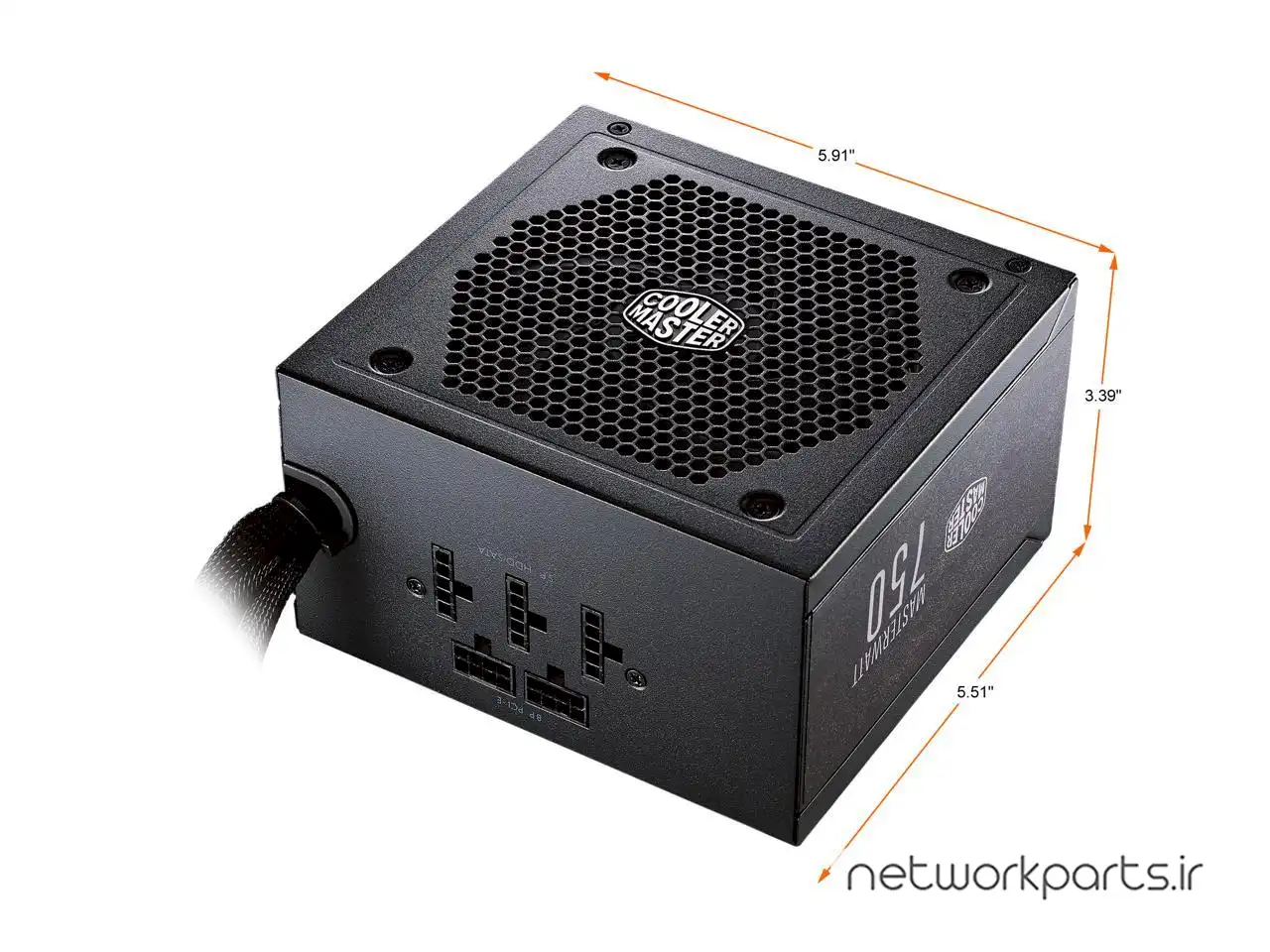

ابعاد | 5.51 x 5.9 x 3.38 inches, 5.51" x 5.91" x 3.39" |
بیشرین طول منبع تغذیه | 140 mm |
وزن | 4.47 پوند |
