برند محصول | کولر مستر (Cooler Master) |
---|---|
سری محصول | MWE GOLD 550 V2 |
مدل محصول | MPE-5501-AFAAG-US |
نوع | ATX 12V |
ماژولار | ماژولار کامل |
بهره وری انرژی | 80 Plus Gold |
بیشترین توان | 550W |
خروجی | -12V@0.5A, +12V@45.8A, +3.3V@20A, +5V@20A, +5VSB@3A |
ولتاژ ورودی | 90 - 264V |
جریان ورودی | 8-4A |
ریل 12V | 1 |

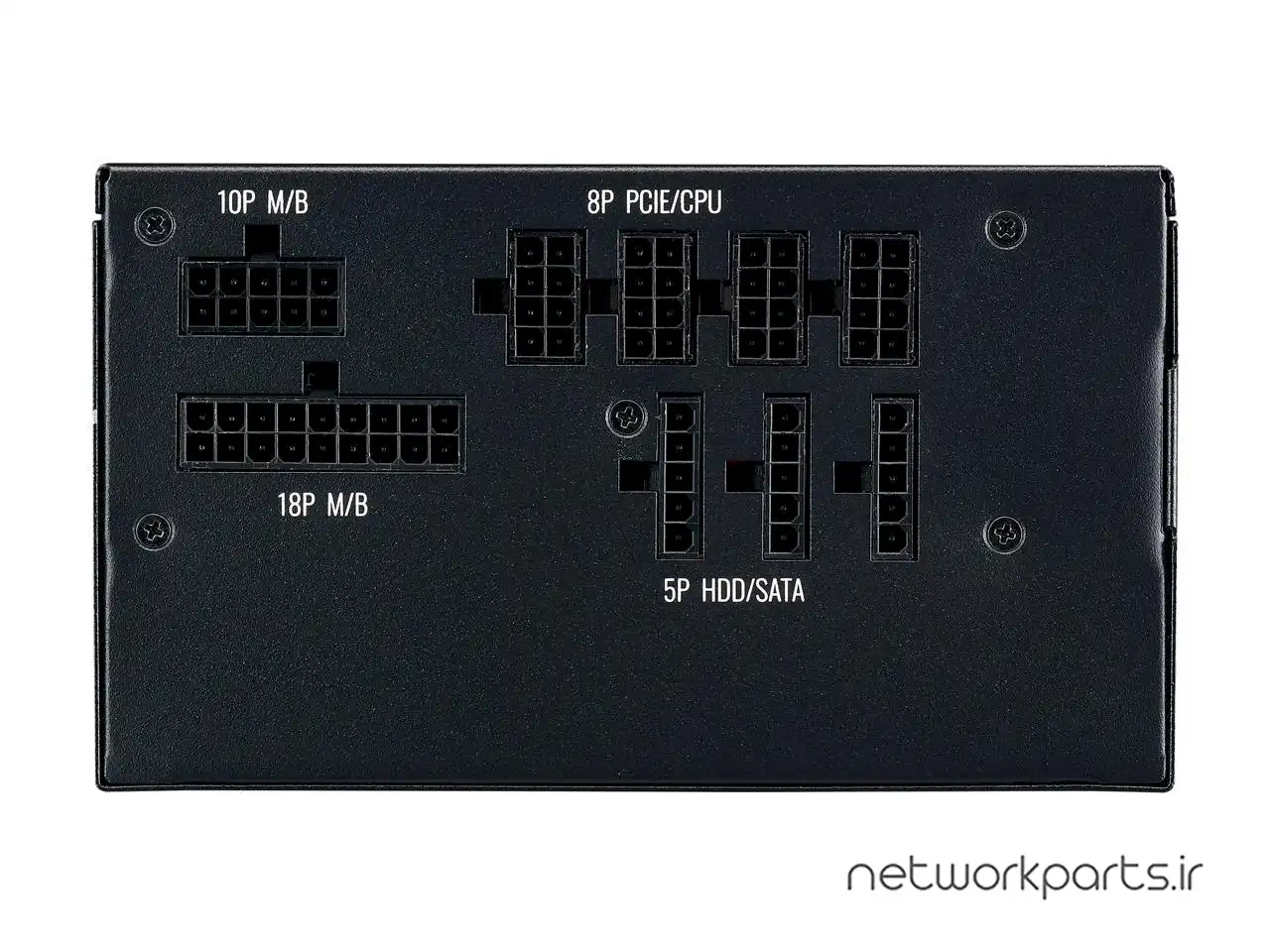

اتصالات | 1 x ATX (24 PIN), 1 x EPS 4+4 Pin, 1 x EPS 8 Pin, 4 x PCI-e 6+2 Pin, 4 x PERIPHERAL (4-PIN), 8 x SATA |
اتصال اصلی | 20+4Pin |
اتصال برق SATA | 8 |
اتصال PCI-Express | 4X 6+2-Pin |
CrossFire | خیر |
SLI | خیر |
اندازه فن | 120 میلیمتر |
محافظ | OCP, OPP, OTP, OVP,, SCP, Surge and Inrush Protection, UVP |
بهره وری | 0.9 |
میانگین زمان بین خرابیها (MTBF) | 100000 ساعت |
ویژگی ها | • FullY Modular: Modular flat black cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance., • Highly Efficient Performance: The 80 PLUS Gold certification guarantees a minimum efficiency of 90%., 2 EPS Connectors: 2 EPS connectors included with all models for universal current generation motherboard compatibility., 5 Year Warranty: Comes with a 5 year factory warranty from purchase date., High Temperature Resilience: The new gen offers an increase in operating temperature to its predecessor to a maximum of 50 degrees Celsius., Hydro Dynamic Fan: The 120mm HDB fan creates less friction, for a smoothly and low RPM operations, while keeping the noise level down. |
تاییدیه ها | BSMI, CB, CCC, CE, cTUVus, EAC, FCC, KCC, RCM, TUV |
محتویات بسته بندی | 4x screws, Connectors, Manuel, MWE Gold 550 V2, Power cord |

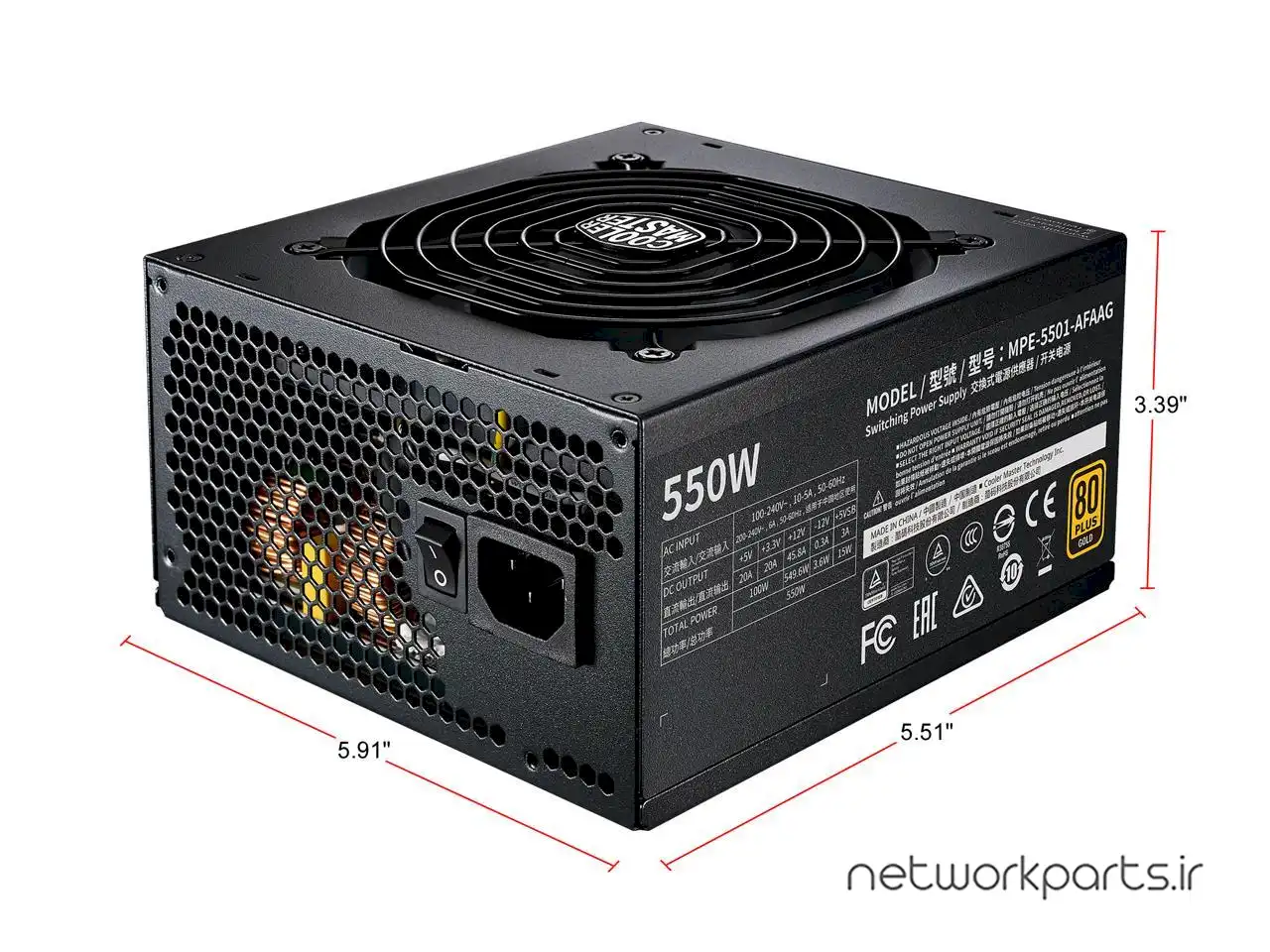

ابعاد | 3.39" x 5.91" x 5.51" |
بیشرین طول منبع تغذیه | 140 mm |
وزن | 4.23 پوند |
