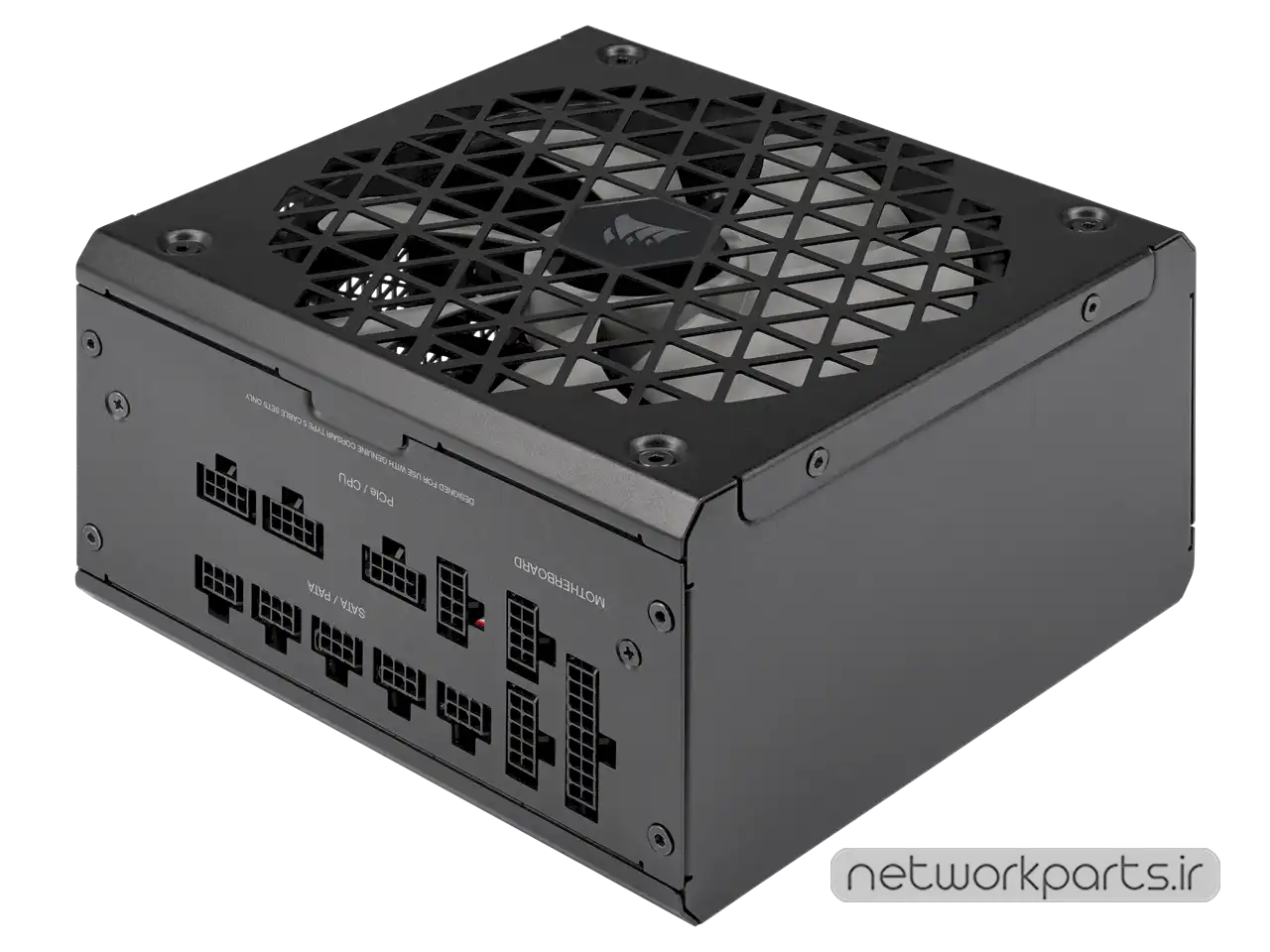

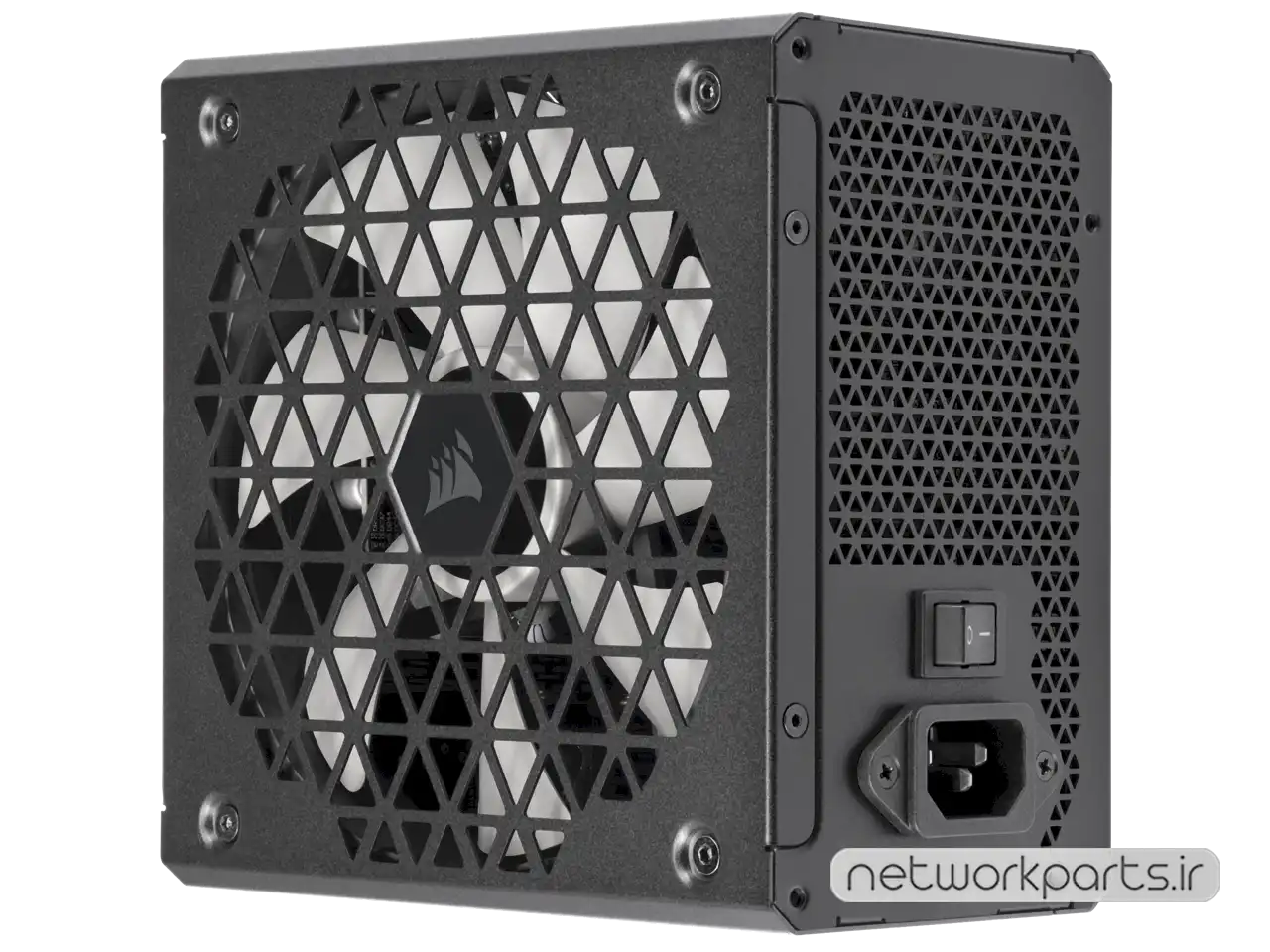

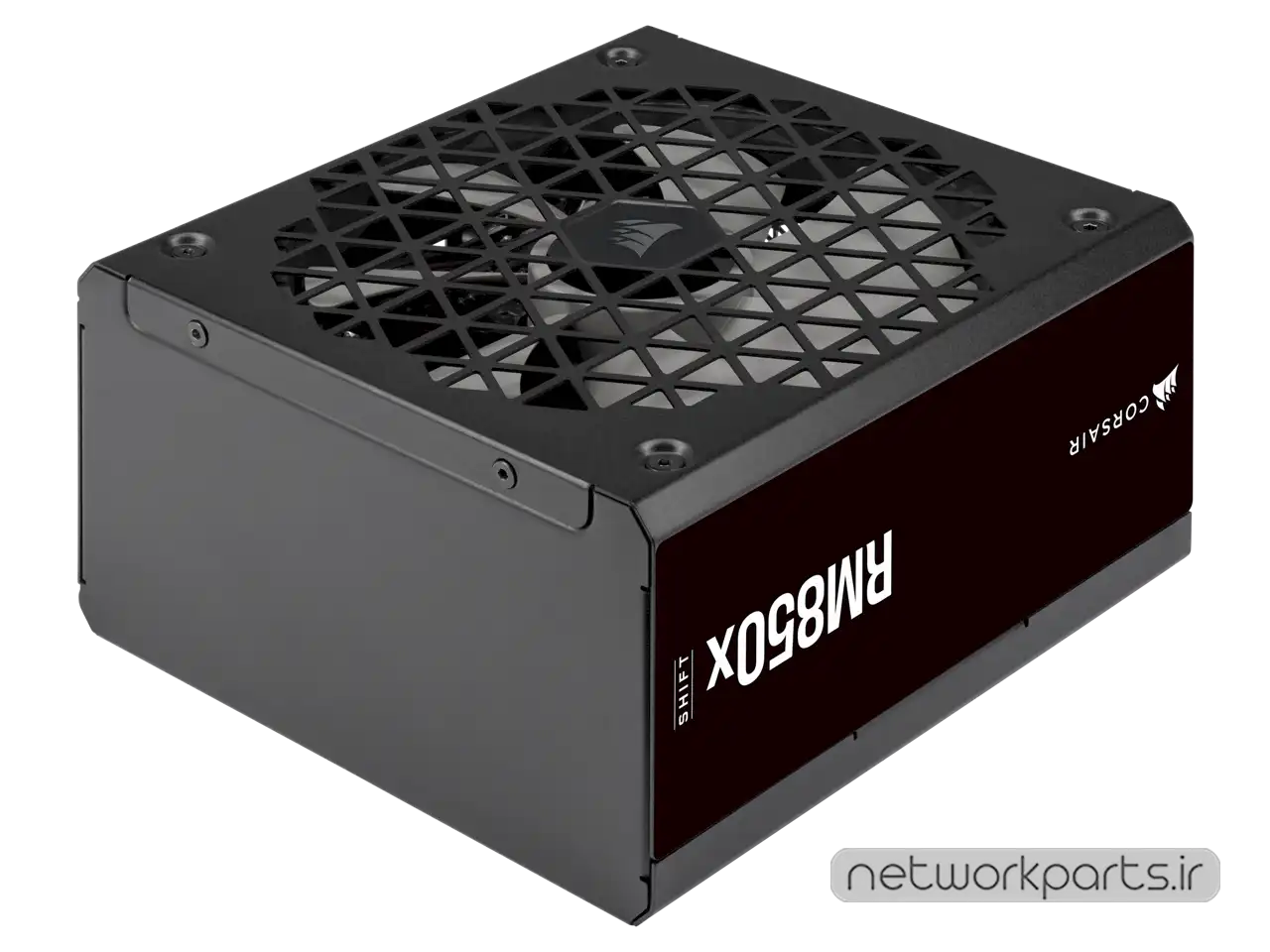

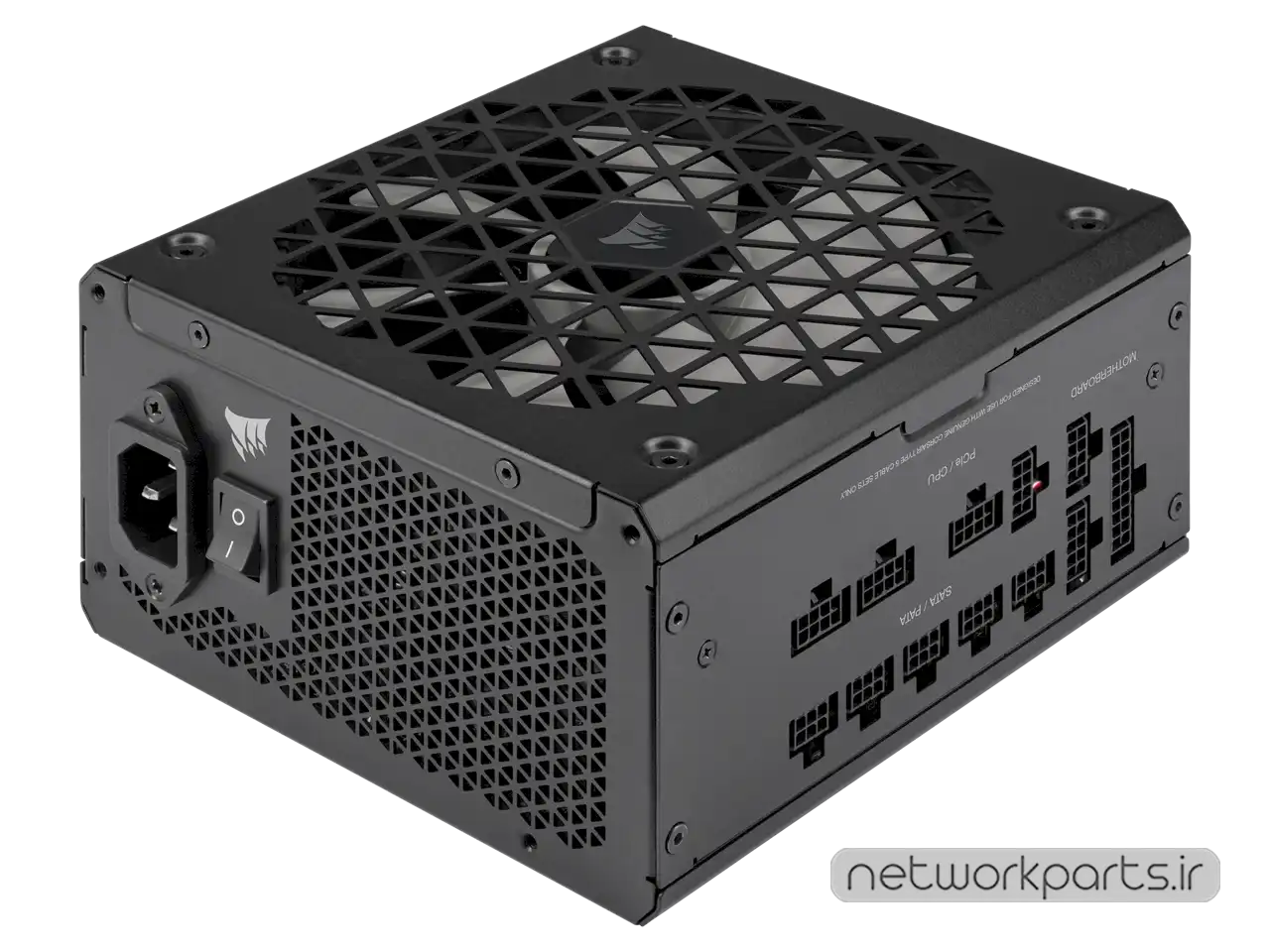

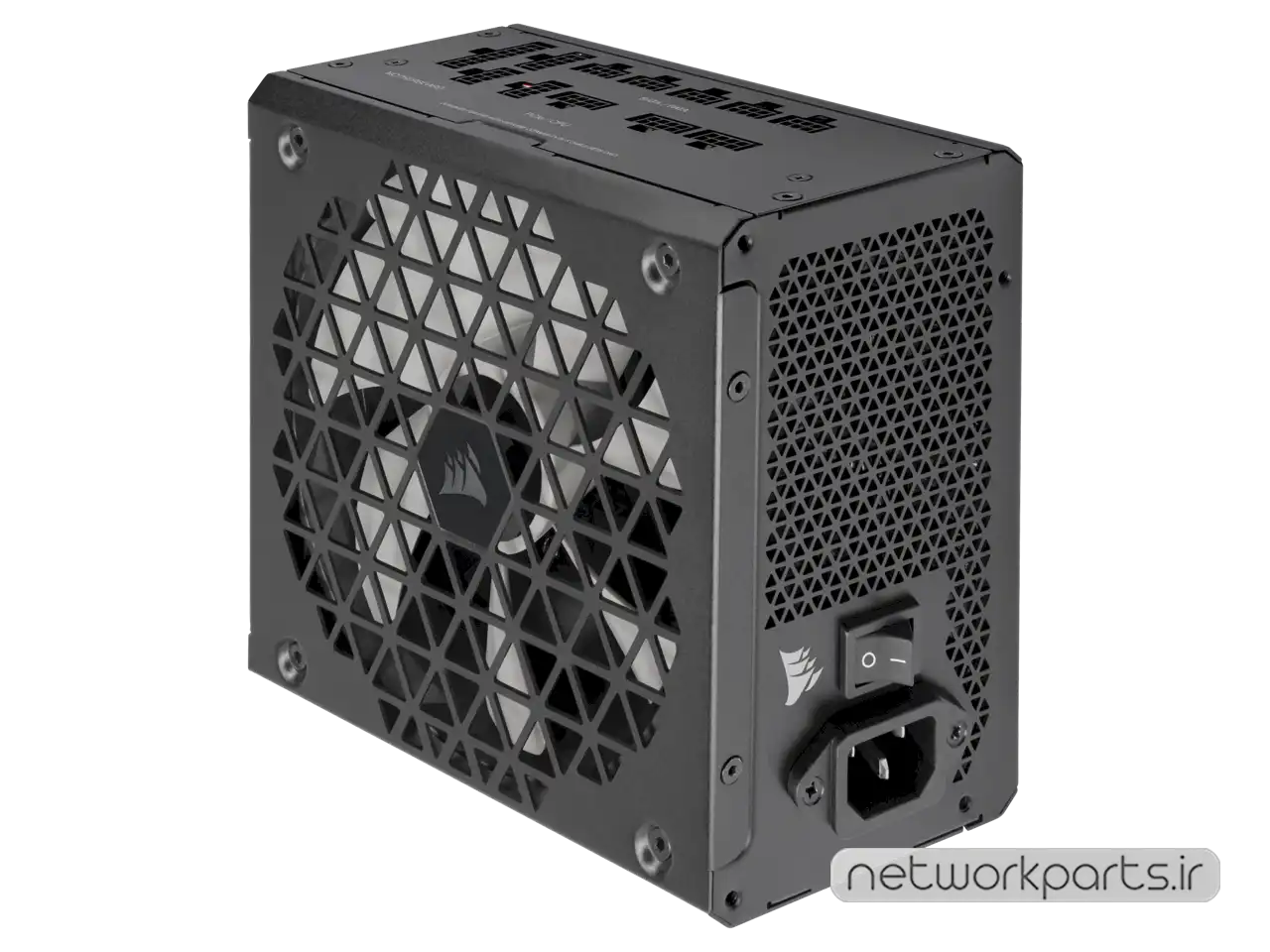

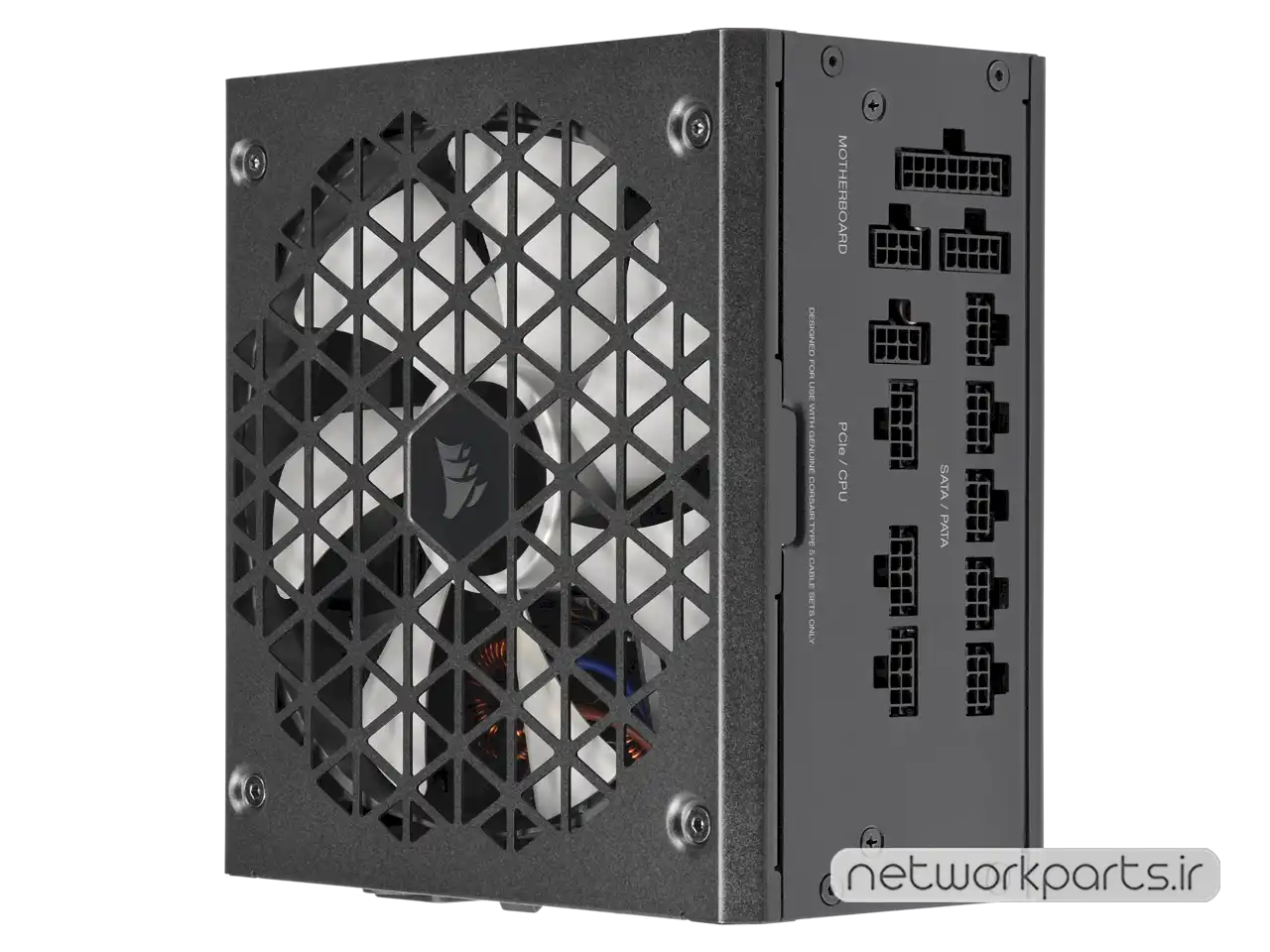

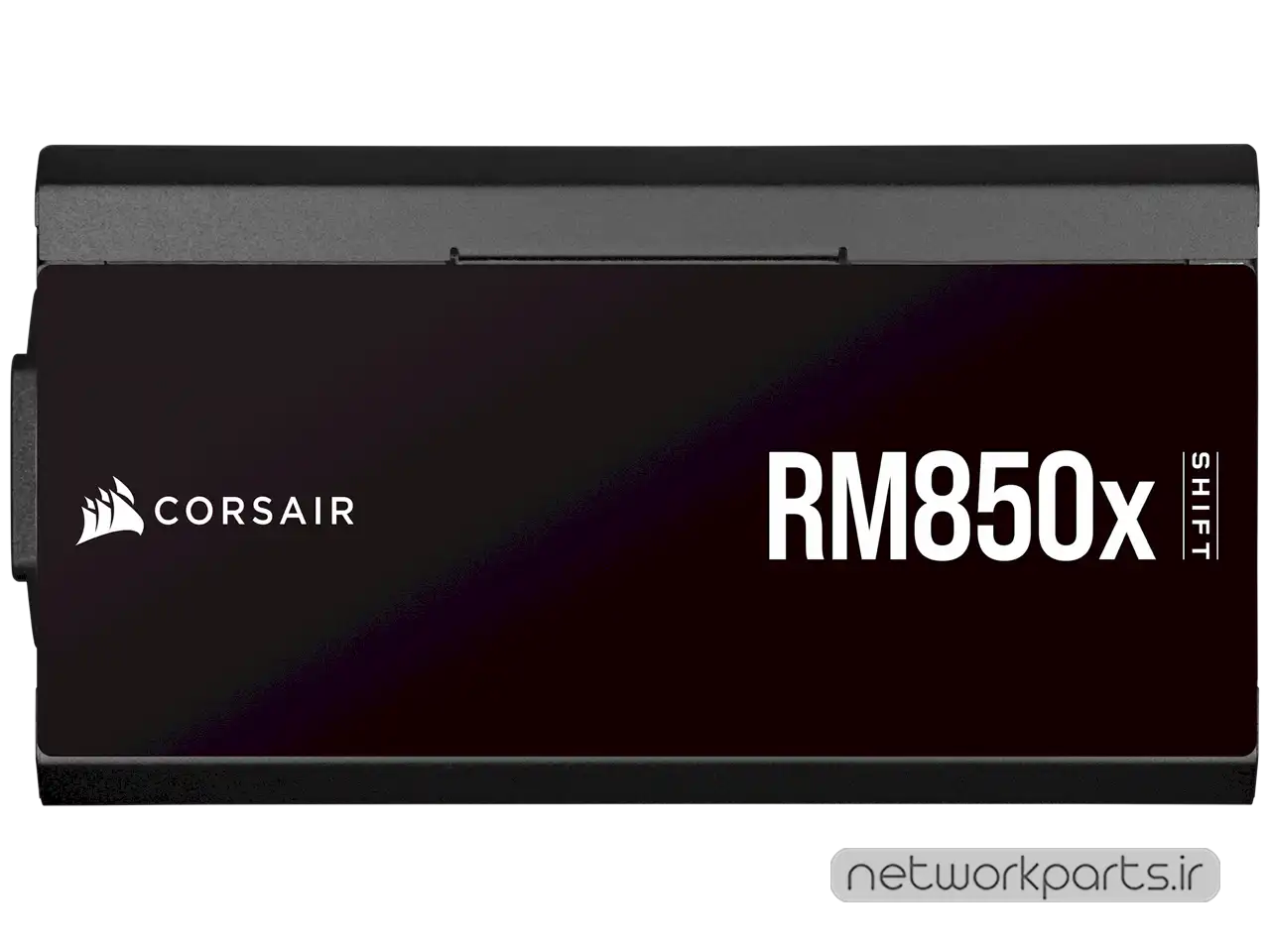

برند محصول | کورسیر (Corsair) |
---|---|
مدل محصول | RM850X-SHIFT |
شماره قطعه | CP-9020252-NA |
نوع | ATX, ATX (ATX 3.0 Compatible) |
ماژولار | ماژولار کامل |
بهره وری انرژی | 80 Plus Gold |
بیشترین توان | 850W |
خروجی | -12V@0.3A, +12V@70.8A, +3.3V@20A, +5V@20A, +5VSB@3A |
ولتاژ ورودی | 100 - 240V |
جریان ورودی | 10A-5A |
اتصالات | 12x SATA (Straight), 1x 24-pin ATX (24-pin), 1x PCIe 5 (12+4-pin) 12VHPWR, 2x ATX 12V/EPS12V (4+4-pin), 2x PCIe (6+2-pin, dual), 2x PCIe (6+2-pin), 8x PATA |
اتصال اصلی | 1x 24-pin ATX (24-pin) Connector |
اتصال برق SATA | 12 |
اتصال PCI-Express | 2X 6+2-Pin |
اندازه فن | 140 میلیمتر |
ویژگی ها | 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors deliver unwavering power and reliability., 80 PLUS Gold-Certified: Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures., A 140mm fluid dynamic bearing fan utilizes a specially calculated fan curve for high performance, low noise, and superior reliability., Compliant with the ATX 3.0 power standard from Intel®, supporting the PCIe Gen 5 platform and resisting transient power spikes., Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space., Innovative positioning for the modular connections on the side of the PSU means easier access to connections and simpler, cleaner cable management., Resonant LLC Topology with DC-to-DC Conversion: Provides clean, consistent power and enables use of more energy-efficient sleep states., Supports Modern Standby sleep mode for extremely fast wake-from-sleep times and better low-load efficiency., Supports Zero RPM fan mode for near-silent operation at low to medium loads. |
محتویات بسته بندی | 12x SATA (Straight) Connectors, 1x 24-pin ATX (24-pin) Connector, 1x PCIe 5 (12+4-pin) 12VHPWR Connector, 2x ATX 12V/EPS12V (4+4-pin) Connector, 2x PCIe (6+2-pin, dual) Connectors, 2x PCIe (6+2-pin) Connectors, 8x PATA Connectors |
ابعاد | 6.3" x 5.91" x 5.08" |
بیشرین طول منبع تغذیه | 160 mm |
وزن | 3.8 پوند |
