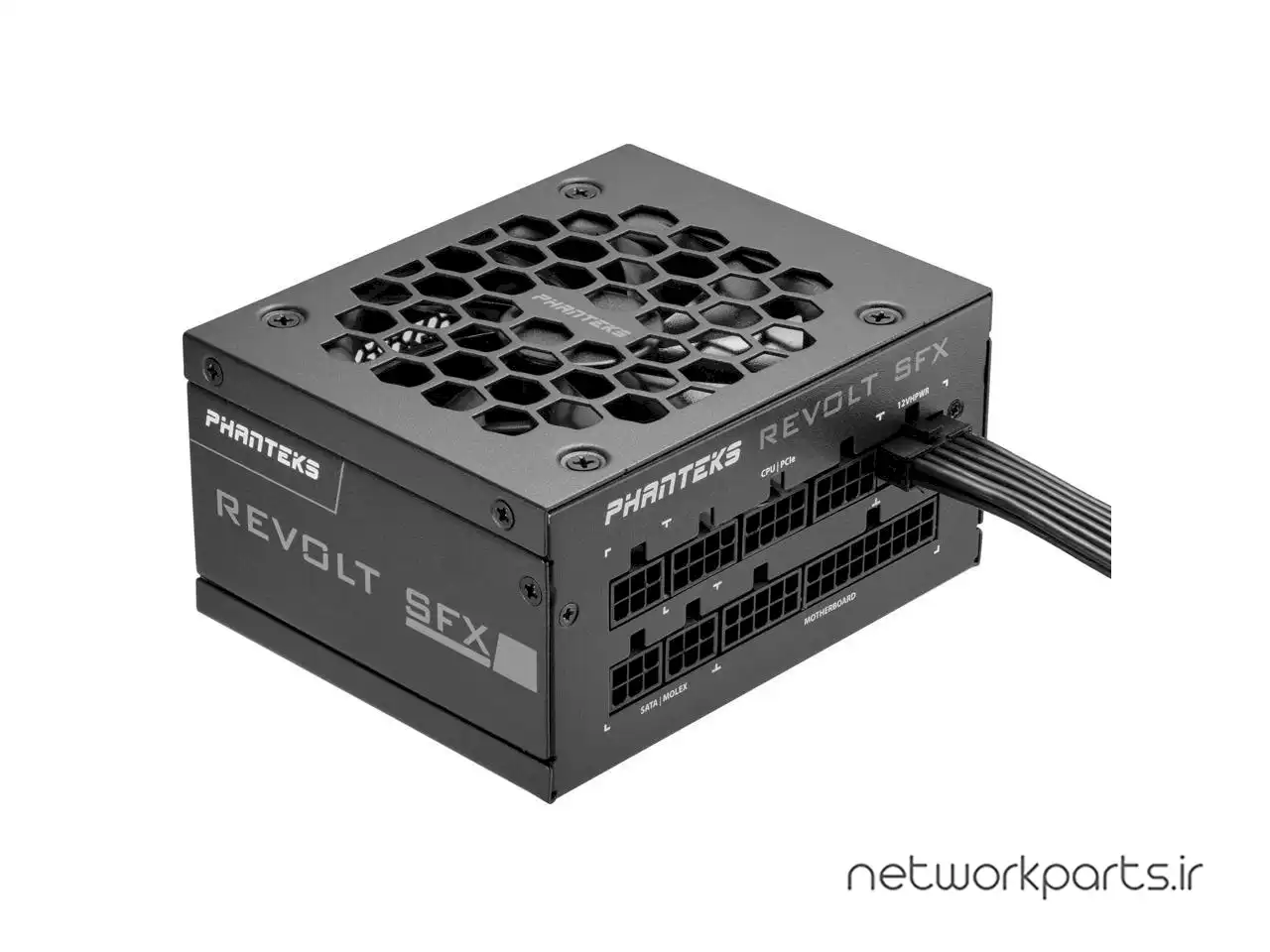

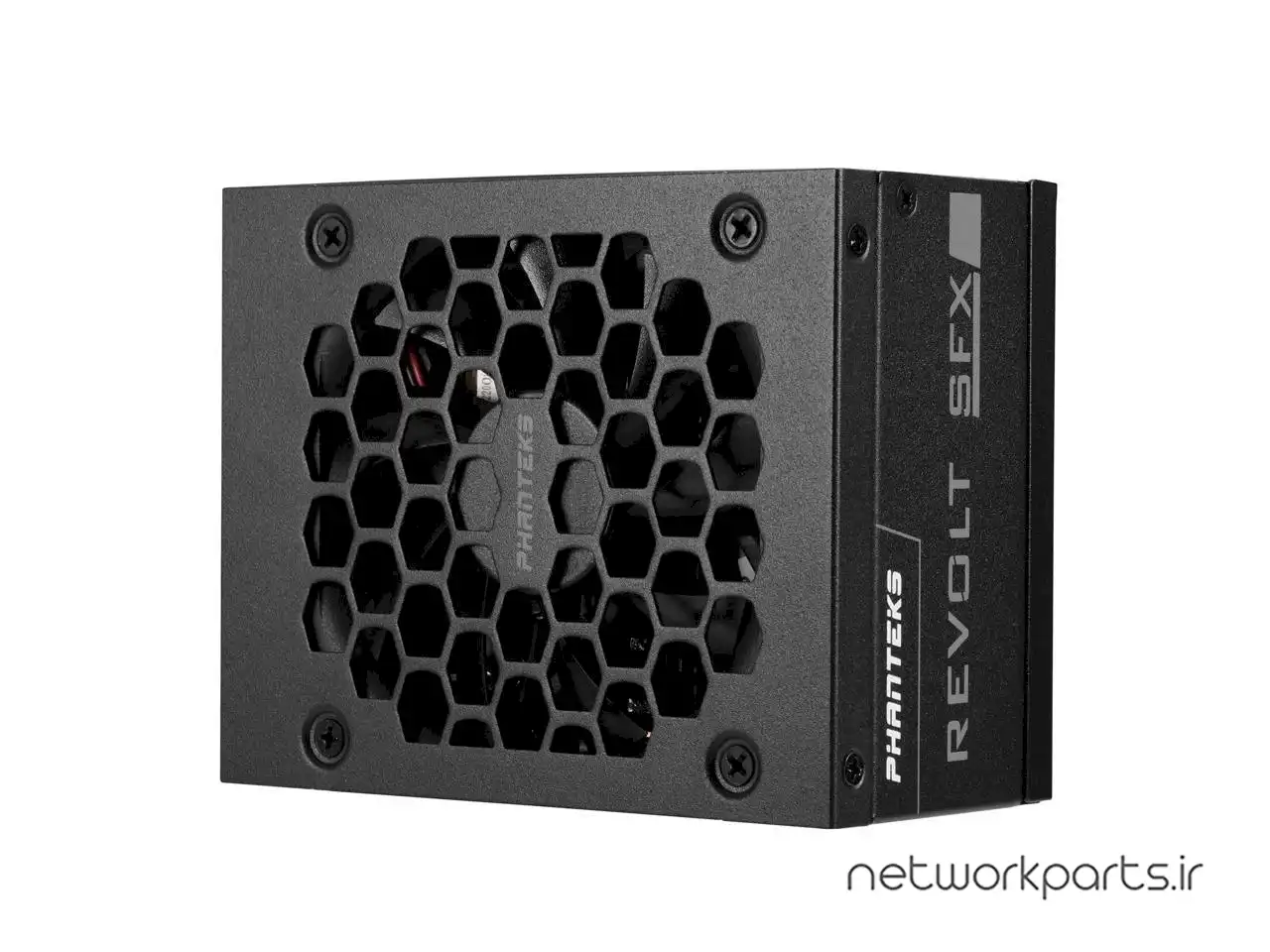

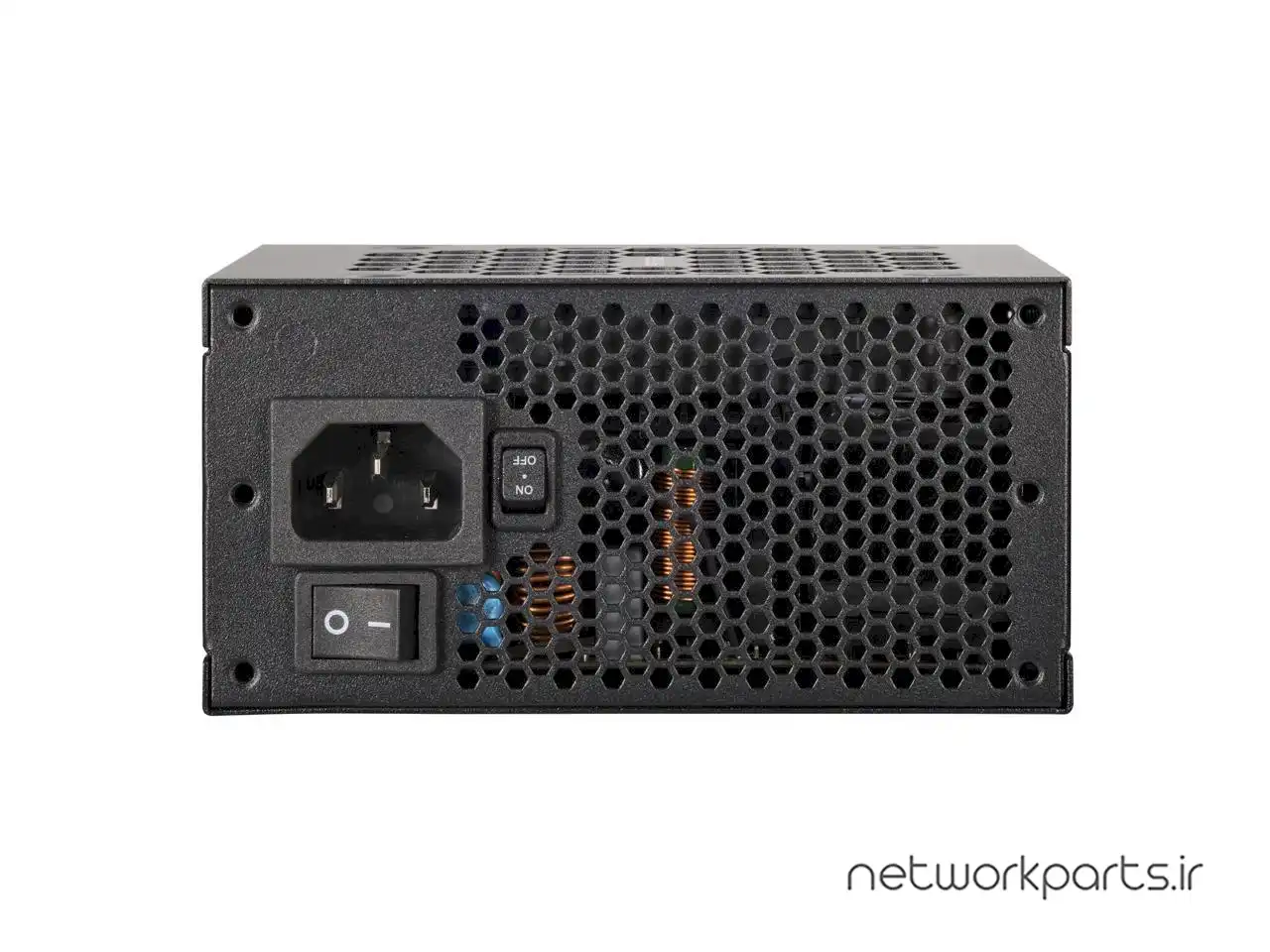

برند محصول | فن تکس (Phanteks) |
---|---|
سری محصول | REVOLT SFX |
مدل محصول | PH-P850PSF-02 |
نوع | SFX |
ماژولار | ماژولار کامل |
بهره وری انرژی | 80 Plus Platinum |
بیشترین توان | 850W |
خروجی | -12V@0.3A, +3.3V@20A, +5V@20A, +5VSB@3A, 12V@70.8 A |
ولتاژ ورودی | 100 - 240V |
جریان ورودی | 12A-6A |

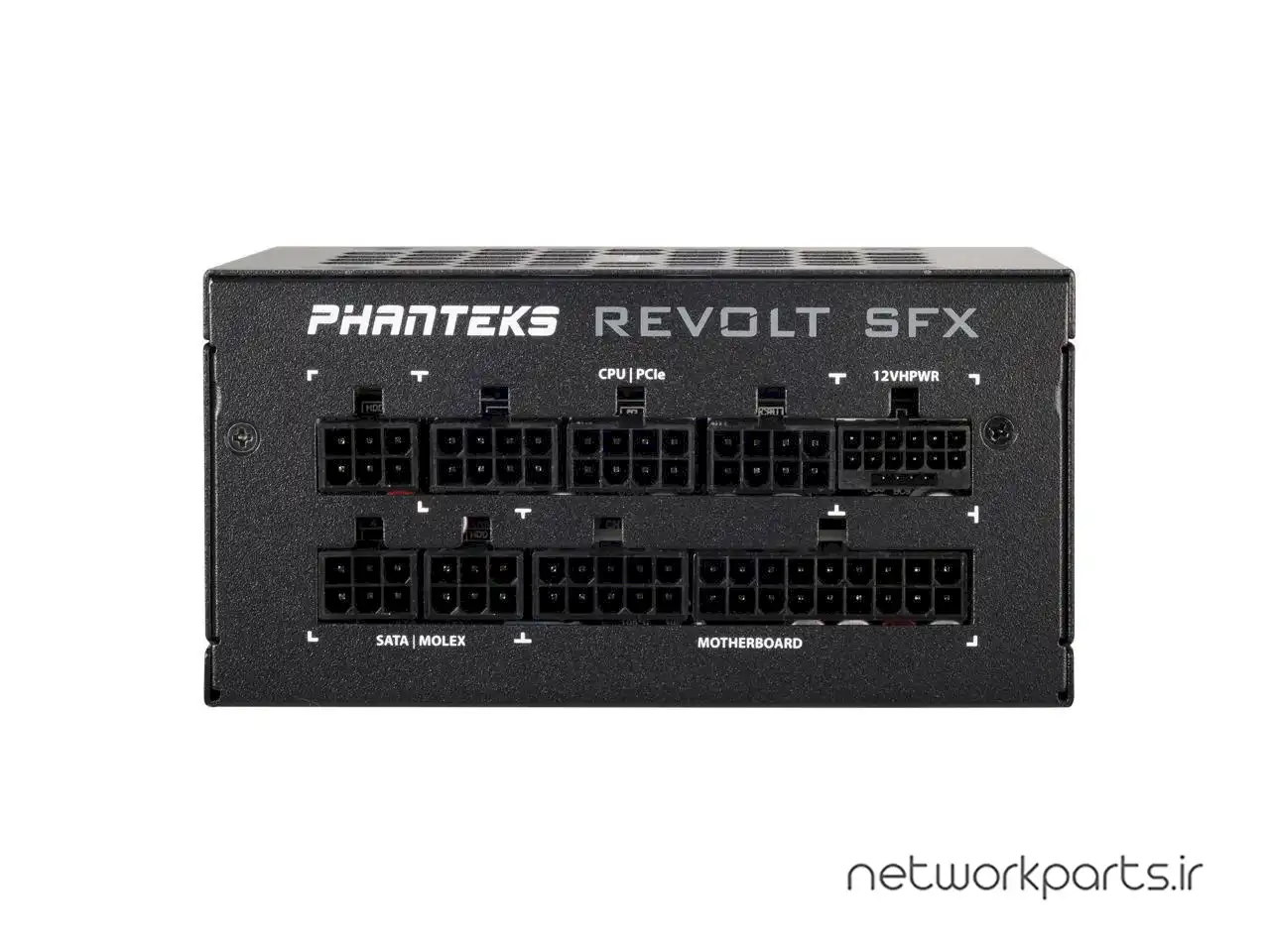

اتصالات | 1x 16pin PCI-E Gen 5.0 (250mm), 1x 18Pin+10Pin MB 24P (310mm), 1x 6pin 2SATA 90° (370mm-250/120mm), 1x 6pin 3SATA 90° + 1Molex 180° (550mm-250/100/100/100mm), 1x 6pin 4SATA 90° (550mm-250/100/100/100mm), 1x 8pin CPU 4+4P (420mm), 1x 8pin PCI-E 6+2P (250mm), 1x 8pin PCI-E 6+2P/6+2P (250mm SPLITTER) |
اتصال اصلی | 24Pin |
اتصال برق SATA | 3 |
اتصال PCI-Express | 3X 6+2-Pin |

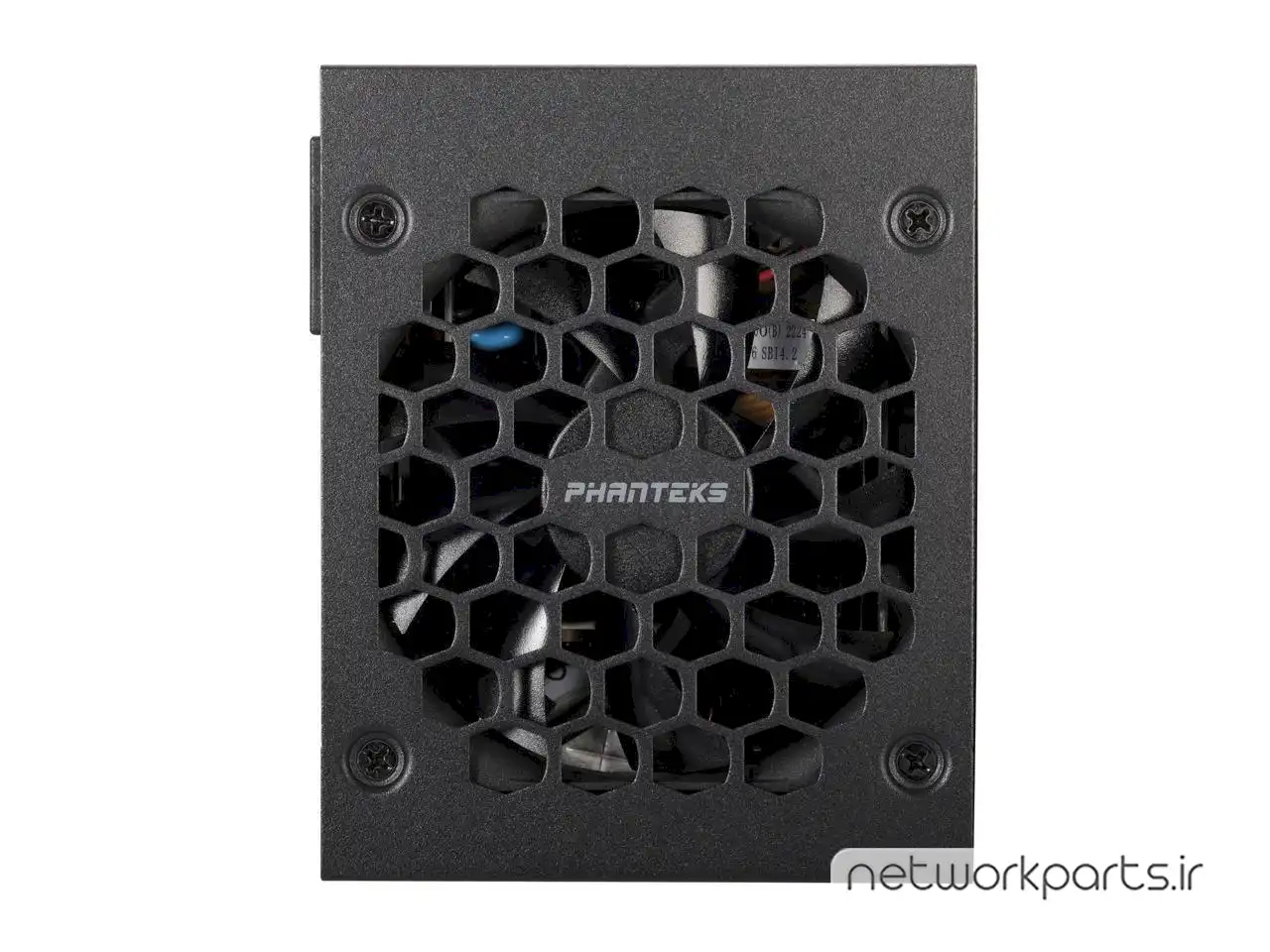

اندازه فن | 92 میلیمتر |
محافظ | module, No-Load protection, OCP (Over Current Protection), OPP (Overpower Protection), OTP (Over Temperature Protection), OVP (Over Voltage Protection), Reset Protection, SCP (Short Circuit Protection), UVP (Under Voltage Protection) |
میانگین زمان بین خرابیها (MTBF) | 100000 ساعت |

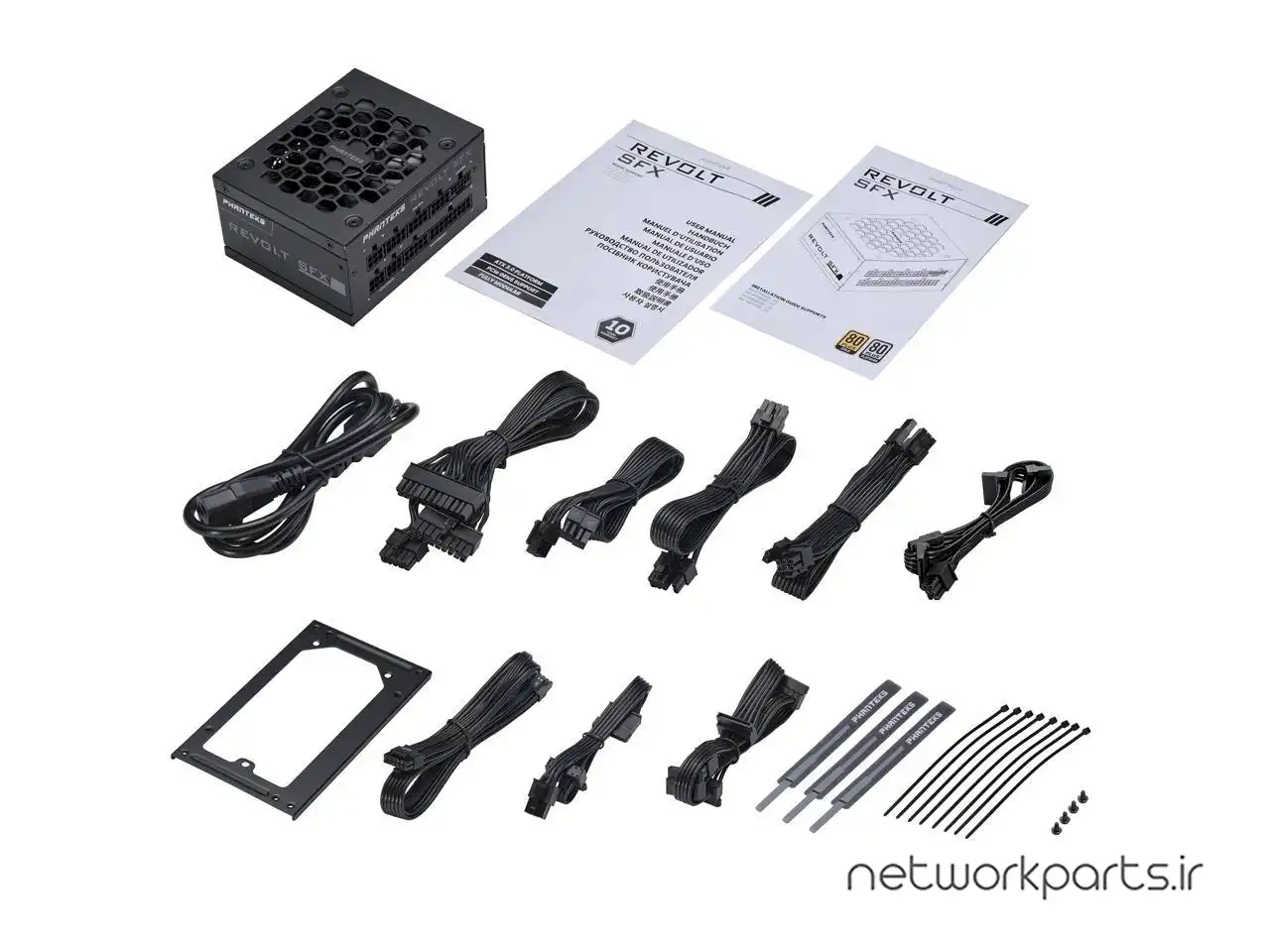

محتویات بسته بندی | 1x Cable Bag, 1x Installation guide, 1x PH-P850PSF_02 80+ Platinum fully modular Power Supply, 1x Power Cord, 1x PSU Bag, 1x Screw Pack, 1x SFX to ATX bracket, 1x User’s manual, 1x Velcro Pack, 1x Zip tie bag |
رنگ | مشکی |
ابعاد | 3.94" x 5.9 " x 3.4" |
بیشرین طول منبع تغذیه | 100 mm |
وزن | 2.43 پوند |
