برند محصول | ترمالتیک (Thermaltake) |
---|---|
سری محصول | TOUGHPOWER GF3 |
مدل محصول | PS-TPD-0850FNFAGU-4 |
نوع | ATX 12V v3.0, EPS v2.93 |

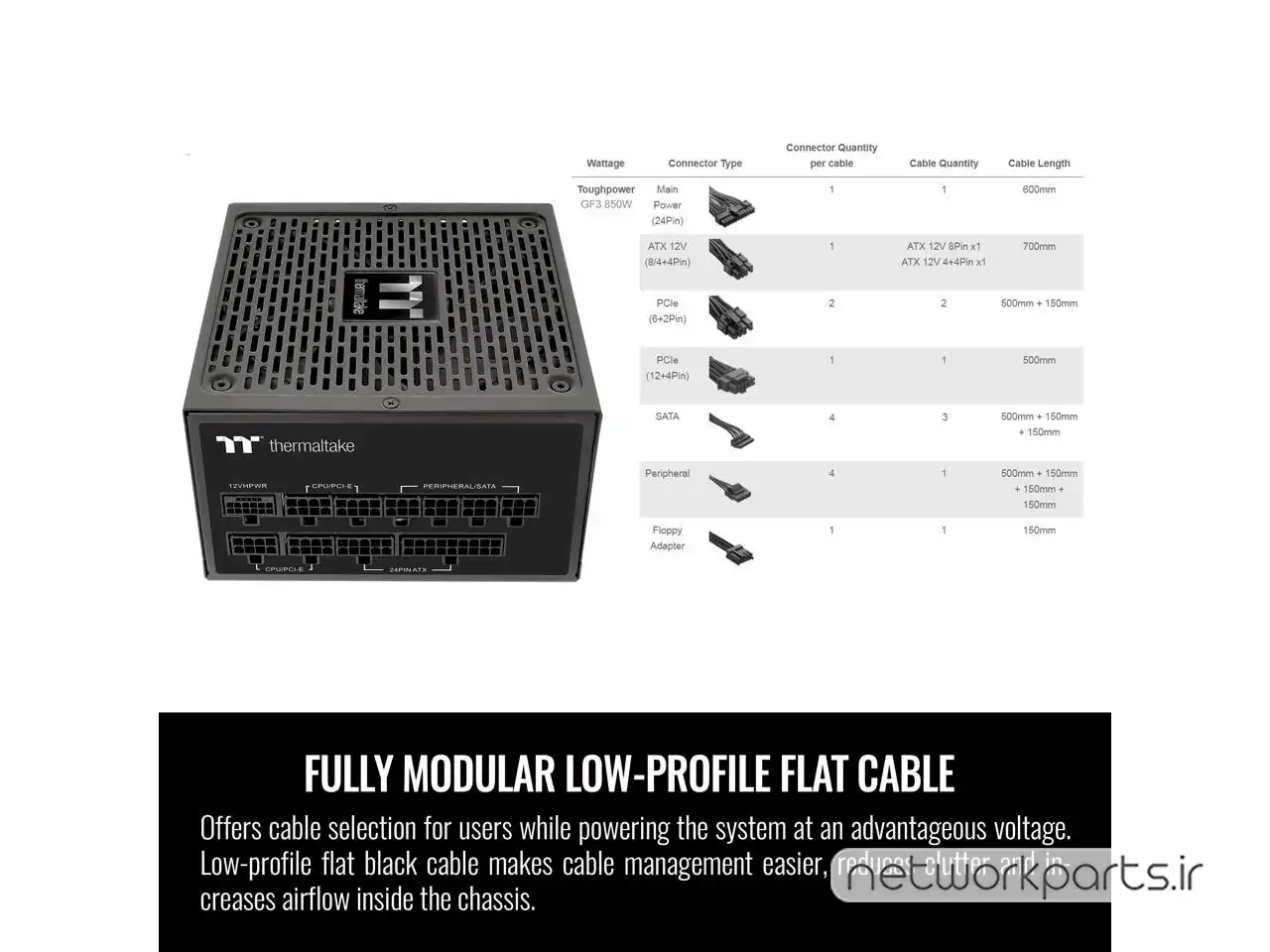

ماژولار | ماژولار کامل |
بهره وری انرژی | 80 Plus Gold |
بیشترین توان | 850W |
خروجی | -12V@0.3A, +12V@70.9A, +3.3V@22A, +5V@22A, +5VSB@3A |
ولتاژ ورودی | 100 - 240V |
جریان ورودی | 10 - 5A |
ریل 12V | 1 |
اتصالات | 1 x 12VHPWR (12+4) PCIe / 1 x 24 pin ATX / 1 x Floppy / 12 x SATA / 2 x 8 pin (4+4) EPS (CPU) / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe |
اتصال اصلی | 24Pin |

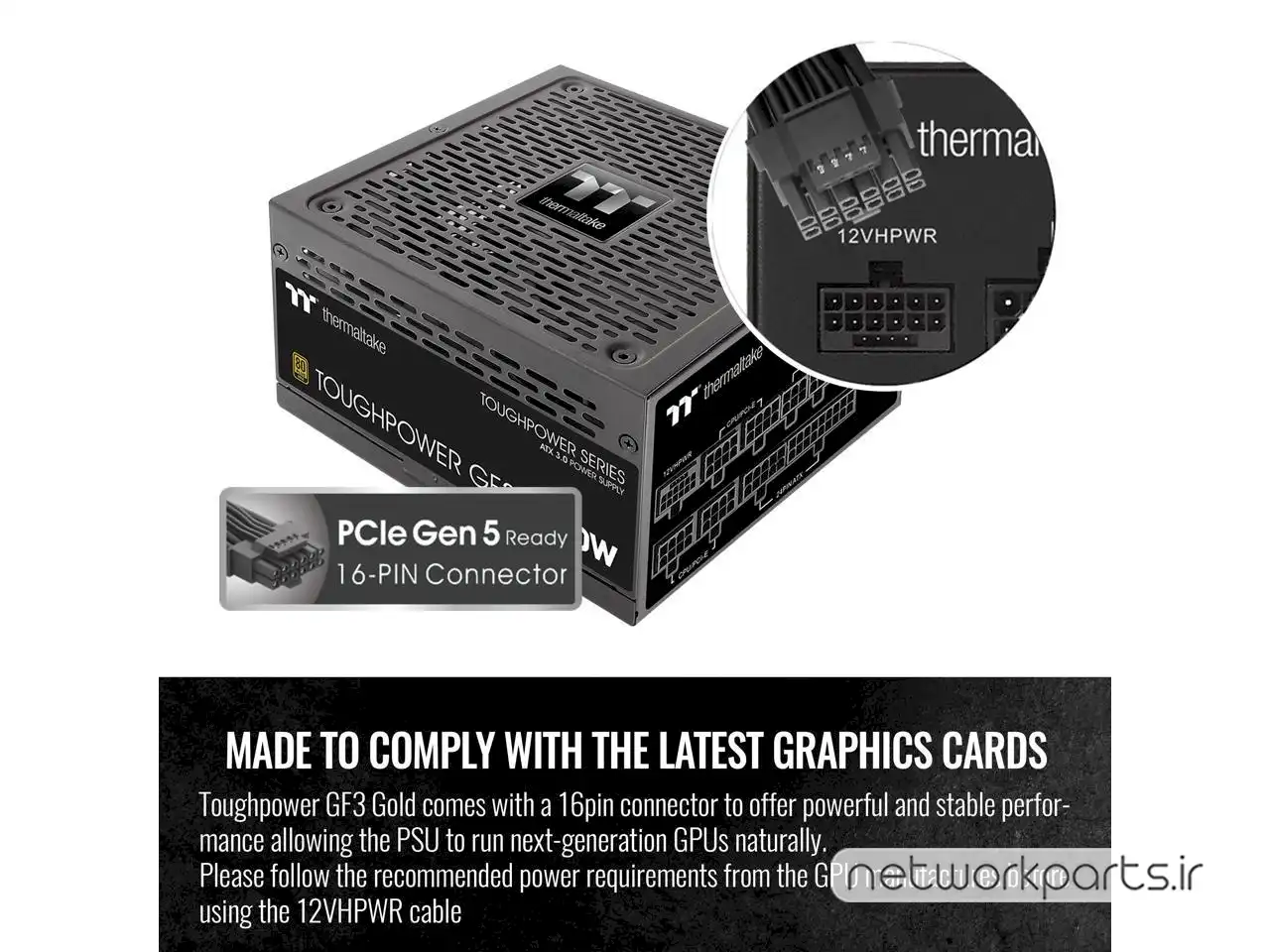

اتصال PCI-Express | 12VHPWR Support Wattage: 300W |
اندازه فن | 140 میلیمتر |
محافظ | OCP, OPP, OTP, OVP,, SCP, UVP |
میانگین زمان بین خرابیها (MTBF) | 100000 ساعت |

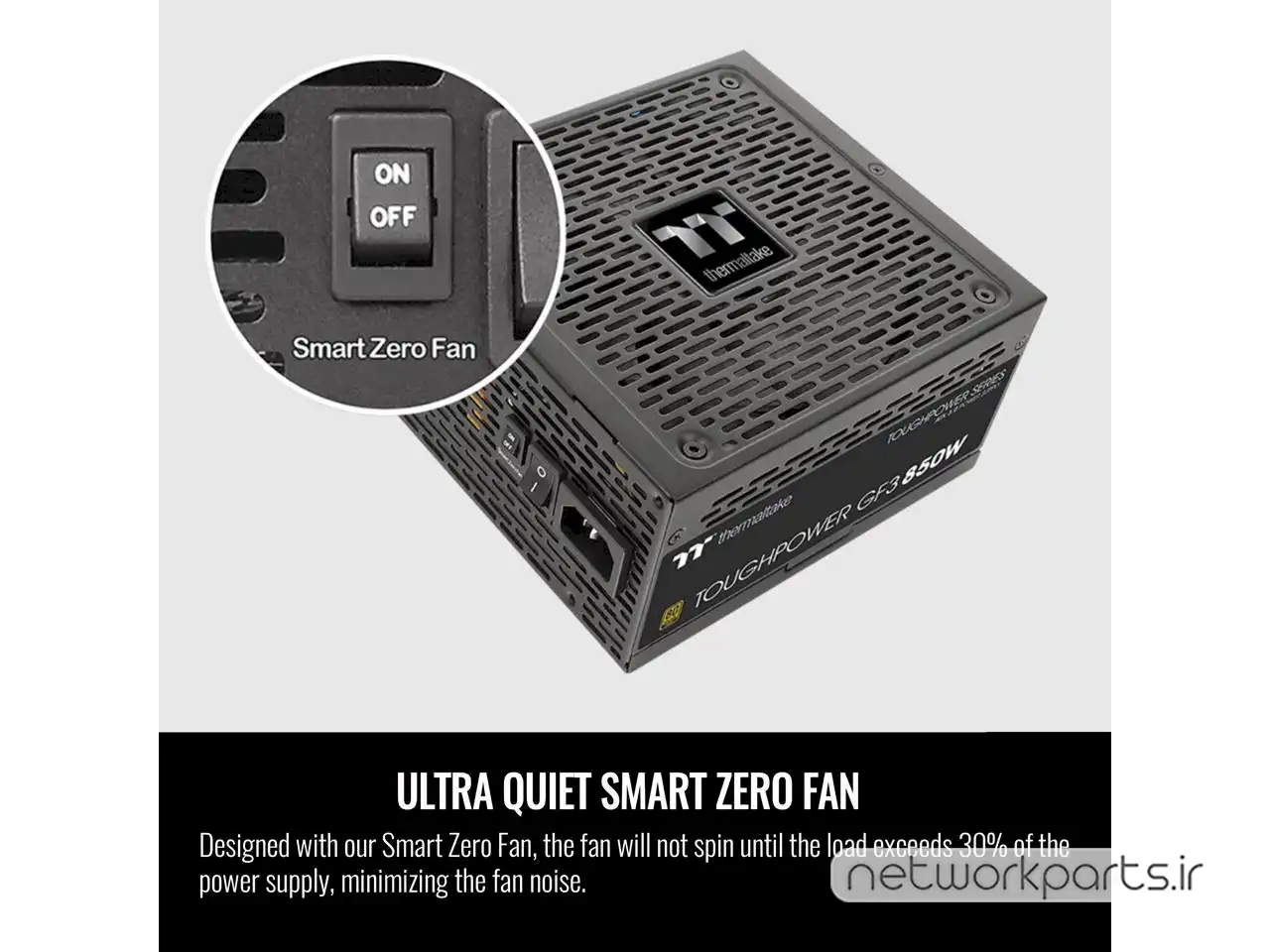

ویژگی ها | <30mV Low Ripple Noise, 100% high quality Japanese 105°C/221°F capacitor, 850W continuous output at 80Plus Gold efficiency, Compatible with Intel ATX 3.0 specification, providing sufficient and stable power delivery, Fully modular with low-profile flat White cables, High amperage single +12V rail design, PCIe Gen.5 12VHPWR Connectors included, Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation, Ultra quiet 135mm hydraulic bearing fan |
تاییدیه ها | BIS, BSMI, CB, CE, cTUVus, EAC, FCC, IC, KCC, TUV, UKCA |
ابعاد | 5.9" x 3.4" x 6.3" |
بیشرین طول منبع تغذیه | 150 mm |
