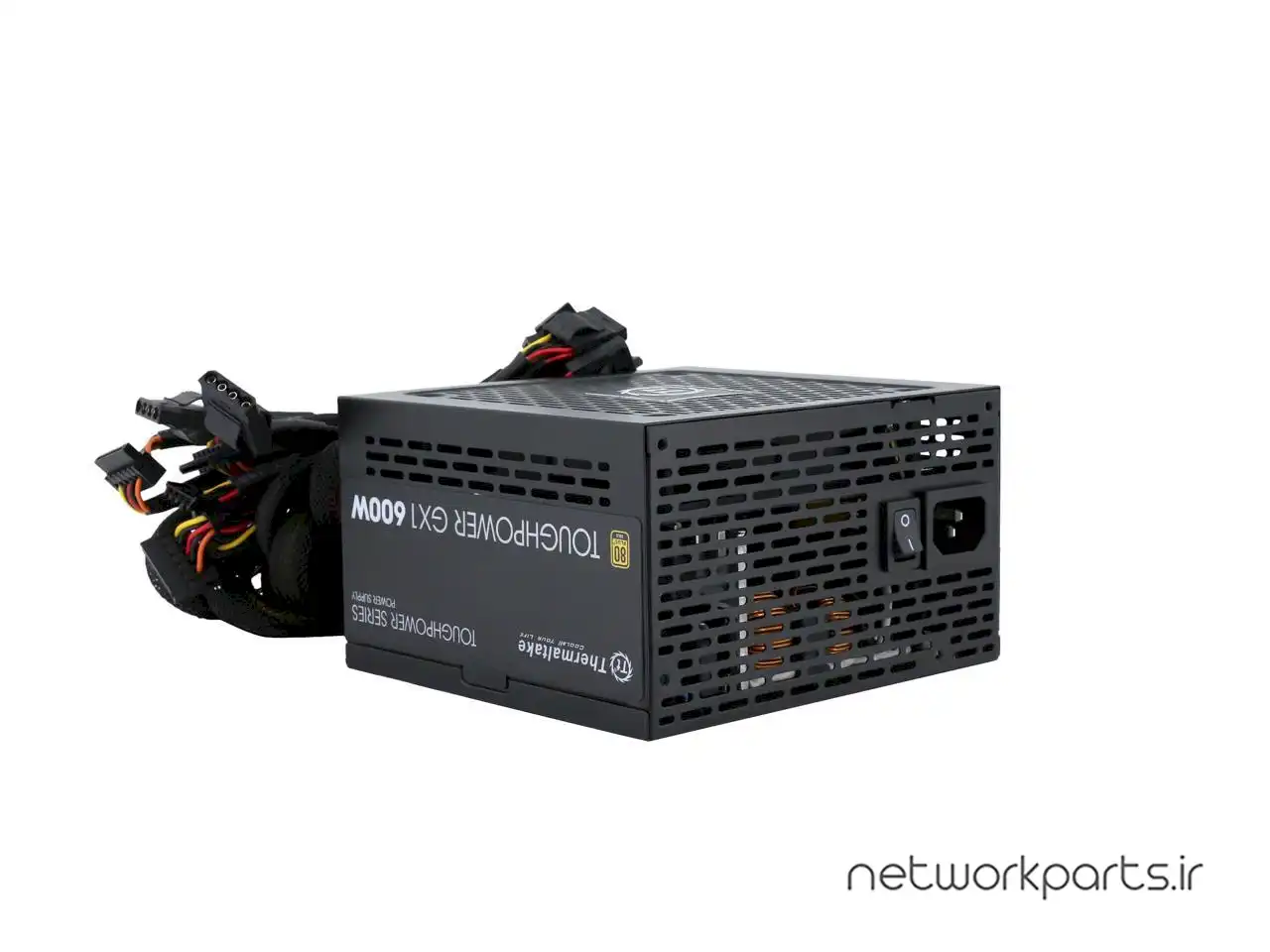

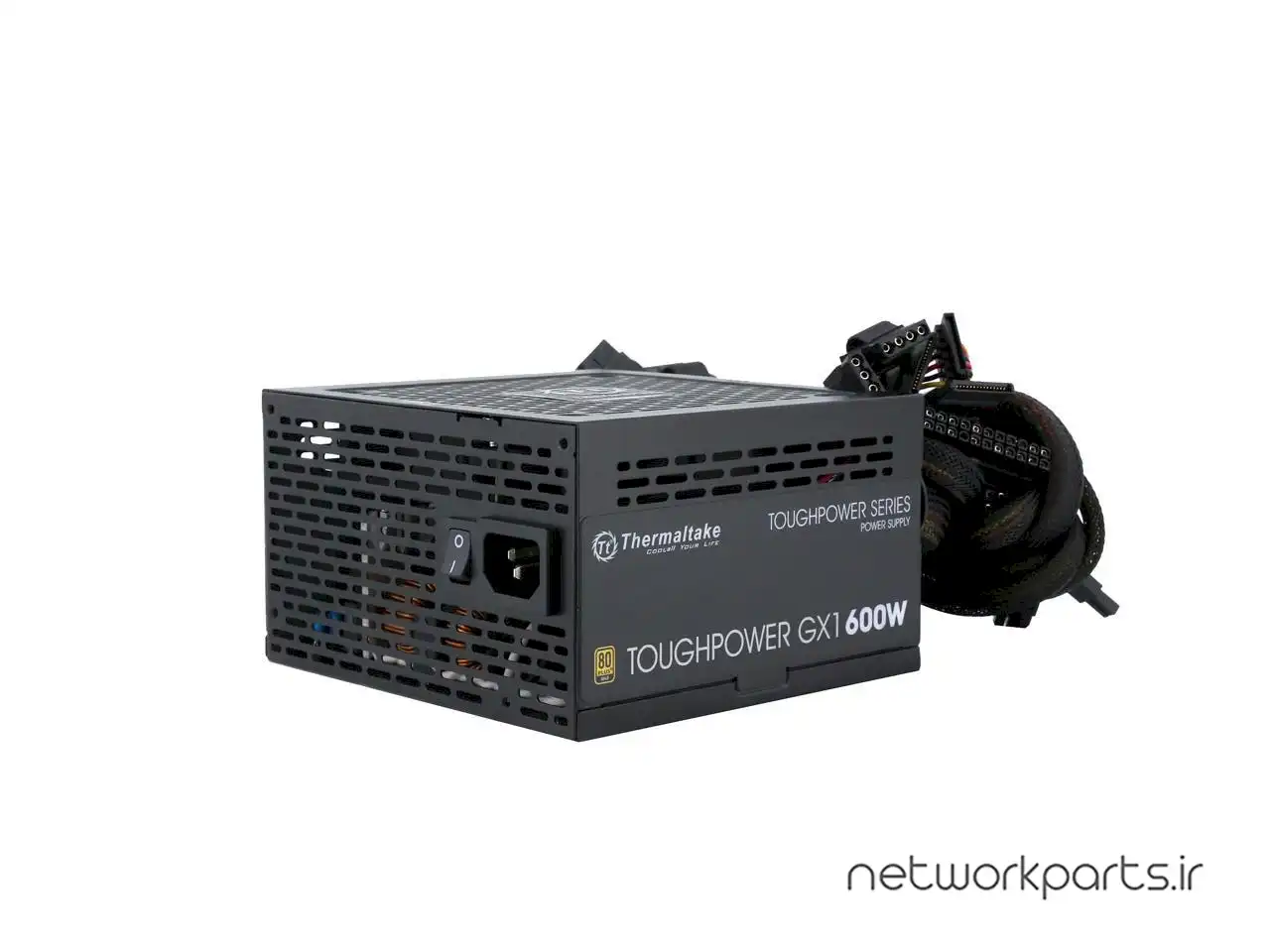

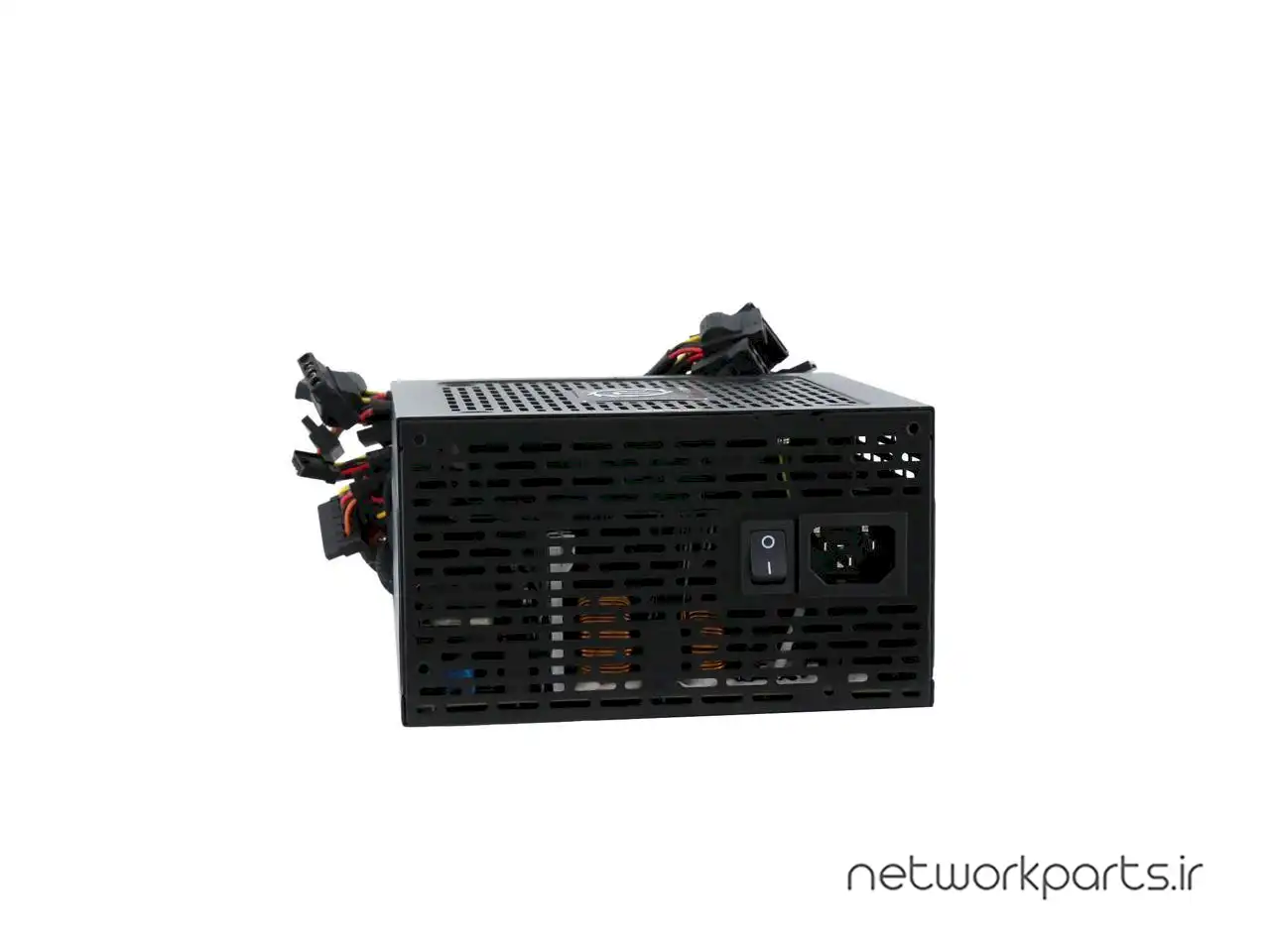

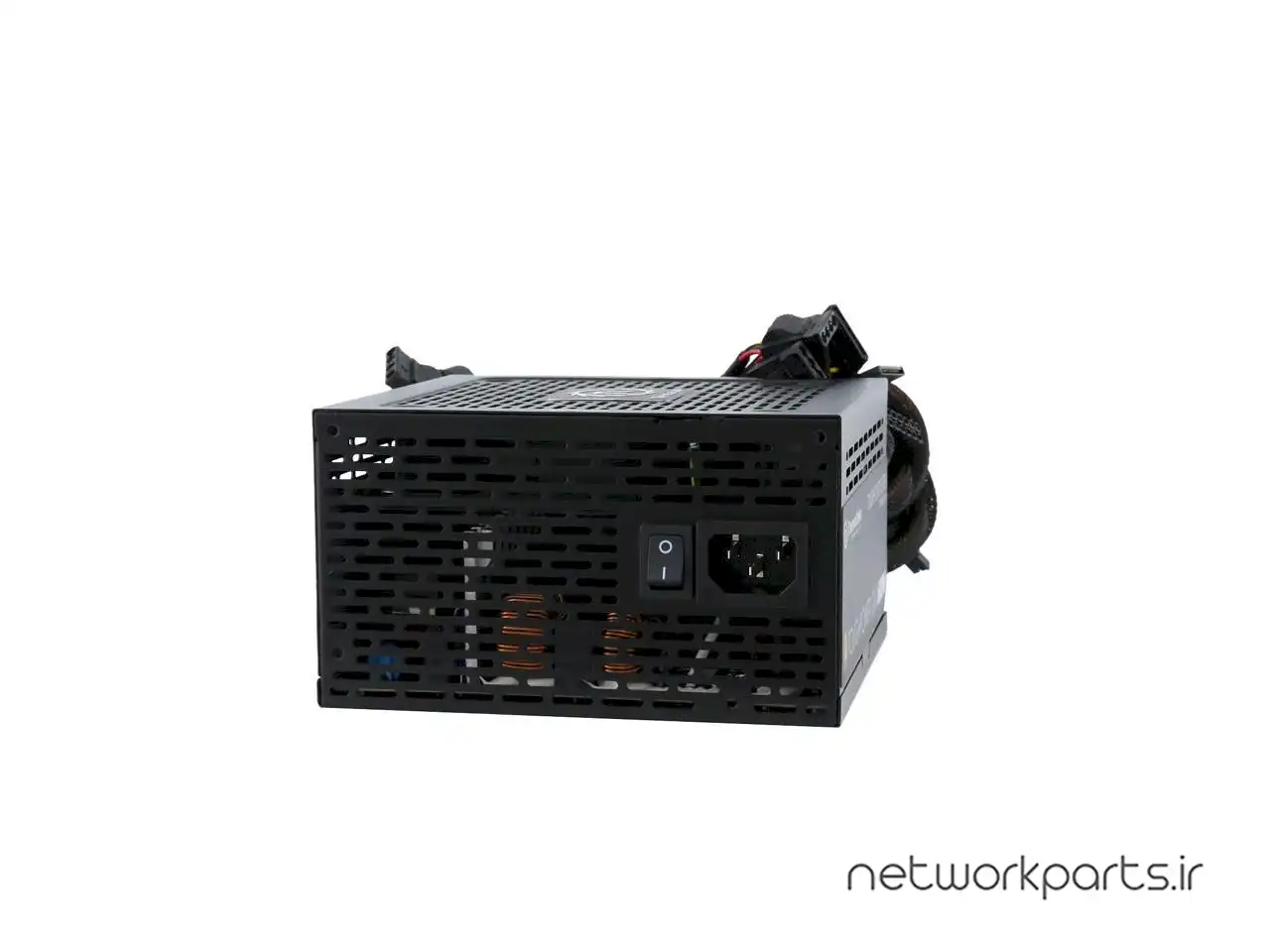

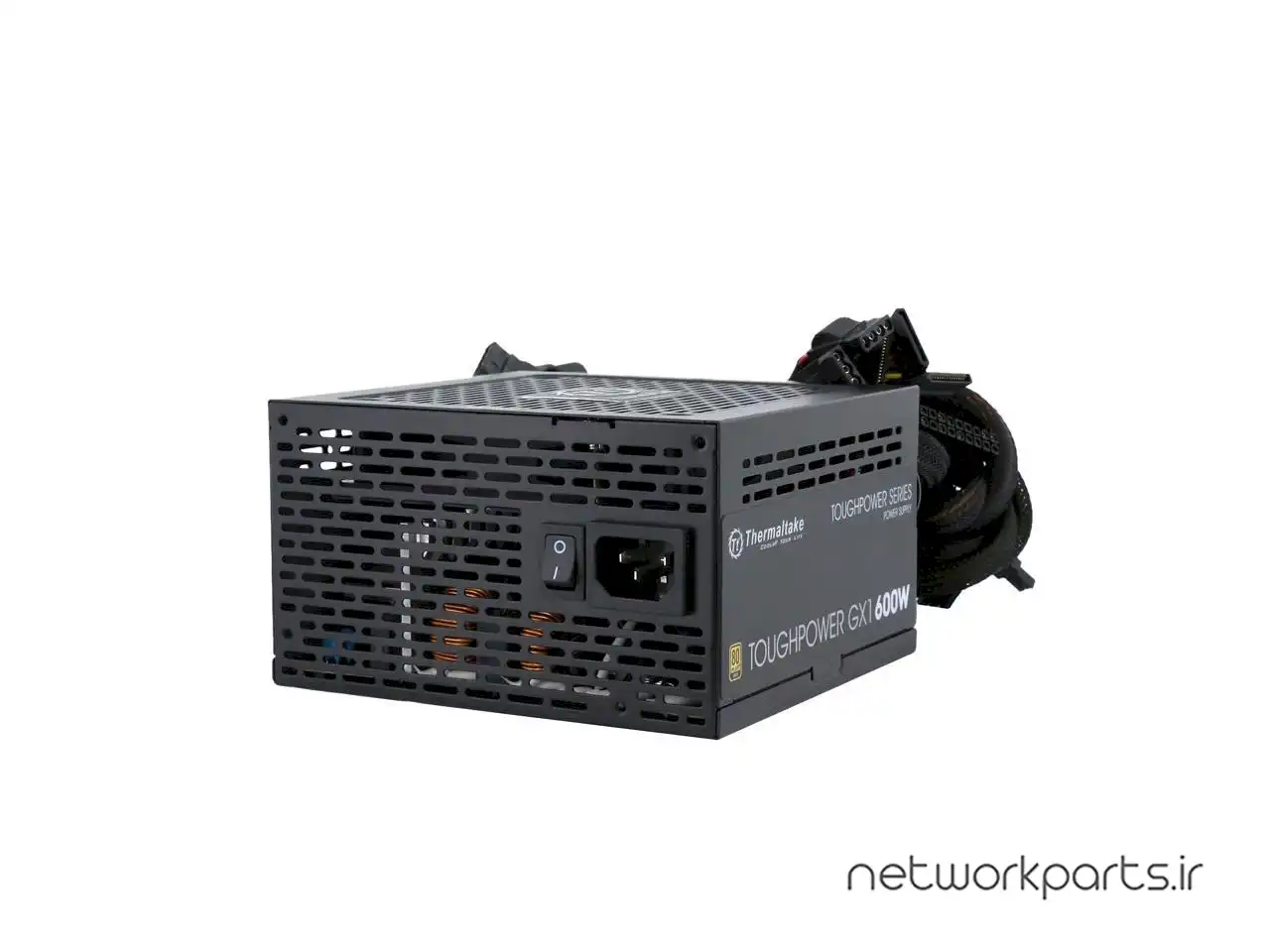

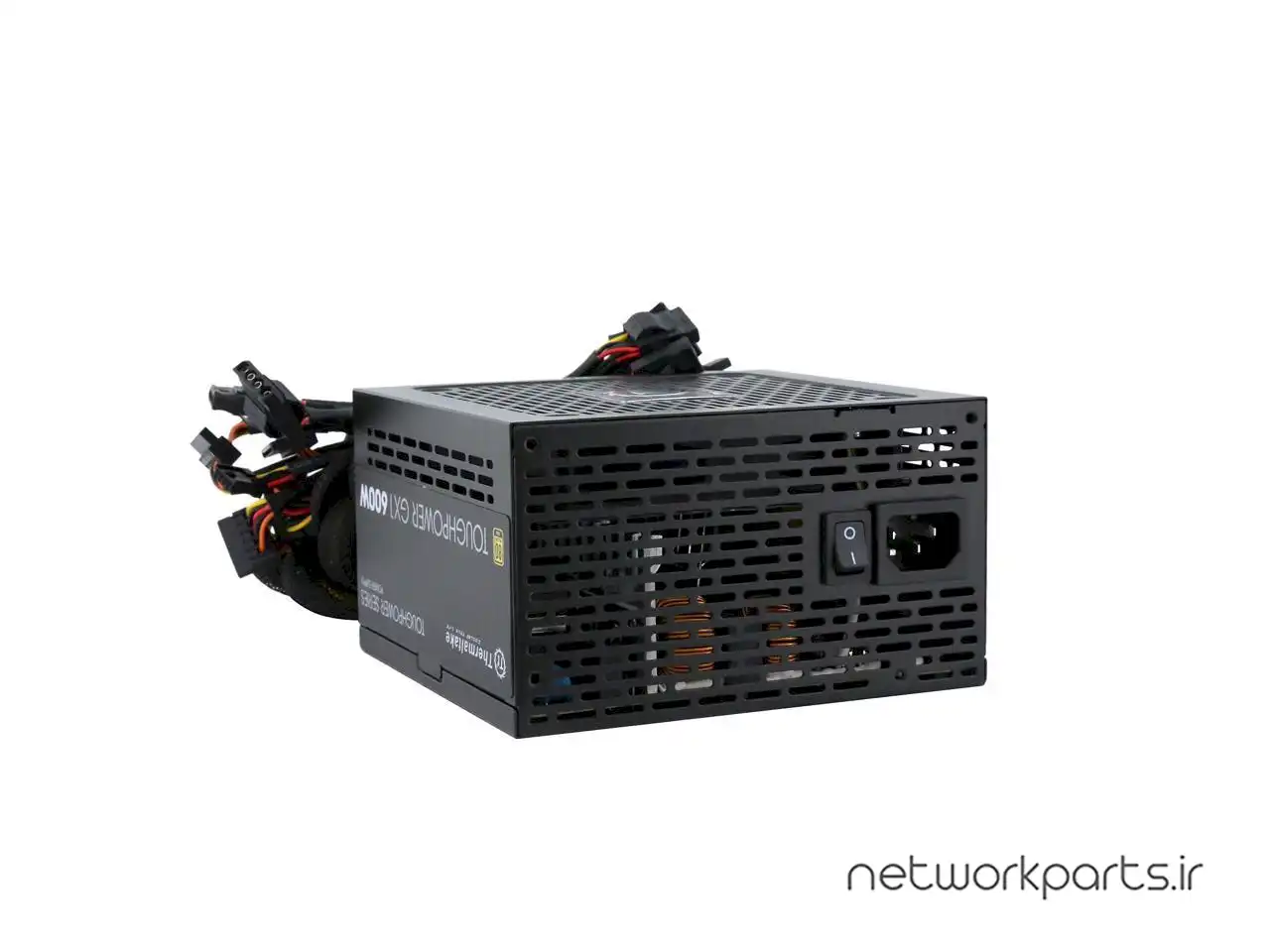

منبع تغذیه ترمالتیک (Thermaltake) مدل PS-TPD-0600NNFAGU-1

Name: منبع تغذیه ترمالتیک (Thermaltake) مدل PS-TPD-0600NNFAGU-1 - تجهیزات شبکه
SKU: N82E16817153374
Price: 107 ABC
Availability: InStock

قیمت جهانی: ۱۰۷ دلار امریکا

موجود در انبار

کد محصول N82E16817153374 دسته بندی منبع تغذیه

مشخصات فنی محصول

برند محصول	ترمالتیک (Thermaltake)
سری محصول	TOUGHPOWER GX1 GOLD
مدل محصول	PS-TPD-0600NNFAGU-1
نوع	ATX 12V V2.4, EPS v2.92
ماژولار	خیر
بهره وری انرژی	80 Plus Gold
بیشترین توان	600W
خروجی	[email protected], +12V@49A, +3.3V@20A, +5V@20A, [email protected]
ولتاژ ورودی	100 – 240V
جریان ورودی	9A max
at_frequency-range	47/63 Hz
ریل 12V	1
اتصالات	1 x 24pin Main Connector, 1 x ATX 12V 4+4pin connector, 1 x FDD, 2 x 6+2pin PCI-E, 4 x Peripheral connectors, 8 x SATA
اتصال اصلی	24Pin
اتصال برق SATA	8
اتصال PCI-Express	2X 6+2-Pin
CrossFire	Ready
SLI	Ready
at_fans	1
اندازه فن	120 میلیمتر
محافظت در مقابل ولتاژ بیش از حد مجاز	بلی
at_cable-spec	2 x PCI-E 6+2Pin: One cable (550+150mm), 24Pin MB: One cable (610mm), 4 x Peripheral + 1 x FDD: One cable (500+150+150+150+150mm), 4 x SATA: Two cables (505+115+115+115mm), 4+4Pin CPU: One cable (600mm)
at_hold-up-time	> 12msec at 80% of full load
میانگین زمان بین خرابی‌ها (MTBF)	100000 ساعت
at_power-good-signal	100-500ms
ویژگی ها	80 PLUS Gold Certification, Comes with multiple connectors that power the system at an advantageous voltage and make cable installation an easy task., Featuring an 120mm Fluid Dynamic Bearing Fan to kept friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation., High amperage single +12V rail design, High quality Japanese 105°C/221°F main capacitors, Low Ripple & Noise, Multiple Connectors, Powerful single +12V rail, Sophisticatedly Designed Exterior Shroud, The maximum ripple/noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance, Toughpower GX1 saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel's processors to , Ultra-quiet 120mm fluid dynamic bearing fan
تاییدیه ها	BSMI, CE, cTUVus, EAC, FCC, S-Mark, TUV
ابعاد	3.39" x 5.91" x 5.51"
بیشرین طول منبع تغذیه	140 mm
وزن	5.10 پوند
