برند محصول
|
ای وی جی ای (EVGA)
|
|
مدل محصول
|
200-GE-0800-V1
|
|
نوع
|
ATX 12V, EPS 12V
|
|
ماژولار
|
خیر
|
|
بهره وری انرژی
|
80 Plus Gold
|
|
بیشترین توان
|
800W
|
|

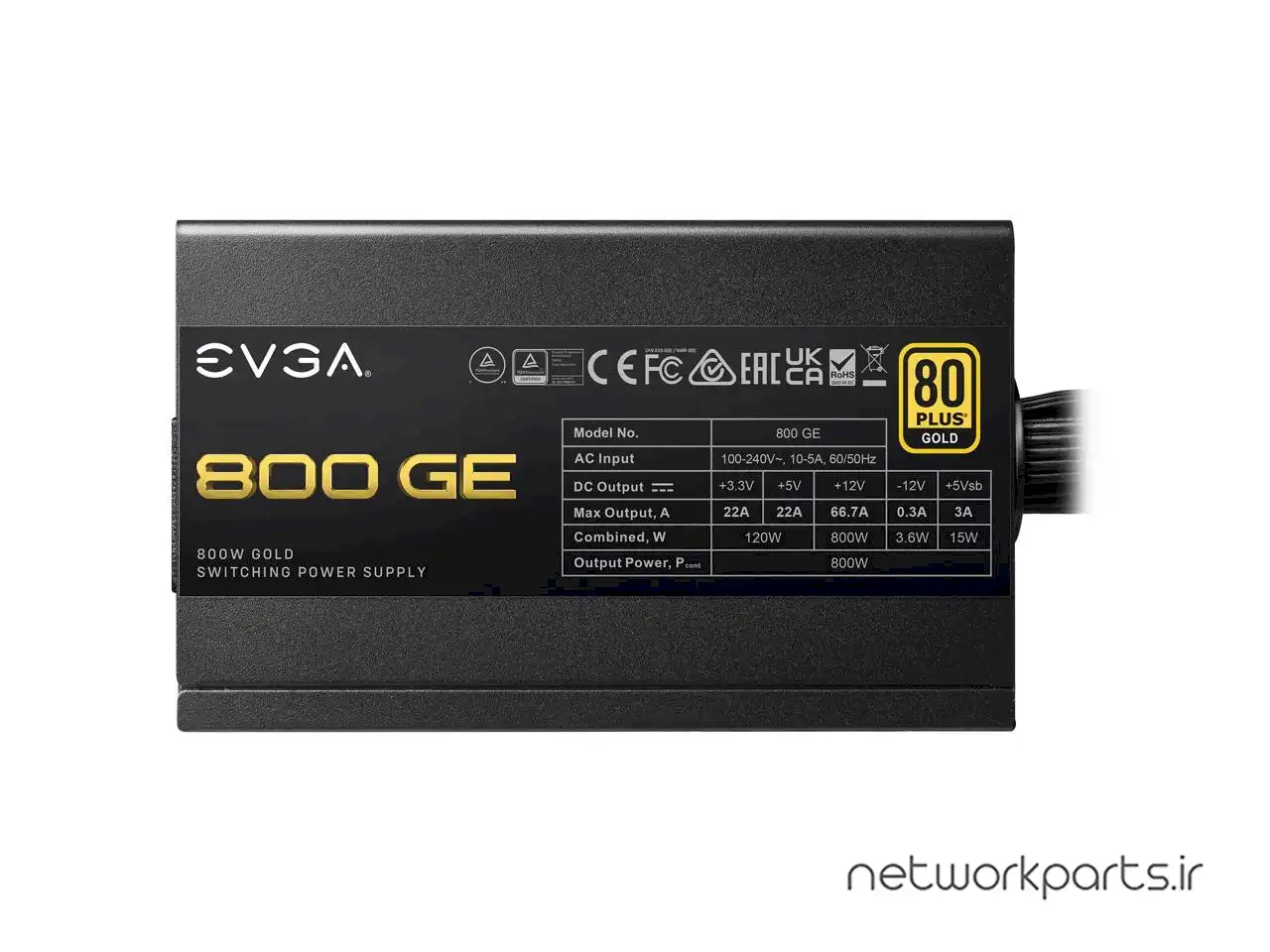

خروجی
|
[email protected], [email protected], +3.3V@22A, +5V@22A, +5VSB@3A
|
|
ولتاژ ورودی
|
100 – 240V
|
|
جریان ورودی
|
10 – 5A
|
|
at_frequency-range
|
50/60 Hz
|
|
ریل 12V
|
1
|
|
اتصالات
|
1 x 24 pin ATX, 1 x Floppy, 2 x 8 Pin EPS (4+4), 3 x Four-Pin Peripheral, 4 x 8 Pin PCIe (6+2), 8 x SATA
|
|
اتصال اصلی
|
24Pin
|
|
اتصال برق SATA
|
8
|
|
اتصال PCI-Express
|
4X 6+2-Pin
|
|
at_haswell-support
|
بلی
|
|
at_fans
|
1
|
|
اندازه فن
|
120 میلیمتر
|
|
محافظت در مقابل ولتاژ بیش از حد مجاز
|
بلی
|
|

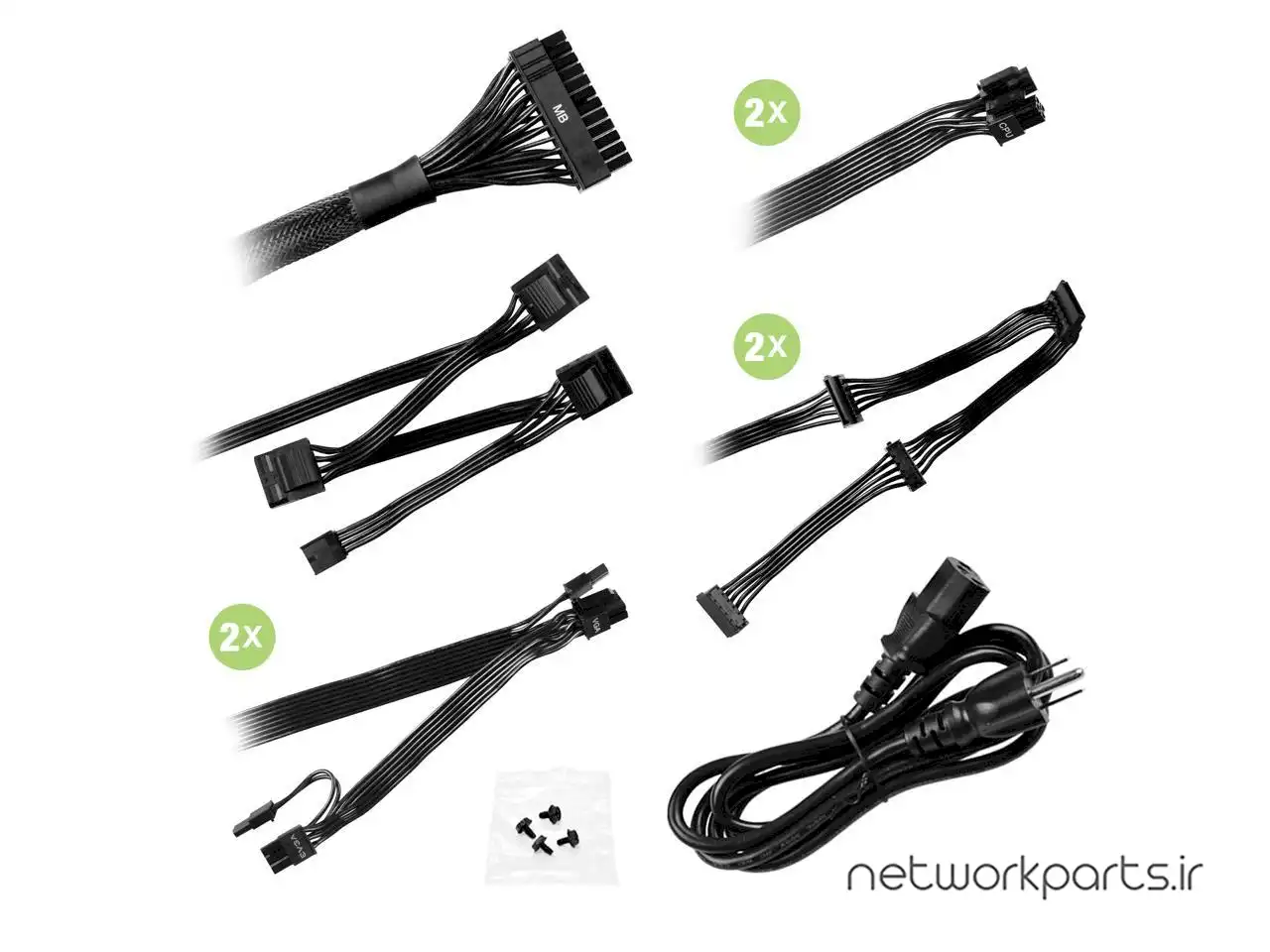

at_cable-spec
|
AC Power: 1x 1500mm, ATX Cable: 1x 550mm, EPS Cable: 2x 600mm, Four-Pin Peripheral Cable: 1 x 550mm, 650mm, 750mm (m), Modular Cable Type: No, PCIe Cable: 2x 550mm, 700mm, SATA Cable: 2x 550mm, 650mm, 750mm, 850mm
|
|
بهره وری
|
0.9
|
|
میانگین زمان بین خرابی‌ها (MTBF)
|
100000 ساعت
|
|
at_pfc
|
فعال
|
|
ویژگی ها
|
80 PLUS Gold-Certified: Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures., EVGA Eco Mode with a Quiet and Intelligent Auto Fan for near-silent operation, Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual, The EVGA GE Series brings EVGA ECO Mode to hardline power supplies for the first time. In addition to 80 PLUS Gold efficiency, GE power supplies have low ripple and noise, low power consumption, and
|
|
تاییدیه ها
|
BSMI, CB, CCC, CE, Compliance with ErP Lot 3 2014 Requirement, cTUVus, FCC, RCM, RoHS, TUV, WEEE
|
|
ابعاد
|
3.34" x 5.91" x 5.5"
|
|
بیشرین طول منبع تغذیه
|
150 mm
|
|
وزن
|
4.4 پوند
|
