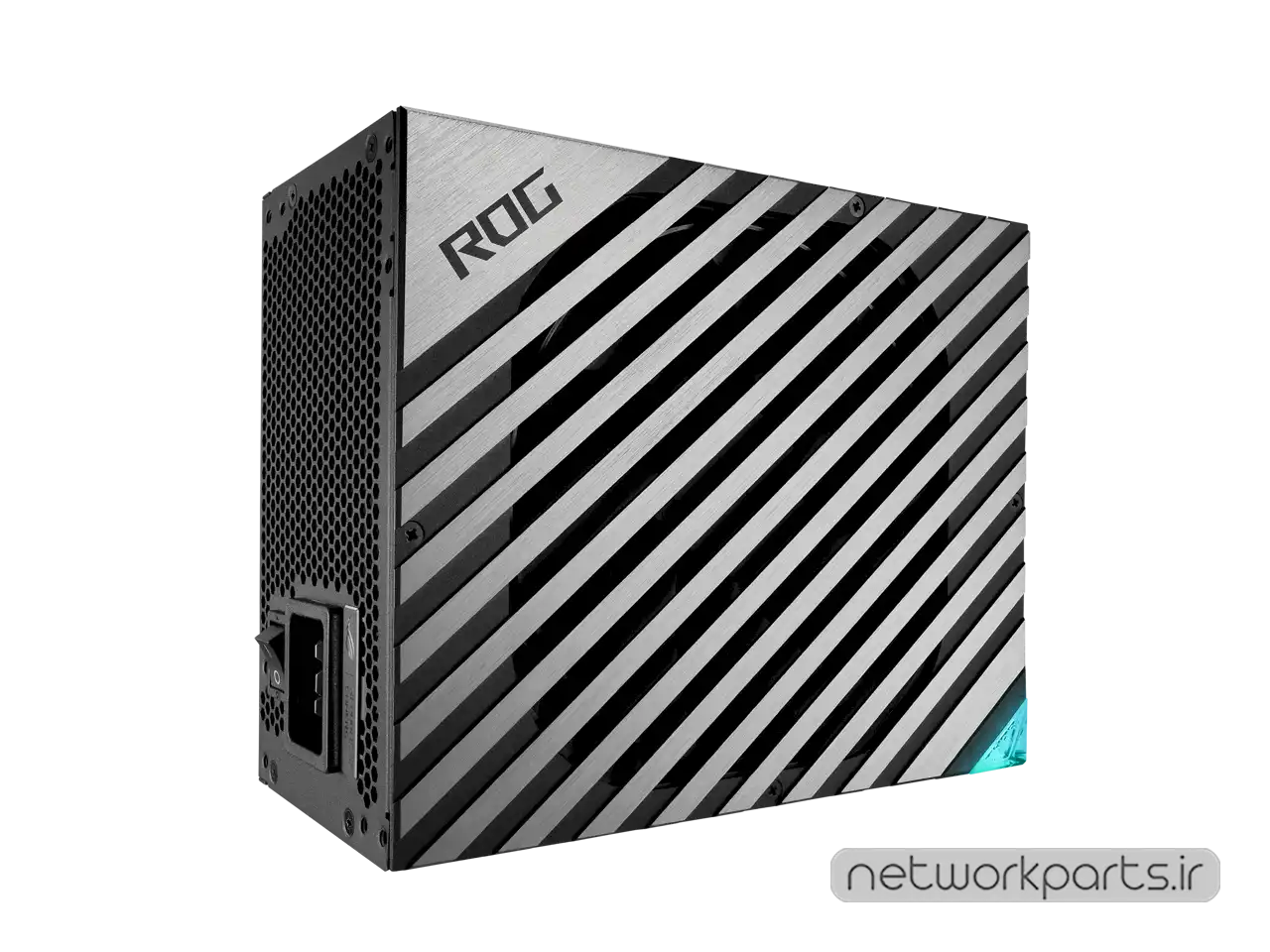

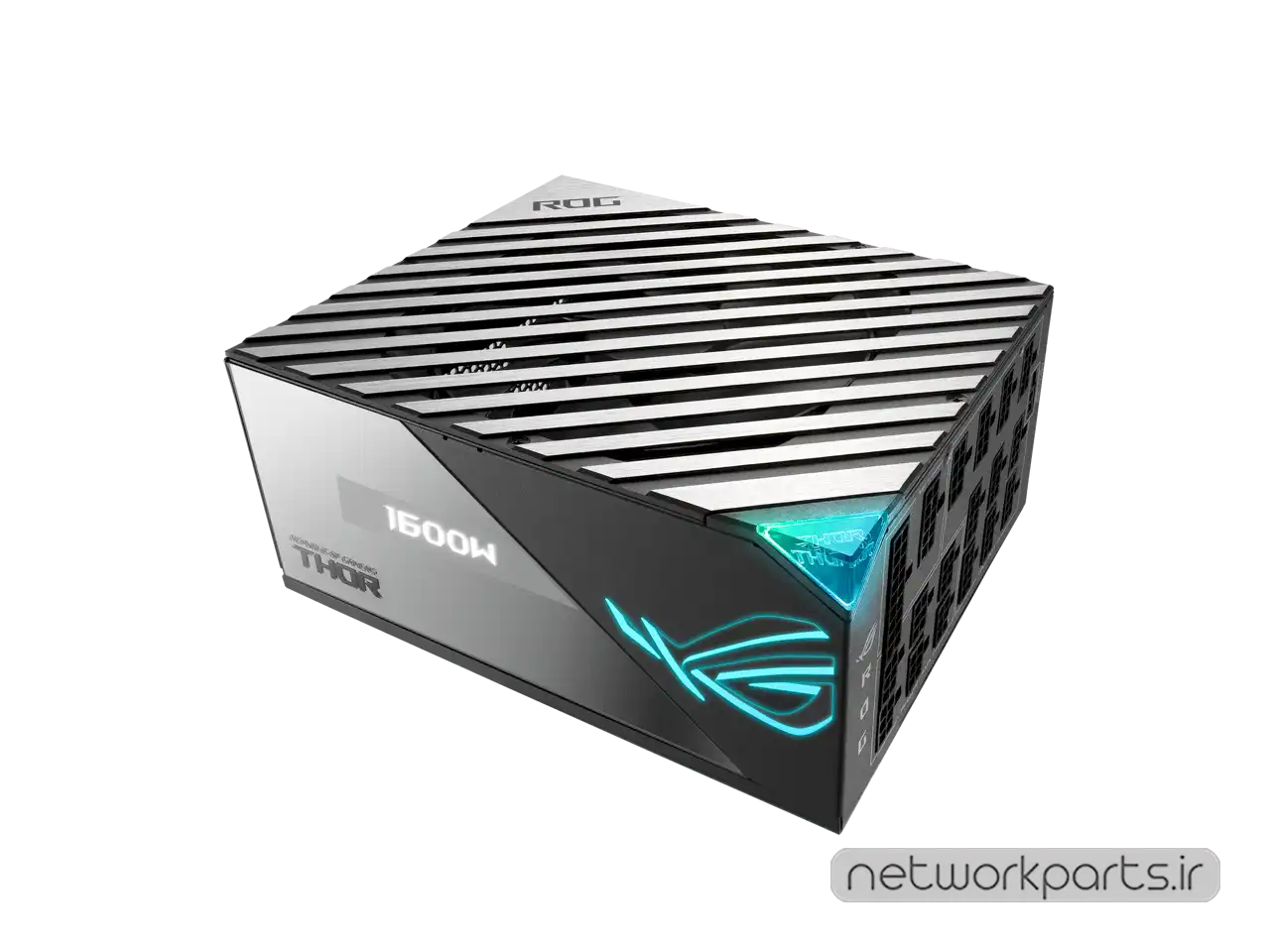

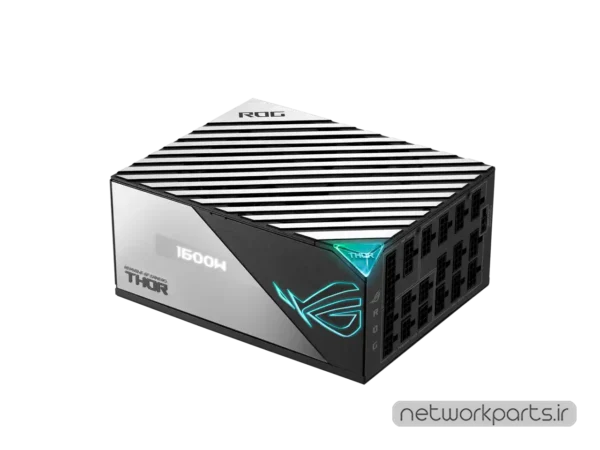

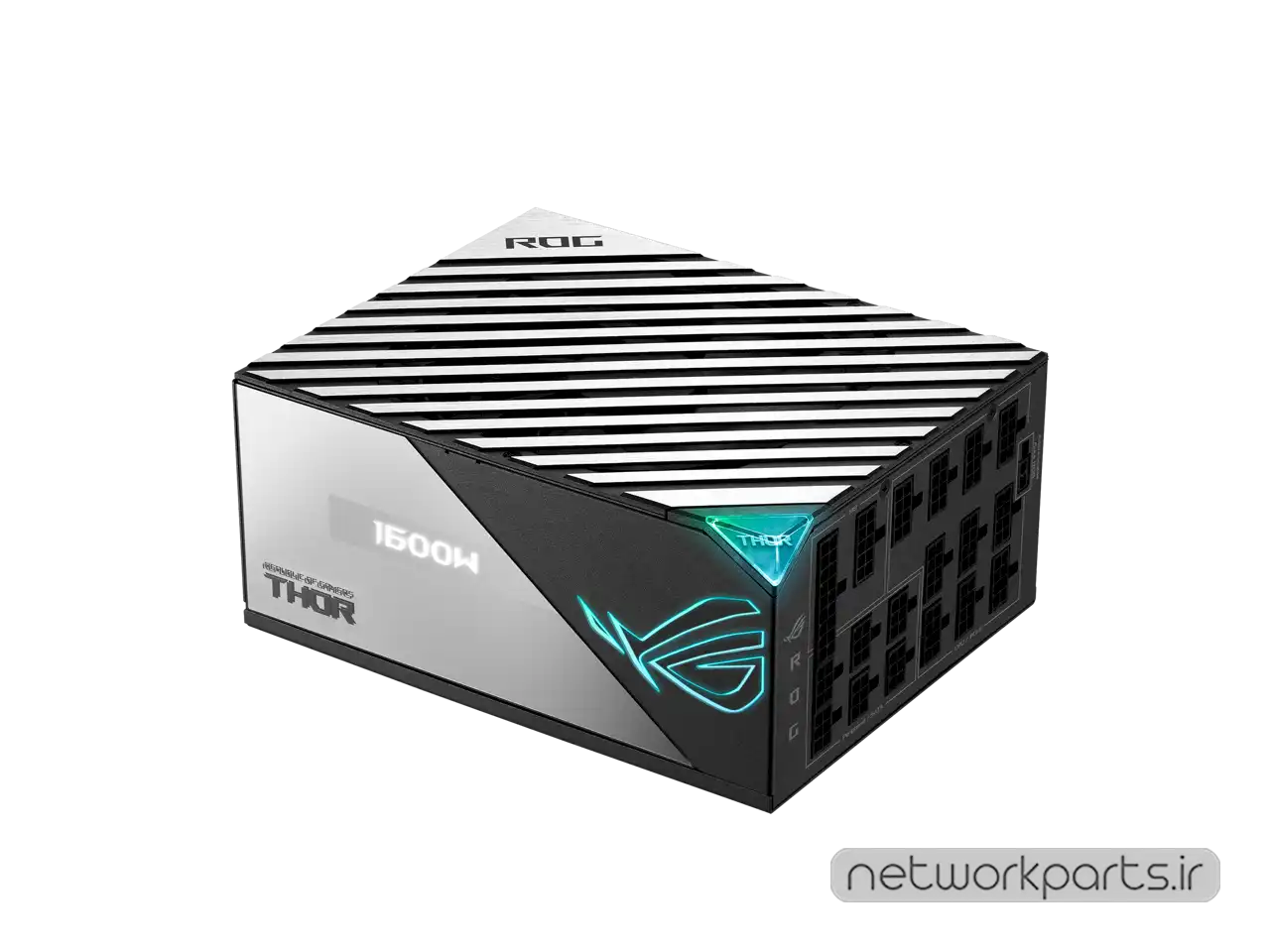

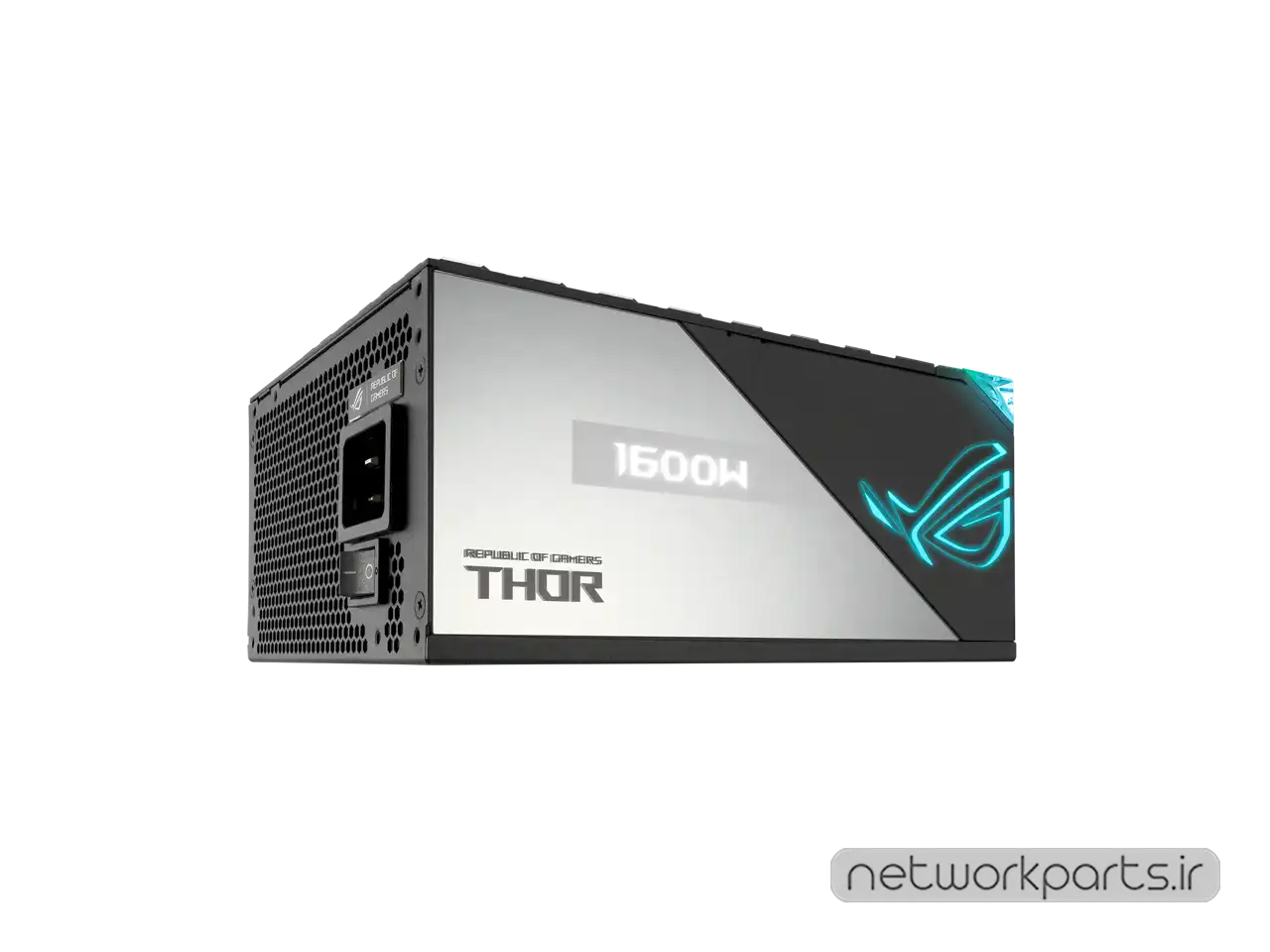

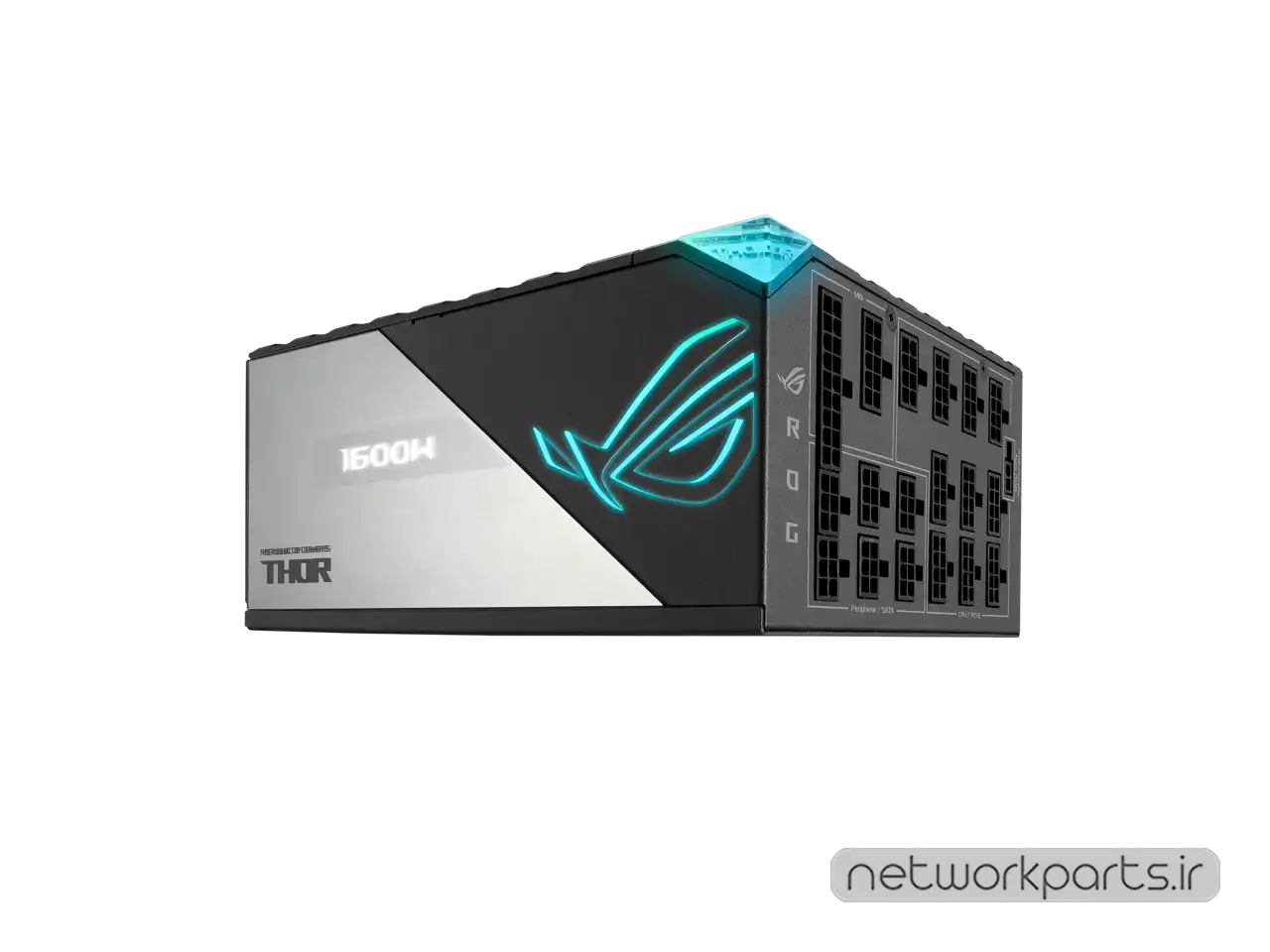

منبع تغذیه ایسوس (ASUS) مدل ROG-THOR-1600T-GAMING کد 90YE00K0-B0AA00

Name: منبع تغذیه ایسوس (ASUS) مدل ROG-THOR-1600T-GAMING کد 90YE00K0-B0AA00 - تجهیزات شبکه
SKU: N82E16817320027
Price: 665 ABC
Availability: InStock

قیمت جهانی: ۶۶۵ دلار امریکا

موجود در انبار

کد محصول N82E16817320027 دسته بندی منبع تغذیه

مشخصات فنی محصول

برند محصول	ایسوس (ASUS)
مدل محصول	ROG-THOR-1600T-GAMING
شماره قطعه	90YE00K0-B0AA00
نوع	ATX 12V
ماژولار	ماژولار کامل
بهره وری انرژی	80 Plus Titanium
بیشترین توان	1600W
خروجی	+3.3V +5V +12V -12V +5Vsb
ولتاژ ورودی	100 – 240V
اتصالات	CPU 4+4-pin x 2, MB 24/20-pin x 1, PCI-E 16-pin x 1, PCI-E 6+2-pin x 10, Peripheral x 6, SATA x 12
اتصال اصلی	24Pin
اتصال PCI-Express	10X 6+2-Pin
at_fans	1
اندازه فن	135 میلیمتر
محافظت در مقابل ولتاژ بیش از حد مجاز	بلی

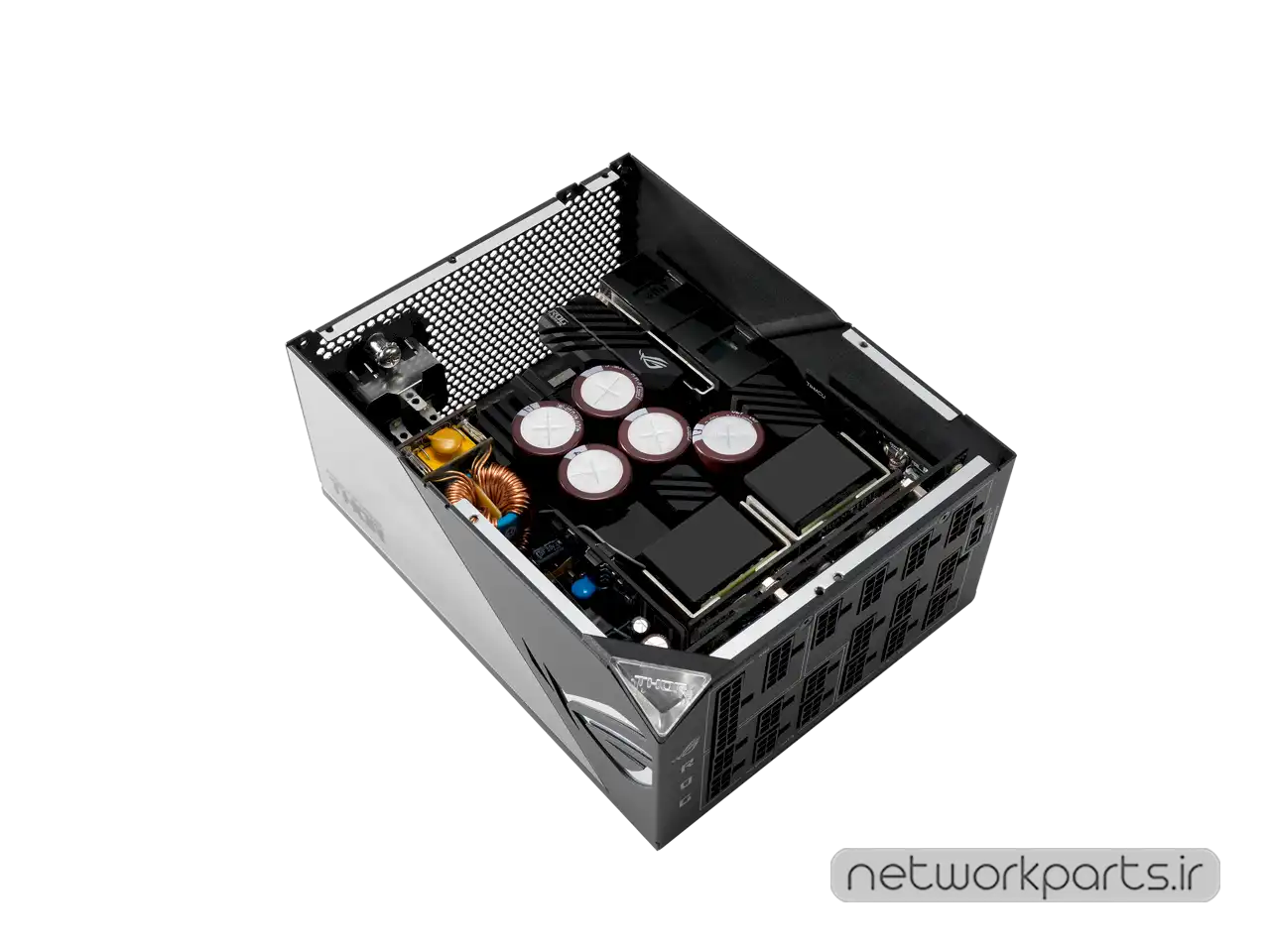

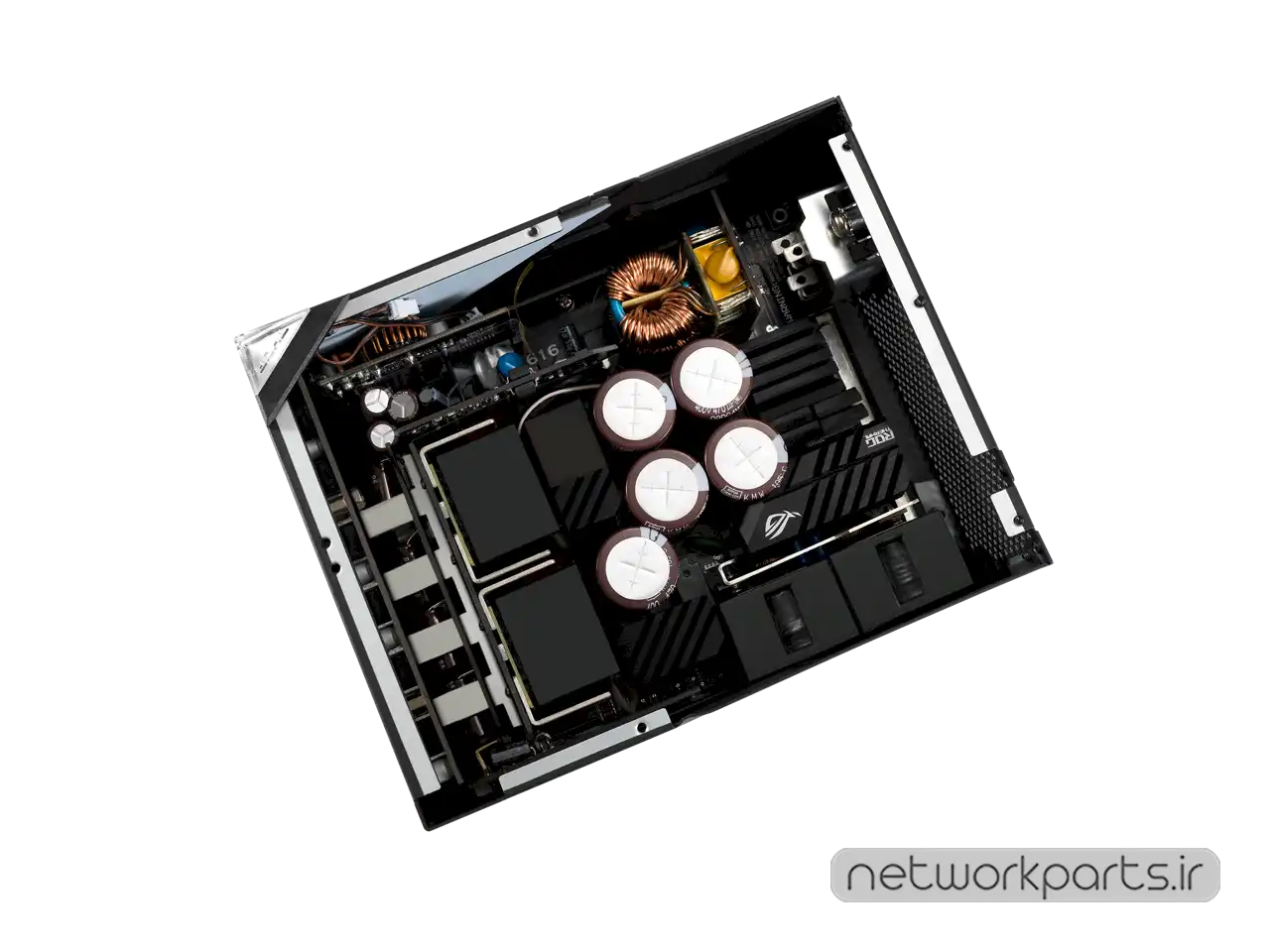

ویژگی ها	• 135MM PWM FAN, • 80 PLUS TITANIUM CERTIFICATION, • AURA SYNC, • DIGITAL POWER CONTROL. A digital controller provides precise control over the GaN power array, facilitating lightning-fast response to load changes., • GAN MOSFETS. Boasting lower switching losses and improved efficiency compared to conventional silicon transistors, GaN FETs allow the 1600W Thor to swing massive amounts of current without being, • LAMBDA A++ CERTIFICATION, • OLED display monitors power draw in real time., • PCIE GEN 5.0 READY. Each ROG Thor 1600W Titanium PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power deliv, • ROG HEATSINKS. Integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the PSU, further extending component lifespan., • SLEEVED CABLES. A range of sleeved cables are bundled with Thor, and we also provide a 20% CableMod discount.
محتویات بسته بندی	16-pin PCI-E Cable x 1 (675mm), Addressable RGB Cable x 1 (800mm), Cable Tie x 12, Chassis Screws Package x 1, CPU Cable x 2 (650mm), Motherboard Power Cable x 1 (610mm), PCI-E 1-to-1 Cable x 6 (675mm), PCI-E 1-to-2 Cable x 2(675+75mm), Peripheral 1-to-2 Cable x3(450+120mm), Power Cord x 1, ROG Cable Tie x 6, ROG Sticker x 1, SATA 1-to-4 Cable x 3(400+120+120+120mm), User Manual x 1
ابعاد	190 x 150 x 86 mm
بیشرین طول منبع تغذیه	190 mm
وزن	2.69 کیلوگرم
