منبع تغذیه کوگر (COUGAR) مدل GEX850

Name: منبع تغذیه کوگر (COUGAR) مدل GEX850 - تجهیزات شبکه
SKU: 1HU-003S-000B2
Price: 109 ABC
Availability: InStock

قیمت جهانی: ۱۰۹ دلار امریکا

موجود در انبار

کد محصول 1HU-003S-000B2 دسته بندی منبع تغذیه

مشخصات فنی محصول

برند محصول	کوگر (COUGAR)
مدل محصول	GEX850
نوع	ATX 12V
ماژولار	ماژولار کامل
بهره وری انرژی	80 Plus Gold
بیشترین توان	850W

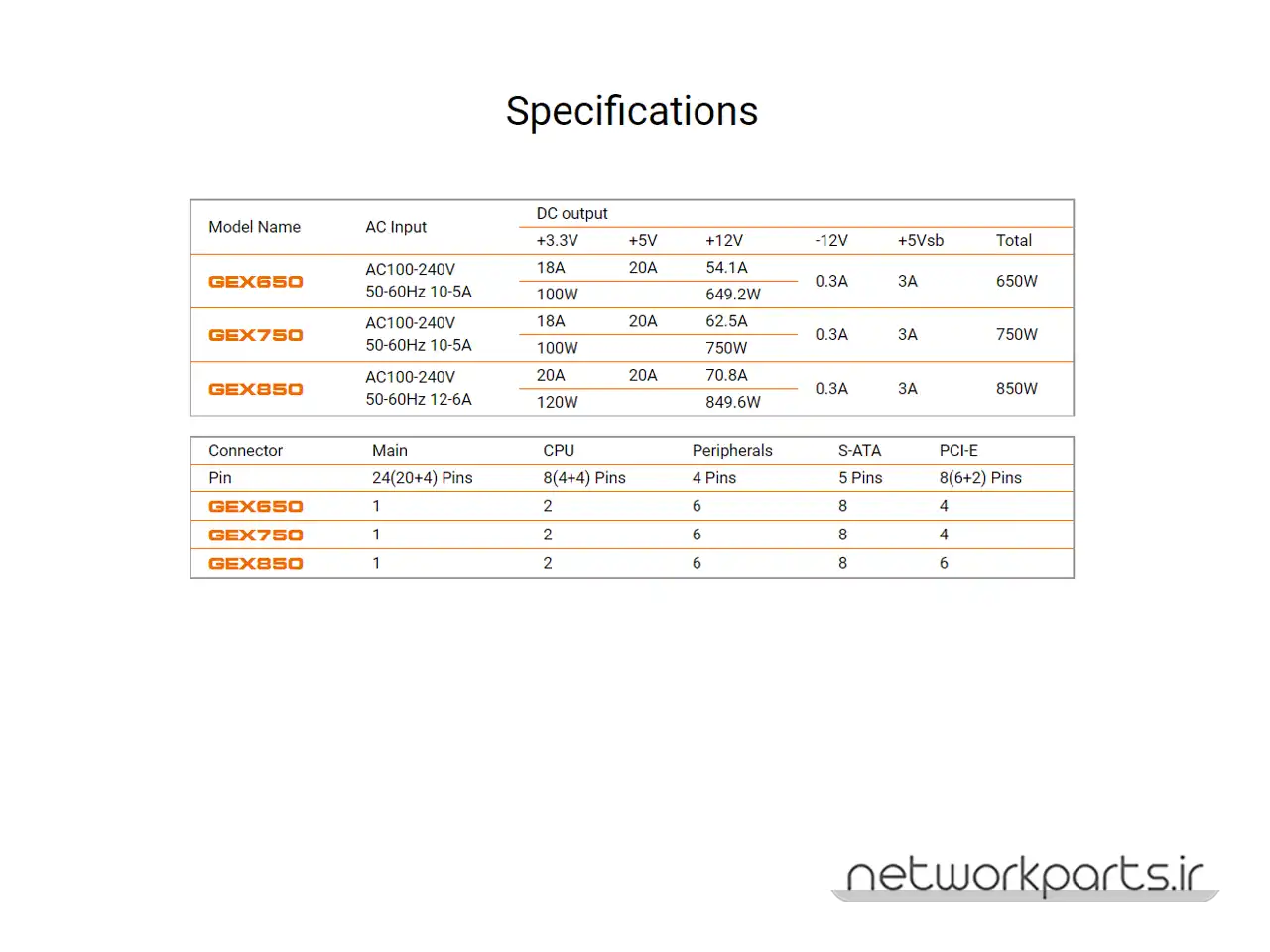

خروجی	[email protected], [email protected], +3.3V@20A, +5V@20A, +5VSB@3A
ولتاژ ورودی	100 – 240V
جریان ورودی	12 – 6 A
at_frequency-range	50/60 Hz
ریل 12V	1

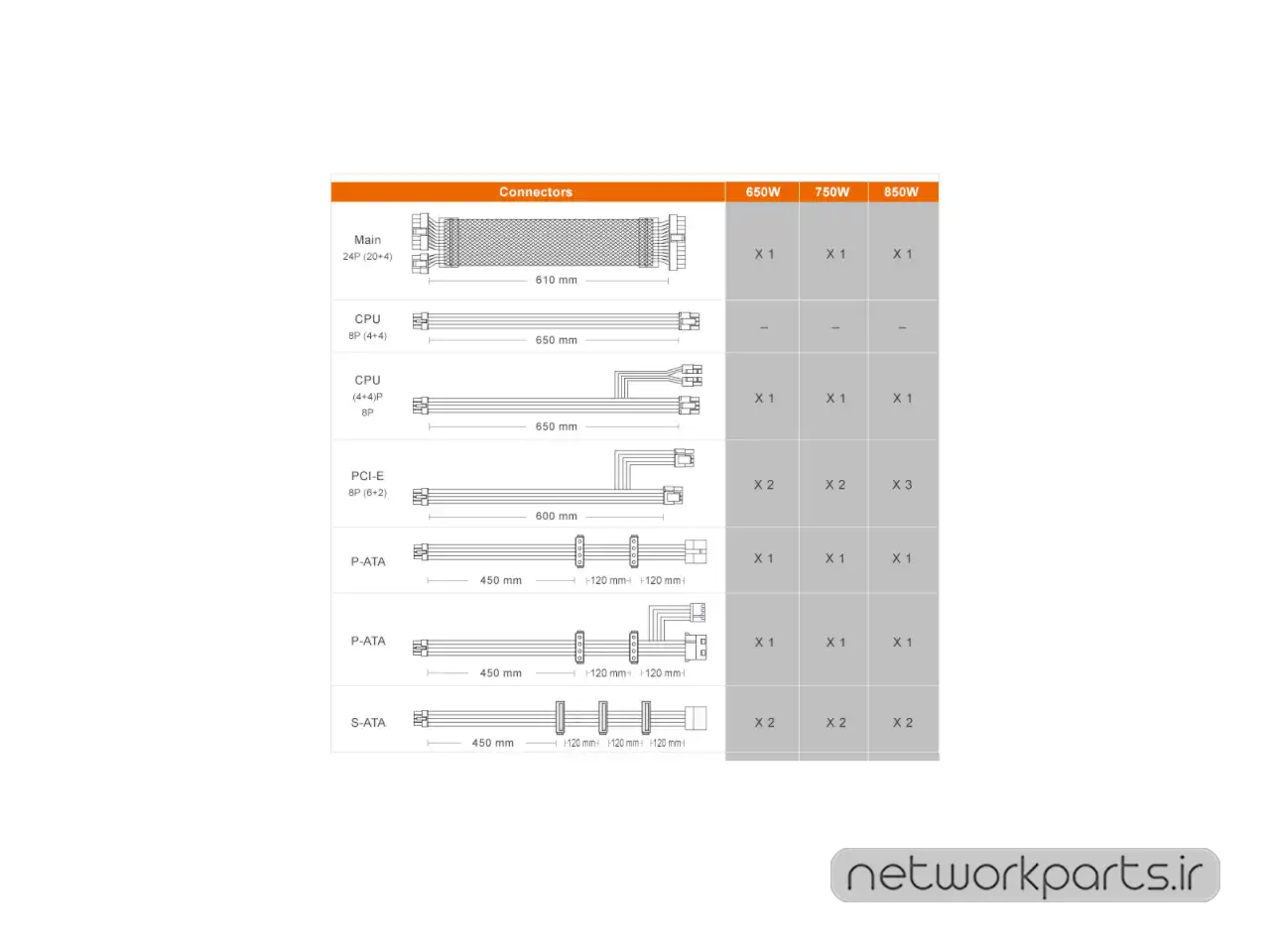

اتصالات	1 x Main 24(20+4) Pins, 2 x CPU 8(4+4) Pins, 6 x PCI-E 8(6+2) Pins, 6 x Peripherals 4 Pins, 8 x S-ATA 5 Pins
اتصال اصلی	20+4Pin
اتصال برق SATA	8
اتصال PCI-Express	6X 6+2-Pin
at_fans	1
اندازه فن	120 میلیمتر
at_protection	If the current on a single line is higher than indicated, If the system is oversized and requires more power from the PSU than it can provide, If the temperature gets too high, If the voltages fall below a certain tolerance value on the single lines, If the voltages increase above a certain tolerance value on the single lines, In the case of a short-circuit, OCP (Overcurrent Protection), OPP (Over Power Protection), OTP (Over Temperature Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), the PSU automatically switches off., this feature prevents damage to the core components of the PSU and its System components., this protection function is activated., UVP (Under Voltage Protection)
ویژگی ها	160 x 150 x 86 (mm), 80 PLUS Gold Certification, Advanced technology for noise minimization, Connect only the cables you need for less clutter and better airflow, COUGAR HDB Fan, DC to DC technology for enhanced voltage stability, Dimension, Flawless Operation at 40°C, Fully Modular Power Supply Unit, Hydro Dynamic Bearing Fan: Extended durability and lower noise levels, Maximum safety for your key system components, Powerful performance at 40°C ambient temperature, Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP, Superior fan Curve Tuning, Ultra-stable Voltage Outputs, Up to 91% efficiency power conversion to cut down your electricity bill
ابعاد	3.39" x 5.91" x 6.30"
بیشرین طول منبع تغذیه	160 mm
وزن	3.44 پوند
