برند محصول
|
ترمالتیک (Thermaltake)
|
|
سری محصول
|
TOUGHPOWER GF1
|
|
مدل محصول
|
PS-TPD-0850FNFAGU-W
|
|
نوع
|
ATX 12V V2.4, EPS v2.92
|
|
ماژولار
|
ماژولار کامل
|
|
بهره وری انرژی
|
80 Plus Gold
|
|
بیشترین توان
|
850W
|
|
خروجی
|
[email protected], [email protected], +3.3V@22A, +5V@22A, +5VSB@3A
|
|
ولتاژ ورودی
|
100 – 240V
|
|
جریان ورودی
|
12A (Max.)
|
|
at_frequency-range
|
47/63 Hz
|
|
ریل 12V
|
1
|
|

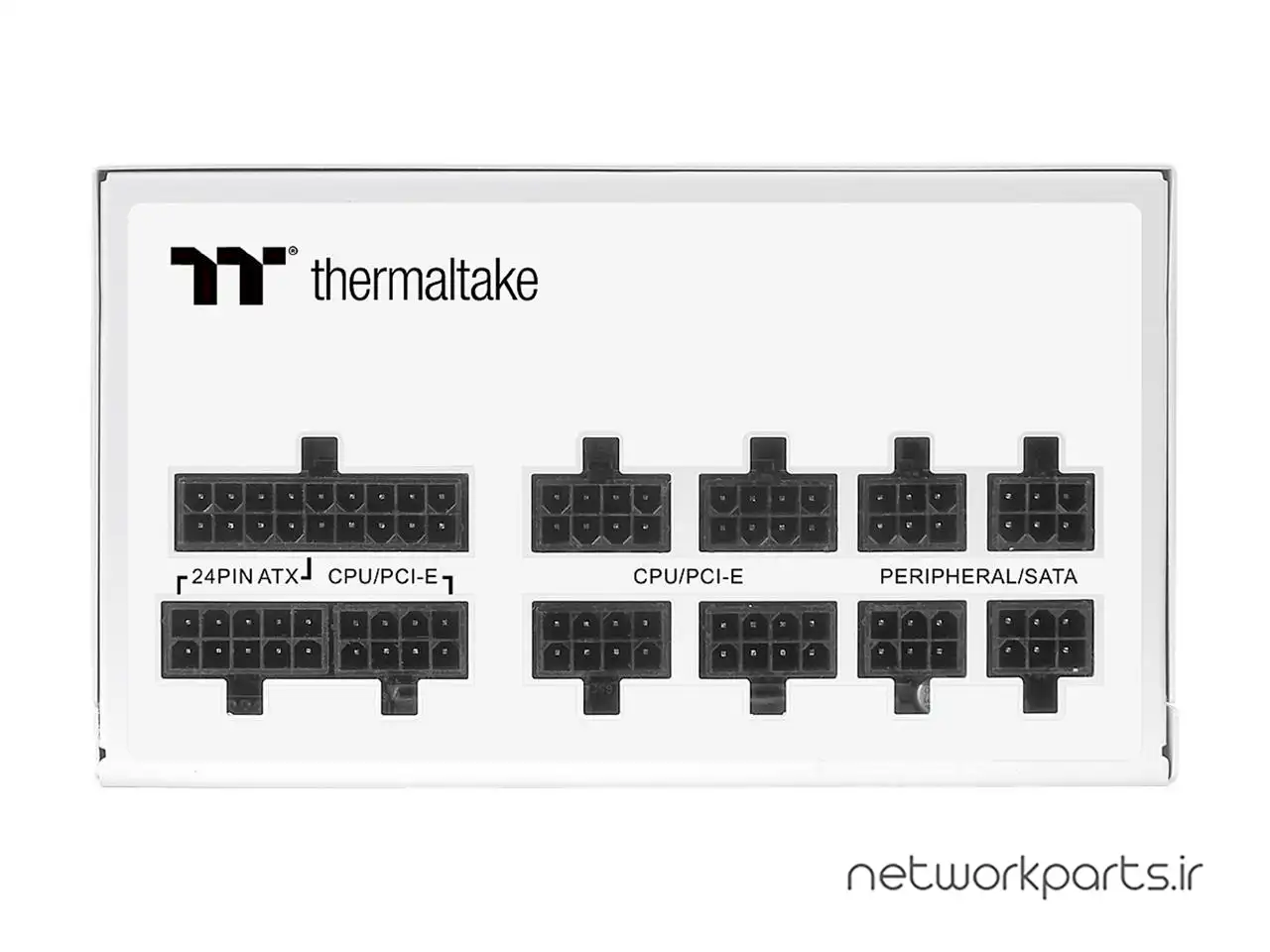

اتصالات
|
1 x 24 pin ATX, 1 x 8 pin (4+4) EPS (CPU), 1 x 8 pin CPU, 1 x Floppy, 12 x SATA, 4 x 4 pin Peripheral, 6 x 8 pin (6+2) PCIe
|
|
اتصال اصلی
|
24Pin
|
|
اتصال برق SATA
|
12
|
|
اتصال PCI-Express
|
6X 6+2-Pin
|
|
at_haswell-support
|
بلی
|
|
at_fans
|
1
|
|
اندازه فن
|
140 میلیمتر
|
|
at_protection
|
OCP, OPP, OTP, OVP,, SCP, UVP
|
|
at_cable-spec
|
2 x PCI-E 6+2Pin: Three cables (675+100mm), 24Pin MB: One cable (610mm), 3 x SATA: Four cables (500+150+150mm), 4 x Peripheral: One cable (500+150+150+150mm), 4+4Pin CPU: One cable (600mm), 8Pin CPU: One cable (650mm), FDD Adapter: One cable (150mm)
|
|
at_hold-up-time
|
> 16msec at 100% of full load
|
|
میانگین زمان بین خرابی‌ها (MTBF)
|
120000 ساعت
|
|
at_pfc
|
فعال
|
|
at_power-good-signal
|
100-500ms
|
|
ویژگی ها
|
<30mV Low Ripple Noise, 100% high quality Japanese 105°C/221°F capacitor, 850W continuous output at 80Plus Gold efficiency, Fully modular with low-profile flat White cables, High amperage single +12V rail design, Intel C6/C7 states & ErP ready, Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation, Ultra Quiet 140mm Hydraulic Bearing Fan, Upgraded CPU/PCI-E main cables (16AWG wires)
|
|
تاییدیه ها
|
BSMI, CCC, CE, cTUVus, EAC, FCC, TUV
|
|
رنگ
|
سفید
|
|

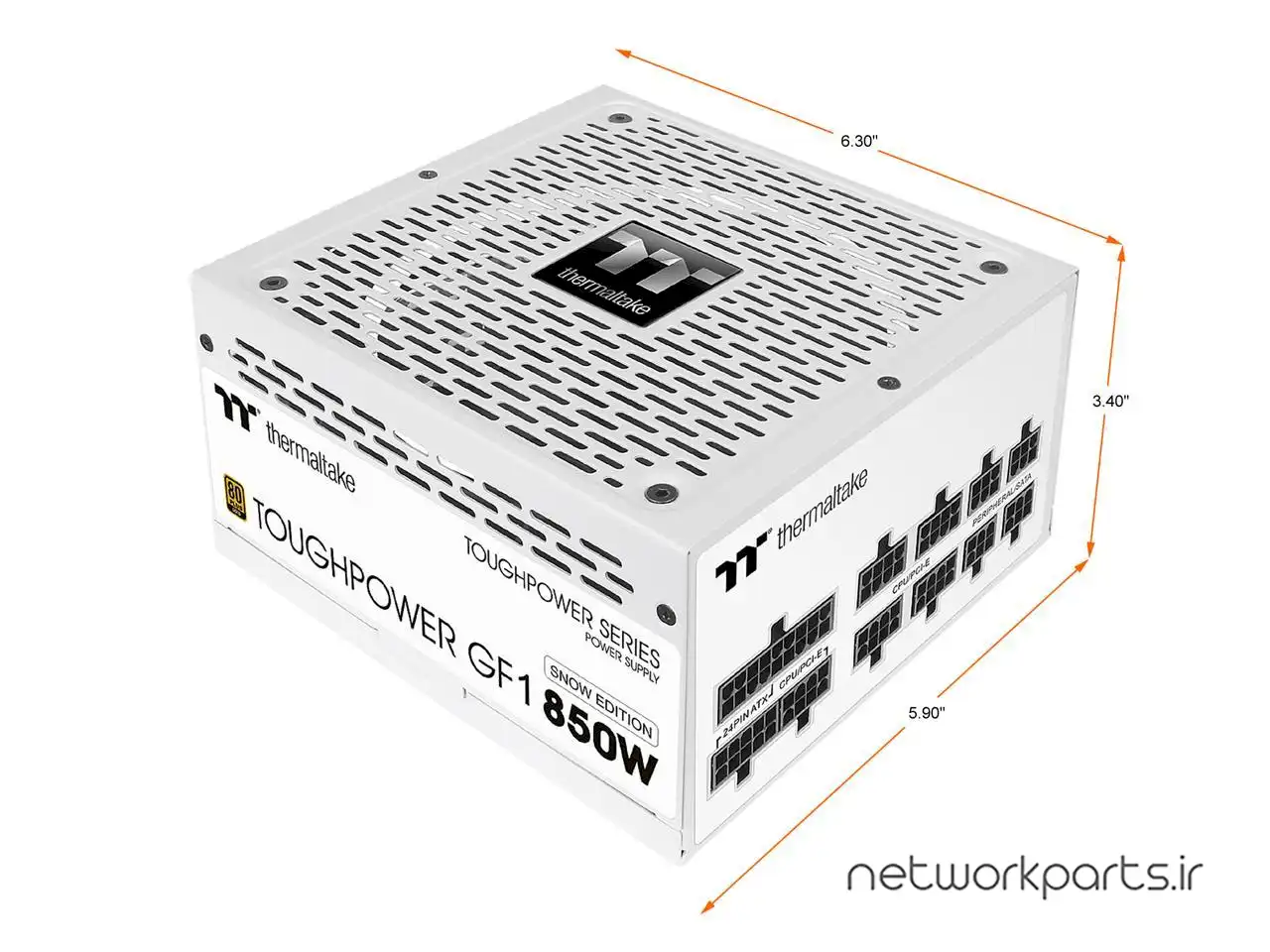

ابعاد
|
3.40" x 5.90" x 6.30"
|
|
بیشرین طول منبع تغذیه
|
160 mm
|
